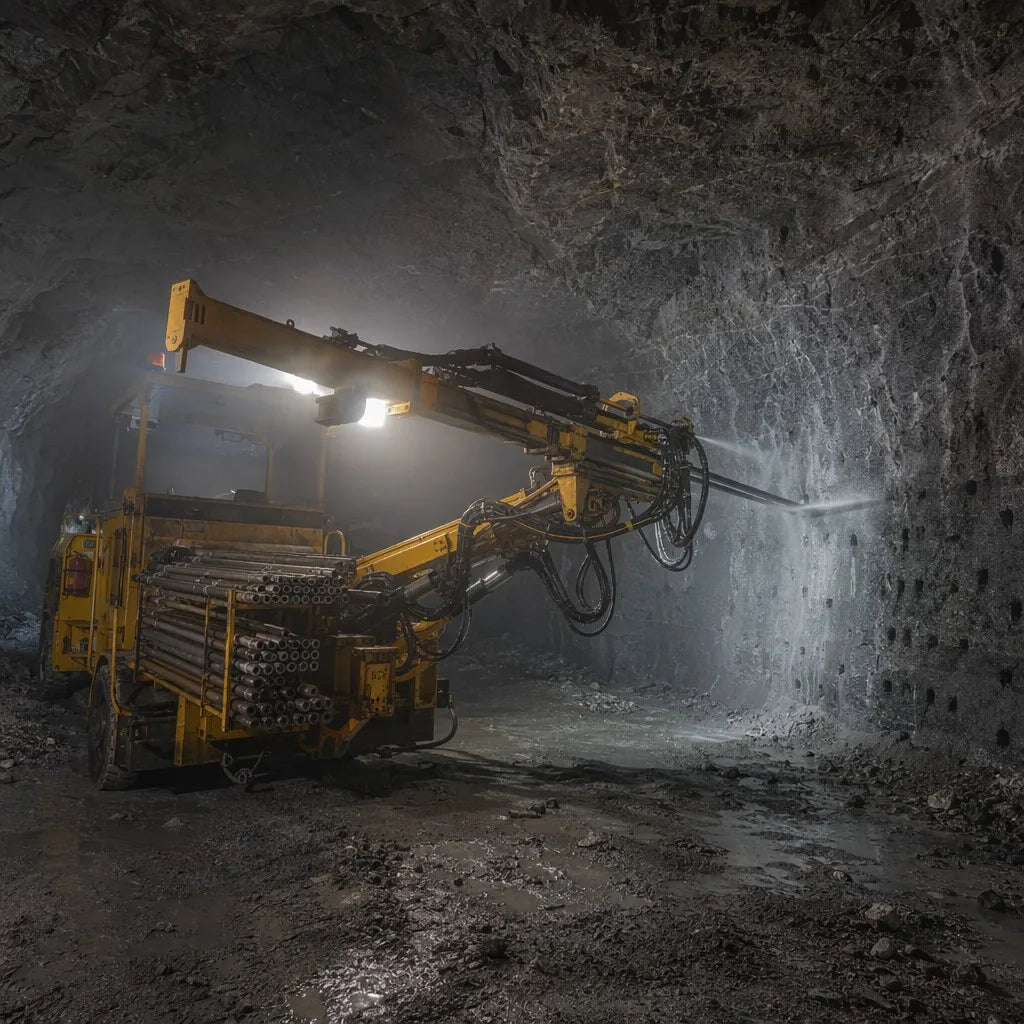

“How many drill rods should we buy?” cannot be answered from monthly meters alone. The order quantity depends on hole depth, rod length and architecture, number of headings or rigs, strings in simultaneous use, shift-change turnover, inspection/quarantine, expected wear by location, replacement lead time and whether couplings are separate or integrated.
A useful plan separates three quantities: rods needed to build the active strings, rods needed to keep production running while components are changed or inspected, and replenishment stock needed across the supply lead time. Calculate the installed requirement first, then apply site evidence to the buffer. Do not turn a generic spare percentage into a universal rule.
Freeze the system before counting
| Input | Why it changes quantity | Evidence to use |
|---|---|---|
| Drifter/shank adapter | Locks the first interface | Rig list and controlled parts reference |
| Thread system | Prevents mixing R32, T38, T45 or other families | Markings, drawing or catalogue |
| Rod architecture | Extension rods use separate couplings; MF/speed rods do not follow the same count | Approved string diagram |
| Rod length | Determines rods per target depth | Feed length, handling limit and hole plan |
| Hole depth range | Drives maximum installed pieces per string | Drill plan, not only average depth |
| Active headings/rigs | Determines simultaneous strings | Production schedule |
| Shift/inspection cycle | Creates unavailable stock during change and inspection | Maintenance workflow |
| Consumption history | Converts buffers into evidence | Rod/coupling issue and failure log |
| Replenishment lead time | Determines reorder exposure | Confirmed supply and transport plan |
Use the Drill Rods selection guide to lock the product family before calculating quantity. If the thread is uncertain, use the R32/T38/T45 identification guide.
Step 1: calculate rods per active string
For a simple extension-rod string, begin with:
Rods per string = ceiling(required rod-supported hole length ÷ usable rod advance per piece)
The “required rod-supported length” may differ from finished hole depth because the shank adapter, bit, starter arrangement and feed position contribute differently. The “usable advance” may differ from nominal rod length because the connection and machine arrangement consume length. Use the approved string drawing or field measurement; do not subtract a guessed allowance.
Check the deepest planned hole and the normal hole separately. If 80% of holes use three rods but critical holes use four, production may still require a four-rod active string. Use the R32 rod length guide or T38 rod length guide for length-selection inputs.
Step 2: count simultaneous active strings
Multiply rods per string by the number of drills or headings that can operate at the same time. Do not use the total fleet count if only part of the fleet can run; do not use average utilization if the plan requires peak simultaneous production.
Installed rods = rods per string × simultaneous active strings
If different rigs use different threads, rod lengths or architectures, calculate each population separately. A total of 100 rods is not operationally useful if the correct thread is unavailable at the required heading.
Step 3: count couplings from the approved architecture
For male/male extension rods, a string normally requires a separate coupling at each rod-to-rod connection. The exact count depends on where the shank adapter and bit connect and on the approved string architecture. MF/speed rods contain male/female connections and should not be counted with the same separate-coupling formula.
Create a string diagram and count actual connection points. Verify standard, full-bridge or other controlled coupling type where relevant. Use the R32 coupling selection guide and the drill rod/coupling specification checklist before fixing the order.
Step 4: add changeover and inspection stock
Production needs stock outside the active string when rods are being cleaned, inspected, moved, quarantined or replaced. Map the actual shift workflow:
- how many complete or partial strings are staged at the face;
- how many rods are in transport between face, store and workshop;
- how many are normally in inspection or quarantine;
- whether a damaged connection forces removal of one piece or the whole string;
- how quickly approved replacements can reach the heading.
This becomes the operational buffer. It should be expressed as pieces by thread/length/architecture, not only as a percentage. A site with remote headings and weekly inspection has a different requirement from a site with a central store beside the rig.
Step 5: use consumption history for the replenishment buffer
Build a monthly log by rod and coupling type. Record meters or holes drilled, issue date, removal date, failure location, wear disposition, recoverable items and operating condition. Separate normal wear from abnormal loss caused by bending, thread damage, poor lubrication, mismatch or hole-control problems.
Estimate expected demand during confirmed replenishment lead time, then add a risk allowance based on variability and service criticality. Do not use the highest failure month without explanation, and do not use a smooth average if shutdown risk is unacceptable.
The consumables inventory guide provides reorder-point concepts. The cost-per-meter guide helps normalize consumption against work done.
Step 6: prevent false availability
A rod in stock is not necessarily an available rod. Exclude or separately flag:
- unidentified thread or length;
- failed straightness or crack inspection;
- worn or damaged connections beyond the controlled limit;
- missing compatible coupling;
- mixed architecture not approved for the string;
- quarantine for claim or failure analysis;
- stock allocated to another rig or contract;
- transit stock without a reliable arrival date.
Use the rod failure guide and thread gauge inspection guide to define disposition. Do not release a worn component merely to improve the inventory number.
Worked planning template without invented percentages
Create one row per approved rod family:
| Field | Example entry format |
|---|---|
| Rig/drifter | Exact model |
| Thread and architecture | T38 extension or controlled alternative |
| Rod body and nominal length | Drawing/catalogue value |
| Maximum planned hole | Site drill plan |
| Rods per active string | Calculated from approved geometry |
| Simultaneous strings | Production schedule |
| Installed rods | Calculated |
| Operational buffer | Face + transport + inspection + quarantine workflow |
| Lead-time demand | Historical rate × confirmed lead time, adjusted transparently |
| Risk allowance | Site-approved quantity and reason |
| Total order target | Installed + operational + replenishment components minus usable on-hand |
| Coupling target | Connection architecture + operational/replenishment plan |
Show every assumption next to the number. When history is missing, begin with a conservative provisional plan approved by operations and purchasing, then update it after the first controlled consumption cycle.
Internal-link and maintenance loop
Quantity planning works only if inspection and compatibility control feed it. Use the new-versus-worn rod guide before mixing stock, and the thread grease guide to reduce preventable connection loss. Track whether each removed component failed from normal wear, mismatch or operating conditions; the next order should correct the cause, not just replace the count.
RFQ inputs
Send rig/drifter and shank-adapter identity, thread, rod architecture, body/length, hole depth range, active headings and drills, string diagram, monthly meters/holes, issue/removal history, usable on-hand stock, coupling type, lead-time requirement, packaging and destination. Review the Drill Rods collection, then request a quantity and compatibility review.
FAQ
Can I calculate drill rods from monthly drilled meters only?
No. Monthly meters help estimate replenishment, but installed quantity depends on string geometry and simultaneous headings, while operational stock depends on changeover, inspection and logistics.
Should couplings be ordered at the same quantity as rods?
Not automatically. Count connection points for the approved rod architecture, then use coupling wear and lead-time evidence. Male/male extension rods and MF/speed rods do not use the same separate-coupling count.
Is a fixed 10% or 20% spare factor acceptable?
It may be a temporary planning assumption if explicitly approved, but it is not a universal engineering rule. Replace it with site consumption, downtime risk and confirmed lead-time evidence as soon as possible.
