Direct answer: “R32 coupling sleeve” is not a complete purchasing specification. R32 identifies the thread family, but the correct coupling still depends on the rod-end architecture, whether both interfaces are actually R32, the required coupling design (standard/semi-bridge or full-bridge), the coupling dimensions, and the drill-string configuration approved for the rig. For two compatible male-ended R32 extension rods, an R32–R32 sleeve is the normal same-thread connection. If the two ends use different thread families, a purpose-designed crossover coupling is required. If the string uses male–female rods, a separate coupling sleeve may not be needed at that joint.
For PerfoMax buyers, the current R32–R32 coupling sleeve is quoted as a standard same-thread coupling by default, while a full-bridge internal structure can be quoted when the drill-string design specifically requires it. The quotation drawing—not the word “R32” alone—should control the final order.
1. What Does an R32 Coupling Sleeve Actually Do?
In a male–male top-hammer extension-rod string, the coupling sleeve joins two threaded rod ends so percussion energy, rotation torque and flushing continuity can pass through the assembled drill string. It also helps keep the two threaded components aligned around the connection.
The important point for procurement is that the sleeve is part of a system. A correct R32 thread label does not automatically prove that the coupling belongs in the installed string. The buyer should still confirm:
- both mating male threads and their thread family;
- rod type: male–male extension rod or male–female/speed rod;
- coupling internal design and center-stop geometry;
- outside diameter and overall length;
- the rock drill, shank adapter, rod, coupling and bit combination;
- the rig’s guides, rod handling and operating envelope.
2. Standard, Full-Bridge, and Crossover Couplings Are Different Jobs
| Coupling type | Primary job | What the buyer must confirm | Do not assume |
|---|---|---|---|
| Standard / semi-bridge | Connect two compatible same-thread male components in a conventional extension string. | Thread family, dimensions, internal bridge/stop geometry and the approved drill-string configuration. | That every R32 standard sleeve has the same body diameter or internal geometry. |
| Full-bridge | Provide a more defined central stop so the mating components seat against the bridge. | That the rod system is designed for this configuration and the quoted drawing matches the existing string. | That “full-bridge” is automatically a universal upgrade for every R32 application. |
| Crossover coupling / adapter | Connect two intentionally different thread interfaces. | Thread A, Thread B, orientation if relevant, length, diameter and approved application. | That a normal R32–R32 sleeve can convert R32 to T38, R38 or another thread family. |
Terminology can vary slightly by manufacturer. Some catalogs use “standard,” others use “semi-bridge,” and manufacturers can differ in the exact internal geometry they associate with those names. Treat the supplier drawing and part number as the controlling definition.
3. Why “R32” Alone Is Not Enough to Specify a Coupling
Current OEM catalogs show why buyers should not reduce the decision to one thread name. Epiroc’s current top-hammer catalog lists multiple R32–R32 standard couplings at the same 150 mm length but with different outside diameters, including 34.5, 42 and 44 mm, as well as an R32–R32 full-bridge version at 44 × 150 mm. These are Epiroc catalog examples, not universal dimensions for every R32 system, but they demonstrate the key purchasing principle: the thread family does not uniquely define the complete coupling.
Robit likewise separates coupling sleeves from coupling adapters and offers coupling products in semi-bridge and full-bridge configurations. Its current product browser lists an R32 coupling sleeve at 150 mm length and 44 mm diameter, while separate adapters connect unlike thread families such as R32–R25 or R38–R32.
For a replacement order, therefore, the safest hierarchy is:
- Identify the installed drill string and rod-end type.
- Confirm the two interfaces that must actually mate.
- Confirm standard/semi-bridge, full-bridge or crossover function.
- Confirm the physical dimensions and internal geometry.
- Lock the specification with a drawing, part number or approved sample.
4. Male–Male Rods and Male–Female Rods Need Different Thinking
A separate sleeve is typically relevant when two male-ended extension rods need to be joined. That is the architecture behind PerfoMax’s current R32–R32 coupling product and the current R32 drill-rod selection page.
Male–female rods are different. The female connection is incorporated into the rod itself, so the string may not use a separate coupling sleeve at each rod-to-rod joint. Robit’s current long-hole drilling guidance explicitly describes male–female rods as having the coupling integrated into the rods. This is why an RFQ that only says “R32 rods + R32 couplings” can still be wrong: the buyer may be describing the thread family but not the actual rod architecture.
If you are unsure whether your current string is male–male or male–female, compare both rod ends, check the current part number, and review the existing connection before ordering. The related PerfoMax guide R32 Extension Rod vs Speed Rod explains this distinction in more detail.
5. When Should You Choose Standard vs Full-Bridge?
There is no responsible universal rule that says full-bridge is always better. The right decision is driven by the existing drill-string design, connection behavior, service history and the supplier/OEM-approved configuration.
| Situation | Better next step | Reason |
|---|---|---|
| An existing R32 standard coupling is performing correctly and the replacement is like-for-like. | Keep the approved standard configuration. | Changing internal geometry without a defined problem adds compatibility risk rather than removing it. |
| The existing system specifies a full-bridge coupling by part number or drawing. | Replace with the matched full-bridge configuration. | The central stop geometry is part of the approved system specification. |
| Connection control or coupling migration is a recurring issue and a full-bridge option is approved for the rod system. | Evaluate the approved full-bridge option. | A more defined central stop can change how the mating components seat. |
| The two components use different thread families. | Specify a crossover coupling/adapter. | A same-thread R32–R32 sleeve cannot solve a deliberate thread-family mismatch. |
| The buyer only knows “R32” and has no dimensions, part number or rod-end information. | Do not finalize the order yet. | The information is insufficient to control the connection. |
6. A 7-Step R32 Coupling Selection Workflow
- Identify the rock drill and shank adapter. Record the rig make/model, rock-drill model and the shank adapter identification if available.
- Map the current rod string. Record rod thread, body type, length and whether each rod is male–male or male–female.
- Confirm both mating interfaces. For a normal R32–R32 sleeve, both relevant male ends must be compatible R32 interfaces.
- Define the coupling function. Is this a same-thread standard/semi-bridge sleeve, a full-bridge sleeve, or a crossover between different threads?
- Confirm dimensions and internal geometry. Use the existing part number, approved drawing or measured sample. Do not select by appearance alone.
- Check the whole string. Make sure the coupling choice does not conflict with the shank adapter, rods, bit, guides or rod-handling system.
- Freeze the RFQ and acceptance basis. Put the thread pair, coupling type, dimensions, quantity and drawing/inspection requirements into the quotation or PO.
7. Common R32 Coupling Ordering Mistakes
- Ordering only “R32 coupling.” This leaves body dimensions and internal structure uncontrolled.
- Assuming full-bridge is automatically stronger or better. It is a connection-design choice, not a universal performance upgrade.
- Using R32–R32 as a conversion part. If the two ends are different thread families, specify the crossover explicitly.
- Adding sleeves to an MF rod string by habit. The female end may already provide the rod-to-rod connection.
- Copying a competitor’s dimensions without checking the installed system. OEM catalogs show that multiple R32 coupling dimensions can coexist.
- Mixing new couplings with badly worn mating threads without inspection. A new sleeve cannot correct an already damaged or incompatible connection.
- Approving by visual fit. A connection can appear to start threading while still being the wrong specification.
8. What to Send in an R32 Coupling Sleeve RFQ
- rig make and model;
- rock-drill model and shank adapter identification;
- rod thread family and rod-end type;
- the two interfaces that the coupling must connect;
- existing coupling marking or part number;
- standard/semi-bridge or full-bridge requirement, if already defined;
- outside diameter and overall length, or an approved drawing;
- clear photos of the existing coupling and both mating rod ends;
- application, typical hole diameter and hole depth;
- quantity and delivery destination;
- required inspection, marking and packing documents.
If the current part is unavailable for identification, send the most complete drill-string list possible. The supplier should resolve the connection before quotation rather than treating “R32” as a complete specification.
9. Quick Buyer Checklist Before Approval
| Check | Pass condition |
|---|---|
| Thread pair | Both interfaces are explicitly identified; same-thread or crossover function is clear. |
| Rod architecture | MM vs MF is confirmed. |
| Coupling type | Standard/semi-bridge, full-bridge or crossover is stated. |
| Dimensions | OD and length match the approved drawing or replacement basis. |
| System compatibility | Shank adapter, rods, coupling and bit are reviewed as one drill string. |
| Acceptance basis | Part number/drawing, inspection scope and packing requirements are attached to the order. |
FAQ
Is every R32 coupling sleeve interchangeable?
No. R32 identifies the thread family, but coupling outside diameter, length, internal bridge design and intended drill-string configuration can differ. Match the approved part number or drawing.
What is the difference between a standard and full-bridge R32 coupling?
The main difference is the internal center-stop/bridge geometry. A full-bridge design provides a more defined central stop for the mating components. The exact geometry is manufacturer-specific, so the supplier drawing should control the order.
Can an R32–R32 coupling connect an R32 rod to a T38 rod?
No. That requires a purpose-designed crossover connection with the two different thread interfaces explicitly specified.
Do R32 male–female rods need a separate coupling sleeve?
Not necessarily. In an MF rod architecture, the female connection is integrated into the rod, so a separate sleeve may not be used at that rod-to-rod joint.
What is the fastest way to prevent a wrong R32 coupling order?
Send the existing coupling part number or drawing, both mating rod-end details, MM/MF rod type, dimensions, and clear photos before quotation.

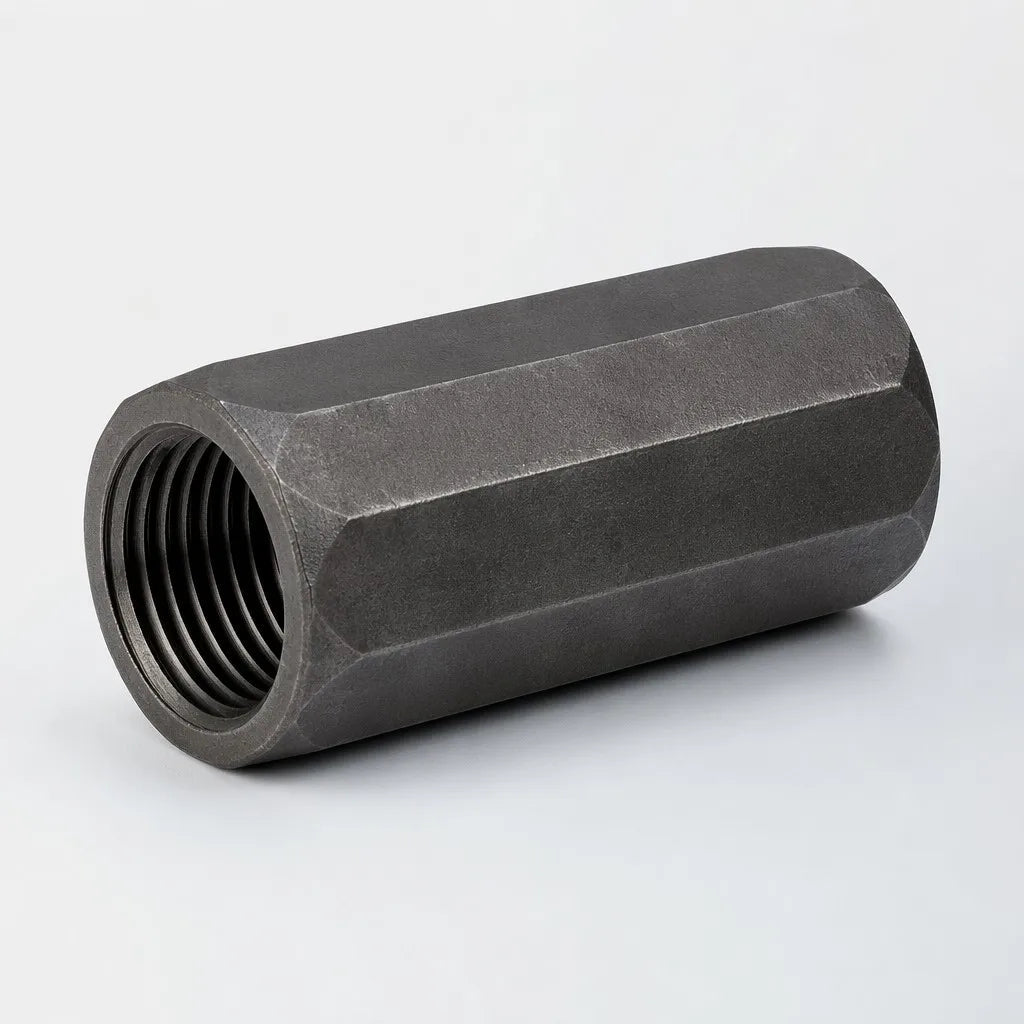

PerfoMax R32 Coupling Sleeve
PerfoMax’s current R32–R32 coupling sleeve is intended for compatible male-ended R32 top-hammer components. The standard same-thread coupling is the default quotation basis; a full-bridge version can be quoted when explicitly required by the drill-string design. Dimensions, internal geometry, material/hardness requirements and inspection scope are confirmed by quotation drawing.
For a replacement or mixed-fleet project, send the complete connection information through the PerfoMax RFQ form. If the problem is wear or cracking rather than initial selection, also see the Top Hammer Coupling Sleeve Failure Guide.
