R32 vs T38 Top Hammer Threads: Can You Interchange Them, and When Should You Step Up?
Direct answer: R32 and T38 are different top-hammer thread systems and should not be treated as directly interchangeable. A complete drill string must be matched from the rock-drill/shank-adapter side through the rod, coupling and bit. Purpose-built R32–T38 crossover components exist in some manufacturers’ ranges, but a crossover is a controlled transition component—not evidence that any R32 and T38 parts can be mixed freely.
For a quarry, contractor, distributor or maintenance buyer, the expensive mistake is rarely choosing the “wrong number” in isolation. It is changing one component without confirming the interfaces around it. This guide explains where R32 and T38 differ, what must be checked before conversion, when a T38 system may be a sensible step up, and what information should be included in an RFQ.
1. Are R32 and T38 Directly Interchangeable?

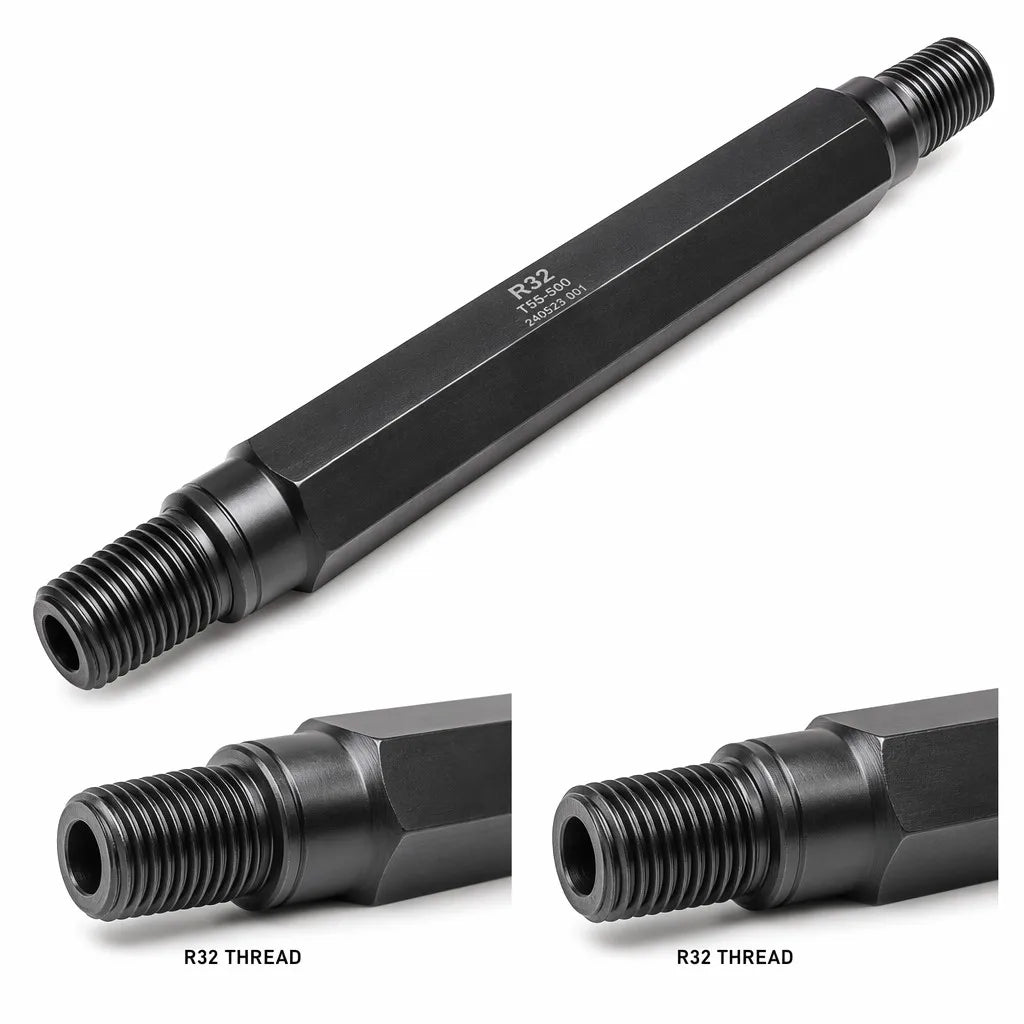

No. Treat R32 and T38 as two distinct connection families. A normal R32 male thread should be matched with the corresponding R32 female connection, and a normal T38 male thread with the corresponding T38 female connection. The fact that both are widely used in top-hammer drilling does not make the threads equivalent.
OEM catalogues reinforce this system approach. Epiroc publishes separate R and T drill-string families with different shank adapters, rods and bits. Its current R32 range is positioned primarily around bolting and construction small-diameter-hole applications, while its T38 range is positioned around bench drilling and construction. These are manufacturer-specific application ranges, not universal limits for every brand or rig.
| Question | R32 | T38 | Buyer implication |
|---|---|---|---|
| Same thread family? | R-family connection | T-family connection | Do not assume direct mating |
| Typical OEM positioning | Often lighter/smaller-hole bolting and construction applications | Often bench drilling and construction applications | Use your actual OEM range, not a generic internet table |
| What must match? | Shank adapter, rod/coupling and bit interfaces | Shank adapter, rod/coupling and bit interfaces | Specify the complete string |
| Can a transition exist? | Yes, where a purpose-built R32–T38 crossover is specified by the tool manufacturer | Confirm exact part and intended use | |
2. Why the Thread Name Alone Is Not Enough
Thread designation is only one layer of drill-string compatibility. Even after you identify R32 or T38, the buyer still needs to confirm rod length, body profile, flushing passage, end configuration and the rock drill or shank adapter that drives the string.
This is especially important for replacement purchases. A rod can be the correct thread family and still be wrong for the installed setup because its length, body or end configuration does not match the feed, rod handler, coupling arrangement or bit interface.
- Rock drill and shank adapter: confirm the installed rock-drill model and the thread on the shank-adapter output end.
- Rod configuration: confirm extension rod versus male/female or speed-rod architecture, as applicable.
- Coupling: confirm whether the string uses a separate coupling sleeve or an integrated female end.
- Bit: confirm the bit thread matches the rod end that actually drives it.
- Feed and handling: confirm rod length and physical configuration suit the rig’s feed and handling system.
3. When Does Moving from R32 to T38 Make Sense?
A move from R32 to T38 should be driven by the drilling system and application—not by the idea that a larger designation is automatically better. The decision normally starts with the rock drill and intended hole/application envelope, then works outward through the shank adapter, rod, coupling, bit and handling system.
As one OEM example, Epiroc lists R32 mainly for bolting and construction small-diameter holes, while T38 is listed for bench drilling and construction. That is useful directional evidence, but your installed rock drill and its approved tool range remain the controlling reference.
| Field situation | Likely direction | What to verify before deciding |
|---|---|---|
| Existing R32 system performs reliably and meets hole/application requirements | Stay with R32 unless another constraint exists | Current wear, ROP, hole quality and availability |
| Rig/rock drill is approved for T38 and the job is moving toward bench-drilling duty | Evaluate T38 as a full-string option | Shank adapter, feed, rod length, coupling/bit range and handling |
| Only one replacement component is unavailable | Do not convert the whole system automatically | Equivalent same-thread replacement first |
| A temporary interface between R32 and T38 is proposed | Use only a specified crossover component | Manufacturer part number, orientation and operating suitability |
4. Can an R32–T38 Crossover Adapter Make the Systems Compatible?
A crossover component can connect two different thread ends when it is intentionally designed for that combination. Rockmore’s top-hammer handbook, for example, lists dedicated R32–T38 coupling adapters. This proves that controlled transition hardware exists; it does not mean an R32 rod can simply be screwed into a standard T38 coupling or T38 bit.
For procurement, treat the crossover as its own engineered line item. Record its thread on both ends, part number, location in the string and intended operating use. It also becomes another interface that must be inspected, stocked and correctly assembled.
5. Seven Checks Before Converting an Existing R32 String to T38
- Identify the rock drill model. Do not start from the rod alone. The rock drill determines which shank adapters and tool systems are approved.
- Confirm the current shank-adapter output thread. Record the exact thread and, where possible, OEM or supplier part number.
- Check whether a T38 shank adapter exists for the same rock drill. Some rock-drill platforms are offered with more than one thread option, but this is model-specific.
- Map the complete current string. Record shank adapter → first rod → coupling or MF connection → extension rods → bit.
- Check rod length and feed compatibility. A thread conversion that produces the wrong rod length for the feed or handler is not a successful conversion.
- Reconfirm the bit and hole plan. Select the bit on the target T38 string according to the job, rock and approved product range—not by reusing an R32 assumption.
- Run a controlled field trial. Compare penetration rate, coupling behavior, wear, hole quality and handling before standardizing the new inventory.
6. R32 vs T38: Procurement Decision Matrix
| Decision variable | Favor staying with R32 | Reason to evaluate T38 |
|---|---|---|
| Installed equipment | Current rock drill/shank setup is R32 and proven | Rock drill has an approved T38 shank/tool option |
| Application | Current bolting/construction/smaller-hole duty is stable | Work is moving toward a T38-type bench/construction duty |
| Inventory | R32 rods, bits and couplings are standardized and available | A planned fleet standardization supports T38 |
| Performance | No persistent string-related limit is demonstrated | Current system has a verified durability/handling/application constraint that T38 may address |
| Conversion cost | Changing multiple components creates little measurable benefit | Full-string conversion has a clear operational case and can be trialed |
Important: This matrix is a decision framework, not a universal sizing table. Hole range and rock-drill compatibility vary by manufacturer and product generation.
7. Common R32/T38 Compatibility Mistakes
- Matching by nominal size only. The number in the thread name is not a permission to mix different thread families.
- Changing the rod but not the shank adapter. A new rod family must start with a compatible rock-drill-to-string interface.
- Forgetting the bit end. The final bit thread must match the final rod or adapter connection.
- Using a generic hole-diameter chart as an absolute rule. OEM ranges overlap and differ; use the actual tool catalogue for your equipment.
- Assuming a crossover adapter converts the whole fleet. It solves one defined interface, not every system constraint.
- Ignoring rod length and end type. Thread-compatible does not automatically mean feed-compatible or handler-compatible.
- Buying from photos alone. Thread designation, end configuration and part numbers should be written into the RFQ.
8. RFQ Checklist for an R32 or T38 Drill String
- Rock-drill make and exact model
- Current shank-adapter part number or confirmed output thread
- Required thread family: R32 or T38
- Rod type: extension, male/female/speed rod, guide rod or other specified configuration
- Rod body/profile and required length
- Coupling arrangement and any crossover requirement
- Bit thread and required bit diameter
- Target hole diameter and typical hole depth
- Application: bolting, construction, bench drilling, drifting or other
- Rock condition and known wear/straightness issues
- Rig feed length and rod-handling constraints
- Quantity, destination and requested inspection/packing evidence
For current PerfoMax options, see the R32 Drill Rod Selection page and the T38 Extension Drill Rods page. If you are converting an installed fleet, send the rock-drill model and current string details through Request a Quote so the interfaces can be checked before quotation.
9. FAQ
Can I screw an R32 rod directly into a T38 coupling?
Not as a normal same-thread connection. R32 and T38 are separate thread systems. Use only a purpose-built crossover component when a manufacturer specifies that transition.
Can the same rock drill run both R32 and T38?
Some rock-drill families are offered with different shank-adapter thread options, but compatibility is model-specific. Confirm the exact rock drill and approved shank adapter before changing the drill string.
Does T38 always drill a larger hole than R32?
No universal rule should be used. OEM ranges can overlap. T38 is commonly positioned for bench/construction drilling, while R32 is commonly positioned for smaller-hole bolting/construction work, but the actual bit and hole range must come from the tool manufacturer for the installed setup.
Is an R32–T38 crossover suitable for permanent use?
That depends on the specific component and manufacturer guidance. Treat the crossover as an engineered transition part and confirm its intended operating use. A permanent fleet conversion still requires a complete drill-string review.
What is the minimum information a supplier needs to quote correctly?
At minimum, provide the rock-drill model, current/target thread, rod configuration and length, coupling arrangement, bit thread/diameter, application and hole requirements. More complete information reduces substitution and compatibility errors.
Sources & Technical References
- Epiroc, T Drill Strings — T38 application, rock-drill and drill-string configuration reference.
- Epiroc, R Drill Strings Brochure — R32 application and product-family reference.
- Rockmore International, Top Hammer Product Handbook — coupling-adapter data including purpose-built R32–T38 transition components.
Decision Summary
Do not treat R32 and T38 as drop-in substitutes. First confirm the rock drill and shank adapter, then map every connection through to the bit. If your current R32 system meets the job, there is no automatic reason to change it. If your equipment and application support T38 and there is a clear operational reason to step up, evaluate T38 as a complete string and validate the change in a controlled field trial.
