Direct answer: do not identify an unknown top-hammer thread from appearance alone. The safest sequence is to confirm a stamped thread designation or part number first, then verify the rock drill and shank-adapter configuration, then cross-check the matching coupling and bit, and only then use physical measurements as supporting evidence. R32, T38, and T45 are different thread families and should not be treated as interchangeable.
This matters when a mine, quarry, contractor, or distributor needs replacement rods but the old paperwork is incomplete, the rod markings are worn, or several thread systems are used in the same fleet. A wrong thread can stop assembly completely, damage mating components, or create an unsafe attempt to force mismatched parts together.
1. R32, T38, and T45 Are Different Connection Systems

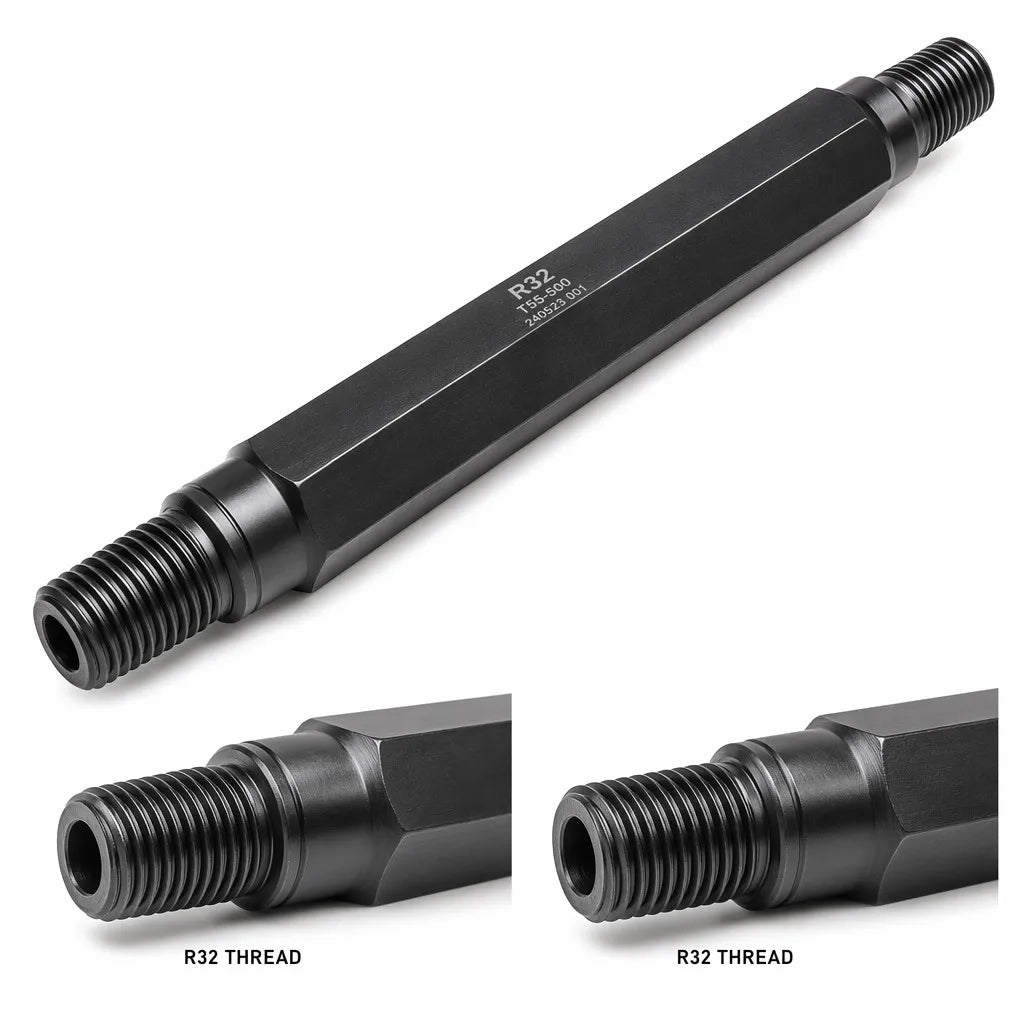

R32 belongs to the R, or rope-thread, family. Epiroc describes its R thread as an industry-standard drill-string connection and lists R32 as a distinct system. T38 and T45 belong to the separate T-thread family; Epiroc lists T38 and T45 as different dimensions within its T drill-string range. The naming is useful for orientation, but the name alone is not a dimensional inspection specification.
| Thread family | Typical buyer situation | Critical rule |
|---|---|---|
| R32 | Bolting, construction, drifting and smaller-to-medium top-hammer systems | Match R32 rod, coupling/bit and shank-side connection as a system. |
| T38 | Bench, construction and production-oriented top-hammer systems | Do not assume T38 because a rod appears close in diameter to another thread. |
| T45 | Bench and production drilling systems using the larger T-family connection | T45 does not directly mate with T38 or R32 components. |
Application descriptions overlap across manufacturers and rigs, so application alone is not a reliable identification method. The installed drill-string configuration is what controls compatibility.
2. Use an Evidence Hierarchy, Not a Guess
When the current thread is unknown, rank the available evidence. The best evidence identifies the actual installed component; weaker evidence only narrows the possibilities.
| Evidence | Reliability | How to use it |
|---|---|---|
| Readable rod, coupling, bit or shank-adapter part number | Very high | Cross-reference the exact manufacturer catalogue or drawing. |
| Stamped R32, T38 or T45 marking on a known original component | Very high | Confirm the other mating components use the same intended system. |
| Rock-drill model plus shank-adapter part number | High | Identify the rod-end thread on the installed shank adapter. |
| Known coupling or bit part number that still fits correctly | High | Use the part number to identify the mating thread family. |
| Maintenance record or previous purchase order | Medium to high | Useful only if it clearly refers to the same rig and current configuration. |
| Caliper measurements and thread length | Medium | Use to confirm a suspected family against a manufacturer drawing. |
| Visual appearance from a worn rod | Low | Never use as the only basis for ordering. |
3. Why the Rock-Drill Model Alone Is Not Enough
A common shortcut is: “We know the rock drill, so we know the thread.” That can be wrong. OEM documentation shows that some rock-drill platforms can be configured with more than one thread family. For example, Epiroc lists several COP rock drills across both its T38 and T45 system data. The installed shank adapter determines the drill-string-side connection actually in use.
Therefore, if a buyer only sends the rig or rock-drill model, the next question should be: what shank adapter is installed now? A shank-adapter part number, clear photos of both ends, and the rod-end thread identification are more useful than the rig model by itself.
If you are unsure how the shank controls the drill-string connection, see the Top Hammer Shank Adapter Compatibility Guide.
4. A 7-Step Workflow to Identify an Unknown Thread
- Stop mixing loose parts. Separate rods, couplings, bits and shanks by rig or drill string so that a known matched set is not lost.
- Clean the thread carefully. Remove grease, dust and loose corrosion so markings, shoulders and thread form are visible. Do not grind or alter the profile for identification.
- Record every marking. Photograph stamped codes, manufacturer marks, thread designations and part numbers before they become unreadable.
- Identify the machine-side configuration. Record rig make/model, rock-drill model and especially the installed shank-adapter part number.
- Cross-check a known mating component. If a coupling or bit is known to fit correctly, identify its part number and thread family from manufacturer documentation.
- Measure only as confirmation. Record rod body diameter, approximate thread outside diameter, threaded length, shoulder position and coupling dimensions. Compare these with the supplier or OEM drawing; do not invent a thread identity from one caliper reading.
- Lock the identification before ordering. Put the confirmed thread family, rod architecture, rod length, coupling/bit connection and shank information on the RFQ or drawing.
5. What to Measure When Markings Are Missing
Physical measurements are useful when documentation is incomplete, but worn threads are poor masters. Thread crests can be rounded, shoulders can be battered and corrosion can change the measured surface. Use a clean, least-worn component whenever possible.
Record the following:
- rod body diameter and whether the body is round or hexagonal;
- approximate maximum thread outside diameter;
- total threaded length;
- distance from the thread to any shoulder or contact face;
- coupling outside diameter and overall length if a coupling is available;
- whether the rod is male-male or male-female;
- clear perpendicular photos with a ruler or caliper visible for scale.
Do not estimate thread pitch, flank angle or exact form from a blurred photo. If the family is still uncertain, request the supplier's dimensional drawing or use the correct thread gauge. A forced trial fit is not an identification method.
6. R32 vs T38: What Buyers Commonly Confuse
R32 and T38 are not simply “small” and “large” versions of one connection. They belong to different thread families. If you already know the current system is one of these two, use the dedicated R32 vs T38 Top Hammer Thread Compatibility Guide to check the conversion boundary.
When the thread is unknown, however, do not begin by asking which one “looks closer.” Start with the shank, existing matched coupling/bit and part numbers. That produces a positive identification instead of a visual guess.
7. T38 vs T45: Why Fleet History Can Mislead You
A fleet may contain the same or related rock-drill platforms with different installed drill strings. OEM T-series data shows overlapping rock-drill models across T38 and T45 configurations. That means an old purchase order from another rig is not proof of the current rig's thread.
If the fleet has ever been converted, rebuilt, transferred between sites or fitted with a different shank adapter, verify the present hardware. For known T38/T45 systems, see the T38 vs T45 Top Hammer Threads Guide.
8. Check the Whole Connection Chain Before You Buy
Identifying the rod thread solves only one part of the purchasing problem. A replacement rod must fit the whole chain:
rock drill → shank adapter → rod → coupling (for male-male extension rods) → next rod → bit.
Also confirm whether the existing string uses male-male extension rods with separate couplings or male-female speed rods with an integrated female end. Thread family and rod architecture are separate purchasing variables.
| Component | What to confirm | Why it matters |
|---|---|---|
| Shank adapter | Exact rock-drill model, part number and rod-end thread | Sets the machine-to-string interface. |
| Rod | R32/T38/T45, MM or MF, length and body | Defines the main replacement item. |
| Coupling | Matching thread family and intended rod architecture | Required for MM extension strings. |
| Bit | Thread family, diameter and application | Must match the bit-end connection. |
| Rig handling | Rod length, guide and rod-handler limits | A correct thread can still be the wrong physical rod for the rig. |
9. PerfoMax R32, T38, and T45 Reference Products
PerfoMax's current online range includes R32 extension rods, R32 coupling sleeves, T38 extension rods and T45 extension rods. Use these pages as current PerfoMax supply references, not as a substitute for identifying the installed system on your rig.
10. What to Send in an RFQ When the Thread Is Uncertain
- rig make and model;
- rock-drill model and variant;
- shank-adapter part number or clear photos;
- all markings on the current rod, coupling and bit;
- rod body type and rod length;
- male-male or male-female rod architecture;
- thread and shoulder photos from multiple angles;
- caliper measurements with the measurement points shown;
- known coupling and bit part numbers;
- hole diameter, application and typical hole depth;
- quantity and whether the request is replacement-only or a planned system conversion.
If the thread is not yet positively identified, say so in the RFQ. A supplier can review the evidence before quotation instead of building a quotation around a guessed thread.
Common Identification Mistakes
- Ordering by rod body diameter instead of connection identity.
- Assuming the rig model uniquely determines T38 or T45.
- Using a heavily worn thread as the measurement standard.
- Copying a previous order from a different rig in the same fleet.
- Ignoring the shank adapter.
- Confirming the rod but forgetting the coupling or bit thread.
- Confusing thread family with male-male versus male-female rod architecture.
- Trying to force a suspected coupling onto an unknown thread.
FAQ
Can R32 and T38 connect directly?
No. They are different top-hammer thread families and are not direct mating connections.
Can T38 and T45 be identified from the rock-drill model?
Not always. Some rock-drill platforms are documented with more than one thread-system configuration. Verify the installed shank adapter and current drill string.
Can I identify R32, T38, or T45 with a caliper?
A caliper can narrow and confirm a suspected thread when compared with a manufacturer drawing, but a single diameter measurement is not enough for positive identification.
What is the strongest evidence when rod markings are gone?
An installed shank-adapter part number plus a known correctly mating coupling or bit part number is usually much stronger than visual inspection of a worn rod.
What photos should I send to a supplier?
Send the full rod, both rod ends, close-ups of clean threads and shoulders, all stamped markings, the coupling and bit connection, the shank adapter, and measurement photos showing exactly where the caliper was placed.
Need Help Identifying an Existing Drill String?
If you are replacing R32, T38 or T45 components and the installed thread is uncertain, send PerfoMax your rig, rock-drill, shank, rod, coupling and bit information for an RFQ review. The objective is to identify the current connection chain before a replacement order is finalized.
