Direct answer: a top-hammer shank adapter is compatible only when three interfaces match together: the exact rock drill or drifter on the machine side, the first rod or coupling on the string side, and the installed air- or water-flushing arrangement. A thread label such as R32, T38 or T45 identifies only the string-side connection. It does not prove that the drive geometry, striking interface, length, seal lands, flushing ports or front-head clearances fit the machine.
This guide helps mines, quarries, tunnelling contractors, distributors and maintenance teams qualify a replacement or alternative shank adapter before ordering. It owns the compatibility and substitute-release decision. It does not define wear limits for an in-service shank, approve a rock-drill conversion, or replace the controlled drawings and service instructions for the exact machine.
Why the thread name alone is not enough

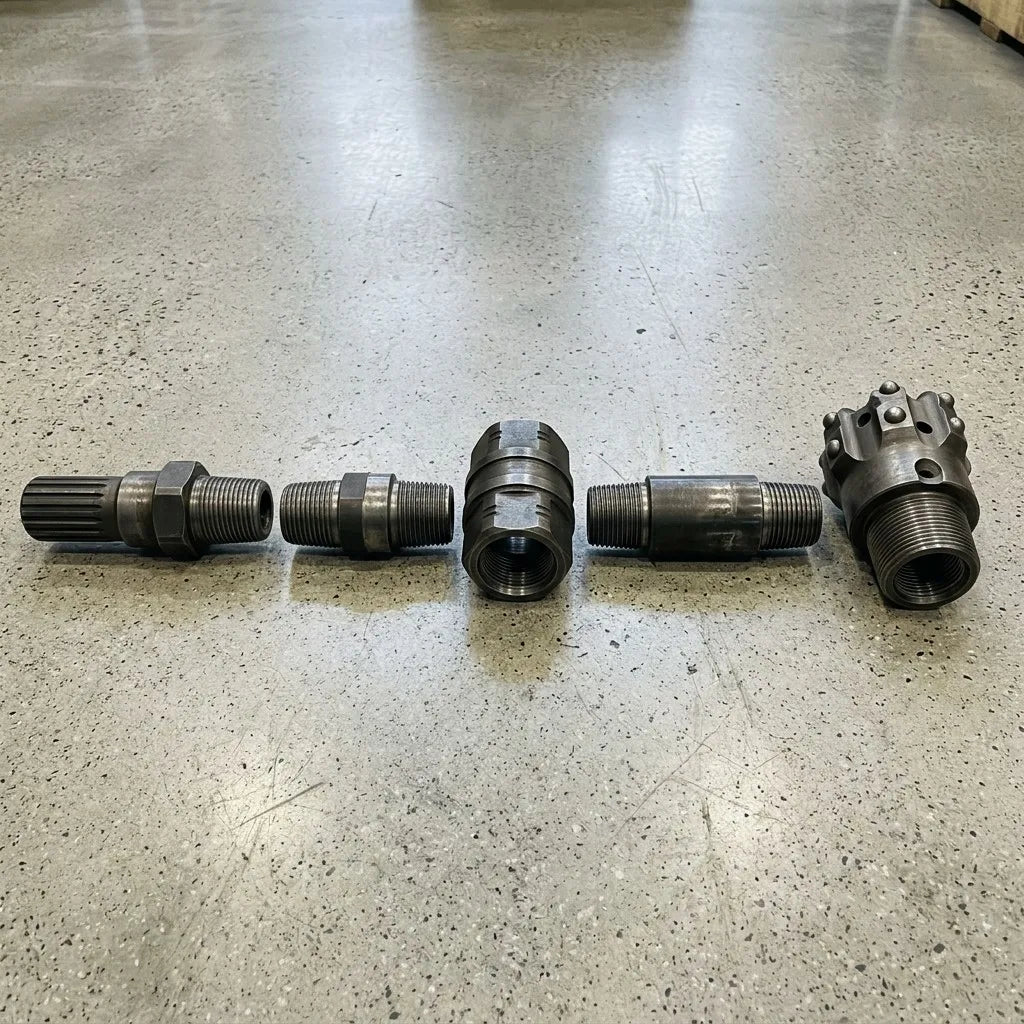

The shank adapter sits between the rock drill and the drill string. It receives repeated impact from the piston, accepts rotation through the machine-side drive and routes flushing toward the rod. Each function depends on geometry that a rod-thread designation does not describe.
Two candidates can both have a T38 threaded end and still differ on the machine side. They may have different spline or drive forms, effective engagement, striking-face position, body diameter, shoulder locations, total length, port position or sealing arrangement. A supplier may also list the same rock-drill family with several string-side thread options. That does not make one adapter universal; it means each approved configuration uses a dedicated combination.
| Compatibility layer | What must match | Evidence to collect | What the thread label cannot prove |
|---|---|---|---|
| Rock-drill identity | Exact make, model, suffix, serial range where relevant and front-head configuration | Nameplate, service record, controlled parts list or drawing | Whether the candidate belongs to this machine variant |
| Machine-side drive | Spline, lug, chuck or other drive geometry and effective engagement | Approved part number, controlled drawing or measured reference sample | Correct torque transfer, retention and release |
| Impact interface | Striking face, shoulders and axial relationship to the piston/front head | Drawing references and candidate dimensional report | Correct piston-to-shank contact |
| Length and clearance | Overall length plus the datum used, installed projection and internal clearance | Comparable drawings using the same reference points | Whether the assembly will seat without interference |
| Flushing and seals | Internal or external path, hole or slot position, seal lands and port relationship | Section drawing, service configuration and candidate inspection record | Whether air or water reaches the rod without leakage |
| String-side connection | Thread family, handedness, end form and first mating rod or coupling | Rod/coupling specification, drawing, markings and controlled gauge evidence | Whether the rest of the drill string is compatible |
Freeze the installed configuration before requesting a substitute
Replacement work becomes unreliable when the old part is discarded before its identity and relationships are recorded. If it is safe to do so, preserve the incumbent shank until the candidate has passed review. Photograph the whole part and both ends, then capture markings, drive features, striking face, shoulders, flushing features, seal-contact areas and the threaded end.
Record the rock drill and front-head configuration independently of the shank. A rig model alone may not identify the installed rock drill, and a rock-drill family name may still contain variants. The strongest starting point is the exact approved shank part number linked to the exact drill configuration. When that reference is unavailable, the buyer and supplier should agree which dimensions and drawings will control the comparison.
Do not copy dimensions from a visually similar model or transfer a family-level claim to a specific machine. If a feature cannot be verified, mark it HOLD rather than treating absence of evidence as a match.
Cross-reference acceptance register
A claim of “replacement,” “equivalent” or “interchangeable” should be converted into a field-by-field register. The supplier does not need to disclose proprietary manufacturing data, but the buyer needs enough controlled evidence to verify every critical interface.
| Register field | Incumbent evidence | Candidate evidence | Release question |
|---|---|---|---|
| Machine application | Full drill identity and approved configuration | Written mapping to that exact identity | Does the mapping exclude nearby models and suffixes? |
| Drive geometry | Drawing, part reference or approved sample | Controlled drawing and inspection result | Will it engage and release without force, machining or improvised spacers? |
| Impact position | Striking-face and shoulder references | Comparable candidate references | Is the piston-to-shank relationship preserved? |
| Length basis | Overall and functional lengths with stated datums | Values measured from the same datums | Are the numbers truly comparable? |
| Flushing path | Medium, port/slot position and sealing arrangement | Candidate section and machine-configuration statement | Do the passages and seals align in the installed front head? |
| Rod connection | First rod/coupling, thread family and end type | Candidate thread drawing or controlled designation | Does the ordered part match the actual first string component? |
| Traceability | Part record and revision | Candidate part ID, lot and inspection record | Can the same approved configuration be identified and reordered? |
| Support | Wear criteria and service method | Inspection guidance, warranty route and replacement support | Can the site maintain and disposition the part? |
Use an evidence ladder for alternative parts
| Evidence level | What the buyer has | Disposition |
|---|---|---|
| Controlled direct match | Exact approved part number with unchanged rock drill, front head and string | Proceed to normal receiving inspection |
| Documented cross-reference | Written application mapping supported by candidate drawing and interface evidence | Approve one sample for controlled inspection and trial |
| Measured candidate | Key dimensions appear to match, but application, impact or flushing evidence is incomplete | HOLD until missing interfaces are documented |
| Visual or thread-only claim | Photos, approximate length or the same R32/T38/T45 label only | REJECT as compatibility evidence and rebuild the comparison |
A functional replacement does not automatically make internal rock-drill parts, front-head parts or service procedures interchangeable. The approval record should say exactly what matches and which claims are outside scope.
Seven-step qualification workflow
- Identify the machine. Record rig, rock drill, full model/suffix and front-head configuration from controlled sources.
- Identify the incumbent. Capture the part number, markings, history and condition. Do not use a damaged feature as the only dimensional master.
- Identify the first string component. Confirm whether the shank connects to a coupling, male-ended rod or another approved component, including thread family and handedness.
- Build the interface register. Compare drive, impact, length/clearance, flushing/seals and rod-end connection. Mark each MATCH, CHANGE, HOLD or NOT APPLICABLE.
- Review supplier evidence. Require a candidate part reference and drawing revision, exact machine mapping, inspection evidence and stated limits of the cross-reference.
- Inspect one sample. Check received identity, critical features, damage, thread, port position and traceability before installation.
- Run a controlled release trial. Use the machine supplier's approved installation and staged test method, then inspect the complete interface before approving quantity.
Controlled sample and field-release gate
| Gate | Accept | Hold or reject |
|---|---|---|
| Identity | Candidate part, revision and inspection record match the approved register | Unmarked part, conflicting revision or missing traceability |
| Pre-install inspection | Drive, striking face, shoulders, threads, ports and seal lands are undamaged and consistent with the evidence | Burrs, cracks, peening, corrosion, blocked passage or unexplained geometry |
| Static assembly | Part installs by the approved method with correct retention, seating and clearances | Forced fit, grinding, shimming, machining or uncertain contact |
| Staged function | Permitted checks show stable rotation, percussion response and flushing without abnormal leakage | Binding, leakage, unstable control, unusual noise or poor flushing |
| Representative drilling | Defined work meets the site's control and output criteria without repeated correction | Abnormal vibration, heat, joint behavior, flushing loss or inconsistent output |
| Post-trial inspection | No new scoring, peening, polishing, looseness, seal damage or thread distress appears | Any new contact pattern or damage that questions interface geometry |
| Commercial release | Approved configuration, quantity, reorder identity and support route are documented | Bulk quantity proposed before the sample record is closed |
Copy-ready substitute decision record
Rock drill make / full model / suffix: Front-head configuration: Incumbent shank part number / drawing: Candidate supplier / part number / drawing revision: Machine-side drive and engagement evidence: Striking-face / shoulder references: Overall length and datum definition: Flushing path / port / seal-land evidence: Rod-end thread / handedness / first mating component: Receiving inspection result: Static assembly and staged function result: Representative drilling observations: Post-trial inspection: Final status: ACCEPT / CONDITIONAL-LIMITED USE / HOLD / REJECT Approved configuration / quantity / reviewer / date:
Conversions require a whole-string decision
A change from R32 to T38, T38 to T45 or another connection family is not a shank-only substitution. First confirm that the exact rock drill and front-head configuration is approved for the target system. Then verify the dedicated shank, first rod or coupling, downstream rods, bit connection, handling equipment, centralizers or guides, flushing and application requirements.
If the buyer is still identifying an unknown connection, use the R32, T38 and T45 thread-identification guide. If the decision is a system upgrade, also review the R32-versus-T38 compatibility guide. Neither guide replaces the machine-side approval required here.
Common compatibility mistakes
- Ordering by thread only: “T45 shank” leaves the rock-drill interface undefined.
- Ordering by rig brand or rig model only: the installed rock drill and front head still need exact identification.
- Using overall length without datums: two drawings can quote the same number from different reference points.
- Ignoring flushing: a mechanically similar part can still place a port or seal land incorrectly.
- Approving from photos: images support identification but do not prove hidden drive, impact or passage geometry.
- Copying one cross-reference across a model family: suffixes and front-head variants can change the required part.
- Buying fleet quantity before a sample trial: bulk stock magnifies the cost of one missed interface.
Shank-adapter RFQ specification block
- rig make/model and installed rock drill make, full model, suffix and serial evidence;
- front-head configuration and relevant parts-list or drawing revision;
- incumbent shank part number, markings, service history and photographs;
- machine-side drive, impact-interface and functional-length references;
- internal or external flushing, medium, port/slot and seal-land evidence;
- required rod-end thread, handedness and first mating rod or coupling;
- like-for-like replacement or planned thread-family conversion;
- candidate part number, controlled drawing and written cross-reference scope;
- material or heat-treatment evidence required by the buyer's controlled specification;
- lot traceability, inspection report, packaging and preservation;
- sample quantity, receiving checks, trial method and release authority;
- bulk quantity, reorder identification, warranty and technical-support route.
Frequently asked questions
Is a T38 shank adapter universal?
No. T38 identifies the rod-end connection family. The machine-side drive, impact relationship, length, flushing and front-head fit remain specific to the rock drill configuration.
Can the same rock drill use both T38 and T45?
Some machine families may be offered in more than one drill-string configuration, but each configuration requires its approved shank and downstream string. Confirm the exact model, suffix and front-head arrangement before conversion.
Can an alternative supplier's part be approved?
Yes, when the candidate is supported by an exact application mapping, controlled interface evidence, receiving inspection and a documented sample release. A visual match or same thread label is not enough.
What if the old shank part number is unreadable?
Start from the rock-drill identity and front-head documents, preserve the sample, and ask the supplier which measurements and images are required. Do not infer compatibility from a nearby model.
How is wear inspection different from compatibility approval?
Compatibility asks whether the design belongs in the machine and string. Wear inspection asks whether a specific used part remains serviceable. For the second decision, use the shank-adapter wear inspection guide.
Prepare a controlled PerfoMax inquiry
Review the active PerfoMax Drill Rods collection, including the R32 rod-selection route and T38 extension-rod route. Then send an RFQ with the exact rock-drill identity, incumbent evidence, first string component and completed interface register. PerfoMax can review the rod-side requirement and state which machine-side evidence still needs confirmation before a substitute is released.
