CHECK 01
Dimensions & Interface

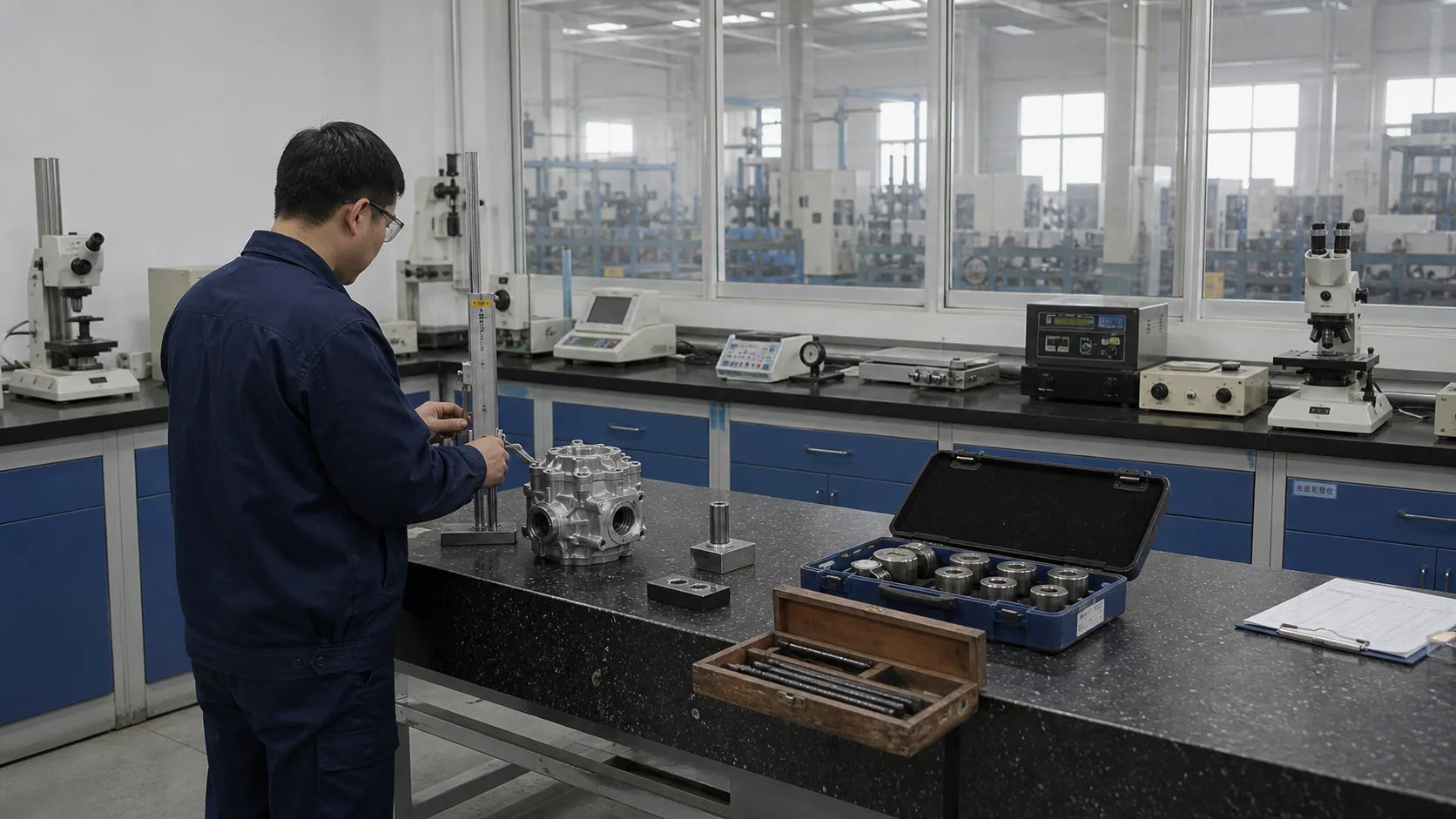

Review the selected body, fit and connection dimensions against the confirmed product requirement.
QUALITY, INSPECTION & RELEASE
Quality, Inspection & Release
Inspection should match the exact product and interface. A useful plan names the critical characteristics, check method, acceptance basis, coverage, responsible party and required record before release.
01 / FOUR CHECKPOINTS
Four questions decide whether an order can move toward release.
G01
IDENTITY
IDENTITY
G02
PROCESS
PROCESS
G03
INTERFACE / FUNCTION
INTERFACE / FUNCTION
G04
RELEASE
RELEASE
Identity
Do the product and order agree?
Process
Were the critical controls completed?
Interface / Function
Will it fit and work under the agreed check?
Release
Are product, packing and records ready?
02 / PRODUCT CASE 01
Pneumatic equipment: confirm configuration before function.
Start with the exact model or configuration, shank, air and water connections, operating conditions and required check record.
MODEL / CONFIGURATIONSHANK / RETAINERAIR INLET / SUPPLYFLUSHINGWORKING TASKTEST REQUIREMENT
CHECK 02
Assembly Condition

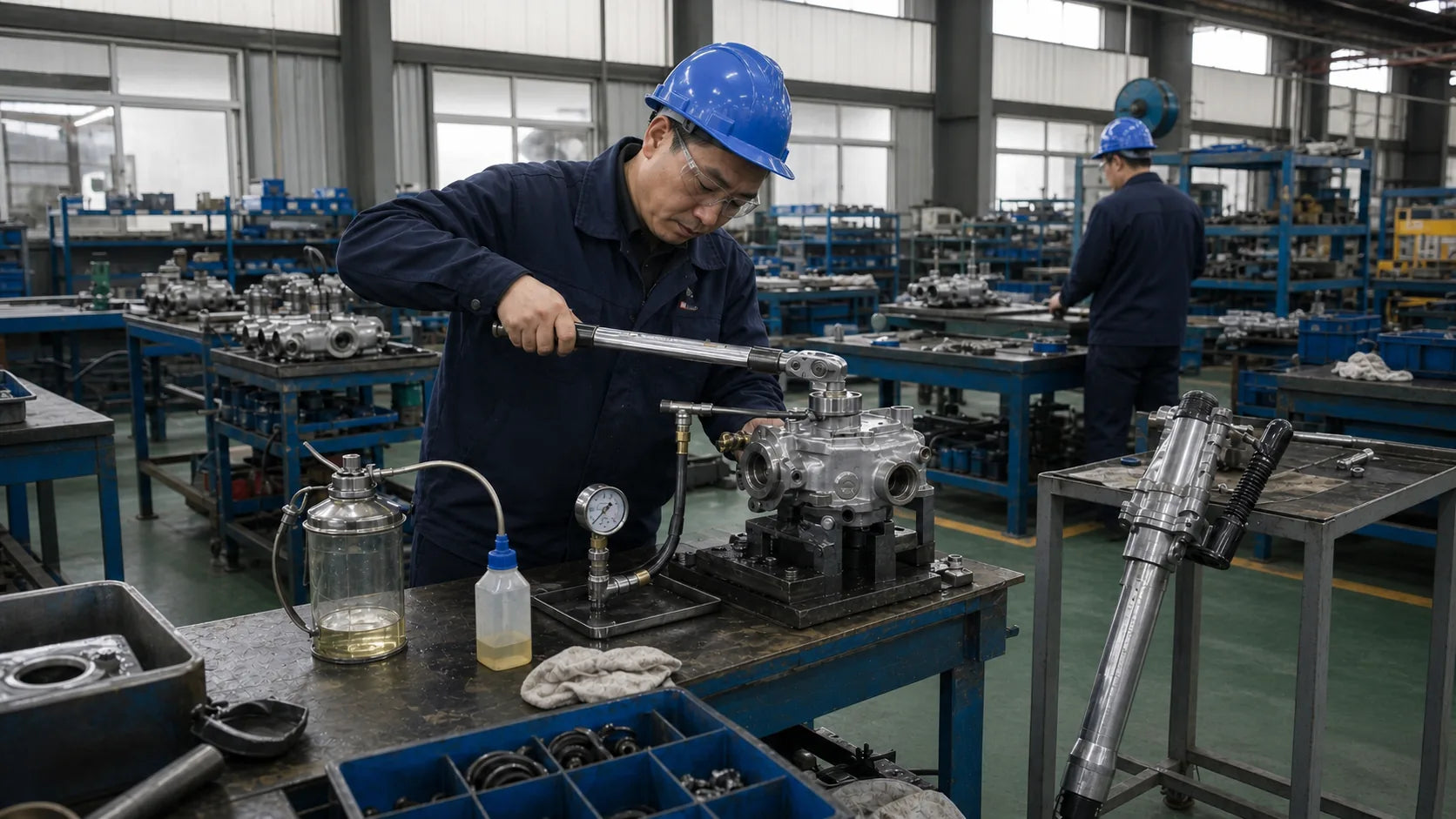

Review component identity, cleanliness, lubrication, assembly completeness and visible condition.
CHECK 03

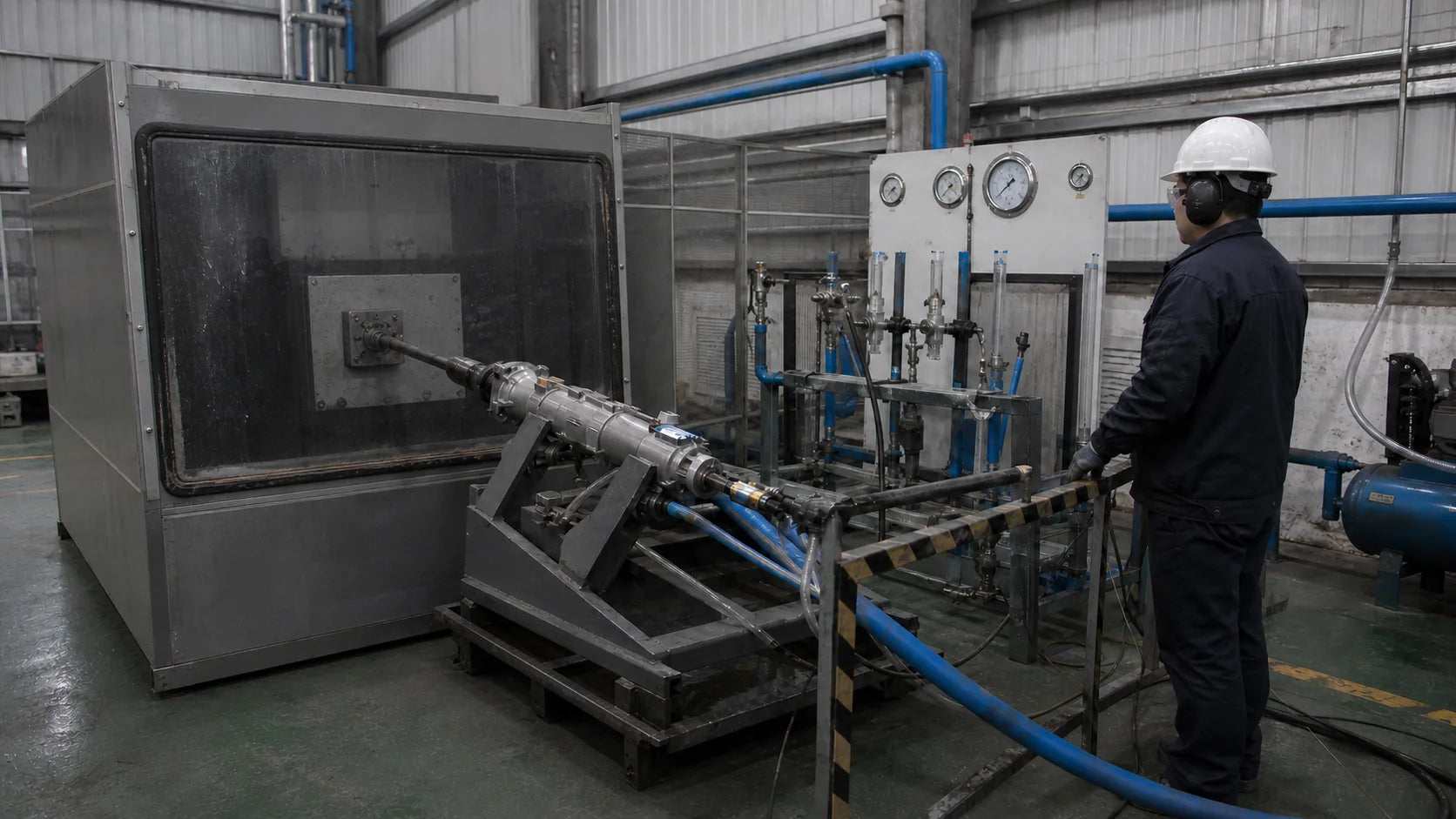

Agreed Functional Check
Define the method, conditions, coverage and record for the confirmed product.
BUYER-FACING OUTPUTConfiguration checklistInspection or function record when agreedRelease and packing status
03 / PRODUCT CASE 02
Rods and connections: control the interface as a system.
First separate integral drill steel, tapered rods, threaded top-hammer systems and DTH pipe systems. Then confirm length, straightness, end form, interface and passage.
SYSTEM TYPETHREAD / TAPER / SHANKLENGTH / SIZEMATING COMPONENTFLUSHING PASSAGEGAUGE / METHOD
CHECK 01

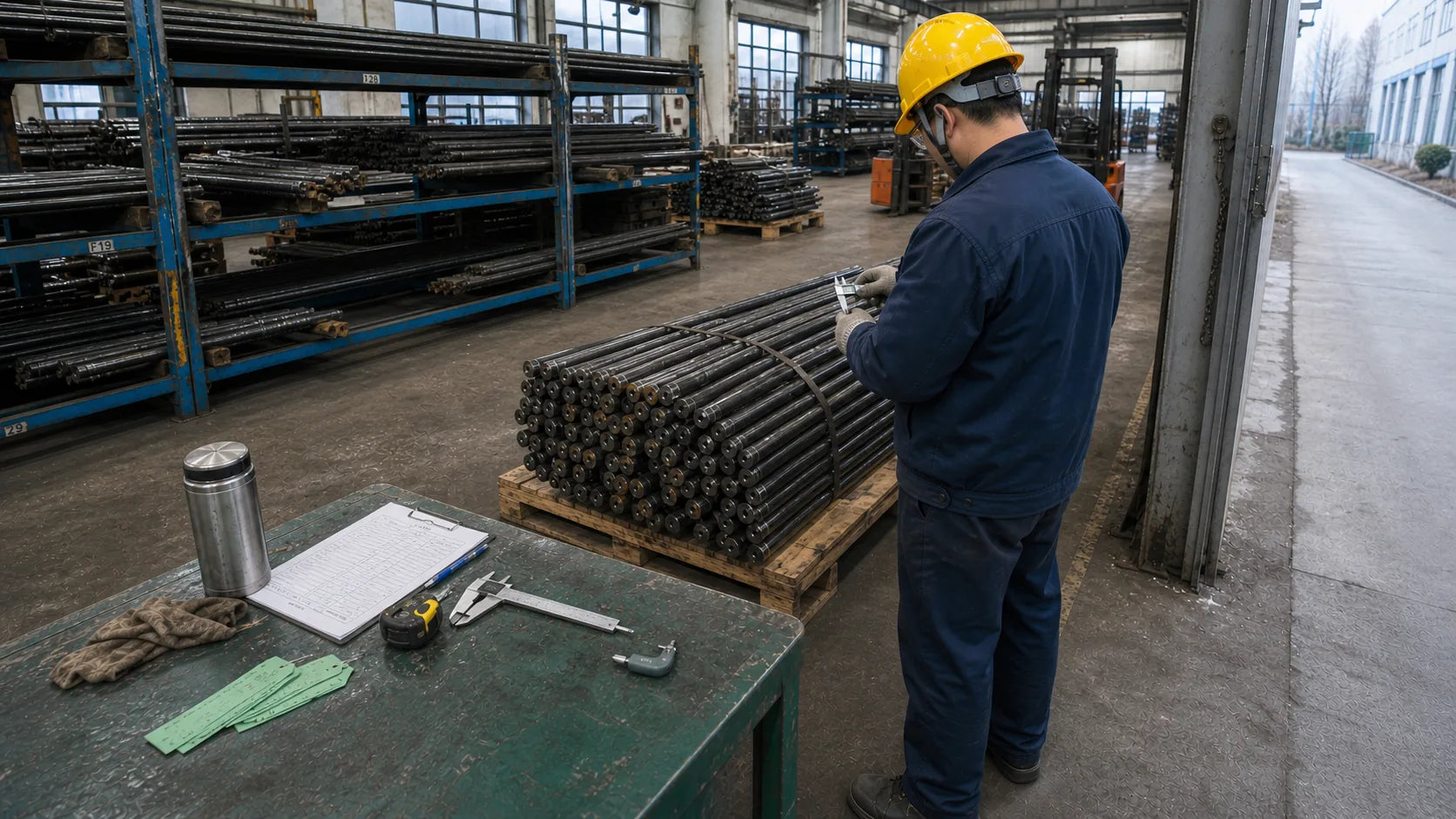

Identity & Dimensions
Review product family, length, outer or hex size and visible end form.
CHECK 02

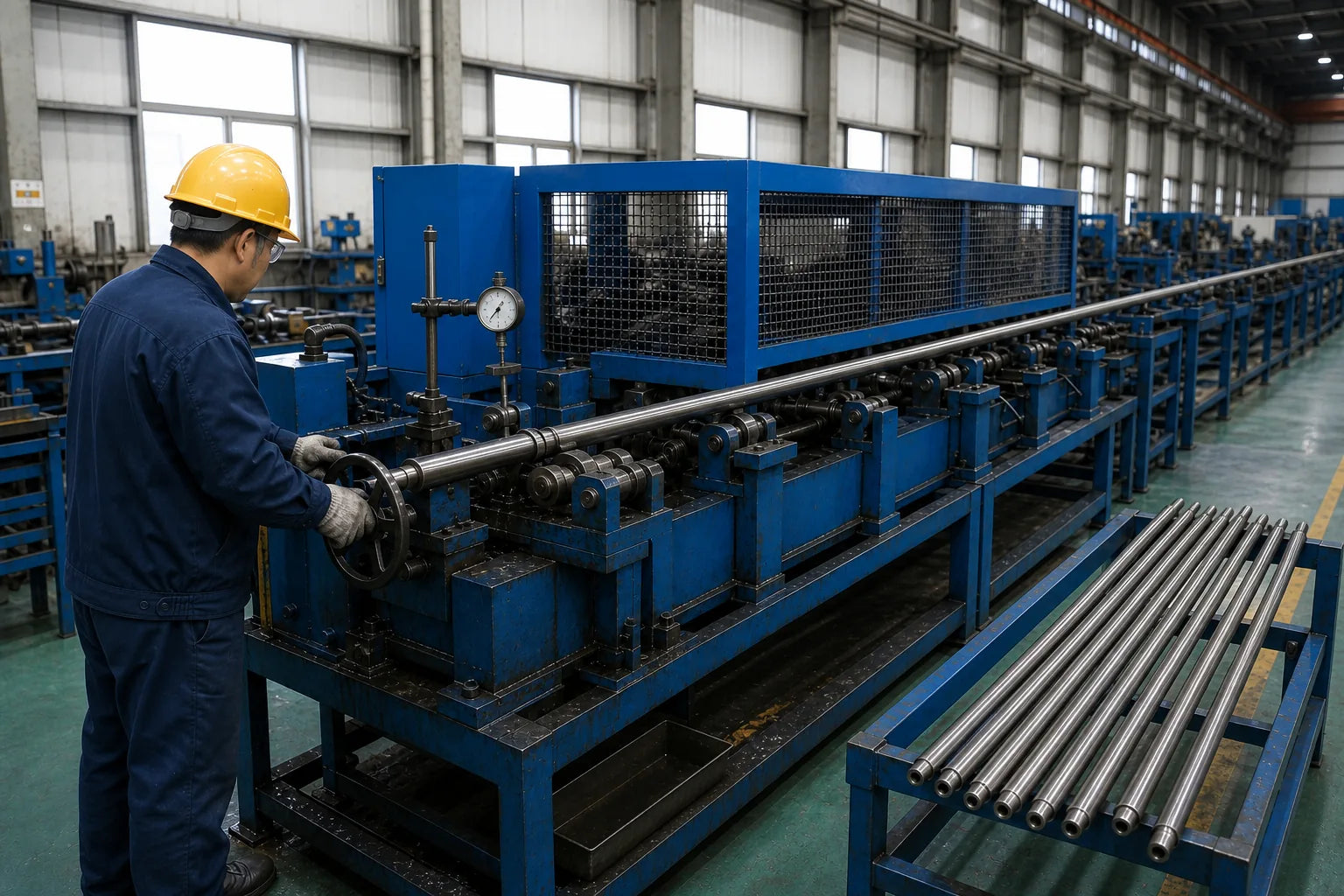

Straightness
Use the product-appropriate method and acceptance requirement.
CHECK 03

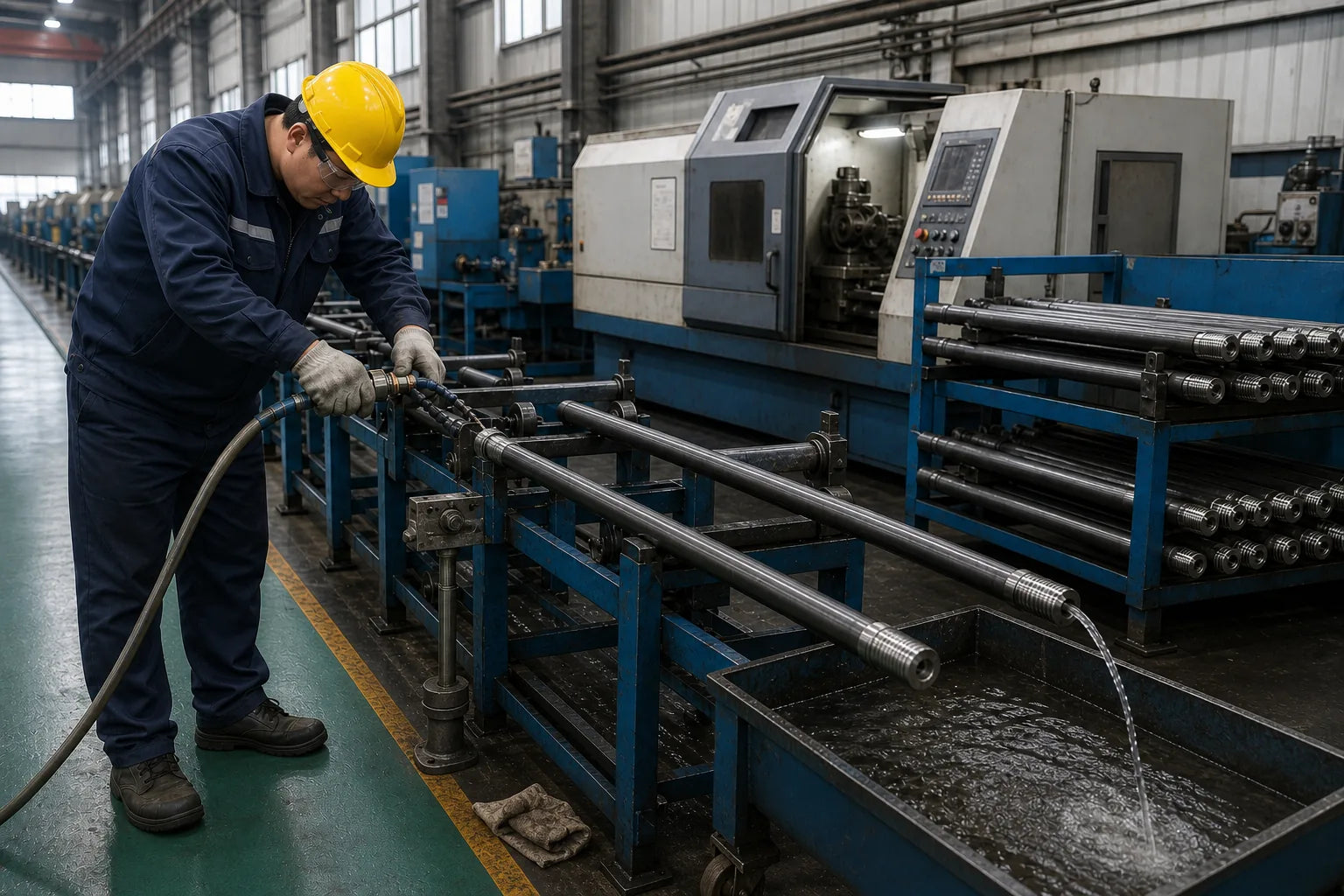

Passage & End Condition
Review the passage and end condition where required; confirm thread, taper or shank separately against the approved interface specification.
BUYER-FACING OUTPUTDimensional or interface record when agreedHold, correction or release statusPacking identity and end-protection check
04 / HOLD & DISPOSITION
A failed check should stop the release path.
HOLD→REVIEW→REWORK / REPLACE / RETEST→VERIFY→RELEASE
The action and acceptance basis are confirmed for the affected product before it returns to the release path.
05 / DEFINE THE REQUIREMENT
Set the inspection scope before production starts.
Send the product, model or interface, critical dimensions, test requirement, required record and any third-party hold point.
