Direct answer: top hammer shank adapter wear should be judged as a system condition, not from one polished surface alone. Clean and isolate the adapter, then inspect four zones separately: the piston striking face, the splines and front-bushing bearing surface, the flushing passage, and the rod-side thread. Cracks, permanent deformation, heavy spalling, a blocked or eroded flushing port, or wear beyond the rock-drill maker’s gauge or dimensional limit are reasons to remove the adapter from service. If wear is uneven, replacing only the adapter may not solve the cause; the piston, chuck or front bushing, lubrication circuit, feed alignment, drill rods and couplings also need checking.

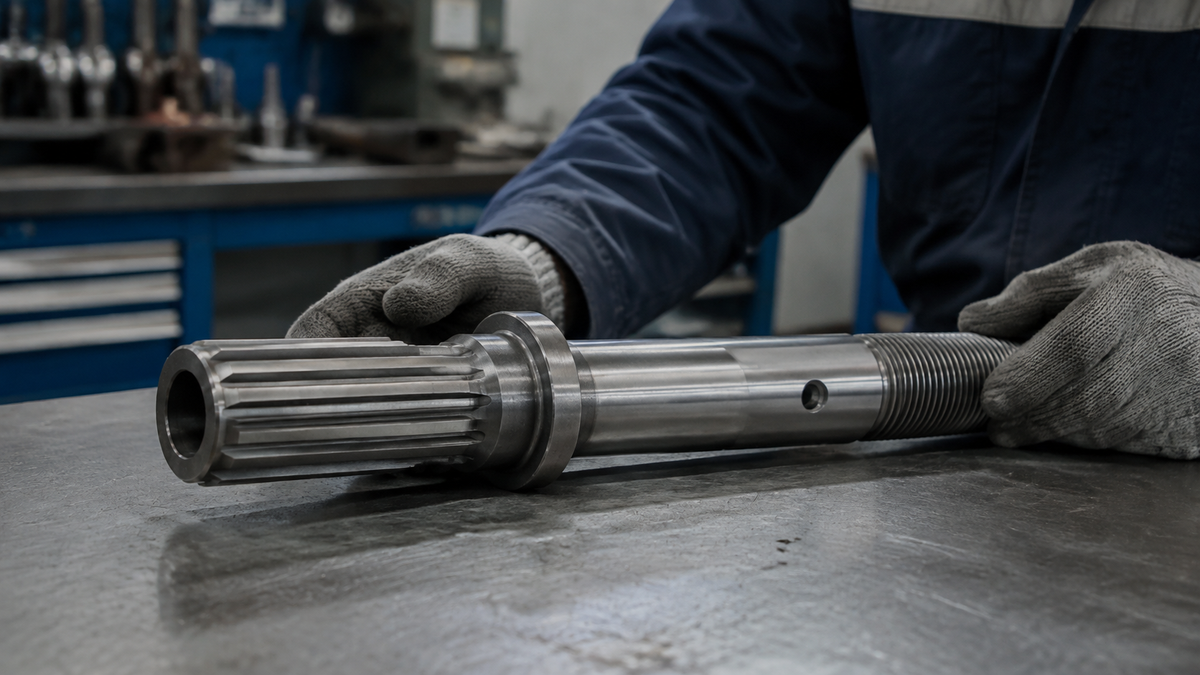

A shank adapter sits between the rock drill and the drill string. It receives impact from the piston, transmits rotation through its splines, carries flushing medium through the center or side port, and connects to the first rod or coupling. Because these loads meet in one component, the location and shape of wear are more useful than total service hours alone.
What shank adapter wear changes during drilling
A worn adapter can reduce the quality of the interfaces on both sides of the rock drill. Depending on where the wear develops, crews may observe unstable rotation, abnormal vibration, a hotter front head or coupling, reduced penetration, leakage around the flushing head, difficulty making or breaking the first joint, or repeated damage to new couplings and rods.
Those symptoms are not unique to the shank adapter. A dull bit, bent rod, incorrect feed setting, worn coupling, poor flushing or a rock-drill internal fault can look similar. For that reason, do not condemn an adapter from penetration rate alone. Confirm a visible or measurable wear pattern and inspect the mating parts before deciding what to replace.
| Observed symptom | Adapter area to inspect first | Other system checks |
|---|---|---|
| Rotation feels jerky or slips | Splines and spline shoulders | Chuck coupling, rotation system, stuck string, bit condition |
| New coupling or first rod wears quickly | Rod-side thread and thread shoulder | Thread match, joint cleanliness, grease, alignment, mating-part wear |
| Abnormal front-head vibration or impact noise | Striking face and bearing surfaces | Piston face, front bushing, damper, feed pressure |
| Flushing leakage or restricted flow | Flushing hole or tube interface | Seals, flushing head, water quality, hoses and pressure |
| Adapter runs unusually hot | Splines, bearing surfaces and thread | Lubrication delivery, feed, percussion, alignment and coupling temperature |
Inspect the shank adapter in a safe sequence
Follow the machine manufacturer’s isolation, pressure-release, lifting and removal procedure. A drill string can retain pressure, stored mechanical energy and heat. Do not loosen, cool or handle a hot connection by improvising with impact tools or water. Inspection should be completed by trained maintenance personnel after the component is removed, cleaned and supported.
- Record the operating complaint. Note the rig and rock-drill model, shank part number, rod thread, hours or drilled meters if tracked, flushing medium, lubrication condition, recent parameter changes and where the symptom appeared.
- Clean without hiding evidence. Remove grease and loose contamination so cracks, scoring, corrosion and contact patterns remain visible. Do not grind or polish the part before documenting it.
- Photograph all four zones. Capture the striking face, full spline circumference, front-bushing contact area, flushing port and complete thread. Include the mating piston, bushing, coupling or rod if abnormal wear is found.
- Compare with the correct reference. Use the rock-drill model’s service manual, wear gauge or approved new component. Limits from another shank design are not transferable.
- Measure repeatably. Measure at specified positions and more than one orientation. Record the tool used and compare readings with the previous inspection, not just with memory.
- Make a system decision. Classify the adapter as continue in service, monitor at a shorter interval, or remove from service. Pair that decision with corrective action on any damaged mating component.
Zone 1: striking-face damage and impact alignment
The rear striking face receives repeated piston contact. A centered, consistent contact pattern is different from localized edge loading. Look for mushrooming, chipping, deep pitting, spalling, radial cracks, a concave or angled contact pattern, and damage around the central opening where applicable.
Uneven striking-face damage can indicate that the adapter and piston are not meeting squarely. Possible contributors include a worn front bushing or guide, piston-face damage, incorrect rock-drill assembly, insufficient lubrication or operating settings outside the machine maker’s recommendation. Replacing the adapter while leaving a damaged piston or bushing in place can mark the new component quickly.
Zone 2: spline and front-bushing wear
Splines transmit rotation from the rock drill to the adapter. Inspect the full circumference for rounded flanks, stepped shoulders, asymmetric polish, fretting, galling, cracks at spline roots and loss of the original profile. A single heavily worn sector matters because it suggests uneven load distribution even if the average diameter appears acceptable.
Check the front-bushing bearing surface at the same time. Scoring or one-sided wear can point to inadequate lubrication, contamination, a worn bushing, feed-beam or boom misalignment, excessive bending, or a damaged drill string. If the rod has been sticking in broken ground, also review rotation and extraction practices; high torque and reverse-hammering events can concentrate stress at the splines.
Use the maker’s spline gauge or specified dimensions where available. A caliper can help trend accessible dimensions, but it may not capture flank profile, torsional clearance or root cracks. Do not create a universal millimeter limit from another adapter family.
Zone 3: flushing passage, corrosion and leakage
The flushing passage is both a flow path and a geometric stress area. Inspect the central or side port for blockage, erosion, corrosion pits, cracks, burrs and damage at tube or seal contact surfaces. Dirty water, retained moisture, abrasive solids and damaged flushing seals can accelerate surface damage. Leakage can also wash away lubricant or carry contamination into the front head.
Confirm that the hole layout matches the installed rock drill. Center-flushing and side-flushing variants are not interchangeable simply because their external thread is the same. If leakage persists with a serviceable adapter, inspect the flushing tube or head, seals, supply pressure and water quality according to the OEM service procedure.
Zone 4: thread and first-joint condition
Clean the thread and inspect the crest, root, flank and shoulder for pitting, galling, flattening, cracks, local overheating and asymmetric contact. A loose joint can create impact and heat at the thread; an over-tight, contaminated or poorly lubricated joint can gall during make-up or breakout. A bent rod, worn coupling or thread-family mismatch can load only part of the thread.
Inspect the adapter together with its mating coupling or rod. Mixing a new adapter with a badly worn mating part can transfer the old contact pattern to the new thread. Confirm the exact thread family and component configuration rather than relying on a label such as T38 or T45 alone.
Wear pattern to probable cause: a practical matrix
| Wear pattern | Probable contributors | Corrective checks before restart |
|---|---|---|
| Striking face chipped or loaded on one edge | Piston or bushing wear, misalignment, abnormal operating pressure | Inspect piston face, front guides, assembly and approved settings |
| Splines rounded evenly | Normal accumulated torque wear or insufficient spline lubrication | Compare with gauge; confirm lubricant type, delivery and interval |
| One spline sector worn more than the rest | Misalignment, bushing clearance, bent string or side loading | Check bushing, feed alignment, rod straightness and drill supports |
| Crack at spline root or thread transition | Fatigue under impact, torque and bending; surface damage | Remove from service; inspect related components and operating history |
| Thread pitting, galling or heat discoloration | Loose/open joint, poor grease, worn mate, high reflected energy | Inspect coupling or first rod, grease delivery, bit condition and feed |
| Corrosion around flushing port | Retained water, aggressive or dirty flushing medium, damaged seals | Inspect seals and water quality; follow dry-out and storage procedure |
When to continue, monitor or replace
Continue in service only when the adapter is within the model-specific wear limits, has no cracks or permanent deformation, the flushing path is sound, thread and splines remain serviceable, and no abnormal performance trend is present.
Monitor at a shorter interval when wear is measurable but still within the approved limit, the pattern is stable and the suspected cause has been corrected. Record baseline measurements and photographs so the next inspection can determine wear rate.
Remove from service when there is a crack, severe spalling or chipping, mushrooming, thread failure, blocked or structurally damaged flushing passage, wear beyond the OEM gauge, or any condition the manufacturer identifies as non-serviceable. Also remove it when the part identity or compatibility cannot be confirmed.
Common mistakes that shorten the next adapter’s life
- Replacing the adapter alone. A worn piston, bushing, coupling or bent rod can damage the replacement.
- Using hours as the only limit. Rock, drilling parameters, lubrication, alignment and tool condition change wear rate.
- Copying a wear limit from another model. Spline geometry, striking face, flushing layout and service limits are design-specific.
- Installing a new thread against a worn mate. The old coupling or rod can create poor contact and concentrated loading.
- Grinding away damage before inspection. This removes evidence and can introduce stress concentrations or alter hardened surfaces.
- Ignoring lubrication evidence. Confirm that the specified oil actually reaches the adapter; a full reservoir does not prove delivery.
- Continuing percussion with a stuck string. This can add impact, torque and bending loads at already stressed transitions.
Information to send with a replacement or failure inquiry
A supplier can verify the drill-string side only when the machine-side identity is clear. Send the following before requesting a replacement:
- rig brand and model, plus exact rock-drill or drifter model and variant;
- OEM shank adapter part number or clear photos of all markings;
- male or female configuration and the first rod or coupling used;
- thread family, flushing arrangement and any flushing-tube details;
- overall length and the manufacturer-specified critical dimensions;
- photos of the striking face, splines, bearing surface, flushing port and thread;
- photos and condition of the piston, front bushing, coupling and first rod;
- symptom, failure location, service history, lubrication and operating conditions.
If your commercial next step is to verify the rod side of the system, review the live T38 extension drill rod range or the broader drill rod collection. The adapter itself must still be selected from the exact rock-drill model and OEM reference.
Frequently asked questions
Can a worn shank adapter reduce penetration rate?
Yes, but reduced penetration is not proof by itself. Worn interfaces can increase vibration or energy loss, while dull bits, poor flushing, incorrect feed, pressure loss and rock changes can create the same symptom. Inspect the wear pattern and mating parts before assigning the cause.
Should a new shank adapter be installed with an old coupling?
Only if the mating coupling or rod thread has been inspected and remains within its approved limit. A heavily worn mate can create localized contact, heat and rapid wear on the new adapter.
Can light surface polishing on the splines be normal?
Contact polishing can occur in service. The decision depends on profile loss, clearance, symmetry, cracks, scoring and the manufacturer’s wear limit. A stable polished pattern is different from rounded flanks or one-sided wear.
Can a cracked shank adapter be repaired by welding or grinding?
Do not return a cracked adapter to service through an improvised repair. It is a highly loaded, heat-treated component. Remove it from service and follow the manufacturer or qualified engineering failure-analysis process.
What is the safest replacement reference?
The OEM shank part number for the exact rock drill is the best starting point. Confirm the drill model and variant, spline and shank geometry, flushing layout, overall length, thread and first drill-string connection before ordering.
Technical basis and inspection limits
The inspection logic above reflects the shank adapter’s role in transferring impact and rotation, as described in Sandvik’s top hammer drilling-tool overview, and the failure-mode approach used in its top hammer failure-analysis guide. Exact dimensions, lubrication settings, inspection intervals and discard limits must come from the manual for the installed rock drill and shank adapter.
