Top Hammer Coupling Sleeve Failure Guide: Cracks, Thread Wear, and When to Replace

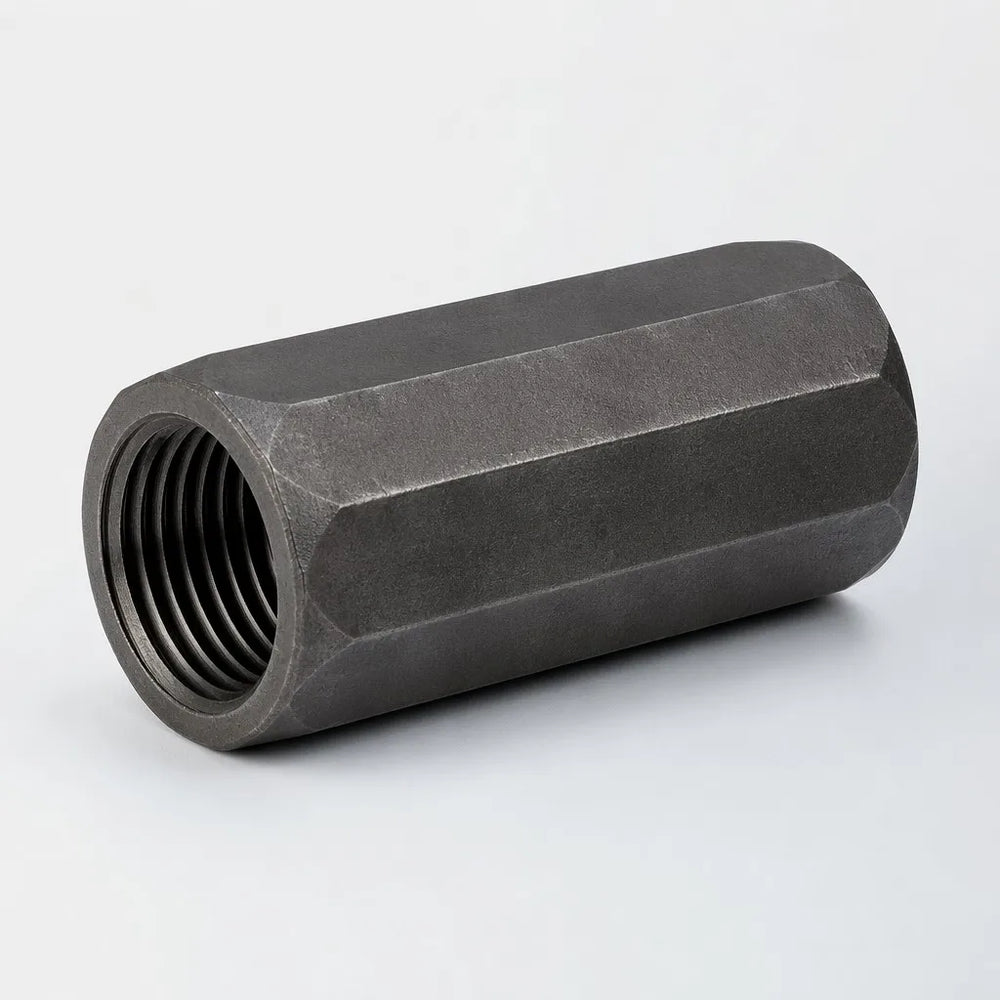

R32 top hammer coupling sleeve for drill rod connection and wear inspection

A top-hammer coupling sleeve should be treated as a wear-and-alignment component, not as a passive tube. When a sleeve develops impact marks, cracked walls, visibly worn threads, abnormal heat, or repeated loosening problems, the correct response is to identify the load or alignment problem before simply fitting another sleeve. OEM failure-analysis guidance links coupling damage to loose joints, back rotation during percussion, hole deviation, feed misalignment, worn bits, thread mismatch, and worn components.

This guide is for mining, tunneling, quarrying, construction, drilling contractors, distributors, and maintenance teams troubleshooting extension-rod drill strings. It focuses on coupling sleeves used in top-hammer systems and gives a practical decision process for inspection, corrective action, and replacement.

1. What does a top-hammer coupling sleeve do?

In an extension-rod drill string, the coupling sleeve joins threaded rods and helps maintain a continuous load path for percussion, rotation, and flushing. The joint must stay correctly aligned and sufficiently tight while the drill string is repeatedly loaded.

The current PerfoMax R32 coupling sleeve is specified for connecting R32 threaded extension rods end-to-end. PerfoMax also supplies R32 threaded extension drill rods. For an R32 replacement purchase, the thread system is therefore a first compatibility check—not merely the outside diameter or visual similarity of the parts.

2. Quick failure diagnosis: symptom, likely cause, and first action

Sandvik's Top Hammer Tools Failure Analysis Guide separates coupling-sleeve failures into recognizable modes. The table below translates those failure modes into a field-oriented troubleshooting sequence.

Observed condition Common causes to investigate First corrective actions
Impact marks or chipped coupling end Percussion or rotation started with the shank end resting incorrectly against the coupling shoulder; feed misalignment; hole deviation Stop and inspect alignment. Verify that the shank thread is aligned inside the coupling before percussion or rotation. Correct feed or hole-alignment problems.
Longitudinal crack Loose thread joints; back rotation while percussion is active; dents or nicks; worn sleeve; hole deviation Replace the damaged sleeve. Check joint tightening, breakout practice, drill-string alignment, and hole deviation before returning to production.
Transverse crack Surface damage; worn sleeve; feed or hole misalignment; inadequate feed pressure; high rotational load from a worn bit; mismatched threads Replace the damaged sleeve and correct the operating cause. Inspect the bit, feed settings, alignment, and thread compatibility.
Pitting, chipping, or galling around threaded connections Loose joint, unbalanced impact/feed settings, incorrect feed-to-rotation relationship, insufficient thread lubrication, or worn mating components Inspect the full joint, not only the sleeve. Restore correct operating settings and lubrication, then replace damaged components as required.
Abnormal heat or discoloration Poor relationship between feed, percussion, and rotation; worn bit; excessive torque; other rig-specific setting problems Stop and diagnose the drilling parameters and bit condition. Use the rig manufacturer's temperature limits and adjustment procedure.

3. Impact marks and chipped ends usually point to alignment problems

A chipped coupling end is easy to misclassify as a simple material defect. Sandvik lists a different set of first checks: whether percussion or rotation was started with the shank end resting against the coupling shoulder, whether the feed is misaligned, and whether hole deviation is forcing the connection out of line.

That changes the maintenance response. Replacing the sleeve without correcting the geometry can reproduce the same damage on the next part. When impact marks appear, inspect:

  • feed and boom alignment;
  • the shank-adapter-to-coupling engagement;
  • rod straightness and rod-end condition;
  • hole deviation;
  • the procedure used when collaring and starting percussion.

Do not use external hammer blows as a normal uncoupling method. Surface dents and nicks can become stress raisers, and Sandvik specifically recommends proper care and a wrench or suitable breakout method when joints must be loosened.

4. Longitudinal and transverse cracks are replacement events—but the root cause matters

A visible crack in a coupling sleeve is not a condition to monitor while continuing normal percussion. Remove the damaged sleeve from the drill string, then investigate why it cracked.

Longitudinal cracks

Sandvik associates longitudinal cracking with loose thread joints, back rotation during percussion, surface dents, a worn-out sleeve, and hole deviation. The practical implication is that joint tightness and operating sequence matter. A new sleeve will not solve a process that repeatedly hammers through loose or misaligned connections.

Transverse cracks

For transverse cracking, the OEM failure guide adds inadequate feed pressure, heavy rotational loads caused by drilling with worn bits, and thread mismatch to the list of possible causes. This is why a cracked sleeve should trigger an inspection of the bit and drilling parameters as well as the sleeve itself.

If the same failure repeats after a new sleeve is fitted, treat that as evidence that the problem is systemic. Check alignment, bit wear, feed, rotation, percussion settings, rod condition, and thread compatibility before assuming the replacement sleeve is the cause.

5. Thread wear can spread damage into rods and shank adapters

Coupling sleeves wear together with their mating threaded components. Once excessive clearance, damaged flanks, pitting, chipping, or poor seating develops, the joint no longer behaves like a healthy connection.

Sandvik's failure guide repeatedly warns against combining worn and new connection components. For extension rods, it advises replacing worn components rather than putting a worn coupling on a new rod. For shank adapters, it also recommends changing worn couplings when new shank adapters are installed.

For maintenance teams, this means the coupling should not be inspected in isolation. Whenever a sleeve is rejected, inspect both mating rod ends and the shank adapter if that sleeve has worked at the first connection. Look for:

  • flattened, chipped, pitted, or visibly thinned thread surfaces;
  • uneven contact patterns;
  • poor seating or abnormal looseness;
  • damaged rod ends;
  • cracks, dents, or corrosion near the threaded zone;
  • signs that a new component is being paired with a badly worn mating part.

There is no universal replacement interval in drilling meters that is valid for every coupling sleeve. Rock condition, drill power, alignment, operating parameters, bit condition, corrosion, and handling all change service life. Condition-based inspection is therefore more reliable than applying an unsupported fixed meter limit.

6. R32 compatibility: match the thread system before you order

“R32” is not just a convenient catalog label. It identifies the thread system used by the mating components. A standard R32 coupling sleeve should be matched with compatible R32 threaded components unless a purpose-designed adapter or reduction coupling is specified.

Sandvik's current top-hammer catalog lists R32 rods and coupling sleeves as part of its thread-system range and separately lists reduction couplings for transitions between different threads. That distinction is important: a transition between thread systems requires an engineered adapter or reduction coupling, not forcing two similar-looking connections together.

For a PerfoMax R32 replacement, verify:

  1. the thread designation on the existing rods;
  2. the shank adapter or first connection thread;
  3. whether the drill string uses straight extension rods and sleeves or another connection architecture;
  4. the condition of both male rod threads that will enter the new sleeve;
  5. whether any crossover or reduction component is already in the drill string.

If the marking is unreadable, send clear photos, the rig and rock-drill model, rod dimensions, and the existing component marking with the RFQ. Do not identify a thread solely by outside diameter.

7. High coupling temperature is a drilling-system warning, not only a lubrication issue

Heat can be useful diagnostic evidence. Epiroc's FlexiROC T15 R operating information, for example, states that the coupling sleeve temperature on that machine must not exceed 120 °C (248 °F) and links high temperature to a poor relationship between feed pressure, percussion pressure, and rotation pressure. The same manual points operators to bit condition, rotation speed, damper pressure, percussion pressure, and feed pressure when reducing coupling temperature.

Do not treat 120 °C as a universal limit for every rig. It is an equipment-specific example. Use the operating manual for the actual drill rig and rock drill in service.

Practical warning signs include visible discoloration, oil vaporizing on a hot coupling, difficult uncoupling, or a repeated temperature increase in one part of the drilling cycle. When these appear, inspect the bit and drilling parameters before simply adding more grease or fitting another sleeve.

8. A five-minute coupling-sleeve inspection routine

A short inspection during rod changes or planned maintenance can catch problems before a sleeve splits or damages mating threads.

  1. Clean the threads. Remove rock dust, grease buildup, and debris so the contact surfaces are visible.
  2. Inspect both ends. Look for impact marks, chips, dents, flared areas, or evidence that the rod or shank has been striking a shoulder incorrectly.
  3. Inspect the sleeve body. Reject a sleeve with visible longitudinal or transverse cracking.
  4. Inspect internal threads. Look for pitting, galling, chipping, flattening, abnormal wear, or uneven contact.
  5. Inspect mating parts. Check rod threads and, where relevant, the shank-adapter thread. A new sleeve should not be used to hide a damaged rod end.
  6. Review heat evidence. Investigate abnormal discoloration or unusually high operating temperature using the rig manufacturer's procedure.
  7. Check the bit. Excessive bit wear can increase rotational load and reflected energy into the drill string.
  8. Confirm the operating sequence. Joints should be correctly engaged before percussion, and back rotation with percussion should be avoided where the equipment instructions prohibit it.

9. Four common troubleshooting scenarios

Scenario A: “The new coupling cracked again after a short time.”

Do not immediately order a harder sleeve. Check for loose joints, back rotation under percussion, feed misalignment, hole deviation, surface damage, worn bits, and mismatched threads. Repeated cracking is often a symptom of the load path or operating practice.

Scenario B: “The coupling is very difficult to loosen.”

First check whether the sleeve has been overheating or whether the connection is being overloaded by incorrect settings. Avoid striking the outside of the coupling as a routine breakout method. Follow the rock-drill or rig manufacturer's approved uncoupling procedure and use the correct breakout tooling.

Scenario C: “A new rod is wearing rapidly at the thread.”

Inspect the coupling sleeve instead of blaming the rod alone. Sandvik warns against pairing new rods with worn couplings. Also check alignment, drilling settings, lubrication, bit wear, and whether all threads truly match.

Scenario D: “The sleeve gets hot but has no visible crack.”

Heat can appear before structural failure. Verify bit condition and the relationship between feed, percussion, and rotation. If the rig provides a coupling-temperature limit or a troubleshooting procedure, use it. Do not wait for a crack to prove that the joint is being overloaded.

10. When should a top-hammer coupling sleeve be replaced?

Replace or remove the sleeve from production when condition indicates that the connection can no longer operate as intended. Typical replacement triggers include:

  • any visible longitudinal or transverse crack;
  • severe chipped-end or impact damage that prevents correct alignment or seating;
  • internal threads with significant pitting, galling, chipping, deformation, or wear;
  • a joint that cannot remain correctly engaged despite verified operating settings and healthy mating components;
  • damage caused by thread mismatch or a damaged mating rod;
  • repeated overheating accompanied by connection damage after the operating cause has been diagnosed.

Do not set a universal replacement interval from an online rule of thumb. Use the inspection criteria and replacement limits provided for the actual rock-tool system, and replace damaged mating components together when required by the OEM procedure.

11. RFQ checklist for a replacement coupling sleeve

To reduce compatibility errors, include the following information in your quotation request:

  • thread designation, such as R32;
  • rock drill and rig model;
  • rod type, diameter, and length;
  • existing coupling marking or part number, if available;
  • photos of both coupling ends and internal threads;
  • photos of mating rod threads;
  • failure symptom: chipped end, longitudinal crack, transverse crack, thread wear, overheating, or difficult uncoupling;
  • rock condition and drilling application;
  • quantity required and whether rods or shank adapters are being replaced at the same time;
  • destination and preferred Incoterm for B2B quotation.

For an R32 extension-rod system, review the current PerfoMax R32 coupling sleeve and R32 extension drill rods. If you are not sure about compatibility, send an RFQ with component photos and the rig information before ordering.

12. Frequently asked questions

Can I keep drilling with a cracked coupling sleeve?

No. A visible crack is a replacement condition. Remove the damaged sleeve and investigate the operating cause—such as loose joints, misalignment, hole deviation, worn components, or incorrect drilling parameters—before fitting the replacement.

Why does a coupling sleeve crack repeatedly?

Repeated cracking can indicate loose thread joints, back rotation during percussion, feed or hole misalignment, worn sleeve or rod threads, high rotational load from a worn bit, inadequate feed, or thread mismatch. The replacement part alone will not correct those causes.

Should I replace a coupling sleeve when I install a new rod?

Inspect the sleeve first. If it is worn or damaged, replace it rather than mating a new rod to a worn connection. OEM failure guidance specifically warns against combining worn couplings with new rods.

Can R32 and T38 components be screwed together if the diameters look close?

No. They are different thread systems. Use components with the correct matching thread or a purpose-designed reduction/adapter component specified for the transition.

Does a hot coupling sleeve always mean insufficient grease?

No. Lubrication matters, but official rig guidance also links high coupling temperature to the relationship between feed, percussion, rotation, and bit condition. Diagnose the complete drilling system and follow the actual rig manufacturer's limits.

13. Technical references

Need help identifying the failed connection?

If the thread marking is uncertain or the sleeve has failed unexpectedly, send PerfoMax the rig model, rod specification, coupling photos, failure pattern, and application details through the RFQ page. A compatibility check before ordering is less costly than discovering a thread mismatch after the parts arrive.
