A top hammer drill string is the mechanical path between the rock drill and the rock. In a typical threaded system, the main components are the shank adapter, drill rod or tube, coupling sleeve where the connection architecture requires one, and the drill bit. These parts do more than simply hold the bit at depth: together they transmit percussion, rotation and flushing from the drill rig to the hole bottom.
Understanding that energy path is useful before comparing thread sizes or ordering replacement tools. If a buyer treats each component as an isolated item, it is easy to confirm one visible specification—such as “T38” or “R32”—while missing the rock-drill interface, connection architecture, rod dimensions or bit interface that make the complete drill string work as a system.
Top Hammer Drill String Components at a Glance
OEM top-hammer catalogs consistently separate the drill string into the same functional families: shank adapters, drill rods or tubes, couplings and drill bits. Epiroc describes its shank adapters, rods and tophammer bits as parts that work together as a drill string, while its catalog separately identifies product types for rods/tubes, couplings and shank adapters.
| Component | Where it sits | Primary job | What buyers usually need to identify |
|---|---|---|---|
| Shank adapter | Directly after the rock drill | Interfaces with the drifter and transfers percussion, rotation and flushing into the drill string | Rock drill / drifter model, shank geometry, thread system, flushing arrangement |
| Drill rod or tube | Between shank adapter and bit | Extends reach while carrying impact, torque and flushing | Thread, length, outside/body form, end configuration, flushing passage |
| Coupling sleeve | Between compatible threaded components when required | Joins separate threaded sections into a continuous drill string | Threads at both ends, coupling design, mating rod configuration |
| Drill bit | At the hole bottom | Receives impact and rotation, breaks rock and allows cuttings to be flushed away | Thread/interface, bit diameter, face/button configuration, application |
1. Shank Adapter: The Interface Between Rock Drill and Drill String
The shank adapter is the first drill-string component after the rock drill. Its job is not merely to provide a threaded end. Sandvik describes the shank adapter as a particularly critical part because it must transmit impact energy from the rock-drill piston and rotational torque into the drill string. OEM catalogs also show that shank adapters are specified by more than the outgoing thread: the rock-drill interface, spline or shank geometry and flushing configuration can all differ.
This is why “I need a T38 shank” is usually incomplete information. T38 may describe the thread at the drill-string side, but the opposite end still has to fit the specific rock drill or drifter. The same principle applies to R32, R38, T45 and other thread families.
Useful terminology:
- Shank / shank adapter: the drifter-to-drill-string interface component.
- Spline / shank geometry: the interface features that engage the rock drill and its rotation system.
- Flushing arrangement: the designed path through which air or water enters the drill string; OEM catalogs show both side- and through-flushing shank configurations.
- Outgoing thread: the thread that connects the shank adapter to the next drill-string component.

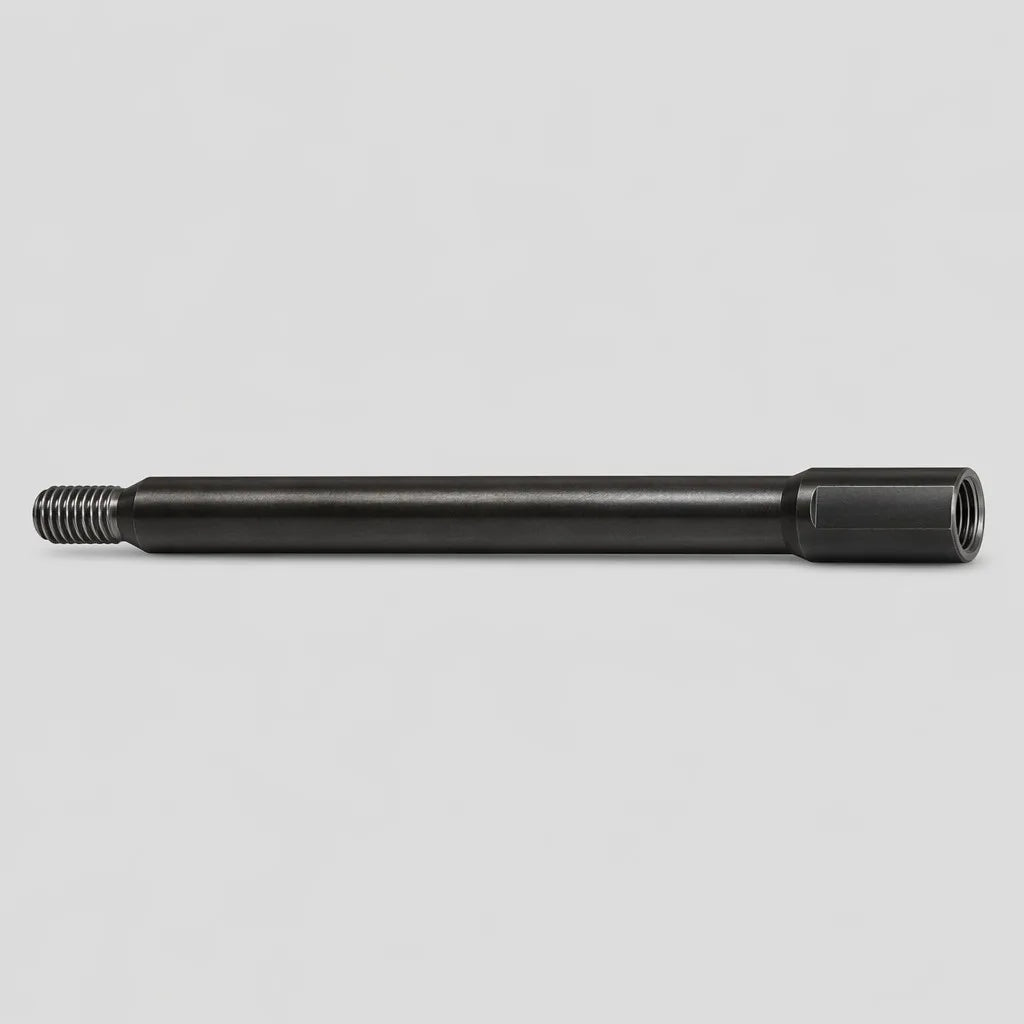

2. Drill Rod or Tube: The Main Energy-Carrying Length
The drill rod—or drill tube in some larger or system-specific designs—forms most of the drill string length. It has to carry repeated impact loading, rotation torque and the flushing medium while remaining straight enough for the drilling system and application.
In commercial discussions, “rod” alone is often too vague. OEM product ranges distinguish between extension rods, speed rods or male/female rods, guide rods, drifter rods and tubes. The names describe connection architecture or function, not simply marketing language.
Extension rod vs. male/female (MF) or speed rod
Connection architecture changes how adjacent sections are joined. In systems that use separate coupling sleeves, compatible male threaded rod ends are joined through a female coupling. In a male/female or “speed rod” architecture, one end incorporates a female connection, reducing the need for a separate coupling at that joint. Epiroc’s catalog explicitly uses “MF” for a speed rod with male/female thread.
Neither term should be interpreted as universally better. The important point for a buyer is that extension rod, MF/speed rod and coupling arrangement are system terms. A replacement rod must match the connection architecture already in the drill string.
3. Coupling Sleeve: The Connector, Not the Shank Adapter
A coupling sleeve joins compatible threaded components. In a conventional extension-rod system, it commonly connects male rod ends so multiple rods can form a longer string. Depending on the system, couplings and crossover components can also connect different thread arrangements or special interfaces.
Two terminology errors are common:
- Calling the coupling a shank adapter. The shank adapter interfaces with the rock drill; the coupling joins drill-string components.
- Assuming the thread label alone defines the coupling. OEM catalogs distinguish standard couplings, crossover couplings and adapters. The threads on both sides and the intended mating components still need confirmation.
PerfoMax currently lists an R32–R32 coupling sleeve for compatible top-hammer drill rods. That product page is useful as a concrete example of why the intended mating rod configuration should be confirmed before quotation.
4. Drill Bit: Where the Energy Becomes Rock Breakage
The bit is the final interface between the drill string and the rock. Percussive energy reaches the bit through the string, rotation indexes the cutting elements to new rock, and flushing exits near the hole bottom to move broken cuttings away from the face.
For drill-string terminology, the important distinction is between the bit connection and the bit diameter. A thread designation such as R32 or T45 describes a connection system; a bit diameter describes the hole-making end of the tool. They are not interchangeable dimensions. A buyer therefore should not infer rod thread directly from requested hole diameter without checking the full drilling system.
Bit face design, carbide arrangement and gauge protection are separate selection topics. They should be evaluated after the drill-string interface is known, not used as substitutes for connection identification.
5. What Actually Travels Through the Drill String?
Thinking in terms of three simultaneous transmission paths makes the system easier to understand.
| Transmission | Starts at | Path through the string | Purpose at the bit |
|---|---|---|---|
| Percussion / impact | Rock-drill piston | Shank adapter → rod/tube → joints/couplings → bit | Provides repeated impact energy for rock breakage |
| Rotation | Rock-drill rotation mechanism | Shank adapter → threaded connections → rods → bit | Indexes the bit between impacts and supports efficient cutting over the hole face |
| Flushing | Rig flushing supply | Shank/flush entry → internal drill-string passage → bit flushing ports | Removes cuttings from the hole bottom and transports them toward the collar |
Sandvik’s top-hammer catalog emphasizes the shank adapter’s role in transmitting impact energy and torque into the drill string. Epiroc’s component catalog also documents dedicated flushing arrangements in shank adapters and identifies the separate drill-string product families. The exact internal path and dimensions remain system-specific, so service manuals and the rock-tool manufacturer’s data should take priority over a generic diagram.
6. Why Threads Matter—but Do Not Describe the Whole Drill String
Thread names are essential shorthand in top-hammer drilling. They let engineers and buyers discuss connection families efficiently. But a complete drill string contains several interfaces, and one thread label cannot describe all of them.
For example, OEM shank-adapter catalogs list the same outgoing thread family against different rock drills and shank designs. Likewise, rod families can include extension rods, speed/MF rods, guide rods and different lengths or body forms. This creates a practical rule:
Use the thread designation as one identification field, not as a complete compatibility statement.
If you are replacing an existing rod, coupling or bit, record the mating parts as well. PerfoMax’s R32 drill rod selection page, for example, treats thread, length, body and end type as separate quotation inputs rather than assuming “R32” fully defines the rod.
7. Top Hammer and DTH Use Different Tool-String Architectures
Another terminology trap is applying top-hammer component names to DTH drilling. In top-hammer drilling, the percussion source is in the rock drill at the top of the string, and impact is transmitted through the shank adapter and rods to the bit. In down-the-hole drilling, the hammer itself operates near the hole bottom and the drill pipes mainly deliver rotation, feed reaction and compressed air to that hammer.
That difference changes the component chain. A top-hammer “shank adapter + rod + coupling + bit” discussion should therefore not be used as a DTH parts list. When requesting a replacement, start by identifying the drilling method and rig/rock-drill system before using thread or bit terminology.
8. Five Common Terminology Mistakes in RFQs
- “Shank adapter” and “coupling sleeve” used as synonyms. They occupy different locations and perform different interface jobs.
- “Rod” without connection architecture. Extension, MF/speed and other rod forms may not be interchangeable even within the same broad thread family.
- Thread size confused with hole diameter. Connection designation and drilled-hole diameter describe different parts of the system.
- One thread label treated as complete compatibility. The rock-drill interface, mating components and rod configuration still matter.
- Top-hammer terminology applied to DTH tools. The percussion source and tool-string architecture are different.
9. Information to Confirm Before Requesting Top Hammer Drill-String Parts
A short technical RFQ is more useful than a long message with one ambiguous part name. For replacement or new drill-string components, provide as many of the following as you can verify:
- Drilling method: top hammer, not DTH.
- Rig and rock-drill / drifter model.
- Current thread system or marked part number.
- Required component: shank adapter, rod/tube, coupling, bit or complete string.
- Rod length and body form / outside dimension where known.
- End configuration: extension, MF/speed or other existing architecture.
- Bit thread/interface and required bit diameter.
- Flushing medium and any known flushing configuration.
- Application: bench drilling, tunneling, production drilling, construction or other use.
- Photos of both mating ends and readable markings when replacing an unknown component.
If some fields are unknown, send the available equipment model, current tool photos and mating-component dimensions rather than guessing. PerfoMax can use verified information to narrow the quotation scope. Use the PerfoMax RFQ page to submit the drilling system and tool requirements.
FAQ
What are the main components of a top hammer drill string?
For a typical threaded top-hammer system, the functional chain includes a shank adapter, one or more drill rods or tubes, coupling sleeves where the connection architecture requires them, and a drill bit. Specialized systems can add guide rods, crossover components or other tool types.
What is the difference between a shank adapter and a coupling sleeve?
The shank adapter interfaces directly with the rock drill and transfers percussion, rotation and flushing into the drill string. A coupling sleeve is a connector between compatible threaded drill-string components. They are not interchangeable names.
What does MF mean on a top hammer drill rod?
In OEM top-hammer terminology, MF refers to a male/female connection configuration; Epiroc’s catalog describes “MF” as a speed rod with male/female thread. The exact geometry and compatible mating tools still depend on the thread system and manufacturer specifications.
Does the same thread name guarantee that two top hammer tools will fit correctly?
No. A shared thread family is necessary for the threaded interface being joined, but complete system compatibility also depends on the specific component, mating-end configuration, shank/rock-drill interface and relevant dimensions. Verify the actual system rather than buying on the thread name alone.
Is the drill-string sequence the same for DTH drilling?
No. DTH places the hammer near the bit at the hole bottom, while top hammer creates percussion at the rock drill above the string. The component architecture and terminology therefore differ.
