How to Reduce Drill Hole Deviation in Top Hammer Drilling

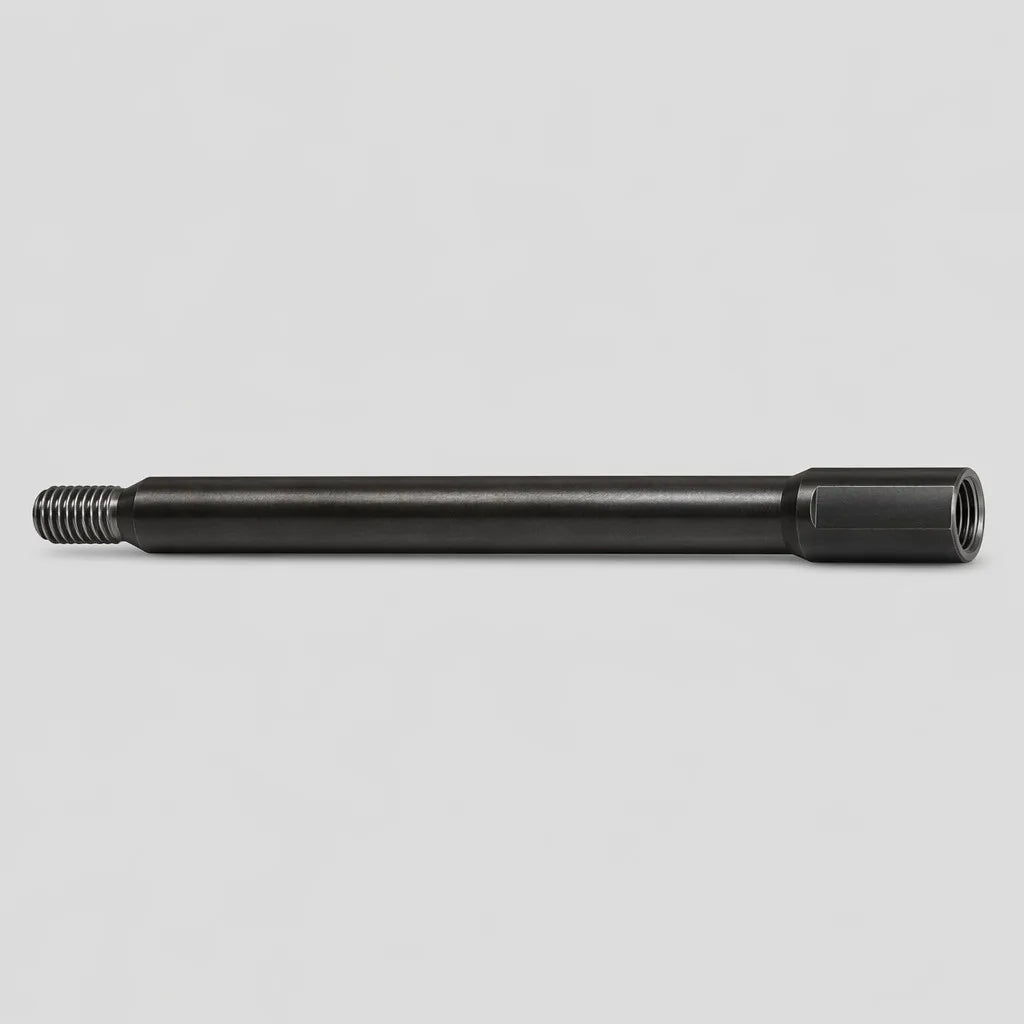

Top hammer extension drill rod used in hole-straightness and deviation control

Short answer: To reduce drill hole deviation in top hammer drilling, treat it as a system problem rather than a single defective part. First separate collar-position or angle error from true in-hole drift. Then check collaring technique, feed pressure, ground structure, drill-string condition, thread play, bit wear, and whether the rod-and-bit system matches the required hole depth and diameter.

For quarry, mining, construction, and drilling contractors, a straight hole depends on the full system staying aligned from collar to toe. A straight new rod cannot compensate for a poorly collared hole, excessive feed, a dull bit, or strongly fractured ground.

1. First Diagnose the Type of Hole-Accuracy Problem

Before changing rods, bits, or operating parameters, identify where the error begins. Epiroc separates common drilling errors into collaring error, drilling-angle error, and in-hole deviation. That distinction is useful because each type points to a different corrective action.

Observed problem What it usually means First checks
Hole starts in the wrong position Layout or collar-location error rather than downhole drift Pattern marking, rig position, collar coordinates
Hole starts at the wrong angle Rig alignment or collaring-angle error Boom/feed alignment, mast angle, bench surface
Hole begins correctly but gradually wanders True in-hole deviation Feed pressure, string bending, rod/joint condition, bit wear, depth
Direction changes near a seam or broken zone Formation-controlled deviation Banded rock, fractures, voids, softer layers, drilling log

This diagnosis matters because replacing drill steel will not correct a layout error, while adjusting the rig angle will not remove excessive play in badly worn threaded joints.

2. Seven Causes of Drill Hole Deviation in Top Hammer Drilling

1) Collaring and initial alignment

The collar is a high-risk stage for introducing misalignment. Before the bit is supported by the hole wall, it can skate or tilt on an uneven surface. Accurate setup, stable positioning, and controlled collaring give the rest of the hole a better starting axis.

2) Feed pressure and drill-string bending

More feed is not automatically better. Excessive feed can bend the drill string and tilt the bit away from the intended axis. Use only the feed needed for stable drilling rather than forcing the string. If deviation becomes worse when feed is increased, treat that as a diagnostic signal.

3) Rock structure and ground variability

Geology can redirect the bit even when the rig and tooling are correctly set. In banded ground, a bit can turn toward softer layers. In fractured ground, it can follow fissures or other paths of lower resistance. Record where penetration rate, vibration, cuttings, air return, or water conditions change; those changes can help explain why several holes drift in a similar depth interval.

4) Hole depth, angle, and string length

As a top hammer hole becomes deeper, impact energy must travel through a longer steel string and additional joints. Alignment sensitivity can increase, especially in angled holes or variable ground. Hole depth, required toe accuracy, and geology should therefore be considered together rather than selecting tools by thread size alone.

5) Rod straightness and joint condition

A bent rod, damaged shoulder, contaminated thread, or poorly mating joint can introduce eccentric rotation. Inspect the complete string, not only the rod that failed most recently. When repeated deviation appears to follow a particular rod position or joint, rotate components through the string during troubleshooting to see whether the problem follows the component.

6) Thread and coupling wear

Excessive thread wear creates play between mating parts. That play allows the string to move off-axis under percussion and rotation. Check threads, couplings, and shoulders for abnormal wear, pitting, galling, looseness, and damaged contact surfaces. A coupling that still screws on is not automatically suitable for accurate drilling.

7) Bit condition and bit-to-ground match

A dull or badly worn bit can drill less efficiently and may increase deviation risk. Check gauge condition, carbide wear, skirt damage, flushing, and whether the bit design suits the formation. If a group of holes shows both rising drilling time and increasing deviation, bit condition should be part of the inspection.

3. Hole-Deviation Diagnostic Table

Field symptom Likely causes What to inspect Corrective direction
Large toe offset but collar is correct Progressive in-hole drift, excessive feed, worn joints, formation changes Feed setting, rod straightness, threads, drilling log Reduce unnecessary feed, replace worn components, compare geology by depth
Deviation begins immediately Poor collaring, unstable surface, wrong rig angle Collar point, mast/feed alignment, first drilling stage Re-establish alignment and use controlled collaring
Several holes bend in the same geological zone Banded or fractured ground Cuttings, penetration changes, fractures, water/air-return changes Adjust operating practice and evaluate tooling for that formation
Deviation increases as tools wear Dull bit, worn threads, coupling play, bent steel Gauge, buttons, joint fit, straightness Service or replace the worn component before changing unrelated settings
Only angled holes show strong drift String sag, collar-angle error, excessive unsupported length Angle setup, rod alignment, feed, joint condition Verify setup and use conservative feed; review system suitability if accuracy remains inadequate

4. How to Reduce Drill Hole Deviation: An 8-Step Field Workflow

  1. Verify the planned collar and angle. Confirm the hole is starting in the correct place and direction before diagnosing downhole tooling.
  2. Collar under control. Use a stable setup and avoid aggressive feed before the bit is properly supported by the hole.
  3. Use no more feed than necessary. Watch for string bending, unstable rotation, or a change in hole behavior when feed is increased.
  4. Inspect the whole drill string. Check rod straightness, threaded ends, couplings, shoulders, and any component that can create eccentric alignment.
  5. Inspect the bit before blaming the rods. Gauge loss, dull carbide, skirt damage, or a poor ground match can affect hole quality.
  6. Log geological transitions. Mark the depth of soft bands, fractures, voids, water, or abnormal penetration changes and compare them with deviation data.
  7. Change one variable at a time. Compare holes after a single change—feed, bit, rod, coupling, or setup—so the result identifies a cause rather than creating a new combination of unknowns.
  8. Measure critical holes. When downstream performance depends strongly on toe position, use the site’s available survey or downhole measurement method rather than relying only on operator feel.

5. What Procurement Can Change in the Drill String

Procurement can influence hole straightness, but a larger thread designation by itself is not a cure for deviation. The correct choice depends on the rock drill, shank adapter, hole diameter, hole depth, rod length, impact energy, formation, and the existing bit/coupling system.

PerfoMax currently supplies R32 threaded extension drill rods, T38 threaded extension drill rods, and T45 threaded extension drill rods. These are different thread systems; do not substitute one for another without confirming the complete drill-string interface.

When deviation is the purchasing problem, send more than a requested thread size. A supplier needs the application and compatibility data to judge whether the issue is likely to be solved by replacement tooling, a different string configuration, or an operating change.

6. Common Mistakes That Make Hole Deviation Harder to Solve

  • Increasing feed to force the hole straight. Extra feed can increase string bending instead of correcting the axis.
  • Replacing rods before checking collaring and geology. This can create an expensive false diagnosis.
  • Mixing worn and new joints without checking play. One loose connection can dominate the alignment of an otherwise good string.
  • Continuing with a dull or worn bit. Hole quality should be reviewed together with bit condition and penetration behavior.
  • Buying by thread size alone. R32, T38, or T45 does not tell the supplier your rock drill, hole diameter, depth, formation, or accuracy requirement.
  • Using generic straight-hole claims as a specification. Ask what conditions the claim applies to and compare it with your own hole depth, ground, and drilling system.

7. RFQ Checklist for a Hole-Deviation Problem

For a more useful technical recommendation, include the following information in your RFQ:

  • Rig make/model and rock drill model
  • Shank adapter and current thread system
  • Current rod type, rod length, and number of sections in the hole
  • Bit diameter, bit type, and current bit condition
  • Planned hole depth and drilling angle
  • Rock description: massive, banded, fractured, abrasive, soft/hard transitions, voids, or water
  • Where deviation appears: at the collar, gradually with depth, or near a known geological zone
  • Measured collar-to-toe offset or other site hole-survey data, if available
  • Feed, rotation, and flushing observations when the problem occurs
  • Photos of worn threads, couplings, rods, and bits
  • The required hole-accuracy objective

If you are replacing a worn string, also state which components will remain in service. Compatibility should be checked across the shank adapter, coupling, rod, and bit—not only the new rod.

FAQ

What causes hole deviation in top hammer drilling?

Common causes include inaccurate collaring, rig-angle error, excessive feed pressure, drill-string bending, banded or fractured rock, worn threaded joints, bent rods, and dull or mismatched bits. The correct diagnosis depends on where the deviation begins.

Can excessive feed pressure make a hole drift?

Yes. Excessive feed can bend the drill string and tilt the bit off the intended axis. If stronger feed consistently worsens deviation, reduce it to the minimum level needed for stable drilling and inspect the string for bending or worn joints.

Why do fractured or banded formations increase deviation?

The bit tends to follow paths of lower resistance. In alternating hard and soft layers it can turn toward softer material; in fractured rock it can follow fissures. Logging the depth of formation changes helps distinguish geology-driven drift from a tooling problem.

Do worn threads and dull bits affect hole straightness?

They can. Excessive thread wear creates play between mating components, while a dull bit can drill less efficiently and increase the tendency to wander. Inspect both the joints and the bit when deviation increases with tool age.

When should a contractor consider a different drilling system?

If the required toe accuracy, depth, hole diameter, or ground conditions remain outside the practical capability of the current top hammer setup after operating and tooling issues are corrected, review the drilling method with the rig/tool supplier. Base that decision on measured hole results and application conditions rather than a universal depth rule.

Technical References

Next Step: Send the Drill-String Details, Not Just the Thread Size

If your top hammer holes are drifting, the most useful RFQ describes the complete drilling system and the failure pattern. Compare the current PerfoMax R32, T38, and T45 extension-rod options above, then request a quote with your rig, shank, bit diameter, hole depth, formation, current thread system, and measured deviation. That information allows compatibility and replacement options to be reviewed without guessing at missing specifications.
