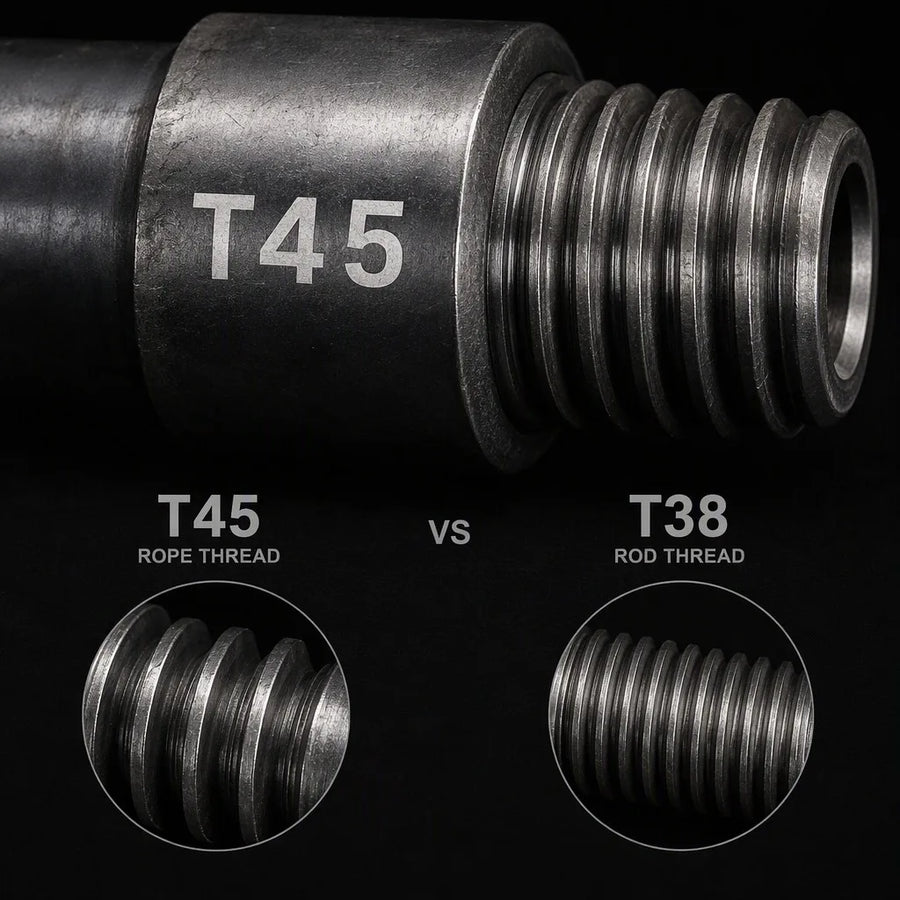

T45 thread and matching body/end geometry
Check coupling wear and thread grease practice in service.

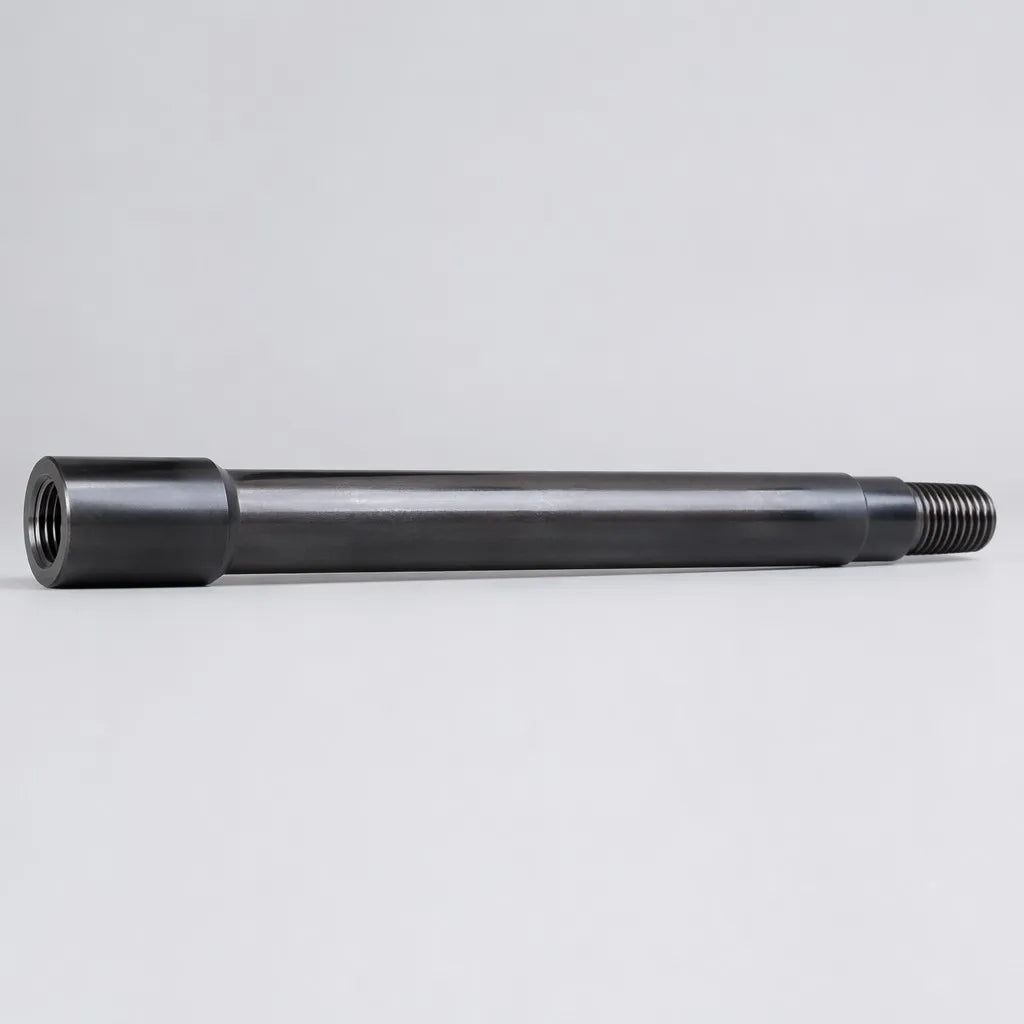

T45 Threaded Extension Rod
T45 Extension Drill Rods, 3050–4880 mm
Model:T45 / 3050–4880 mm
Selected configuration:3660 mm
Selected reference:PFM-T45-ROD-3660
T45 extension drill rods in 3050–4880 mm lengths for matched top-hammer drilling systems.
The default quotation is a male–male extension rod; MF speed rods require separate end-style confirmation.
- T45 thread system
- 3050–4880 mm standard length options
- End style and body section confirmed before production
Select
Request a Configuration-Based Quote
Send rig and rock-drill markings, known shank adapter coupling and bit references, available evidence, the selected current length and operating context. Choose a separate inquiry if MF is required.
Technical Review Scope
Configuration and Quotation Guidance
T45 male–male extension-rod configuration inquiry. This page is limited to the MM end style and four length references. It does not represent an MF speed rod or a complete orderable rod configuration.
Configuration identity: the length codes on this page are inquiry references for T45 male–male extension rods, not complete orderable SKUs. Confirm the overall or effective length basis, rod body, flushing bore, matching T45 shank adapter, coupling and bit, and controlled drawing revision before technical approval. An MF speed rod is a separate configuration and must receive a different approved configuration ID rather than reuse a length code from this page.
Current inquiry references
| PFM-T45-ROD-3050 | 3050 mm inquiry length; MM end style only |
|---|---|
| PFM-T45-ROD-3660 | 3660 mm inquiry length; MM end style only |
| PFM-T45-ROD-4270 | 4270 mm inquiry length; MM end style only |
| PFM-T45-ROD-4880 | 4880 mm inquiry length; MM end style only |
Information to confirm
- Rig or rock-drill model and matching T45 shank adapter.
- MM end style, overall or effective length basis and rod-body requirement.
- Flushing bore or an engineering-proposal-required state.
- Matching T45 coupling and bit.
- Current drawing, measurements or replacement-part photos.
MF request boundary
If an MF speed rod is requested, the current MM length code must be cleared from the proposed order identity. The MF request must enter a separate configuration review and receive its own approved configuration ID.
Engineering and quotation outputs
Before technical approval, the controlled drawing must return the end style, length basis, rod body, flushing bore, matching shank adapter, coupling, bit, mass, tolerance and drawing revision. Buyer uncertainty may enter an inquiry but must not be converted into a guessed supplied value. Every technically approved T45 MM configuration must receive its own approved configuration ID; the current length reference must not be the sole order identity.

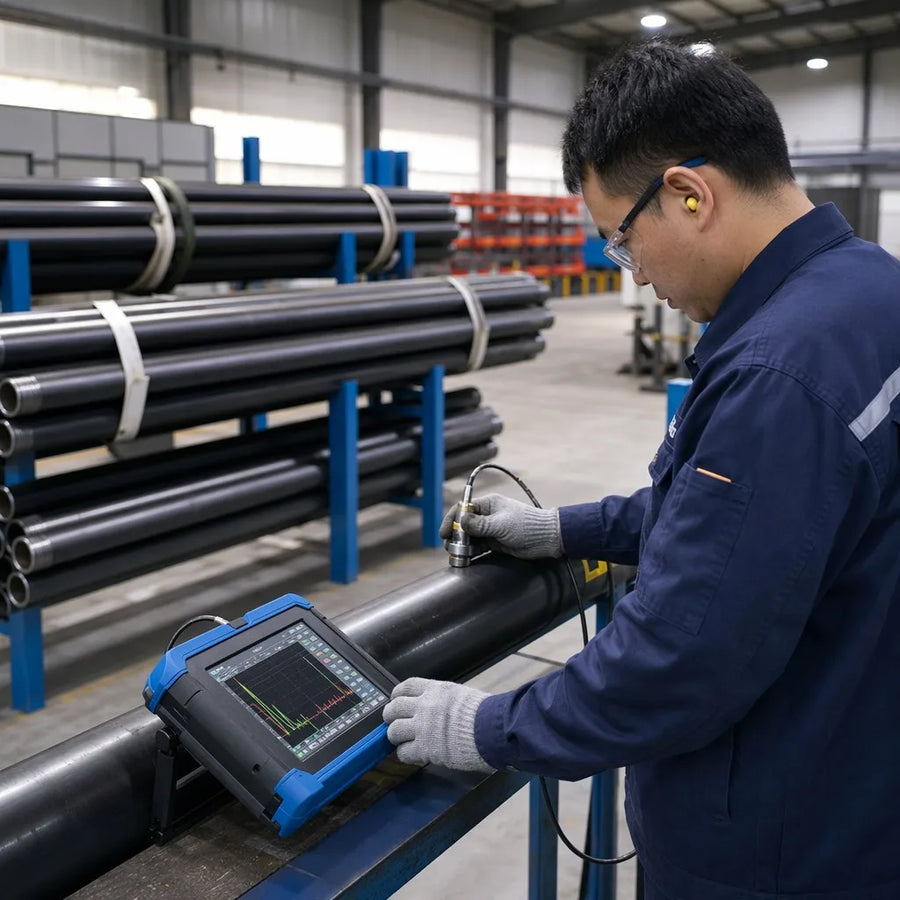

Inspection and NDT boundary
NDT is not included by default. If an NDT requirement is requested and expressly accepted in the written quotation, the method, applicable standard and edition, inspected quantity or batch scope, acceptance criteria or level, report requirement and lot traceability must be stated. This inquiry page does not promise an NDT method or batch coverage.
Selection & Technical Guides
Use these guides to prepare rod-string questions; the controlled quotation drawing defines the supplied configuration.
- T45 Extension Rod vs MF Speed Rod: Male-Male vs Male-Female Selection Guide
- T38 vs T45 Drill Rods: How to Choose the Right Thread for Top Hammer Drilling
- T38 vs T45 Top Hammer Threads: Compatibility and Selection Guide
- How to Identify R32, T38, and T45 Top Hammer Threads Before Ordering Replacement Rods
- Top Hammer Drill Rod Pre-Shipment Inspection: Thread, Straightness, Surface, and Packing Checklist
At a Glance
T45Thread System
3050 / 3660 / 4270 / 4880 mmListed Lengths
Male–male extension rodDefault End Style
Technical Specifications
| Thread System | T45 |
|---|---|
| Listed Lengths | 3050 / 3660 / 4270 / 4880 mm |
| Default End Style | Male–male extension rod |
| Body Section and Flushing Bore | Drawing-controlled |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Top-hammer drill string
T45 shank adapter and bit system
Compatible T45 interfaces across shank, rods, couplings and bit
Do not mix R32, T38 or DTH components.
Threaded Drill-String Design
Impact, Rotation and Flushing Path
The rod body and T45 connections carry percussion and torque while the central passage delivers the selected flushing medium.
Buyer value
Correct end style, straightness and thread fit support energy transfer, hole control and connection life.
Selection condition
Confirm thread, body section, bore, length, straightness criteria and the complete drill-string interface.
Application Scenarios

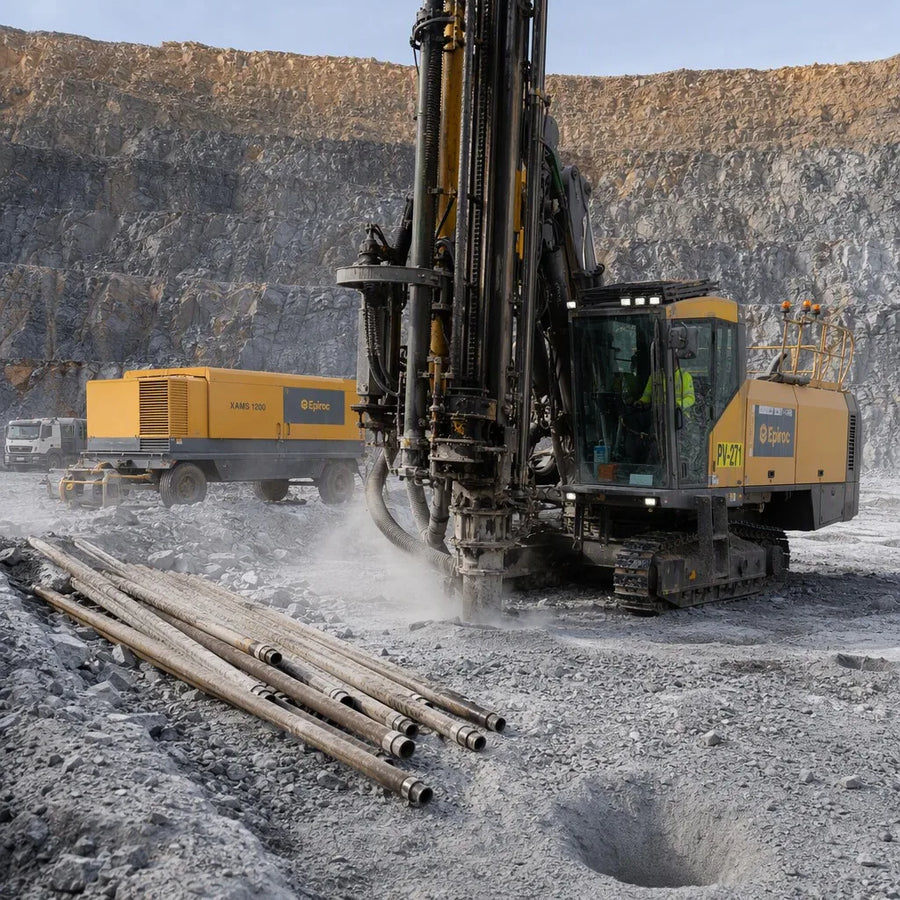

- Top-hammer bench drilling
- Quarry production drilling
- Civil and surface construction drilling
Quality and Pre-Shipment Checks
01
Thread, Length and Straightness Check
Recorded before shipment when included in the quotation
Approved T45 configuration and ordered inspection scope
Check specified length, thread gauge, straightness criteria, flushing passage and visible surface condition.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed in written quotation
Lead TimeConfirmed in written quotation
Available Supply Configurations
- Final packing list confirmed in the written quotation

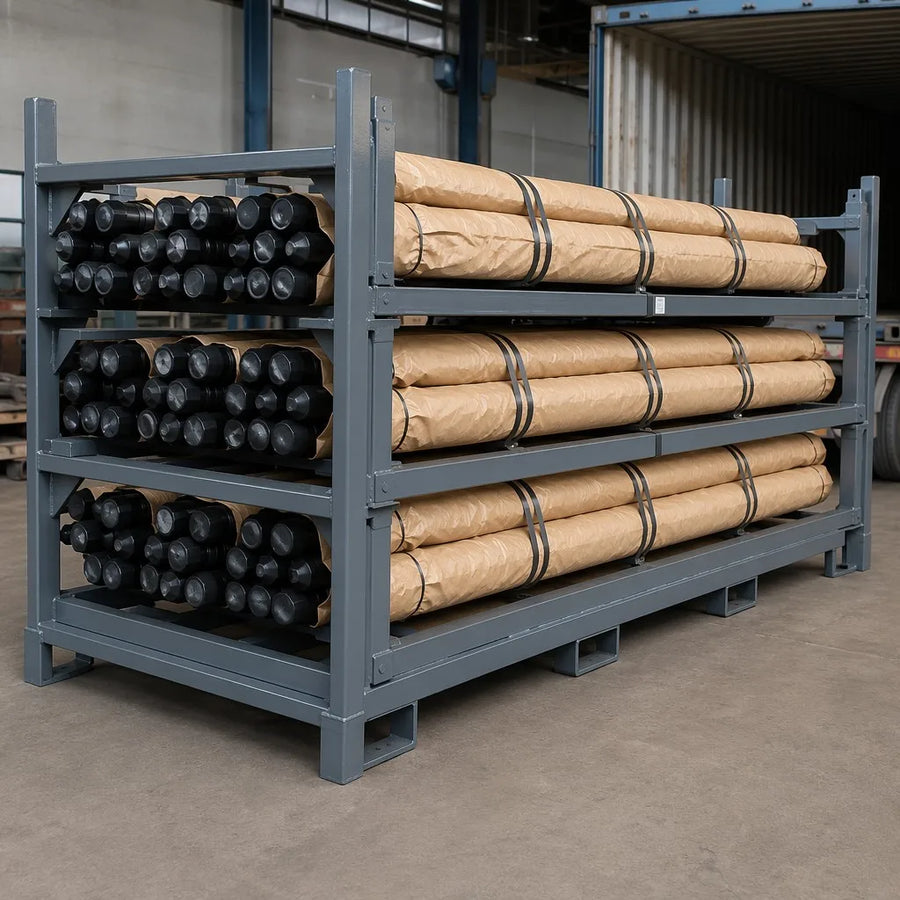

Export Packing
Final packaging, corrosion protection, crate or pallet method and shipping marks are confirmed in the written quotation.
Warranty and After-Sales
Warranty, spare-parts scope and service terms are confirmed in the written quotation for the selected supplier configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list; any additional certificates are confirmed per order
Frequently Asked Questions
Is this T45 page for MF speed rods?
The listed default is a male–male extension rod. If you need an MF speed rod, state the exact end style and provide the current rod or drawing so it can be quoted separately.
What should I send for a T45 rod quotation?
Provide drifter or shank-adapter model, current rod and coupling details, thread, end style, body section, flushing bore, length, hole diameter, rock conditions and quantity.
Matched Top-Hammer Threaded System
A matched T45 string combines the shank adapter, coupling sleeve, T45 extension rods and drill bit. Confirm end style, body section and flushing path across the full string.
Ready to Confirm the Configuration?
Request a Quote for T45 / 3050–4880 mm
This page identifies an MM male–male extension rod only. An MF request clears the current MM length code and needs a separate approved configuration ID. Technical review must return the full drill-string configuration and controlled drawing revision.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence
Product, Component, Configuration and Packing Views
The default quotation is a male–male extension rod; MF speed rods require separate end-style confirmation.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
