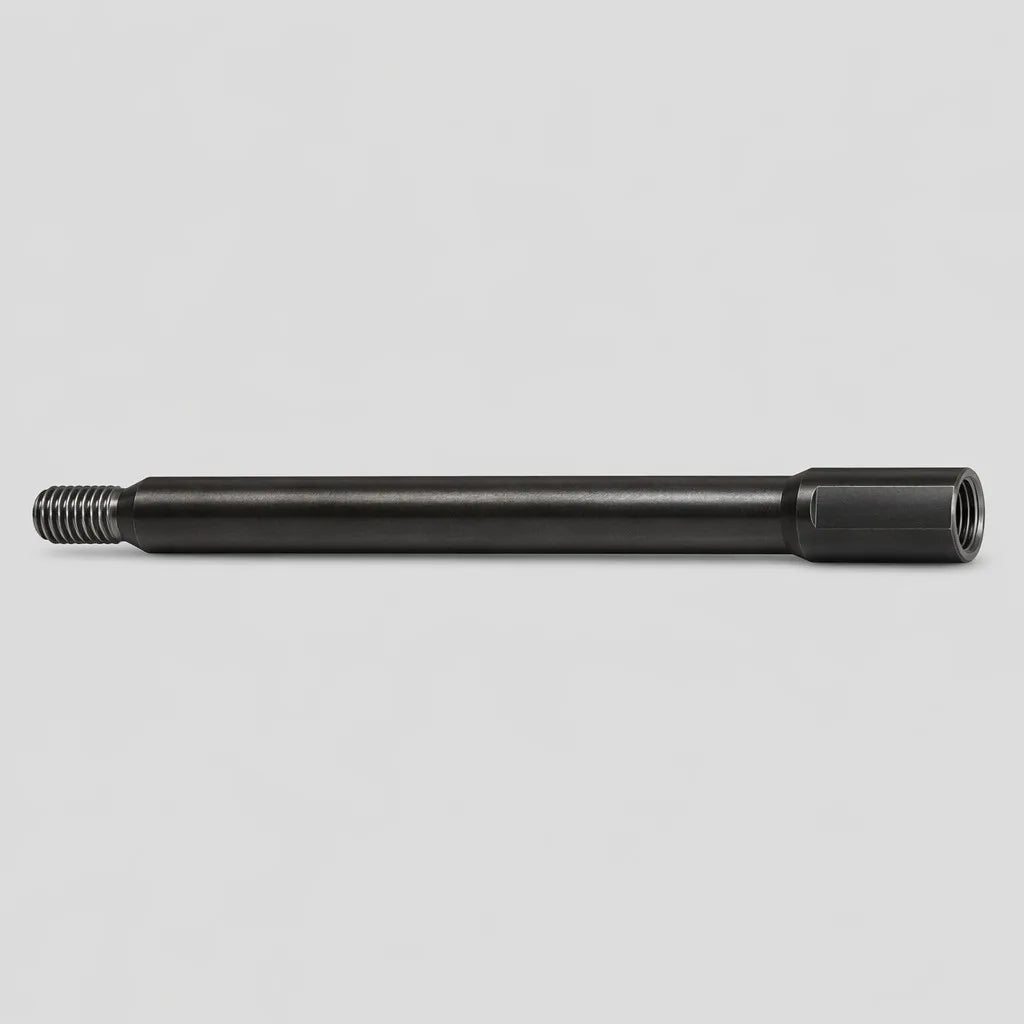

Quick answer: A useful pre-shipment inspection for top hammer drill rods should verify that the shipment matches the purchase order and approved specification first, then check the interfaces that can create the most expensive field problems: thread identity and condition, rod straightness, specified dimensions, surface condition, flushing passage, traceability, required inspection documents, and packing protection. There is no universal tolerance that can safely replace the drawing, supplier data sheet, purchase order, or agreed quality plan. The acceptance limits and inspection scope should be defined before production or shipment.
For mining, quarrying, construction and drilling contractors, a rod that looks acceptable in a bundle can still create avoidable downtime if the thread is wrong, the rod is bent, the flushing passage is obstructed, or the packing allows threaded ends to strike each other during transport. This guide gives procurement and quality teams a practical framework for inspecting bulk top hammer drill rod orders before shipment without inventing generic tolerances that may not apply to the ordered system.
1. Start With Ordered Identity Before Inspecting Quality
Inspection should begin with configuration control, not cosmetic appearance. A visually clean rod can still be the wrong item. Match the physical lot to the latest approved purchase order, drawing, product data sheet or order acknowledgement.
| Item to confirm | Why it matters | Preferred evidence |
|---|---|---|
| Thread designation and connection system | The rod must match the shank adapter, coupling and bit system used on site. | PO, approved drawing/data sheet, product marking and agreed inspection record |
| Rod type | Extension rods and male-female/MF rods use different connection arrangements. | Order description and physical end configuration |
| Ordered length and body configuration | Wrong length or body form can affect feed compatibility, handling and planned drill-string setup. | Approved dimensional specification and measured result |
| Quantity and lot identity | Inspection results must be traceable to the actual shipment. | Packing list, lot/batch identification where specified, bundle count |
| Required documents | Some projects require material, dimensional, hardness, NDT or other evidence; others do not. | PO or quality-plan document list |
Do not accept a generic label such as “R32 rod,” “T38 rod,” or “T45 rod” as the entire specification. The connection designation is important, but a complete order also needs the rod type, length, body configuration and other agreed interface details.
2. Inspect the Threads as a Functional Interface
Threads deserve deliberate inspection because they transmit loads between drill-string components and are repeatedly coupled, loaded and uncoupled. Damage or a wrong interface can prevent correct seating, make assembly unreliable and create avoidable field delays. That is why thread identity, condition and protection should be verified before a new rod leaves the supplier.
What to check visually
- Correct male/female end configuration for the ordered rod type.
- No obvious dents, crushed crests, severe burrs, deep impact marks, corrosion, contamination or transport damage on the threaded area.
- Shoulder and contact surfaces are free from damage that would prevent proper seating, where the connection design uses those surfaces.
- Thread protectors are fitted after inspection when required by the packing specification.
What visual inspection cannot prove
A visual check cannot prove pitch, profile, diameter, lead, concentricity or every connection dimension. Where thread conformity is a critical acceptance characteristic, use the measuring method agreed in the quality plan: for example a calibrated thread gauge, approved master, controlled dimensional measurement, or another specified method. Trial engagement with a coupling can be a useful screening check, but smooth hand engagement alone is not formal proof that the full thread geometry meets the drawing.
3. Check Straightness With a Reproducible Setup
Rod straightness matters because the drill string rotates while transmitting percussion, feed force and flushing medium. A bent rod can create unstable rotation, extra connection loading and avoidable hole-deviation risk. The acceptance limit must come from the approved drawing, purchase order or agreed quality plan; do not borrow a number from another thread family, length or supplier.
Before measuring, identify the SKU, lot, nominal length and drawing revision. Clean the support and contact zones without removing evidence of impact damage, protect the threads from the supports, and use the same agreed setup for every result that will be compared.
| Inspection state | Controlled action | Record | Disposition |
|---|---|---|---|
| Setup not defined | Stop. Confirm the approved method, support locations, measuring instrument and contractual limit before testing. | PO/drawing/quality-plan reference and revision | HOLD FOR EVIDENCE |
| Gap method approved | Place the rod on the specified supports, locate the maximum visible gap using the approved gauge, and record both the value and its position along the rod. | Support spacing, gauge ID, maximum gap, position and unit | Compare only with the gap limit written for this setup |
| Rotational runout method approved | Support the rod at the specified locations, rotate it through a complete revolution without forcing it straight, and record the maximum indicator variation and its position. | Support spacing, indicator ID, contact position, maximum variation and unit | Compare only with the runout limit written for this setup |
| Local kink, impact mark or unstable reading | Photograph and mark the location. Do not average the condition into an apparently acceptable whole-rod result. | Defect location, photographs, repeated readings and affected quantity | QUARANTINE pending technical review |
| Result within the agreed limit and setup valid | Link the result to the inspected piece or traceable sample and lot. | Inspector, date, method, actual result and acceptance source | ACCEPT |
| Result exceeds the agreed limit or cannot be reproduced | Segregate the affected rod and check the traceable lot according to the approved sampling/nonconformance plan. | Nonconformance reference, affected quantity and expanded-inspection decision | HOLD / QUARANTINE |
Minimum straightness record: supplier and PO; SKU and rod length; lot/bundle; drawing or quality-plan revision; measurement method; support locations and spacing; instrument or gauge ID and status; acceptance limit and units; actual maximum result and location; sample size; photographs where required; inspector; date; and final ACCEPT / HOLD FOR EVIDENCE / QUARANTINE decision.
Do not compare a gap result with a rotational-runout limit, or compare results taken with different support positions as if they were equivalent. A bare number without its setup, units and acceptance source is not a reproducible inspection result.
4. Verify Dimensions That Define the Ordered Rod
Do not create a long dimensional checklist merely because measuring tools are available. Focus on characteristics that identify the product and control fit or use. Depending on the ordered design, the quality plan may include overall length, body diameter or profile, thread-related dimensions, shoulder position, flushing-hole features and other drawing-defined characteristics.
Use calibrated equipment appropriate to the tolerance and surface being measured. Record units and the drawing revision. If multiple rod lengths or configurations share one shipment, separate the inspection records by item or lot so a passing result for one configuration cannot be incorrectly applied to another.
5. Inspect the Rod Body and Surface Without Confusing Appearance With Metallurgy
Visual surface inspection is useful for finding shipping or manufacturing damage that should not be ignored, but it has limits. Check the body and transition zones for visible cracks, severe dents, deep gouges, abnormal corrosion or pitting, damaged coatings or treatments where applicable, and other conditions that conflict with the approved acceptance standard.
At the same time, do not infer steel grade, heat-treatment quality or internal integrity from appearance alone. If the buyer requires material certificates, hardness records, heat-treatment evidence or non-destructive testing, those requirements should be stated in the PO or inspection plan and verified through the agreed documentation or test method.
6. Escalate Suspected Cracks With a Defined NDT Decision
Visual inspection is the correct first screen for every shipment, but it is not a substitute for a specified non-destructive testing method when a crack-like line, suspicious indication, damaged transition or contract-critical zone needs further evaluation. The buyer should not write only “100% NDT.” That phrase does not identify the defect type, method, inspection zone, coverage, sensitivity, personnel qualification, acceptance source or required record.
Choose the method from the question that must be answered. Magnetic particle testing is suited to surface-breaking and limited near-surface discontinuities in ferromagnetic material; penetrant testing addresses discontinuities open to a suitably prepared surface; ultrasonic testing addresses internal reflectors within an achievable sound path. Each method has geometry, access and procedure limits. A test result is only meaningful when the method, zones and acceptance rules are defined before inspection.
| Buyer trigger | Controlled next step | What the result can support | What it cannot prove alone |
|---|---|---|---|
| No suspicious surface indication; routine shipment inspection only | Complete the agreed visual, dimensional, thread, straightness, flushing and document checks. | Conformity of the characteristics actually inspected against the cited purchase requirements. | Internal soundness, material grade, heat treatment or future fatigue life. |
| Crack-like line or a contract-critical surface zone on a ferromagnetic rod | Hold the affected item or traceable lot and apply the written magnetic particle testing procedure where the contract requires it. Define the zones and directional coverage rather than requesting an undefined “MPI pass.” | Detection and evaluation of surface-breaking and some near-surface discontinuities under the recorded conditions. | Full-section internal integrity, thread dimensions, hardness or a universal service-life prediction. |
| Surface-breaking discontinuity is the concern and penetrant testing is the agreed method | Confirm that the surface is clean, accessible, not excessively porous and compatible with the penetrant system; apply the controlled procedure and viewing conditions. | Detection of discontinuities open to the examined surface. | Subsurface or internal integrity, or an acceptance decision without contractual criteria. |
| Internal discontinuity risk is specified and the rod geometry permits meaningful acoustic coverage | Use an approved ultrasonic procedure with stated scan zones, calibration/reference method, sensitivity, reporting threshold and acceptance criteria. | Recorded internal reflectors within the achieved sound path and procedure coverage. | Guaranteed detection of every crack orientation, complete coverage through geometric dead zones, or surface-condition acceptance. |
| Method, zone, procedure, report or acceptance source is missing | HOLD FOR EVIDENCE. Do not convert an incomplete test statement into an acceptance decision. | A controlled request for the missing evidence before shipment release. | A justified pass or reject decision. |
For method-specific procurement controls, use the published magnetic particle testing guide for top hammer drill rods and the ultrasonic testing guide for rock drill rods. Those pages own the detailed method questions. This pre-shipment guide owns the decision to release, hold or escalate the shipment.
Minimum NDT clause for the PO or Inspection and Test Plan
When NDT is required, state all of the following before production or inspection:
- Rod family, ordered configuration, drawing/specification revision, quantity and traceable lot.
- Inspection stage and the exact areas to be examined—for example specified thread roots, runouts, shoulders, transition zones or rod-body zones.
- NDT method, governing document and written-procedure revision.
- Required coverage, access limitations and any excluded or uninspectable zones that must be reported.
- Personnel qualification/certification requirement and the responsible examination level where applicable.
- Equipment identification, calibration or performance-verification evidence required by the procedure.
- Surface condition, preparation, viewing conditions and post-test cleaning or protection requirements.
- Reference block, reference standard, sensitivity or system-performance check where the selected method requires it.
- Reporting threshold, contractual acceptance source and authority for disposition.
- Report content: actual item/lot identity, locations examined, indications, results, examiner, date, procedure revision and final disposition.
Release, hold and nonconformance gate
| Status | Required evidence | Shipment action |
|---|---|---|
| ACCEPT | The required zones were examined under the approved procedure; personnel and equipment evidence is valid; results are traceable; and no relevant indication exceeds the cited contractual acceptance criteria. | Release only the identified item or lot covered by the record. |
| HOLD FOR EVIDENCE | An indication needs evaluation, a required zone was not covered, the acceptance source is absent, or the report cannot be linked to the shipment. | Segregate the affected item/lot and obtain the missing evidence or authorized technical disposition. |
| NONCONFORMING | A relevant indication violates the named contractual/product acceptance rule, or an agreed required examination cannot be completed and no authorized concession is issued. | Record the nonconformance and follow the agreed rework, replacement, concession or rejection process. |
Do not invent a universal crack size or indication threshold for all top hammer rods. ISO 9934-1:2016 defines general magnetic-particle principles but does not provide product acceptance criteria. ISO 3452-1:2021 covers penetrant testing for discontinuities open to the surface. ISO 16810:2024 states general ultrasonic-testing principles, while the product specification, contract or written procedure supplies the application details. Where personnel certification is required, ISO 9712:2021 defines qualification and certification requirements for industrial NDT personnel.
7. Confirm the Flushing Passage and End Condition
The drill rod also forms part of the flushing path. Where the inspection plan calls for it, confirm that the flushing passage and end openings are free of obvious obstruction, contamination or damage. If dimensions of the flushing hole are controlled on the drawing, verify them using the specified method rather than assuming that an open passage automatically meets the design.
Protect clean ends after inspection so the inspection itself does not introduce contamination before packing.
8. Decide the Inspection Scope Before the Goods Are Ready
“Inspect the shipment” is not a complete quality instruction. The buyer and supplier should agree which characteristics are checked on every piece, which can be sampled, and which are verified by documents or process records.
ISO 2859-1:2026 provides an AQL-indexed framework for lot-by-lot acceptance sampling by attributes. It can be useful when buyer and supplier agree to use attribute sampling, but it does not define the engineering tolerance for a drill rod and should not be treated as a substitute for the product drawing or quality plan. Critical characteristics can require a different inspection scope from cosmetic or non-critical attributes.
| Control type | Typical use | Important boundary |
|---|---|---|
| 100% check | Characteristics designated critical or explicitly required on every unit | Use only when the contract/quality plan requires it; do not assume every characteristic needs full inspection |
| Acceptance sampling | Lot-level attribute checks where an agreed sampling plan is appropriate | Sampling plan, lot definition, AQL/acceptance rules and defect classes must be agreed |
| Dimensional sample | Drawing-defined dimensions verified on an agreed number of pieces | Sample size and measurement method must be specified |
| Document review | Certificates, inspection reports and traceability records required by the PO | A certificate only proves what it actually covers; verify lot linkage and revision |
9. Build an Evidence Pack the Buyer Can Actually Use
A useful pre-shipment report should make it possible to answer three questions later: what was inspected, which shipment/lot did it belong to, and what acceptance criteria were used?
Where required by the purchase order, the evidence pack may include:
- Purchase-order and item reference, including revision.
- Quantity and lot/batch identification where traceability is specified.
- Dimensional inspection results with instrument or method references.
- Thread inspection results and the agreed gauge or control method.
- Straightness results with the measurement setup and acceptance limit.
- Material certificate, hardness/heat-treatment record or NDT report only when contractually required.
- Photos of representative product condition, markings, protected threads and completed packing.
- Packing list and bundle identification matched to the shipment.
This is especially important for mixed orders containing several thread systems or rod lengths. A single generic “passed QC” photo provides far less protection than records tied to the actual SKU and lot.
10. Packing Is Part of Quality Control, Not an Afterthought
A rod can pass dimensional inspection and still arrive damaged if the shipment allows threaded ends to collide. Before release, verify packing against the agreed export or project requirement.
- Threaded ends and shoulders are protected as specified.
- Rods are clean and suitably protected from the expected transport environment.
- Bundles are restrained so rods cannot move enough to cause repeated steel-to-steel impact at critical interfaces.
- Separators, supports or other packaging elements do not create concentrated damage points.
- Bundle identification matches the packing list and ordered configuration.
- Any required handling or storage markings are present and legible.
For long rods, also consider how the bundle will be lifted and supported. Packaging that is acceptable in a warehouse may not be adequate for container loading, inland haulage and site unloading if handling conditions were never considered.
11. Common Pre-Shipment Inspection Mistakes
- Defining only the thread name. Thread designation alone does not define rod length, body configuration, end arrangement or all interface details.
- Inspecting appearance but not identity. A clean rod can still be the wrong SKU or revision.
- Using an unrelated generic tolerance. Acceptance criteria must come from the ordered specification, drawing or agreed quality plan.
- Treating a mating test as complete thread metrology. A coupling can help screen gross problems but cannot prove every geometric requirement.
- Mixing lots in one inspection record. Results need traceability to the actual products being shipped.
- Requesting certificates after production. Material, hardness, NDT or third-party inspection requirements should be agreed before they become schedule-critical.
- Ignoring packing until loading day. Thread and body protection should be part of the acceptance plan, not only logistics.
12. Buyer RFQ and PO Checklist for Top Hammer Drill Rods
Give the supplier enough information to quote and inspect the same product you expect to receive:
- Drilling method and intended rig/rock-drill system.
- Thread designation and, where available, approved drawing or system reference.
- Rod type: extension rod, MF/speed rod or other specified configuration.
- Required length and body form/diameter or profile.
- Mating shank adapter, coupling and bit information when compatibility must be confirmed.
- Quantity, delivery split and lot/batch requirements.
- Drawing-controlled dimensions and acceptance tolerances.
- Inspection scope: 100%, sampling, dimensional sample, document review or third-party witness as applicable.
- Required documents and records.
- Product marking and traceability requirements.
- Thread protection, bundle, corrosion-protection and export-packing requirements.
- Destination and any handling constraints that affect packing.
PerfoMax currently lists T38 extension drill rods, T45 extension drill rods and a broader Drill Rods collection. Buyers can also review the site's Quality Control information and submit the exact required configuration through the Request a Quote page.
FAQ
Is the thread designation alone enough to inspect a drill rod order?
No. The thread designation is one interface requirement. The buyer should also verify the ordered rod type, length, body configuration, end arrangement, quantity and any drawing-defined features or documentation requirements.
Should every drill rod receive 100% inspection?
Not automatically. The inspection scope should reflect characteristic criticality, lot history, contractual requirements and the agreed quality plan. Some characteristics may justify 100% checks, while others can use an agreed sampling plan. If ISO 2859-1 is used, it governs acceptance sampling by attributes; it does not establish drill-rod engineering tolerances.
Is a material test certificate mandatory for every order?
Only when the governing specification, customer requirement, purchase order or quality plan requires it. If an MTC or other certificate is needed, define the required content and lot traceability before production rather than requesting it at the last minute.
Can a coupling fit check replace a thread gauge?
No, not when formal dimensional conformity is required. A controlled mating check can identify gross fit problems, but it cannot by itself prove all thread-profile and dimensional characteristics. Use the specified gauge or measurement method for the acceptance characteristic.
When is third-party pre-shipment inspection worth considering?
It can be useful for a new supplier, high-value order, customer-mandated project, critical application or shipment where the cost of discovering nonconformity after arrival is high. The third-party scope should still be written clearly: what to witness, sample, measure, document and accept or reject.
