T38 vs T45 Top Hammer Threads: Compatibility and Selection Guide

Direct answer: T38 and T45 are separate top-hammer thread families. They are not directly interchangeable, and moving from one to the other is a drill-string change, not a simple rod substitution. The right choice depends first on the installed rock drill and shank adapter, then on the rod/coupling/bit system approved for the rig, the target hole and application, and the operating conditions. T45 should not be treated as an automatically “better” T38: current OEM ranges overlap substantially, so thread size alone does not decide the job.

This guide is for quarry, mine, construction and drilling-service buyers who need to replace an existing string, standardize a fleet, or evaluate a controlled T38-to-T45 change without creating a compatibility problem.

1. T38 and T45: What the Names Actually Mean

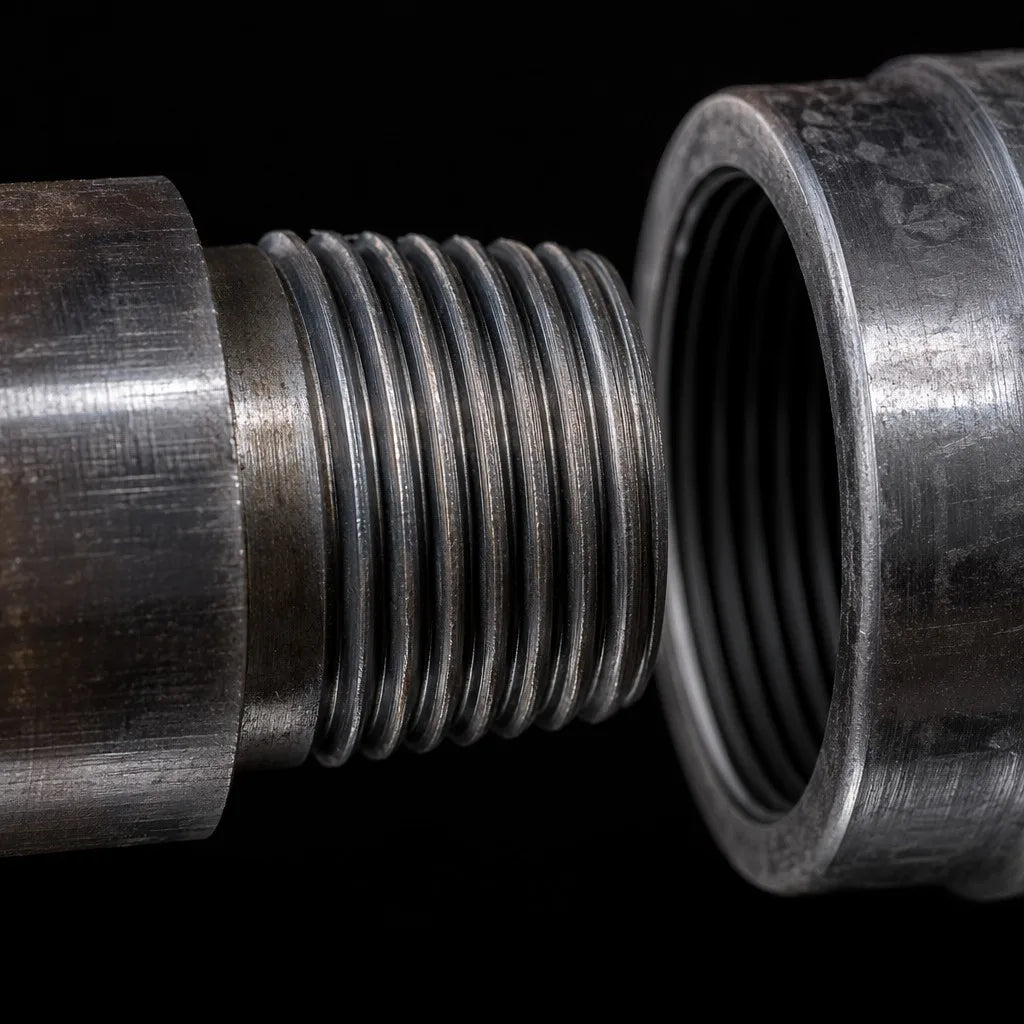

T38 and T45 identify two different T-thread families used in top-hammer drilling. In commercial discussions, the thread name is only one part of the system. A functioning drill string also depends on the rock-drill-side shank adapter, rod type, coupling, bit thread, flushing path, rod handling and the intended drilling envelope.

The most important procurement rule is simple: every threaded interface that is expected to connect must belong to the correct thread family or use a purpose-designed transition component explicitly approved for that configuration. Do not assume that two T-series components will fit because they look similar or are used on the same class of drill rig.

The Epiroc hole ranges above are current OEM system guidance for its T-series offering, not universal operating limits for every rig, rod or bit. The approved rig/tool documentation and quotation drawing remain controlling.

2. Why T38 and T45 Application Ranges Overlap

Buyers sometimes expect a simple rule such as “T38 for smaller holes, T45 for larger holes.” That can be a useful directional intuition, but it is not a safe purchasing rule. OEM data shows substantial overlap because the usable drilling envelope is created by the whole system, including:

• rock drill model and percussion output;
• shank adapter and thread configuration;
• rod construction, body profile and length;
• coupling and bit connection;
• bit diameter and bit design;
• hole depth and required straightness;
• rock strength, abrasiveness and fracture condition;
• feed, rotation and flushing capability;
• rod handling, guides and centralizers on the rig.

For example, Sandvik currently lists the RD921 rock drill with both T38 and T45 MF rod options for a 64–89 mm hole range. Sandvik’s HL710S documentation also lists multiple thread families, including T38 and T45, on the same rock-drill platform. The practical lesson is not that every machine can freely switch between the two. It is that the rock drill may support more than one configured drill-string family, and the installed configuration still has to be verified.

3. When Should a Buyer Stay with T38?

Staying with T38 is usually the lower-risk choice when the current fleet is already standardized on T38, the installed rock drill and shank adapter are configured for T38, and the present hole/application envelope is being met without an identified system constraint.

• Installed compatibility is already proven. The shank adapter, rods, couplings, bits, rod guides and spares are already controlled as one system.
• The target application fits the OEM-approved T38 envelope. A buyer does not gain value by changing thread family only because a larger designation sounds stronger.
• Fleet standardization matters. Keeping one thread family can reduce mixed-stock errors, wrong couplings at the rig and emergency-spare complexity.
• The problem is elsewhere. Poor penetration, thread wear, deviation or short bit life can also come from feed/rotation settings, flushing, worn components, rock changes or a mismatched bit.

PerfoMax’s current T38 product page is defined around T38 male–male extension rods joined by a separate T38 coupling sleeve. If your fleet uses an MF speed rod instead, identify it explicitly in the RFQ.

4. When Is T45 Worth Evaluating?

T45 is worth evaluating when the intended rig configuration, hole/application plan and drill-string architecture point to the T45 family—not simply because a buyer wants a “heavier” thread. Current Epiroc positioning extends T45 into bench and production drilling and lists a broader upper hole-diameter range than T38. That makes T45 a reasonable candidate for some production-oriented systems, but the overlap remains large enough that system verification is still mandatory.

• the rig or rock-drill documentation specifies or permits a T45 configuration for the intended job;
• the current shank adapter and bit program are already T45;
• a fleet standardization project is moving several rigs to an approved T45 system;
• the planned application is outside the current T38 setup’s documented or demonstrated operating envelope;
• an OEM or qualified tool supplier has identified a system-level reason to change after reviewing the rig, hole plan and operating data.

PerfoMax’s current T45 extension-rod page is likewise defined around male–male rods joined by separate T45 couplings, with MF speed rods quoted separately.

5. What Must Change When Converting from T38 to T45?

Do not assume a crossover component makes a complete conversion safe. A transition solves one interface only; it does not automatically validate the rock drill, rod handling, bit program, flushing or operating load. Use a transition only when its manufacturer explicitly identifies the intended interfaces and the rig/tool configuration approves the arrangement.

6. A 7-Step T38 vs T45 Selection Workflow

1. Identify the rock drill exactly. Record rig make/model, rock-drill model and variant.
2. Map the current drill string. Record shank adapter thread, rod thread, MM or MF rod type, coupling, bit thread and bit diameter.
3. Define the real application. Provide hole diameter, depth, drilling direction, rock condition, production duty and straightness requirements.
4. Check the OEM-approved configuration. Confirm the rock drill and rig support the proposed T38 or T45 string.
5. Compare the complete supply package. Evaluate shanks, rods, couplings, bits and required spares—not just one rod price.
6. Check rig-side handling and flushing. Verify guides/centralizers, rod handling and flushing path.
7. Approve by drawing and controlled trial. Lock connection details in the quotation/drawing before a fleet conversion.

7. T38 vs T45 Buyer Decision Matrix

8. Common T38/T45 Procurement Mistakes

• Ordering by thread name only.
• Assuming the larger thread is automatically more productive.
• Using hole diameter as the only selection variable.
• Changing rods but keeping incompatible couplings or bits.
• Ignoring the shank adapter.
• Confusing male–male extension rods with MF speed rods.
• Converting without a spare-parts plan.

9. What to Send in a T38/T45 RFQ

• rig make and model;
• rock drill model and variant;
• current shank adapter part number or clear photos;
• current rod thread: T38 or T45;
• rod type: male–male extension rod or MF speed rod;
• required rod length;
• current coupling and bit thread;
• bit diameter and hole diameter;
• typical and maximum hole depth;
• rock condition and drilling application;
• photos/drawings of current rods and both rod ends;
• quantity, destination and required inspection/packing documents.

FAQ

Are T38 and T45 drill rods interchangeable?

No. They are different thread families. A standard T38 connection does not directly mate with a standard T45 connection.

Can the same rock drill use both T38 and T45?

Some rock-drill platforms are documented with more than one thread-family configuration. Sandvik’s current RD921, for example, lists both T38 and T45 MF rods. That does not mean the two strings can be swapped without the correctly matched shank and other components.

Is T45 always better for larger holes?

No. T45 is used in larger and production-oriented systems, but current OEM hole ranges overlap with T38.

Can I convert a T38 string to T45 by changing only the coupling?

No. The rod and bit threads are different, and the shank adapter, rod handling and flushing arrangement also need verification.

What is the fastest way to avoid a wrong T38/T45 order?

Send the rig and rock-drill model, shank adapter identification, rod type and length, bit diameter, hole plan and current coupling details before quotation.

PerfoMax T38 and T45 Drill Rods

PerfoMax currently offers T38 male–male extension drill rods and T45 male–male extension drill rods in inquiry lengths of 3,050, 3,660, 4,270 and 4,880 mm. Both product pages define MF speed rods as separate quoted configurations.

If you are replacing an existing string or considering a T38-to-T45 change, send PerfoMax your rig, rock-drill, current tooling and hole information for an RFQ review.
