Top Hammer Drill Rod Failure Guide: Breakage, Bending, and Thread Wear

Top Hammer Drill Rod Failure: Why Rods Break, Bend, and Wear at the Threads

Short answer: top hammer drill rods usually fail because repeated impact, rotation and feed loads are being concentrated by one or more damaging conditions: misalignment or hole deviation, excessive feed, worn or loose threads and couplings, drilling with a worn bit, surface damage, corrosion, or continued percussion when the string is stuck. The visible break is the final event; the useful troubleshooting question is where the crack started and what operating condition kept loading that location.

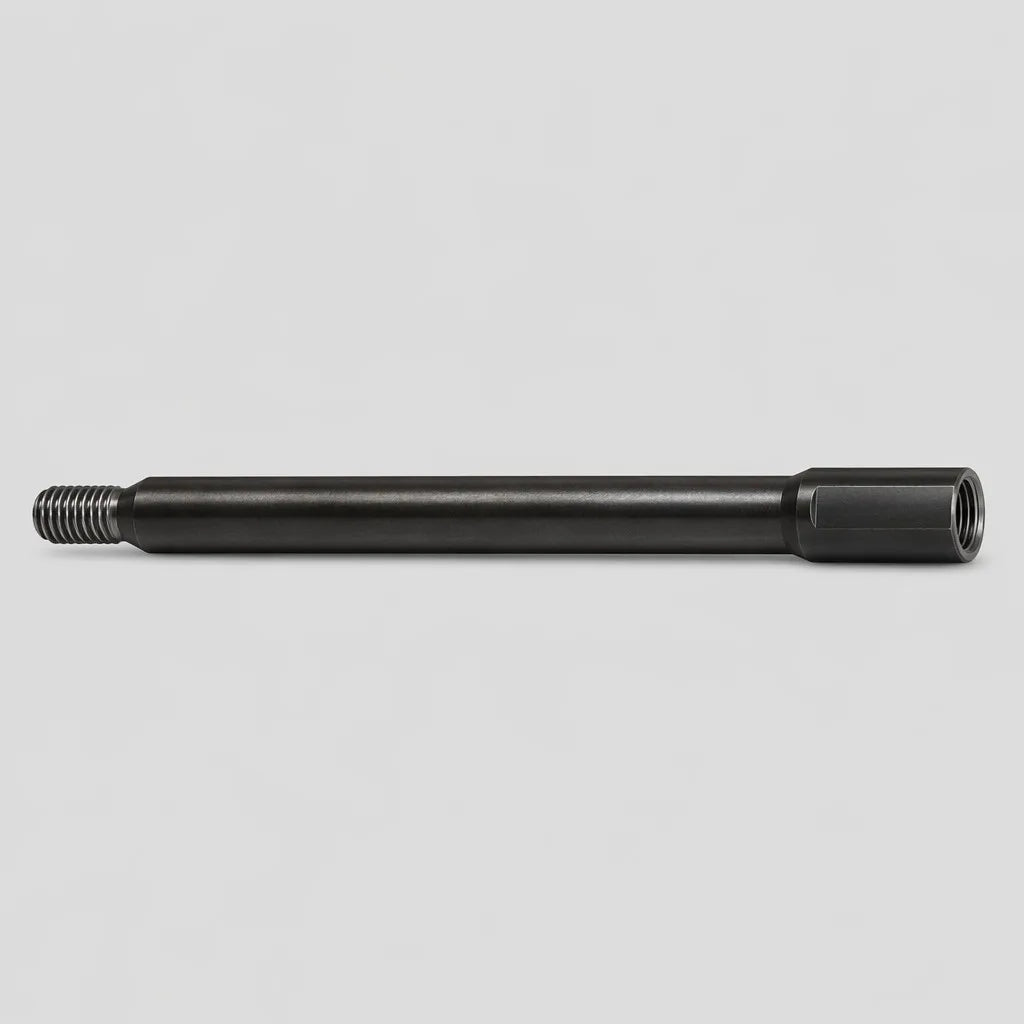

This guide is for quarry, mine, tunneling and drilling-service teams using R32, T38, T45 and similar threaded top-hammer extension rods. It explains how to separate rod-body damage from thread-joint failure, what to inspect before another rod is installed, and what information to send in an RFQ or failure-analysis request. Exact wear limits and operating settings remain specific to the drill rig, rock drill and tool system.

1. Why Top Hammer Drill Rods Fail by Fatigue Rather Than One Single Overload

A top-hammer rod is repeatedly loaded by percussion while also transmitting rotation and feed force. In real drilling, the rod is not loaded perfectly on its centerline at all times. Hole deviation, imperfect collaring, feed misalignment, sag in horizontal holes, worn joints and changing rock can add lateral bending to the axial impact and torsional loads.

A peer-reviewed case study in Engineering Failure Analysis examined failed rock-drill rods and found fatigue crack initiation associated with damaged thread surfaces. Sliding and abrasive wear, severe plastic deformation and pitting corrosion were observed in the threaded region; the damaged surfaces became favorable locations for crack initiation. That finding supports a practical maintenance rule: a rod can look like it “broke suddenly” even though the failure developed through many load cycles before final fracture.

2. Rod Breakage at or Near the Thread: Start with the Joint

Threaded connections are high-stress regions because they transfer both impact energy and torque through a relatively small contact area. Sandvik's top-hammer failure-analysis guide identifies several recurring contributors to failures near rod threads: worn threads or couplings, hole deviation, feed overpressure, misalignment, heavy rotational loading from worn bits, continued percussion with a stuck rod, and mismatched components.

Do not respond to a thread-end break by installing one new rod into an otherwise heavily worn string and restarting at the same settings. The mating coupling, neighboring rods, bit and shank adapter can all influence contact and load distribution. Sandvik specifically cautions against pairing worn components with new ones in the failure modes covered by its guide.

What to inspect after a thread-end break

• male and female thread flanks for pitting, galling, chipping or abnormal polishing;
• coupling sleeve for excessive play, cracking, flared ends or uneven contact;
• rod straightness and visible dents near the connection;
• bit wear and gauge condition;
• evidence that the connection was running loose or unusually hot;
• whether the hole had begun to wander, bind or repeatedly jam;
• feed alignment and wear in feed/centralizer components.

3. What Causes a Drill Rod to Bend?

Rod bending is often a system-alignment problem rather than a material problem by itself. Boart Longyear's top-hammer guidance notes that collaring is a high-risk stage for misalignment because the bit is not yet supported by the hole. It also identifies excessive feed pressure as a cause of drill-string bending and hole deviation. In horizontal drilling, string sag adds another off-axis load.

Sandvik's failure-analysis guide similarly lists bending from excessive feed or misalignment among probable causes for several extension-rod failures. The implication is important: if multiple rods are becoming bowed, replacing them without correcting feed alignment or collaring practice can repeat the same failure pattern.

Field checks when rods are bending

1. Check the feed and boom alignment. Inspect wear pads, centralizers and any condition that lets the rod run off-axis.
2. Review collaring practice. Use controlled percussion/feed until the bit is supported and the hole direction is established.
3. Review feed pressure. More feed is not always more penetration; excessive feed can bow the string.
4. Look at the geology. Seams, voids, broken or layered ground can pull the bit off line and increase bending loads.
5. Check bit condition. A worn bit can increase torque, reflected energy and deviation.
6. Inspect every rod before reuse. A visibly bent or damaged rod should not be returned to a string simply because its threads still connect.

4. Thread Pitting, Galling, and Rapid Wear Are Warning Signs

Thread wear is not only a consumable-cost issue. Excessive play changes how the joint carries impact and bending load. Boart Longyear notes that excessive thread wear increases play between mating components and increases the risk of hole deviation. Sandvik links thread pitting or wear to loose connections, reflected percussion, free hammering, worn threads and drilling with worn bits.

The 2019 failure-analysis study adds a material-level explanation: pitting corrosion, sliding wear and severe plastic deformation can create surface conditions from which fatigue cracks initiate. In practice, a heavily pitted thread should therefore be treated as a structural warning sign, not merely a cosmetic defect.

5. A Worn Bit Can Damage More Than the Bit

A worn top-hammer bit changes the load transmitted back into the drill string. Sandvik's failure guide repeatedly identifies drilling with worn bits as a contributor to thread wear, high rotational loads and reflected percussive energy. Boart Longyear also notes that dull bits tend to deviate more than sharp bits.

That is why rod failure analysis should always include the bit. Record gauge loss, button wear, face damage, flushing condition and whether the bit was maintained according to the relevant tool manufacturer's limits. If a site is consuming rods and bits at the same time, treating the two consumables as unrelated can miss the actual mechanism.

6. Corrosion and Flushing Water Can Start Fatigue Cracks

Corrosion matters because pits act as stress concentrators. Sandvik identifies corrosive flushing agents and insufficient rust protection as probable causes for fatigue originating from the flushing hole in extension rods, and it also lists corrosion fatigue among causes of thread-end damage. The peer-reviewed rod study likewise found pitting corrosion associated with crack initiation in failed rods.

If failures cluster around internal bores or pitted thread surfaces, record the water source, solids content, pH or other water-quality information available on site, storage conditions, and whether rods remain wet after use. Do not assume every internal-origin fracture is a manufacturing defect before flushing and corrosion conditions are checked.

7. How to Inspect a Top Hammer Rod Before the Next Shift

A practical inspection does not require guessing the remaining fatigue life. Its purpose is to identify conditions that make continued use unjustifiable or that require a more detailed manufacturer/site inspection.

• Clean the threads so pitting, cracks, chips and abnormal wear are visible.
• Inspect both ends and compare wear with the mating coupling.
• Check straightness using the site's approved method; remove visibly bowed rods from service pending evaluation.
• Look for dents, gouges and hammer marks on the rod body, especially near high-stress transitions.
• Check flushing passage condition where accessible and look for corrosion evidence.
• Inspect coupling sleeves for looseness, cracks, flaring and excessive wear.
• Inspect the bit before concluding the rod is the only failed consumable.
• Review the failure history: repeated breaks at the same location are evidence of a recurring system cause.

Do not invent a universal “replace after X hours” interval. Rod life varies with impact power, hole geometry, rock, thread system, feed/rotation practice, corrosion, handling and maintenance. Use the tool manufacturer's wear criteria and the site's inspection standard.

8. Troubleshooting by Failure Pattern

Scenario A: Repeated breaks near the coupling end

Prioritize thread and coupling wear, hole deviation, feed alignment, overfeed and bit condition. If the same location fails repeatedly, replacing only the rod is unlikely to be a durable correction.

Scenario B: Rods bend but threads still look usable

Prioritize collaring, feed pressure, boom/feed alignment, centralizer condition, horizontal sag and difficult ground. A straight thread does not make a bent rod suitable for continued drilling.

Scenario C: Threads pit and joints heat quickly

Check whether joints are running loose, whether worn components are being mixed with new ones, and whether impact, feed and rotation are properly balanced for the drilling conditions. Follow the tool-system instructions for thread care and coupling replacement.

Scenario D: Break starts from a corroded or pitted surface

Investigate water/flush chemistry, internal cleanliness, storage and rust protection together with normal mechanical loads. Corrosion can supply the crack-initiation site while drilling loads propagate the fatigue crack.

9. What Should You Replace Together?

There is no rule that every rod, coupling and bit must always be discarded together. But new components should not be installed into a severely worn connection system without checking the mating parts. Sandvik's failure guide repeatedly recommends replacing worn components and, for specific failure modes, changing rods and couplings together rather than mating a new rod with a worn coupling.

Use the failure location to define the inspection scope. A break beside a coupling should trigger inspection of that coupling and neighboring rod threads. Repeated body bending should trigger feed/centralizer and alignment checks. Thread pitting plus a worn bit should trigger a full drill-string and operating-parameter review.

10. RFQ and Failure-Analysis Checklist

For a replacement quotation or a supplier failure review, send enough information to reconstruct the operating system:

• drill rig make/model and rock drill/drifter model;
• thread system: R32, T38, T45 or other;
• rod type, body profile and exact length;
• coupling sleeve type and approximate service condition;
• bit thread, diameter, face design and wear condition;
• hole diameter, typical/max depth and drilling angle;
• rock type plus fractures, voids, seams and water conditions;
• feed, percussion and rotation settings if recorded;
• flushing medium and water condition;
• failure location and clear photos of both fracture surfaces;
• photos of threads, couplings, bit and any rod bending or surface damage;
• whether failures are sudden/isolated or repeating in the same location.

PerfoMax currently supplies R32 threaded extension drill rods, T38 extension rods and T45 extension rods. For a broader system check, browse the Drill Rods collection or send an RFQ with the existing rig and drill-string details.

Frequently Asked Questions

Why do top hammer drill rods break near the threads?

Common contributors include worn or loose threads and couplings, hole deviation, feed misalignment, excessive feed, high rotational load from a worn bit, continued percussion with a stuck string, corrosion and surface damage. The exact cause should be judged from the fracture location, mating components and drilling history rather than the break location alone.

What causes a top hammer drill rod to bend?

Frequent causes include excessive feed pressure, poor collaring, boom or feed misalignment, worn centralizers or feed components, horizontal-string sag and difficult ground that drives the bit off line. Correct the alignment or operating cause before installing another rod.

Can worn coupling sleeves shorten drill rod life?

Yes. Excessive thread/coupling wear increases play and can change load distribution at the connection. Sandvik's failure guidance identifies worn couplings in several rod-failure modes and recommends replacing worn mating components rather than fitting a new rod into a severely worn joint.

Should a slightly bent drill rod be reused?

Do not decide from appearance alone or force a bent rod back into service. Remove it from the active string and evaluate it using the manufacturer's or site's straightness and damage criteria. A bowed rod adds off-axis loading and can worsen hole deviation and joint wear.

How can I tell whether a broken rod is a quality defect or an operating problem?

Failure location alone is not enough. Document the fracture surface, thread/coupling wear, rod straightness, surface dents, corrosion, bit wear, rig alignment, drilling settings and ground conditions. Repeated failures with the same pattern can indicate a system problem; suspected material or manufacturing defects should be returned to the supplier/manufacturer for formal analysis.

Technical References

• Sandvik — Top Hammer Failure Analysis Guide
• Boart Longyear — How to Reduce Drill Hole Deviation
• Mussa, Krakhmalev & Bergström — Failure Analyses and Wear Mechanisms of Rock Drill Rods, Engineering Failure Analysis 102 (2019)
• Sandvik — Top Hammer Drilling Tools

Next Step: Treat the Failed Rod as Evidence

A broken rod is useful diagnostic evidence. Before discarding it, photograph the fracture, mark its position in the string, record the hole and operating conditions, and inspect the mating coupling and bit. That information helps distinguish a one-off damaged component from a repeated alignment, wear, corrosion or drilling-parameter problem—and it gives the supplier enough context to recommend a compatible replacement instead of simply shipping another rod.
