R32 Extension Rod vs Speed Rod: Male/Male vs Male/Female Selection Guide

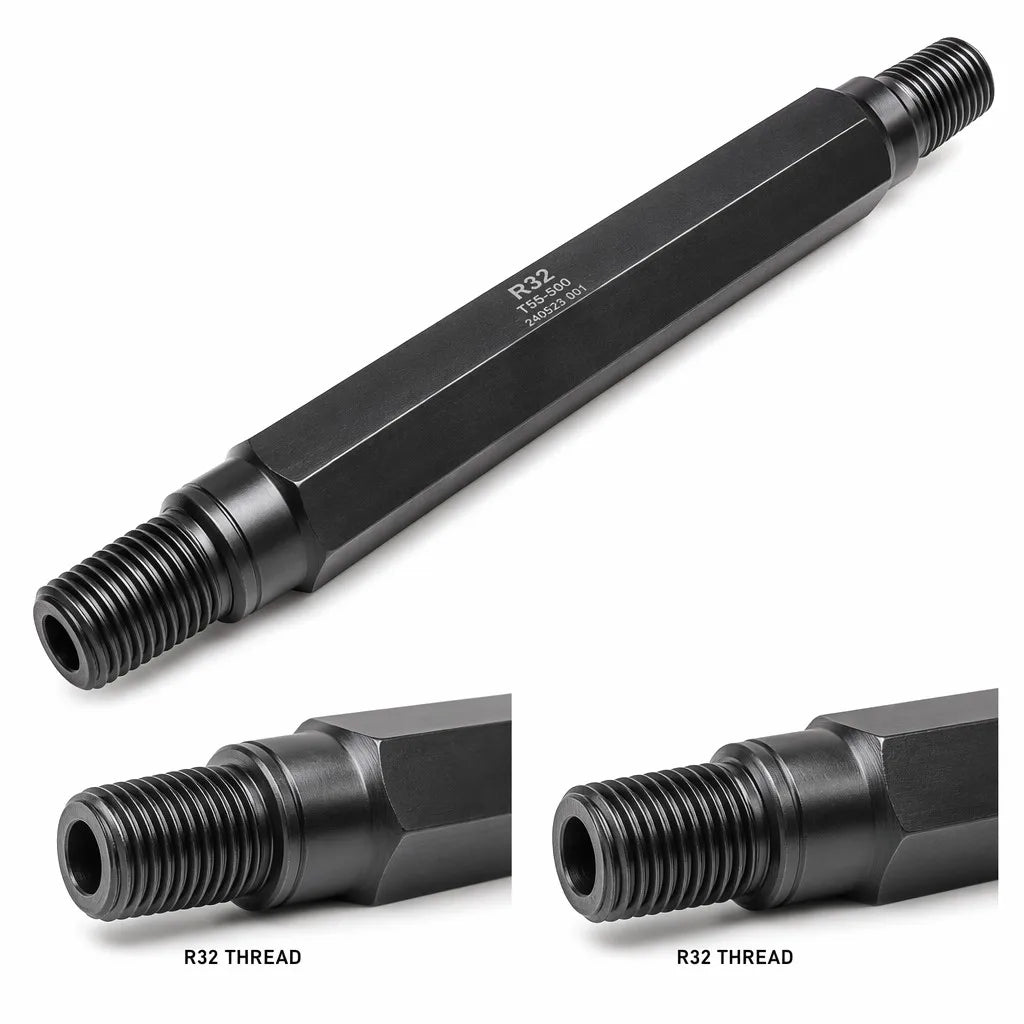

R32 threaded drill rods for male/male and male/female end-type selection

Quick answer: An R32 male/male (M/M) extension rod has male R32 threads at both ends and normally uses a separate coupling sleeve between extension rods. An R32 male/female (M/F) rod—often called a speed rod—has a male end and an integrated female end, so the rod-to-rod joint does not use a separate sleeve at that connection. Neither option is automatically “better.” The correct choice is the one that matches the existing shank adapter, rod-end architecture, bit-side interface, body dimensions and controlled supplier specification. Do not order a replacement rod by the label R32 alone.

R32 threaded drill rods for male/male and male/female end-type selection

1. What Is the Difference Between an R32 Extension Rod and an R32 Speed Rod?

The most important difference is the end configuration. Current PerfoMax R32 drill-rod selection data separates two configurations: male/male extension rods and male/female speed rods. This is why the thread family alone cannot release a rod order: the end architecture must be identified and carried through the complete string specification.

Item R32 M/M Extension Rod R32 M/F Speed Rod
End configuration Male thread at both ends Male thread at one end, female connection at the other
Rod-to-rod connection Normally joined through a separate coupling sleeve Male end threads into the next rod’s female end
Separate sleeve at each rod joint Yes, for the normal M/M extension-rod arrangement No, not at the direct M/F rod-to-rod joint
What the buyer must specify R32 + M/M + length + body + flushing + coupling details R32 + M/F + length + body + flushing + mating interfaces

Terminology warning: “speed rod” is useful shorthand, but supplier naming is not a substitute for an end-type specification. On a purchase order, drawing or RFQ, write M/M or M/F explicitly.

2. Why “R32” Alone Does Not Define a Complete Drill Rod

R32 identifies the thread family, but a working top-hammer drill string is a chain of interfaces. A replacement rod can carry the correct thread name and still be wrong for the actual string if the end configuration, body, length or mating components differ.

For PerfoMax R32 rods, the final configuration is selected by length × body × end type. Before quotation or substitution, the current product page requires confirmation of:

  • Male/male extension rod or male/female speed rod
  • Rod length basis and tolerance
  • Hexagonal or round body and body diameter
  • Flushing-hole diameter
  • Coupling arrangement
  • Supplier name and controlled drawing or data-sheet revision
  • Exact model and interface being replaced

This matters because compatibility is not a label-matching exercise. The written quotation and its controlled drawing or data sheet should govern the supplied configuration.

3. How the Two R32 Drill-String Architectures Connect

The simplest way to avoid procurement mistakes is to map the string from the rock drill to the bit and identify every joint.

Typical M/M extension-rod logic

Rock drill / shank adapter → coupling sleeve → M/M rod → coupling sleeve → M/M rod → terminal bit-side interface

A coupling sleeve is the female-threaded component used to join compatible male-threaded ends in the M/M architecture. Its thread designation, bridge style, dimensions and approved mating components must come from the controlled string specification; a sleeve that can be started by hand is not by itself proof of compatibility.

Typical M/F speed-rod logic

Verified starting interface → M/F rod → M/F rod → terminal bit-side interface

At each rod-to-rod joint, the male end of one rod mates with the integrated female end of the next. That removes the separate sleeve from that specific joint. However, the starting and terminal interfaces still have to be checked; an M/F rod does not make the entire string universally self-compatible.

Connection Point M/M Architecture M/F Architecture
Rod to rod Separate coupling sleeve Direct male-to-female rod connection
Shank side Verify shank thread and coupling Verify starting interface and orientation
Bit side Verify final rod/bit interface Verify final rod/bit interface

The diagrams above show connection logic, not a universal bill of materials. Actual component order depends on the drill, shank adapter, rod system and bit configuration.

4. Which R32 Rod Type Should You Choose?

Start with the existing drill-string architecture. Converting a working fleet from one architecture to another is a system decision, not a one-rod substitution.

Field Situation Practical Selection Direction Why
Existing fleet already uses R32 M/M rods and coupling sleeves Match the existing M/M system unless a controlled conversion is planned Minimizes interface and spare-stock surprises
Existing fleet uses R32 M/F rods Match the verified M/F configuration Preserves the intended direct rod-to-rod connection architecture
Distributor receives only “R32 rod” from a buyer Do not select yet; request end-type and interface evidence R32 does not identify M/M versus M/F
Mixed or unknown legacy stock Build an interface map before issuing replacements Prevents a nominally correct thread from creating an unusable string
New drill-string procurement Specify the complete string from shank to bit, not the rod in isolation Makes compatibility auditable before shipment

Avoid choosing solely on claims such as “faster,” “stronger” or “more efficient.” Those outcomes depend on the complete drilling system and operating conditions. For procurement, compatibility first, performance comparison second.

5. Release Matrix for a Complete R32 M/M or M/F String

Do not release the purchase order from the rod description alone. Use one controlled architecture record from the drill output to the bit, and require evidence for every joint. A blank or assumed interface is a hold point, not an instruction for the supplier to guess.

Release input Evidence to record M/M approval condition M/F approval condition
Drill-side output Shank-adapter part number, marking, drawing revision or verified installed reference Approved male output and starting coupling are identified Approved starting interface and required rod orientation are identified
Rod end architecture Both rod ends shown on the supplier drawing; M/M or M/F stated on the quote and PO Every extension rod is the specified M/M configuration Every speed rod is the specified M/F configuration and installed in the approved direction
Intermediate joints Connection sequence, coupling part number where used, and quantity by string Each male-to-male rod joint has its specified coupling sleeve Each direct joint is a documented male-to-female rod connection; no sleeve is assumed at that joint
Rod body and flushing Length basis, body profile and diameter, flushing-hole detail and controlled tolerances Matches the approved M/M rod and adjacent components Matches the approved M/F rod and adjacent components
Bit-side termination Last-rod end, bit part number/thread and any terminal component shown on the string map The final M/M rod connection is fully defined The final M/F rod connection and orientation are fully defined
Feed and handling fit Nominal rod length, installed contribution where applicable, feed/handler limits and joint envelope Rod-plus-coupling arrangement fits the verified equipment envelope Integrated female end and direct joints fit the verified equipment envelope
Traceable approval Quote revision, drawings/data sheets, approver, date and substitution restrictions All M/M components are released as one controlled BOM All M/F components are released as one controlled BOM

Use one of four release decisions

Decision When it applies Required action
APPROVE M/M STRING All shank, rod, coupling, flushing, feed and bit-side inputs agree with the controlled M/M BOM Release only the listed part numbers, revisions and quantities
APPROVE M/F STRING All starting, rod-orientation, direct-joint, flushing, feed and terminal inputs agree with the controlled M/F BOM Release only the listed part numbers, revisions and quantities
HOLD FOR INTERFACE EVIDENCE A marking, end type, coupling, drawing revision, flushing detail or equipment limit is missing or ambiguous Obtain the drawing, installed reference, measurements or written supplier confirmation before ordering
DO NOT MIX / RESELECT The proposed components require an unsupported end transition, conflict with the controlled BOM, obstruct the flushing path or exceed a verified equipment limit Stop the substitution and select a documented single architecture or approved conversion package

Copy-ready R32 architecture approval record

Fleet / rig: ________   Application: ________
Shank adapter and revision: ________   Starting interface: ________
Selected architecture: M/M / M/F   Rod part number and drawing revision: ________
Rod length basis: ________   Body / flushing detail: ________
Intermediate joint sequence: ________   Coupling part number and quantity, if used: ________
Terminal rod / bit-side interface: ________   Feed / handler evidence: ________
Approved substitutions: none / listed here: ________
Decision: APPROVE M/M STRING / APPROVE M/F STRING / HOLD FOR INTERFACE EVIDENCE / DO NOT MIX—RESELECT
Evidence files: ________   Approved by / date: ________

This record owns the architecture release decision. Rod wear, thread condition and used-component acceptance remain separate inspection decisions; an architecture match does not release a damaged component.

6. Can You Mix R32 M/M and M/F Rods in the Same Drill String?

Do not assume that you can. A shared R32 designation tells you the thread family, but it does not prove that a mixed string is approved or appropriate for a particular rig and tooling system. The safe procurement rule is to confirm every mating interface against the supplier or OEM documentation.

Before mixing existing stock, check these five items:

  1. Identify the exact end on every component. Photograph the male/female ends and record markings.
  2. Map the connection sequence. Show where sleeves, shank adapters, rods and the bit-side component sit in the string.
  3. Confirm body and flushing details. Do not let a thread match hide a body-size or flushing mismatch.
  4. Check the controlled drawing or data sheet. Supplier part numbers and revisions are more reliable than visual similarity.
  5. Get written compatibility confirmation. If the mixed arrangement is not documented, do not treat it as proven merely because components can be screwed together by hand.

This is especially important for replacement orders from mixed fleets, where different suppliers or historical specifications may be present.

7. Common R32 Rod Procurement Mistakes

Mistake Why It Causes Loss Corrective Action
PO says only “R32 drill rod” End type, body, length and coupling architecture remain undefined State M/M or M/F plus full dimensional and interface details
Assuming “speed rod” means exactly the same configuration from every supplier Commercial terminology can vary Use explicit male/female end notation and controlled drawings
Ordering M/M rods but forgetting sleeves The rod-to-rod connection is incomplete Confirm coupling quantity, thread and the existing sleeve specification
Replacing one rod without checking the whole string A local thread match can still conflict with adjacent components Map shank-to-bit interfaces before substitution
Mixing unknown used components because they “fit” Thread engagement alone does not establish approved compatibility or remaining condition Identify part numbers, inspect condition and obtain compatibility confirmation
Ignoring flushing-hole data The rod may not match the intended flushing path even if the thread name matches Include flushing-hole diameter in the RFQ and drawing check

8. RFQ Checklist for R32 Extension or Speed Rods

Send enough information for the supplier to identify the complete interface instead of guessing from the thread name.

  • Rock drill or drill rig model
  • Shank adapter model or clear marking/photo
  • Required thread family: R32
  • Required rod end type: M/M or M/F
  • Current rod part number, marking, photo or drawing
  • Rod length and tolerance requirement
  • Round or hexagonal body and body diameter
  • Flushing-hole diameter
  • Current coupling sleeve specification, if used
  • Bit model/thread and intended hole/application information
  • Whether the order is a direct replacement, mixed-fleet replacement or a new drill string
  • Required quantity and any inspection/documentation requirements

Compare the available tooling route in the Drill Rods collection, then use the current R32 Drill Rod Selection — Length, Body and End Type page as the quotation basis. If the existing end type is uncertain, send photos and markings through the Request a Quote page before ordering.

9. Frequently Asked Questions

Are R32 extension rods and R32 speed rods the same?

They belong to the same R32 thread family, but they should not be treated as the same rod configuration. In the current PerfoMax selection structure, an extension rod is specified as M/M while the speed-rod option is M/F. The purchase specification should state the end type explicitly.

Do R32 male/male extension rods need coupling sleeves?

For the normal extension-rod arrangement, yes. Two male ends require a female coupling sleeve to join adjacent rods. Coupling specifications must still be matched to the intended R32 system and supplier data.

Can R32 male/female rods connect directly rod to rod?

At the intended M/F rod joint, the male end of one rod connects to the integrated female end of the next, so a separate sleeve is not used at that joint. The shank-side and bit-side interfaces still need independent verification.

Can I mix R32 M/M and M/F rods?

Do not assume interchangeability from the R32 label alone. Map every interface and obtain written supplier or OEM confirmation for the mixed arrangement, including end geometry, body/flushing details and adjacent components.

What should I send a supplier if I do not know whether my rod is M/M or M/F?

Send clear photos of both rod ends, visible markings or part numbers, overall rod length, body shape/diameter, flushing-hole details, the coupling sleeve if present, and photos or model data for the shank adapter and bit-side connection. That is usually more useful than an uncertain product name.

Need help matching an R32 rod?
Start with the current PerfoMax R32 Drill Rod Selection page, then send the existing rod markings, both-end photos and drill-string interface details through Request a Quote. PerfoMax can quote against the confirmed length × body × end-type configuration without guessing from “R32” alone.
