Drill Rod Thread Grease Guide: Prevent Galling and Stuck Couplings

Short answer: top-hammer drill-string threads should be kept clean, inspected, and lubricated with the drill rod thread grease or thread compound specified for the drill-steel system. The purpose is not simply to make rods easier to screw together. Correct thread lubrication reduces direct metal-to-metal contact, protects against corrosion, helps the joint make up and break out predictably, and lowers the risk of galling or seizure. Sandvik’s top-hammer thread-greasing system is designed to apply special grease to rod threads as rods are added, specifically to protect against corrosion and metal-to-metal contact and to improve thread opening and rod life.

This guide is for mines, quarries, tunneling contractors, drill-and-blast teams, distributors, and maintenance crews working with threaded top-hammer drill strings such as R32, T38, and T45. It focuses on one question: how should thread grease be managed so a correctly matched drill string stays serviceable?

1. What Does Drill Rod Thread Grease Do in a Top Hammer String?

A top-hammer connection is exposed to repeated percussion, rotation torque, vibration, frictional heating, dust, water, and repeated make-up and breakout. Those conditions are very different from a lightly loaded threaded fastener in a workshop. The male and female thread surfaces have to carry impact and torque while still being opened repeatedly during rod handling.

Purpose-designed thread lubrication performs several jobs at the same time:

• Separates loaded metal surfaces. A lubricant film reduces direct steel-on-steel contact at the thread flanks.
• Reduces galling risk. Galling is severe adhesive wear in which highly loaded sliding metal surfaces transfer material and can seize together.
• Supports predictable breakout. A properly lubricated, correctly matched connection is easier to open than a dry, contaminated, damaged, or seized joint.
• Helps control corrosion. Sandvik specifically describes its thread grease as protection against corrosion as well as metal-to-metal contact.
• Protects the more expensive drill string. A coupling or rod thread that runs dry can damage mating components, so thread condition has to be managed as a system rather than part by part.

Boart Longyear’s surface top-hammer rod guidance also treats thread design and heat treatment as central to reducing galling, chipping, and surface damage. That reinforces an important point: grease is one control within a heavily loaded engineered connection. It cannot compensate for the wrong thread, worn geometry, poor alignment, or a damaged component.

2. Drill Rod Thread Grease Is Not Shank Lubrication or DTH Rock Drill Oil

One common maintenance mistake is to group every lubricant around a drill rig into the same category. The lubrication points are different and the product requirements can be different.

Use the terminology in the rig and drill-steel manuals. One manufacturer may call the product “thread grease,” while another may describe a “thread compound.” The procurement rule is the same: select the product by the intended drilling-thread duty and OEM approval, not by color, base grease, or whatever happens to be available on site.

3. When Should R32, T38, and T45 Threads Be Greased?

The practical trigger is the connection event and the actual condition of the threads. Sandvik’s automated top-hammer thread-greasing system sprays lubricant onto the threads when the next rod is added to the drill string. That provides a useful operating principle for manual systems as well: do not treat grease as a one-time workshop application that is expected to last indefinitely.

For manual rod handling, use this decision logic:

• Inspect and lubricate the connection before make-up according to the drill-steel supplier’s procedure.
• Reapply when the previous film has been displaced, washed off, contaminated, or removed during cleaning.
• Do not make up visibly dry or dirty threaded connections simply because the rod was greased earlier in the shift.
• After storage, transport, or long idle periods, inspect for corrosion, debris, thread damage, and remaining lubricant before reuse.
• On rigs with automatic greasing, check the reservoir, injector/nozzle condition, and actual grease delivery rather than assuming the system is working because it is installed.

The same maintenance principle applies across R32, T38, and T45: the exact thread geometry differs, but the connection must remain matched, clean, lubricated, and serviceable. Never use lubrication as a reason to mix thread systems or force together components that do not match.

4. Why Do Top-Hammer Couplings Gall, Seize, or Become Difficult to Open?

A stuck coupling is often blamed on “not enough grease,” but that diagnosis is too narrow. Lubrication is only one of several variables that can change breakout behavior.

Epiroc’s drill-rod maintenance guidance notes that high torque or loading without suitable thread compound can cause galling, and that dirt, dust, the wrong lubricant, or insufficient lubricant can contribute. Although that guidance is written for exploration drilling, the underlying warning is directly useful to any high-load threaded drill string: lubrication must be paired with clean, undamaged, correctly matched threads.

5. How to Choose Drill Rod Thread Grease for R32, T38, and T45 Connections

Do not select a thread lubricant by a universal recipe. Different rigs, automated greasing systems, climates, and drill-steel suppliers can specify different products. Instead, evaluate the lubricant against the actual duty.

Use an OEM-approved product for drill-steel threads

The safest starting point is the grease or compound named by the rig or drill-steel manufacturer. Sandvik, for example, uses a special grease developed for its thread-greasing system rather than describing the requirement as ordinary multipurpose grease.

Check compatibility with the application method

A manually brushed product and an automatic spray/injector system may have different pumpability and delivery requirements. If the rig uses automatic greasing, confirm the product is suitable for the reservoir, pump, hose, injector, nozzle, and site temperature.

Consider water and contamination exposure

Quarry and mining threads can be exposed to water, slurry, fines, and dust. The selected lubricant should match the supplier’s requirements for adhesion and corrosion protection in those conditions.

Do not use grease to hide a mechanical problem

If the thread profile is visibly damaged, the coupling is cracked, the rod end is deformed, or the components do not share the same thread standard, adding more lubricant does not make the connection acceptable. Remove the component from service and inspect the full mating pair.

6. Seven-Step Field Procedure for Applying Drill Rod Thread Grease

1. Identify the thread system. Confirm R32, T38, T45, or the exact system specified by the drill string. Check both mating components.
2. Secure the equipment. Follow the rig’s lockout, rod-handling, and safe-access procedure before working around the drill string.
3. Inspect before cleaning. Look for damaged lead threads, flattened or rounded flanks, cracks, corrosion, abnormal polishing, and debris packed into the coupling.
4. Remove contamination. Clean away rock fines, dirt, contaminated old grease, and foreign material using the method approved by the tooling supplier. Avoid damaging the thread surface.
5. Apply the approved thread lubricant. Cover the working thread surfaces evenly using the manual or automatic method specified for the system. Keep the flushing passage clear.
6. Make up the connection correctly. Use the rig/tooling manufacturer’s rod-handling and rotation procedure. Do not force a connection that does not run together normally.
7. Observe breakout and wear trend. If a connection becomes harder to open, hotter, noisier, or shows accelerated wear, inspect the joint rather than simply increasing grease indefinitely.

On an automatic thread-greasing rig, the equivalent procedure is to verify that the system actually dispenses the correct lubricant at the rod-addition event. A blocked nozzle, empty reservoir, failed injector, or misaligned spray can leave the connection effectively dry.

7. What Thread Grease Cannot Fix

Thread grease is preventive maintenance, not a repair material. Stop and inspect when any of the following is present:

• R32 components mixed with T38, T45, or another incompatible thread system;
• cracked coupling sleeves or rods;
• severely rounded, chipped, stripped, or deformed thread flanks;
• threads that bind before normal make-up;
• persistent overheating at one joint;
• repeated difficult breakout after cleaning and correct lubrication;
• evidence of hole deviation, misalignment, or abnormal bending load affecting the joint.

Replacing a worn coupling early can be cheaper than damaging multiple rod ends. If wear appears concentrated in one location, inspect the mating components and drilling setup instead of treating the failed piece as an isolated consumable.

8. Daily and Shift-Level Thread Maintenance Checklist

• Correct thread grease / compound available for the drill-steel system.
• Grease container protected from dust, water, and cross-contamination.
• Automatic greaser reservoir and injector/nozzle checked where fitted.
• Rod and coupling threads visually inspected during rod handling.
• Dirty threads cleaned before re-lubrication.
• Thread designation verified when mixing new and existing inventory.
• Flushing passages kept clear.
• Unusual breakout force, heat, noise, corrosion, or wear recorded.
• Damaged components segregated rather than returned to the rod rack.
• Stored rods and couplings protected from impact and moisture.

9. What Information Should You Send Before Ordering Replacement Rods or Couplings?

“R32 coupling” or “T45 rod” is not always enough information for a reliable replacement order. Send the supplier the complete connection context:

• rig make and model;
• rock-drill / drifter model;
• thread system: R32, T38, T45, or other;
• rod type, body profile, and effective length;
• coupling-sleeve type and current part number if available;
• bit thread and shank-adapter thread;
• current lubricant product and whether greasing is manual or automatic;
• water-flushing and contamination conditions;
• photos of new and worn thread profiles;
• symptom: difficult breakout, galling, corrosion, heat, cracking, or premature wear;
• required quantity, destination, and purchasing timeline.

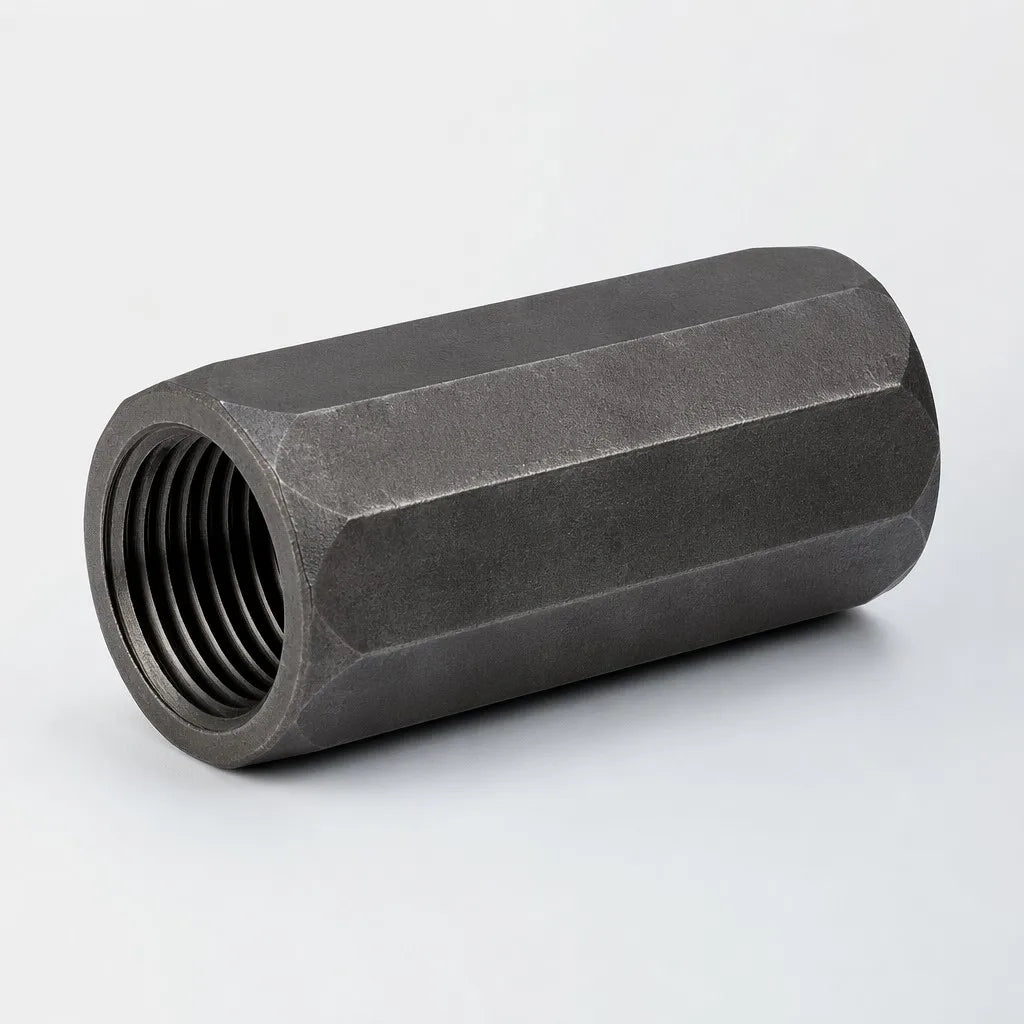

For current PerfoMax options, review the R32 Threaded Extension Drill Rods, R32 Coupling Sleeve, T38 Threaded Extension Drill Rod, and T45 Threaded Extension Drill Rod. You can also compare the wider Drill Rods collection or submit the complete connection data through the Request a Quote page.

FAQ

What grease should I use on top-hammer drill rod threads?

Use the thread grease or thread compound specified or approved by the rig or drill-steel manufacturer for the exact system. Do not assume that general-purpose bearing grease, DTH rock drill oil, or another lubricant is interchangeable.

How often should top-hammer threads be greased?

Lubrication should follow the connection cycle and the OEM maintenance procedure. Sandvik’s automated system applies thread grease when a new rod is added. For manual systems, inspect and re-lubricate when making up connections and whenever the protective film has been removed, contaminated, or washed away.

Why does a coupling still seize even when grease is used?

Seizure can also result from contaminated threads, incorrect thread matching, damaged or worn profiles, poor alignment, abnormal heat, or incorrect connection handling. Grease reduces friction and metal contact; it does not correct mechanical incompatibility or damage.

Should old grease be removed before applying new grease?

If the existing lubricant is contaminated with rock dust, grit, water, or metal debris, clean the thread using the supplier-approved method before applying fresh lubricant. Adding clean grease over abrasive contamination can leave the wear mechanism in place.

Is top-hammer thread grease the same as shank grease?

Not necessarily. Thread connections and the rock-drill/shank interface are different lubrication duties. Use the products specified for each lubrication point instead of substituting one for the other without OEM approval.

Technical References

• Sandvik — Thread Greasing System for Boom Surface Drills
• Sandvik — Top Hammer Drilling Tools
• Epiroc — Five Reasons to Use Thread Compounds and Lubricants on Drill Rods
• Boart Longyear — Surface Top-Hammer Rods

Next Step: Treat Grease, Threads, and Drill-String Matching as One System

Reliable top-hammer connections come from a simple chain of controls: the correct thread standard, undamaged mating parts, clean contact surfaces, the approved lubricant, correct rod handling, and regular wear inspection. If your operation is seeing stuck couplings, rapid thread wear, or uncertainty around replacement compatibility, send PerfoMax the rig, drifter, rod, coupling, bit, thread designation, photos, and operating conditions. The goal is to confirm the connection before quotation rather than use lubrication to compensate for a mismatch in the field.
