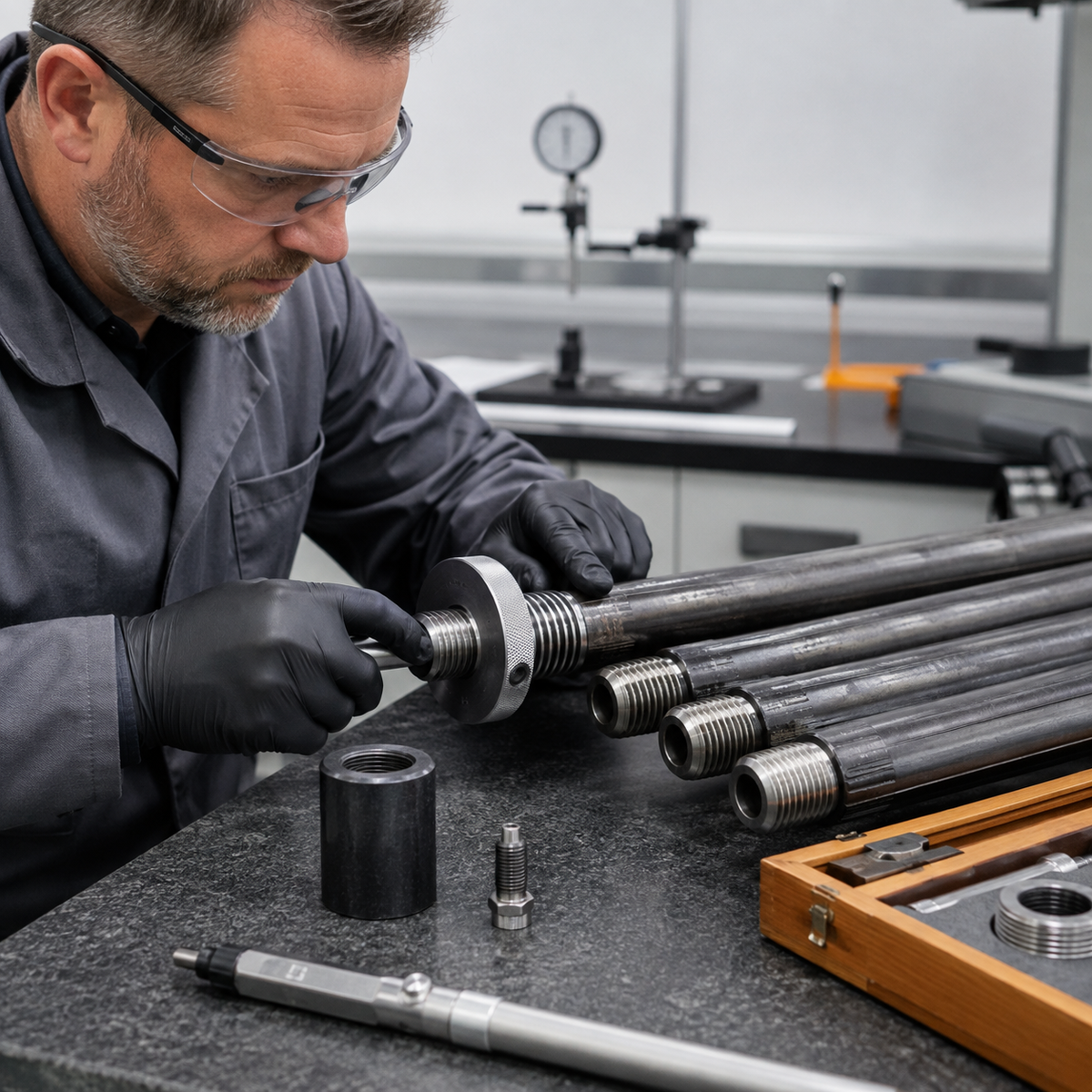

Direct answer: thread gauge inspection for rock drill rods and couplings is reliable only when the gauge matches the exact thread family, size, tolerance, and drawing revision. Use a ring gauge for an external pin thread and a plug gauge for an internal box or coupling thread, unless the approved specification requires another gauging system. Clean the part and gauge, apply them by hand without force, record the gauge identity and calibration status, and judge the result against the specified acceptance rule—not a generic turn-count rule copied from another thread standard.
For overseas distributors and industrial buyers, this is the key boundary: a T38, T45, R32, API REG, or other drilling connection cannot be accepted merely because a similar-looking gauge starts on the thread. The correct working gauge, controlled reference, and inspection plan must be agreed before production or purchase-order release.
What thread gauges can—and cannot—confirm
| Inspection tool | Primary use | What it can support | What it does not prove alone |
|---|---|---|---|
| Thread ring gauge | External pin thread | Functional conformance to the specified external-thread gauging limits | Material grade, heat treatment, straightness, surface integrity, or fatigue strength |
| Thread plug gauge | Internal box or coupling thread | Functional conformance to the specified internal-thread gauging limits | Concentricity to the rod body unless the plan includes that check |
| Thread pitch gauge | Preliminary identification | Approximate pitch or profile matching | Pitch diameter, taper, lead, flank form, or acceptance to tolerance |
| Caliper or micrometer | Selected diameters and lengths | Major diameter, minor diameter, or reference dimensions where accessible | The combined functional fit of the full thread form |
| Controlled mating master or reference part | Supplementary fit check | Practical engagement comparison when formally controlled | Traceable dimensional acceptance unless its status and limits are defined |
A GO/NO-GO result is an attribute decision: the part either meets the defined functional limit or it does not. It does not replace visual inspection, dimensional checks, or confirmation that the ordered thread designation is correct.
First confirm the thread standard and drawing
The most expensive gauging error is using the wrong gauge confidently. Before inspection, the purchase order or approved drawing should identify the complete connection—not only a nominal size. Record the thread family, handedness, male or female end, profile, pitch or lead, taper where relevant, shoulder or face requirements, and the applicable tolerance or gauge specification.
This matters because drilling connections use different systems. ISO 1502 defines gauges and gauging for ISO general-purpose metric screw threads. API Specification 7-2 covers threading and gauging of rotary shouldered connections. Neither should be applied automatically to a top-hammer rope thread unless the product specification explicitly calls for that system. Top-hammer R and T connections require gauges or controlled masters made for the exact approved profile.
If the incoming part is unidentified, use markings, dimensions, profile comparison, and mating-system evidence before selecting a gauge. The published guide How to Identify R32, T38, and T45 Top Hammer Threads explains the ordering checks, but final acceptance still requires the correct controlled specification.
GO, NO-GO, and stand-off are not universal rules
A conventional parallel-thread system may use a GO gauge to verify the maximum-material functional condition and a NO-GO gauge to check the opposite limit. A tapered or rotary shouldered connection may instead use a specified hand-tight stand-off, reference plane, step, or master relationship. The acceptable number of turns for a NO-GO gauge also depends on the governing standard.
Therefore, do not write “NO-GO must stop within two turns” or “within three turns” into a rock-drilling-tool purchase order unless that exact rule is required by the selected gauge specification. A rule valid for one ISO, JIS, ASME, or API thread can reject conforming parts—or accept nonconforming parts—when copied to a different connection.
The buyer's inspection plan should quote the applicable standard clause, drawing note, gauge maker's instruction, or mutually approved procedure. When no published standard controls the proprietary connection, the supplier and buyer should agree the working gauge, master relationship, acceptance position, and dispute-resolution method before the lot is manufactured.
How to perform a receiving thread gauge check
- Identify the lot. Record purchase order, item code, thread designation, supplier lot or heat number, quantity, and packaging condition.
- Verify the gauge. Confirm gauge type, size, profile, serial or asset number, calibration or verification status, due date, and any wear check required by the procedure.
- Stabilize and clean. Remove chips, grit, heavy preservative, burrs, and foreign material. Let parts and gauges reach the inspection area's normal temperature when precision limits make temperature relevant.
- Inspect visually first. Look for impact dents, rolled crests, incomplete machining, corrosion, galling, cracks, coating buildup, and damage at the start thread.
- Apply the GO or functional gauge by hand. Keep it square to the thread axis. Use smooth, light rotation and stop if it binds unexpectedly.
- Apply the NO-GO or limit check only as specified. Count turns or read the reference position using the approved procedure; do not force past resistance.
- Check supplementary dimensions. Where required, measure shoulder condition, stand-off, thread length, bore, face squareness, or concentricity.
- Record the result. Capture sample number, gauge ID, pass/fail result, defect code, inspector, date, and photographs of abnormalities.
- Segregate failures. Hold suspect pieces and the associated lot pending review; do not blend them back into accepted stock.
Why “hand tight” and clean contact matter
Thread gauges are precision comparators, not installation tools. Wrenches, impact tools, extensions, or excessive hand force can damage the gauge, deform burrs, and create a false result. Cross-starting a ring or plug gauge can also damage both the working surface and the product.
Contamination changes the contact. Rock dust, chips, dried preservative, thread compound, or plating transfer can make a conforming thread appear tight. Conversely, polishing or repeatedly forcing a worn gauge can hide an oversized condition. Clean both surfaces using the gauge maker's approved method, apply only the specified light lubricant if required, and never “work” a rejecting gauge back and forth until it passes.
Visual defects that require action before gauging
| Condition | Likely effect | Buyer action |
|---|---|---|
| Burr or rolled start thread | Prevents square engagement and can damage the gauge | Segregate and review against the approved rework rule |
| Galling or metal pickup | Changes flank contact and can accelerate damage in the mating component | Reject or obtain documented engineering disposition |
| Impact nick on crest or flank | Creates local interference and stress concentration | Photograph, classify, and inspect per drawing limits |
| Incomplete or torn profile | Reduces functional contact and may alter load transfer | Hold the lot for dimensional review |
| Coating or preservative buildup | Produces a false tight result | Clean by the approved method and repeat once |
| Mixed thread family or size | May start but cannot form a compatible working connection | Stop inspection and re-identify the entire mixed lot |
For broader checks on rod straightness, surface condition, packaging, and records, use the related Top Hammer Drill Rod Pre-Shipment Inspection guide.
Gauge control: calibration, wear, and storage
A correct gauge can still produce the wrong decision if it is worn, damaged, contaminated, or out of control. Maintain an asset record that links the gauge to its nominal designation, manufacturer, serial number, verification method, status, location, and next due date. The calibration or verification interval should be risk-based and consistent with use frequency, material contact, historical wear, and the quality system.
Thread ring gauges may need setting or wear plugs; plug gauges may require dimensional verification against suitable references. Kuroda's technical guidance notes that ring gauges should be checked when new and periodically with appropriate inspection or wear plugs. Storage guidance also emphasizes removing dust, chips, fingerprints, and moisture and protecting gauges against corrosion.
Do not store a gauge engaged with a product thread. Use its protective case, separate incompatible sizes, and make its acceptance status visible. If a gauge is dropped, forced, corroded, or found overdue, quarantine it and assess all parts inspected since the last confirmed-valid check.
How to resolve supplier-buyer gauge disagreement
If the supplier's gauge accepts a thread and the buyer's gauge rejects it, do not solve the dispute by applying more force or trying several uncontrolled mating parts. Preserve the parts and compare the measurement system.
| Comparison item | Question |
|---|---|
| Specification | Are both parties using the same thread family, size, tolerance, and drawing revision? |
| Gauge design | Are both gauges the same working-gauge type and made to the same master relationship? |
| Status | Are both gauges within calibration or verification and below their wear limit? |
| Method | Were cleaning, lubricant, hand force, temperature, and reference-position rules identical? |
| Part condition | Was the same cleaned sample checked, or could burrs and coating explain the difference? |
| Independent review | Does the purchase order define a master gauge or qualified third party for final disposition? |
The best prevention is contractual: name the inspection method and dispute master in the RFQ and purchase order.
Sampling and acceptance planning
Decide before shipment whether threads receive 100% functional gauging, statistical sampling, or a combination. The choice depends on connection criticality, manufacturing process capability, supplier history, lot size, and the cost of a mismatched component reaching the site.
If an AQL plan is used, define the inspection unit, lot, defect classes, sample size, and acceptance number. A thread-family mismatch, failure of the specified functional gauge, and visible damage should not be left as vague “appearance” observations. The AQL Sampling for Rock Drilling Tools guide explains how lot acceptance differs from proving that every unit is conforming.
What to specify in the RFQ and purchase order
- complete thread designation and connection drawing revision;
- pin, box, coupling, or male-male end configuration;
- required working gauge or master-gauge relationship;
- GO, NO-GO, stand-off, shoulder, or reference-plane acceptance rule;
- gauge report, serial/asset identification, and calibration evidence required;
- 100% inspection or approved sampling plan;
- visual defect categories and permitted rework, if any;
- lot and heat traceability on records and packaging;
- inspection photographs and report fields;
- controlled reference or third-party method for disputes; and
- the mating shank adapter, coupling, rod, or bit information needed for system compatibility.
For a live commercial reference, PerfoMax's active T38 extension drill rod range shows why thread type must be considered together with rod length, body, and end configuration.
Frequently asked questions
Can a thread pitch gauge accept a drill rod?
No. A pitch gauge helps identify an approximate pitch or profile, but it does not verify the full functional size, pitch diameter, taper, lead, or tolerance. Use the specified working gauge and inspection plan.
Can I use a coupling as a GO gauge?
Only as a supplementary fit check if the coupling is a formally controlled reference with defined status and limits. An ordinary production coupling is not a traceable acceptance gauge.
Does a GO gauge pass prove the thread is good?
It proves only the characteristic covered by that gauge under the specified method. Visual defects, wrong material, poor heat treatment, runout, straightness, and damage outside the gauged feature still require separate checks.
How many turns may a NO-GO gauge enter?
The permitted entry depends on the governing thread and gauge standard. Do not apply a universal two- or three-turn rule to top-hammer, API, metric, or proprietary connections without confirming the exact specification.
What should happen if the buyer and supplier gauges disagree?
Quarantine the affected lot, compare specifications and gauge status, repeat the check under one controlled method, and use the purchase-order dispute master or qualified independent inspection defined in advance.
Build thread acceptance into the order
Thread gauge inspection prevents mismatched or damaged drill-string components from becoming field failures, but only when the gauge and rule are correct for the connection. Request a quote with the thread designation, drawing, mating component, rod dimensions, order quantity, inspection level, and required acceptance evidence so the technical and commercial review starts from the same specification.
Technical references
- ISO 1502:1996 — ISO general-purpose metric screw threads: gauges and gauging.
- American Petroleum Institute — API Specification 7-2 updates for threading and gauging rotary shouldered connections.
- Kuroda Precision — periodic inspection and wear checking of thread ring gauges.
- Kuroda Precision — storage and corrosion protection for gauges.
