Quick answer: AQL sampling for rock drilling tools is a lot-acceptance method, not a promise that every tool in the shipment is defect-free. The buyer first defines the inspection lot, the drawing/specification revision, defect classes, inspection level, AQL values, and the sampling standard. An inspector then selects units randomly across the lot, checks agreed attributes, and compares the number of defective units with the plan's acceptance (Ac) and rejection (Re) numbers. The result is a decision on the lot: accept, reject, or hold for an agreed disposition.
For drilling-tool procurement, the method works best for repeatable pass/fail characteristics such as wrong thread, missing marking, coating damage beyond an agreed limit, incomplete packing, or dimensions outside a stated tolerance. It does not replace engineering validation, destructive testing, field trials, or 100% inspection of safety-critical characteristics. Those controls must be specified separately when the risk requires them.
What AQL sampling does—and does not—tell a buyer
Acceptance sampling sits between no inspection and inspecting every unit. The U.S. National Institute of Standards and Technology (NIST) explains that its purpose is to decide whether a lot is likely to be acceptable, not to estimate the exact quality level of the entire lot. That distinction prevents one of the most common purchasing errors: reading an AQL number as a guaranteed percentage of defects in a delivered shipment.
| Term | Practical meaning for a drilling-tool order | Buyer decision required |
|---|---|---|
| Inspection lot | The defined quantity submitted together for one acceptance decision | State what makes one lot: product, size, drawing revision, batch, shipment, or another controlled boundary |
| Sample | Units randomly selected from that lot | Ensure selection covers different crates, pallets, positions, and production identifiers |
| Attribute | A result classified as conforming or nonconforming | Convert each requirement into an objective pass/fail check |
| Defective unit | A sampled item containing one or more nonconformities | Define how multiple defects on one unit are counted |
| AQL | An index used with a published sampling scheme for continuing lot acceptance | Choose values by defect class and risk; do not copy a consumer-goods default automatically |
| Ac / Re | The maximum count for acceptance and the count that triggers rejection | Take both numbers from the agreed standard and plan, not from an improvised percentage calculation |
| Inspection severity | Normal, tightened, reduced, or another permitted state under the scheme | Agree switching rules and supplier-history requirements before using a lighter plan |
Use the current standard and name the edition in the purchase documents
ISO published ISO 2859-1:2026 on January 22, 2026. It defines AQL-indexed sampling schemes for inspection by attributes and replaced the 1999 edition and its amendments. The current edition covers single, double, and multiple sampling schemes and includes switching concepts such as normal, tightened, reduced, and skip-lot inspection. ANSI/ASQ Z1.4 is another widely used attributes-sampling standard with normal, tightened, and reduced plans.
A purchase order should not merely say “inspect to AQL.” It should identify the standard and edition, lot definition, sampling plan type, inspection level, defect classes, AQL values, and the rules for disposition. Tables and switching rules belong to the licensed standard used by the buyer or inspection provider. Do not mix a code letter from one edition with Ac/Re numbers copied from another online chart.
A seven-step AQL sampling workflow for rock drilling tools
1. Freeze the lot and specification before sampling
Identify exactly what the inspector is accepting. Do not combine different diameters, threads, drawings, heat-treatment routes, or specification revisions into one lot simply because they share a shipping container. Record the purchase-order line, product description, quantity, packing list, lot or heat identifiers where applicable, and the approved drawing or specification revision.
2. Build a product-specific defect catalogue
“Critical,” “major,” and “minor” are severity categories, not universal lists. The buyer must map actual requirements to those categories. A wrong interface that cannot assemble, a crack-like indication, or a missing safety-related component may have a different commercial and operational consequence from a cosmetic finish variation. Classification should reflect intended use, applicable regulations, drawing requirements, and foreseeable downstream loss.
3. Choose the sampling scheme before the inspector arrives
Specify the governing standard, edition, plan type, inspection level, severity state, and AQL for each defect class. NIST describes a single attributes plan as a sample size n plus an acceptance number c; the lot is rejected when the count exceeds that limit. Published AQL systems add tables and switching rules. The inspector should apply the agreed plan, not select whichever plan produces a convenient sample after seeing the shipment.

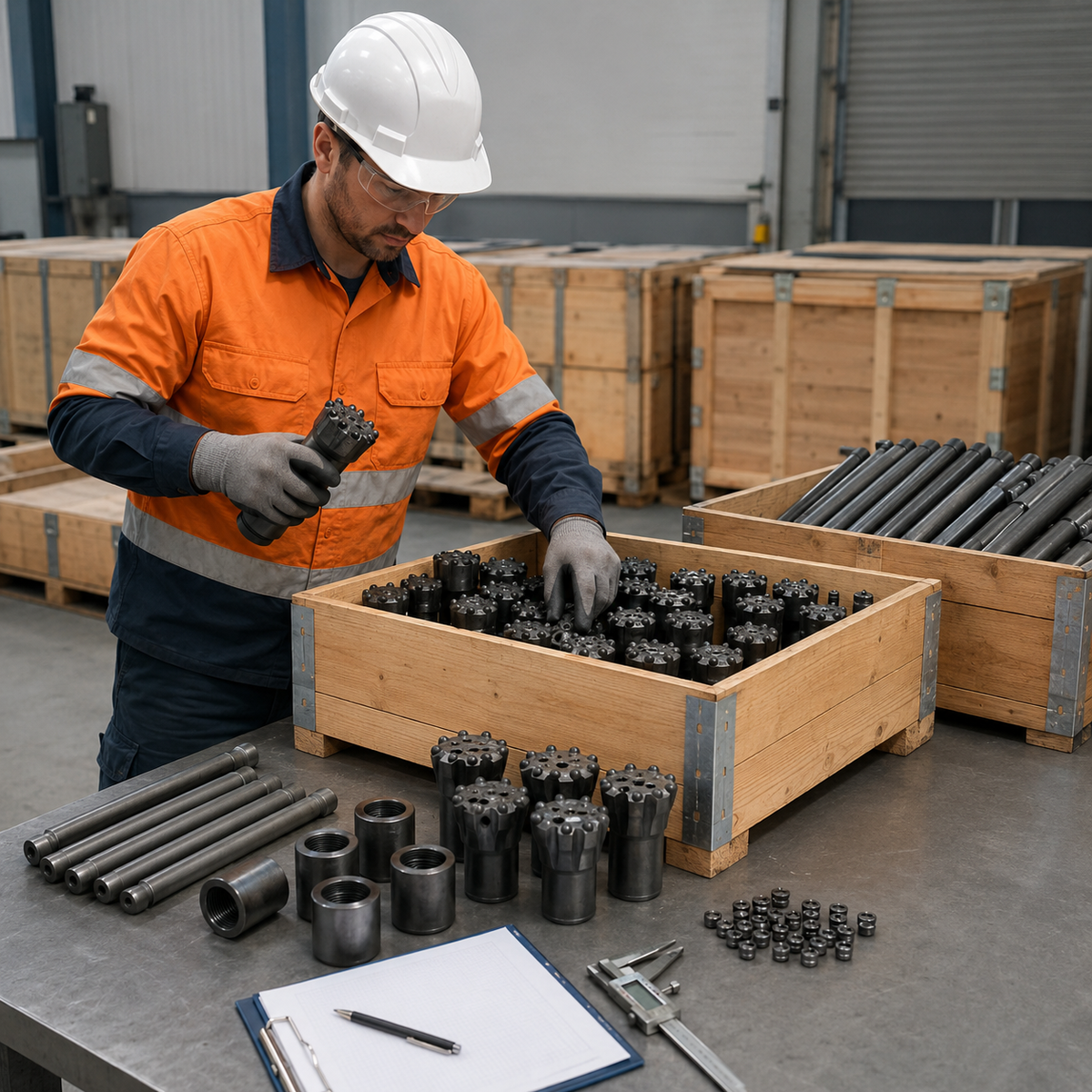

4. Select the sample randomly across the complete lot
The supplier should make the entire lot available. Selection should reach different crates, pallet layers, bundle positions, and production identifiers instead of taking only clean pieces from the top. If some units cannot be accessed, record that limitation and decide whether the inspection can still represent the submitted lot.
5. Inspect attributes against controlled requirements
Use calibrated or otherwise suitable equipment for dimensional checks, approved gauges for threads or interfaces, and documented visual standards where appearance matters. A measured dimension becomes an attribute result when it is compared with a stated tolerance: pass or fail. Record the actual reading where useful, not only a tick mark.
6. Count defectives consistently
Agree whether the plan counts defective units or individual nonconformities. If one sampled drill bit has several issues, the inspection report should list them all while applying the agreed counting rule for lot disposition. Photographs should link to the sample identity, requirement, measured result, and severity class.
7. Apply the predetermined disposition
When the sample reaches the rejection number, stop calling the lot “passed.” The commercial disposition may be rework followed by reinspection, sorting of the complete lot, replacement, concession by authorized buyer personnel, additional testing, or rejection and return. Acceptance sampling itself does not repair the lot or prove root cause.
What should be inspected for different drilling-tool families?
| Tool family | Typical attribute checks | Controls that may need a separate plan |
|---|---|---|
| DTH drill bits | Ordered shank, diameter, face style, button arrangement, flushing holes, visible damage, marking, preservation, packing | Material verification, carbide quality, heat treatment, functional or field performance |
| DTH hammers and parts | Model/interface, component completeness, visible condition, key dimensions, thread/gauge result, assembly, marking, packing | Air-cycle performance, leakage limits, metallurgical or dimensional capability studies |
| DTH drill pipes | OD/length/tolerance, thread gauge, straightness method, weld appearance, end protection, marking, bundle quantity | Weld procedure evidence, NDT, mechanical properties, destructive tests |
| Top hammer rods and couplings | Thread family, length, straightness, surface condition, marking, thread protection, quantity and packing | Steel chemistry, heat treatment, thread profile capability, fatigue or field-life validation |
| H22 tapered tools | Shank size, taper angle/interface, rod or bit dimensions, visible condition, marking, packing | Fit trials, steel properties, brazing or carbide-retention validation |
| Pneumatic rock drills | Model, configuration, included accessories, visible damage, identification, preservation and packing | No-load/loaded functional test, air consumption, impact performance, safety checks |
This table is a planning aid, not a universal acceptance specification. Each requirement needs a source: approved drawing, purchase order, datasheet, sample, test method, or mutually agreed limit. For product-specific preparation, buyers can also review the published DTH hammer pre-shipment inspection checklist and top hammer drill rod inspection checklist.
How to classify critical, major, and minor defects
Use consequences, not appearance alone. The following framework helps a buyer write the defect catalogue, but the final classification must be approved for the actual application.
| Class | Decision question | Rock-tool examples requiring buyer review |
|---|---|---|
| Critical | Could the condition create an unacceptable safety or regulatory risk? | A condition linked to unsafe assembly or use, prohibited material, or a mandatory legal requirement; classification requires competent technical approval |
| Major | Would the unit fail to fit, function, meet a key specification, or be commercially usable as ordered? | Wrong thread or shank, out-of-tolerance functional dimension, missing component, serious corrosion, crack-like indication, incorrect model |
| Minor | Does the unit depart from an agreed requirement without materially reducing intended function? | Limited finish or marking variation that remains outside the written requirement but does not change fit or function |
Never assume “critical AQL 0” means zero statistical risk. A zero-acceptance rule for the sample means one observed critical defective triggers lot rejection under that contractual rule; it does not prove that no critical defect exists elsewhere in an uninspected lot. If one such defect is unacceptable, specify 100% screening, process controls, traceability, testing, or other risk controls in addition to sampling.
Common AQL mistakes in drilling-tool procurement
- Using AQL as the product specification. AQL decides how a lot is sampled; it does not define dimensions, metallurgy, function, or workmanship.
- Calculating “AQL 2.5” as 2.5% of the sample. The Ac/Re numbers come from the chosen plan, not simple multiplication.
- Letting the supplier preselect showcase samples. Selection must represent the submitted lot.
- Mixing unlike products or revisions into one lot. This can hide a concentrated problem.
- Inspecting only visible surfaces. Interfaces, gauges, documents, preservation, quantity, and packing may be equally important.
- Changing defect severity after results are known. Classification belongs in the approved inspection instruction.
- Accepting a failed lot after sample-only rework. Repairing sampled defectives alone does not correct unsampled units.
- Using reduced or skip-lot inspection without history. NIST notes that skip-lot sampling is appropriate only after very good submitted quality has been demonstrated.
What to put in the RFQ, purchase order, and inspection booking
- product family, model, size, interface/thread, drawing and revision;
- order quantity and inspection-lot definition;
- standard and edition, such as ISO 2859-1:2026 where selected;
- single, double, or multiple plan and normal/tightened/reduced state;
- inspection level and AQL values by defect class;
- approved critical/major/minor defect catalogue;
- measurements, gauges, visual limits, functional tests, and document checks;
- random-selection method and required access to all crates or bundles;
- sample identity, photograph, measurement, and reporting requirements;
- rules for stop-work, concession authority, rework, sorting, and reinspection;
- separate requirements for 100% checks, NDT, destructive tests, or field trials;
- packing, corrosion protection, marking, and traceability evidence.
For a quotation or inspection discussion covering multiple rock-drilling tool families, send PerfoMax the tool interface, size, quantity, application, specification revision, and required acceptance evidence. This information is more useful than a generic request for “standard AQL inspection” because it allows the commercial and technical scope to be reviewed before production or shipment.
Frequently asked questions
Does AQL 2.5 mean 2.5% of the shipment may be defective?
No. AQL is an index used with a specified sampling scheme and its acceptance/rejection numbers. It is not a warranty that the delivered lot contains exactly or no more than that percentage of defective units.
How is the sample size determined?
Use the lot size, inspection level, plan type, severity state, and the tables in the named standard/edition. Do not choose a percentage of the shipment or copy a sample size from an unrelated example.
Should every drilling-tool characteristic use the same AQL?
No. Different characteristics have different consequences and may need different defect classes, AQL values, inspection levels, or entirely different controls. Safety-critical or destructive characteristics may require process assurance, certification, 100% checks, or a dedicated test plan.
What happens when the sample fails?
Follow the agreed disposition: hold the lot, document the finding, notify the authorized parties, and decide on rework plus reinspection, full sorting, replacement, concession, further testing, or rejection. Do not relabel a failed plan as passed.
Can AQL inspection replace a supplier field trial?
No. AQL attributes sampling can confirm selected conformance characteristics in a shipment. A controlled field trial evaluates performance such as penetration rate, wear, reliability, and cost per meter under the buyer's actual conditions.
