Direct answer: A DTH hammer should not be accepted for shipment on a generic “QC passed” statement alone. Before a bulk order leaves the supplier, the buyer should verify the exact ordered configuration, inspect visible condition, check drawing-controlled dimensions and connections, review any agreed functional-test evidence, confirm lot and document traceability, and inspect export packing. Exact dimensions, tolerances, test pressure, airflow and acceptance limits must come from the purchase order, approved drawing or model-specific manufacturer data—not from a universal internet value.
This guide is written for mines, quarries, drilling contractors, distributors and industrial procurement teams buying complete down-the-hole hammers. It focuses on pre-shipment acceptance: proving that the lot about to ship is the lot you ordered and that the agreed inspection evidence is complete before freight, customs and site downtime make a mistake expensive.
1. What a DTH Hammer Pre-Shipment Inspection Should Prove
A useful inspection plan answers five buyer questions:
- Identity: Is every hammer the model, size and interface configuration on the PO?
- Condition: Are the assemblies free from obvious damage, corrosion, contamination or handling defects?
- Conformity: Do the agreed critical dimensions, connection features and assembly details match the approved specification?
- Function: Where a functional test is part of the order, does the hammer pass the agreed model-specific procedure?
- Shipment readiness: Are documents, quantity, traceability and packing controlled well enough to survive export transport and receiving inspection?
The point is not to create the longest possible checklist. The point is to identify defects that would cause the highest cost after shipment: wrong shank family, wrong backhead connection, mixed configurations, damaged threads, missing components, assembly errors, failed agreed checks or inadequate packing.

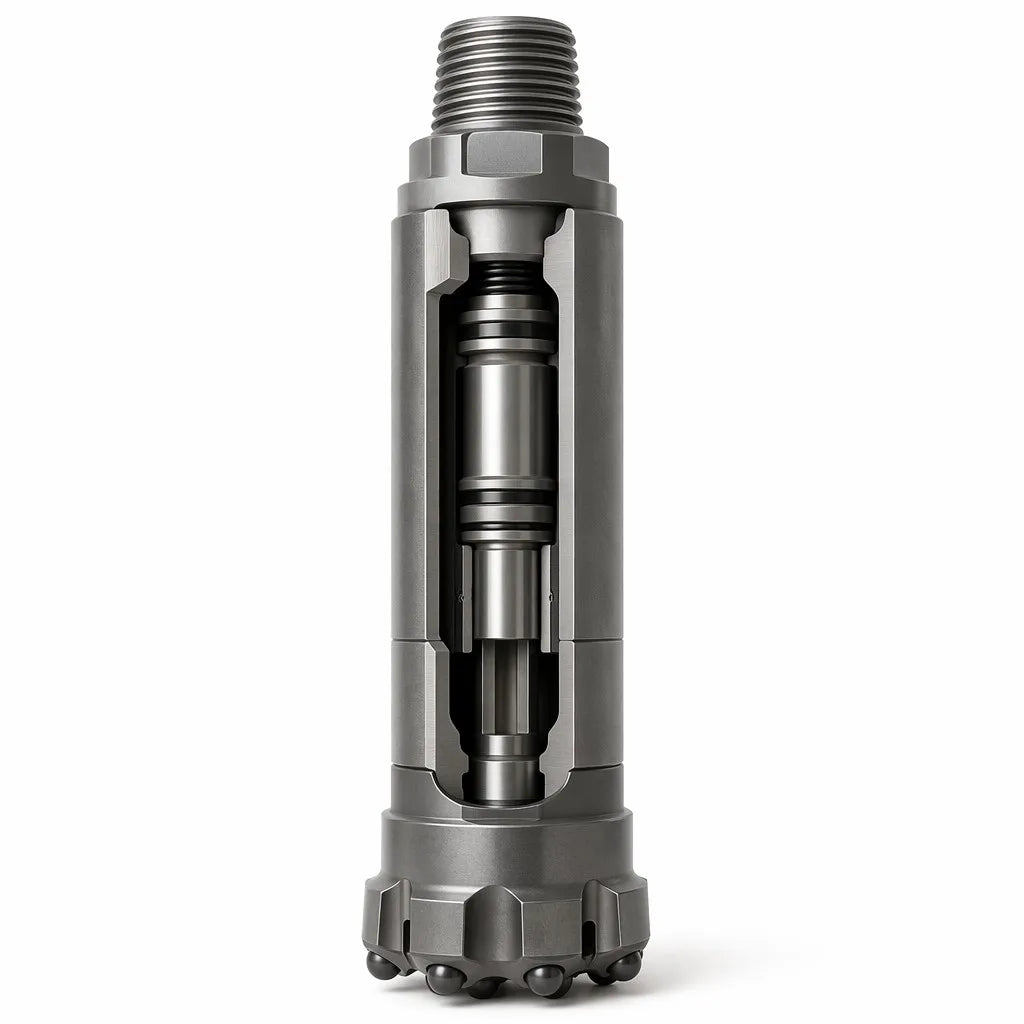

2. Freeze the Ordered Configuration Before Inspecting Quality
Quality inspection starts with the commercial specification. A perfectly manufactured hammer is still the wrong product if its interfaces do not match the buyer’s drill string, bit or air system.
| Item to lock | What the buyer should compare | Why it matters |
|---|---|---|
| Hammer model / size class | PO, approved offer, drawing or agreed model code | Controls the basic hammer architecture and operating envelope |
| Bit shank family | Exact shank designation or approved compatible reference | A nominal hammer size does not prove bit compatibility |
| Backhead / top-sub connection | Thread standard, size and any specified pin/box arrangement | Must connect correctly to the intended drill pipe or adapter |
| Included assembly | Chuck, retaining parts, valves/tubes where applicable, seals and ordered accessories | Prevents missing-component disputes at site |
| Quantity and lot identity | PO quantity, carton/crate count, unit or lot markings where agreed | Supports receiving control and root-cause tracing |
| Required evidence | Inspection report, measurements, photos, test record, certificates if contractually required | Defines what “passed inspection” actually means |
Buyer rule: use one revision-controlled specification pack. If the sales quotation, drawing, PO and inspection sheet use different naming or revisions, resolve that conflict before the lot is inspected.
3. Visual Inspection: What Can Be Checked Without Disassembly?
A visual check is fast and should normally cover every unit for obvious identity or shipping-risk defects. It is not a substitute for dimensional or functional inspection, but it is a useful first filter.
- Check the wear sleeve/body for cracks, severe dents, impact marks, abnormal grinding, deep corrosion or coating damage that could indicate mishandling.
- Inspect the chuck and exposed connection areas for burrs, galling, damaged lead threads, deformation or embedded debris.
- Confirm air passages and exposed openings are clean and protected from chips, dirt and moisture.
- Check that retaining parts and externally visible assembly elements are present and correctly seated according to the model design.
- Compare markings or labels with the purchase specification and packing list where identification marks are part of the order.
For a new-product acceptance inspection, do not automatically reuse field-service wear limits. Service limits answer “can this used component remain in operation?” A pre-shipment inspection answers “does this new lot conform to the agreed purchase specification?” Those are different acceptance questions.
4. Dimensional Checks Must Be Drawing-Controlled
There is no universal dimension table that can safely accept every DTH hammer. Critical dimensions depend on hammer family, shank, thread and manufacturer design. The inspection sheet should therefore name the dimension, nominal value, tolerance, measuring method and drawing revision.
Depending on the agreed specification, checks may include:
- overall or interface dimensions needed for identification;
- backhead/thread form using the agreed gauge, master part or specified measuring method;
- chuck or shank-interface dimensions where the contract defines them;
- critical diameters or lengths identified on the approved drawing;
- fit with an approved reference component when the buyer and supplier have agreed that method.
Record actual values for critical characteristics rather than writing only “OK.” If calibrated measurement is contractually required, the report should identify the instrument or calibration status needed by the buyer’s inspection plan.
5. Assembly and Interface Fit Checks
Many costly receiving problems are not material failures; they are configuration or assembly mismatches. A controlled fit check can expose them before shipment.
- Confirm the ordered bit-shank family against the hammer/chuck configuration.
- Confirm the ordered backhead connection against the buyer’s specified drill-pipe or adapter interface.
- Check that threads start and engage normally under the agreed inspection method; forced assembly is not evidence of compatibility.
- Verify retaining components and replaceable parts correspond to the documented hammer version.
- If a master bit, gauge or approved mating component is used, identify that reference in the inspection record.
Where interchangeability is critical, the PO should define the exact interface designation rather than relying on statements such as “4-inch hammer” or “suitable for 4-inch drilling.” Nominal size is not a complete compatibility specification.
6. Functional Air Test: Agree the Procedure Before the Lot Is Built
A functional air test can add useful evidence, but only when the supplier has an appropriate safe test setup and the buyer has defined what is being tested. There is no single universal pass pressure or airflow value for all DTH hammers.
A buyer’s test plan should specify, where applicable:
- which units are tested—100% or an agreed sample;
- the model-specific test procedure and safe fixture/setup;
- the specified pressure or air conditions from the agreed technical data;
- what constitutes normal actuation or cycling for that design;
- what external leakage, abnormal sound, sticking or other observable condition causes rejection;
- whether measured pressure/flow values are required and what instruments are used;
- how the test result is linked back to the inspected unit or lot.
OEM service documentation commonly separates model-specific operating data from assembly and troubleshooting procedures. That is a useful purchasing lesson: a buyer should ask for evidence against the correct hammer model, not accept a generic test video with no configuration, conditions or traceability.
7. Inspection Evidence: What Should Be in the Pre-Shipment Package?
A strong inspection package makes the supplier’s claim auditable. The exact documents depend on the contract, but a practical package can include:
| Evidence | What it should show | Buyer use |
|---|---|---|
| Inspection report | PO/model reference, quantity/lot, inspected characteristics and result | Links QC to the actual shipment |
| Measurement record | Actual values for agreed critical dimensions, drawing/tolerance reference | Separates measurable conformity from a generic pass statement |
| Photos | Representative unit identity, connections, condition and packed lot | Fast remote verification before release |
| Functional-test record | Procedure/reference, units or sample tested, conditions and result | Provides evidence when an air/function test is required |
| Traceability records | Unit, lot, batch or other identification only where agreed | Supports receiving inspection and later investigation |
| Packing list | Unit count, package count, gross/net data where applicable | Reduces receiving and logistics mismatch |
| Certificates | Only certificates specifically required by the PO or inspection plan | Avoids assuming that a certificate exists or proves unrelated characteristics |
If a buyer requires material, dimensional, calibration or other certificates, state that requirement before production. Do not treat an unspecified certificate as a default proof of complete product quality.
8. Bulk Orders: Decide What Is 100% Checked and What Is Sampled
Not every characteristic needs the same inspection intensity. The highest-risk characteristics are often the ones that can make an entire shipment unusable—wrong configuration, mixed interfaces, visible shipping damage or missing units. Buyers may choose 100% checks for these items while using an agreed sampling plan for lower-risk attributes.
When acceptance sampling is used, define the lot, defect classes, inspection level or sampling rule, AQL where applicable, and acceptance/rejection logic in the PO or inspection plan. ISO 2859-1:2026 provides a current framework for AQL-indexed lot-by-lot inspection by attributes, including single, double and multiple sampling schemes. It does not choose the buyer’s defect severity, AQL or commercial acceptance criteria for a DTH hammer order.
Do not copy a generic AQL table from the internet and assume it fits the order. The economic consequence of a wrong backhead thread is very different from a minor cosmetic mark.
9. Export Packing Is Part of Product Acceptance
A hammer that passes factory inspection can still arrive unusable if threads, openings or machined surfaces are damaged in transit. Include packing in the release inspection.
- Confirm units are clean and dry before packing.
- Protect threaded connections and open passages from impact, dirt and moisture.
- Prevent metal-to-metal movement that can damage threads or surfaces during handling.
- Use corrosion protection appropriate to the agreed transport and storage conditions.
- Use separators, restraints, wrapping or other protection appropriate to unit weight and package design.
- Where the route or storage plan requires it, specify moisture-barrier or desiccant requirements rather than assuming them.
- Match package labels and packing-list quantities to the inspected lot.
For overseas buyers, packing evidence is especially valuable because the cost of correcting damage after ocean freight, customs clearance and inland transport can exceed the cost of the component that failed.
10. Common Pre-Shipment Inspection Mistakes
| Mistake | Why it creates risk | Better control |
|---|---|---|
| Accepting a “QC passed” photo only | Does not identify model, measured characteristics or test conditions | Use an inspection sheet tied to PO/specification |
| Specifying only nominal hammer size | Does not lock shank/backhead/interface configuration | Freeze exact model/interface codes |
| Using maintenance wear limits for new goods | Confuses serviceability with new-product conformity | Use purchase drawing/tolerances |
| Measuring without a drawing revision | A number has no acceptance context | Record nominal, tolerance and reference revision |
| Sampling a high-consequence identity error too lightly | A mixed lot can stop production | Classify defects by operational consequence |
| Requesting a test video with no conditions | Cannot prove the tested hammer or test setup matches the order | Define test method and traceability in advance |
| Ignoring packing in QC | Good parts can become damaged parts in transit | Include packed-lot release evidence |
11. Buyer Checklist Before Approving Shipment
- PO, offer and approved drawing/specification use the same hammer configuration and revision.
- Hammer model/size class, bit shank and backhead connection are explicitly identified.
- Critical dimensions and tolerances are defined by drawing or model-specific data.
- Visual inspection scope is defined and obvious damage/contamination is checked.
- Any required fit/gauge checks identify the approved master/gauge or method.
- Any functional air test has an agreed procedure, conditions and acceptance criteria.
- Measurement/test records are linked to the inspected unit, sample or lot as required.
- Sampling rules and defect classes are agreed for bulk orders where sampling is used.
- Ordered accessories/spares and quantities match the packing list.
- Thread/opening protection, corrosion control and package restraint are inspected before release.
FAQ
What should I inspect on a complete DTH hammer before shipment?
Start with ordered identity and interfaces, then visual condition, drawing-controlled dimensions, agreed fit checks, any specified functional-test evidence, documentation/traceability and export packing. The exact checklist should follow the PO and approved model specification.
Is visual inspection enough for a bulk DTH hammer order?
No. Visual inspection can find obvious damage, corrosion, contamination and some assembly issues, but it cannot prove critical dimensions, exact interface conformity or model-specific function. Combine it with the checks required by the purchase specification.
Should every DTH hammer receive an air test?
There is no universal rule. The buyer and supplier should define whether testing is 100% or sampled, what safe model-specific procedure is used and what result constitutes acceptance. Avoid universal pressure or airflow limits not tied to the actual hammer model.
Can ISO 2859-1 define the sample size for my order?
ISO 2859-1:2026 provides an acceptance-sampling framework for inspection by attributes. The buyer still needs to define the lot, defect classification, AQL or other agreed parameters and which characteristics are appropriate for sampling versus 100% verification.
What information should I send in a DTH hammer RFQ to make inspection easier?
Provide the intended hammer size/model or replacement reference, bit-shank family, backhead/drill-pipe connection, compressor pressure and airflow limits where relevant, quantity, application, and any required inspection documents, measurements, functional tests, sampling rules or packing requirements.
Sources & Further Reading
- Rockmore International — DTH Hammer Operations Manuals, Assembly/Disassembly and Troubleshooting Resources
- Rockmore International — 2025 DTH Drilling Tools Catalog and DTH Hammer Technical Resources
- Mincon — DTH Hammer Internal Condition and Tolerance Assessment Example
- ISO 2859-1:2026 — Sampling Procedures for Inspection by Attributes
Decision Summary
The safest DTH hammer purchase is not the one with the most paperwork; it is the one with the clearest acceptance logic. Lock the exact configuration first, measure only against approved specifications, define functional testing before production, apply sampling according to consequence, and treat packing as part of quality. That converts pre-shipment inspection from a photo exercise into a usable risk-control step.
