DTH Hammer Spare Parts Planning: What to Stock for Remote Drilling Sites

Quick answer: A reliable DTH hammer spare-parts plan is not a universal list of pistons, O-rings and chucks. Build it from five inputs: the exact hammer model and parts list, the consequence of each failure, actual wear/consumption history, replenishment lead time, and the repair capability available at the drilling site. Remote operations normally need more protection against long replenishment delays, but the right answer may be a small service kit, a broader repair inventory, or a complete standby hammer depending on the fleet and downtime risk.

This guide is for mines, quarries, water-well contractors, drilling-service companies and distributors that need to plan DTH hammer spares before mobilization or a bulk purchase. It focuses on procurement and supply planning rather than on a universal rebuild procedure. Always use the exact manufacturer service manual, parts drawing and approved component numbers for the installed hammer.

1. Start With Hammer Identity Before Counting Spare Parts

The first spare-parts mistake is building inventory around a generic description such as “4-inch DTH hammer” or “CIR hammer.” Hammers of similar outside size can use different shanks, top subs, valve arrangements, internal cylinders, pistons, retaining systems and seal sets. Robit and Rockmore both publish model-specific DTH hammer manuals and product data, which is a useful reminder that service parts must be tied to the exact hammer family and configuration.

Before setting a stock level, record:

• hammer manufacturer, model and variant;
• serial number, batch or revision information where available;
• bit shank family;
• top-sub/backhead connection;
• valve-equipped or valveless architecture;
• current parts list or exploded drawing revision;
• number of identical hammers in the active fleet;
• which components are actually serviceable or replaceable under the manufacturer procedure.

Do not order internal parts by appearance. A component that looks similar can have a different diameter, length, air-port geometry, heat treatment or fit. If the exact part number is unknown, send the hammer model, clear photos and the current parts drawing to the supplier before release.

2. Use Three Inventory Tiers Instead of One “Spare Kit”

A practical spare strategy separates frequently used service items from less-frequent repair components and high-value contingency items. The categories below are planning examples only; the exact contents depend on the hammer design.

DTH drill bits should usually be planned as a separate drill-string consumable inventory rather than being mixed into the internal hammer-spares list. The bit has its own wear rate, shank compatibility and application selection logic.

3. Prioritize by Criticality × Consumption × Lead Time

Unit price alone is a poor way to decide what belongs on the shelf. A better spare-parts priority uses three questions:

1. What happens if this part is unavailable? Can the hammer keep operating, can the repair wait, or does the rig stop?
2. How often is the part consumed or replaced? Use real service records where possible rather than supplier guesswork.
3. How long does replenishment take? Include supplier processing, international freight, customs, inland transport and the final trip to site.

A simple reorder rule is useful: reorder point = expected consumption during replenishment lead time + safety stock. The formula is easy; the hard part is using realistic consumption and lead-time data. Review it after each campaign instead of keeping the first estimate forever.

4. Remote Sites Need a Different Spare Strategy

The same hammer fleet can need very different inventory depending on location. A contractor drilling near a distributor warehouse may accept low site stock and frequent replenishment. A mine several days from an airport or port cannot make the same assumption.

For a remote site, add these questions:

• How many days or weeks would a replacement part realistically take to reach the rig?
• Is customs clearance predictable?
• Can the site rebuild a hammer correctly, or must it ship the hammer to a workshop?
• Is there another compatible hammer on site that can cover production?
• Does one stopped rig halt a critical blast, water-well or construction schedule?
• Are several rigs using the same hammer platform, allowing shared stock?

The point is not “remote site = stock everything.” The point is that longer and less-certain replenishment increases the value of selected buffer stock. Expensive low-use parts should still be challenged against the cost of downtime and the availability of a standby hammer.

5. Fleet Standardization Can Reduce Spare-Part Complexity

Spare-parts planning becomes easier when multiple rigs use the same hammer platform and configuration. Epiroc’s current DTH 5 range explicitly promotes a platform approach with multiple configurations and notes that range standardization can reduce spare-parts requirements. The practical buyer lesson is broader: commonality matters.

When the fleet is standardized, several hammers can share:

• the same service-kit SKUs;
• common wear components;
• one parts drawing and inspection procedure;
• shared site safety stock;
• common technician training and service tools.

Mixed fleets multiply SKUs. Before buying a second hammer family for a small performance advantage, procurement should also calculate the new inventory, training and compatibility burden. This does not mean different hammers are wrong; it means the supply-chain cost should be visible in the decision.

6. When Does a Complete Standby Hammer Make Sense?

A full standby hammer is not a normal substitute for service parts, but it can be a rational redundancy choice when the site cannot tolerate repair delay.

Consider a standby hammer when several conditions are true:

• the rig is production-critical and has no alternate machine;
• the site is remote and major parts have long replenishment lead time;
• field repair capability is limited or rebuild quality is difficult to control;
• the hammer can be swapped faster than a major onsite rebuild;
• the cost of one lost shift or delayed blast can exceed the carrying cost of the standby asset.

Do not apply a rule such as “one spare hammer per rig” without evidence. A fleet of several identical hammers may share one contingency unit; another operation may need none because it has strong local service support. Compare production risk, repair time and working capital.

7. Service History Should Rewrite the Initial Stock Plan

The first spare list is a hypothesis. After the fleet has operating history, replace assumptions with consumption data.

Track at least:

• hammer model and serial/asset ID;
• drilled meters or operating hours between services;
• parts replaced at each service;
• reason for replacement: routine rebuild, wear, damage, contamination, thread damage or failure;
• failure date and downtime duration;
• stockout events and emergency freight;
• remaining inventory after each repair.

If one component is repeatedly consumed faster than the rest of the kit, increase its minimum stock and investigate the operating cause. If expensive parts sit unused across several campaigns, reduce or centralize them. Inventory should learn from the drill site.

8. Separate Compatibility Control From Stock Quantity

Having “two pistons on the shelf” is useless if they belong to the wrong hammer revision. Every spare line should carry enough identity to prevent mixing.

A minimum warehouse record can include:

• supplier/manufacturer;
• hammer model and compatible variants;
• part description and exact part number;
• drawing or manual revision when relevant;
• quantity on hand, minimum stock and reorder point;
• storage location;
• lot/batch or incoming-inspection record when required.

Do not assume parts from two same-diameter hammers interchange. Robit’s current product listings, for example, distinguish DTH hammer families by shank and backhead/adapter configuration, while Rockmore publishes model-specific data sheets and service guides. The same discipline should apply to internal spares.

9. DTH Hammer Spare-Parts RFQ Checklist

For a useful spare-parts quotation, send more than a hammer diameter. Include:

• hammer make, exact model and variant;
• serial number or nameplate photo when available;
• bit shank;
• top-sub/backhead connection;
• current parts list, exploded drawing or known part numbers;
• photos of the components being replaced;
• number of hammers in the fleet;
• typical operating hours or drilled meters per month;
• site location and realistic replenishment lead time;
• current service interval and recent failure history;
• whether repairs are performed onsite or at a workshop;
• which items you want as routine service stock versus contingency stock;
• quantity, packing, labeling and documentation requirements.

If the buyer needs interchangeability with another manufacturer’s component, make that a separate technical verification. Do not turn “compatible with a 4-inch hammer” into an assumed equivalence.

10. Receiving and Packing Checks for Spare Parts

A good stock plan can still fail if small parts arrive mixed or major components are damaged in transit. Before accepting the shipment, verify:

• part numbers and quantities against the packing list;
• labels that identify the intended hammer model;
• small seals/retaining parts are separated and countable;
• machined surfaces and threads are protected from handling damage and corrosion;
• major components show no obvious shipping impact or contamination;
• inspection or material documents match the ordered part when the PO requires them.

For major hammer purchases, buyers can combine this inventory plan with the DTH Hammer Pre-Shipment Inspection Checklist. For daily condition control, see the DTH Hammer Daily Inspection Checklist.

11. Common Spare-Parts Planning Mistakes

1. Buying a generic kit by hammer diameter. Internal parts must match the exact model and configuration.
2. Stocking only cheap seals. A service kit does not cover every high-consequence wear or failure component.
3. Stocking every expensive internal part. Low-use items can trap working capital without reducing real downtime risk.
4. Ignoring replenishment time. Supplier stock is not site stock when freight and customs add days or weeks.
5. Mixing drill bits with internal hammer spares. Plan bit consumption separately.
6. No reorder point. A shelf quantity without a trigger simply waits for a stockout.
7. No consumption history. The operation repeats the same initial guess every season.
8. Assuming same-size hammers share parts. Similar size does not prove internal compatibility.

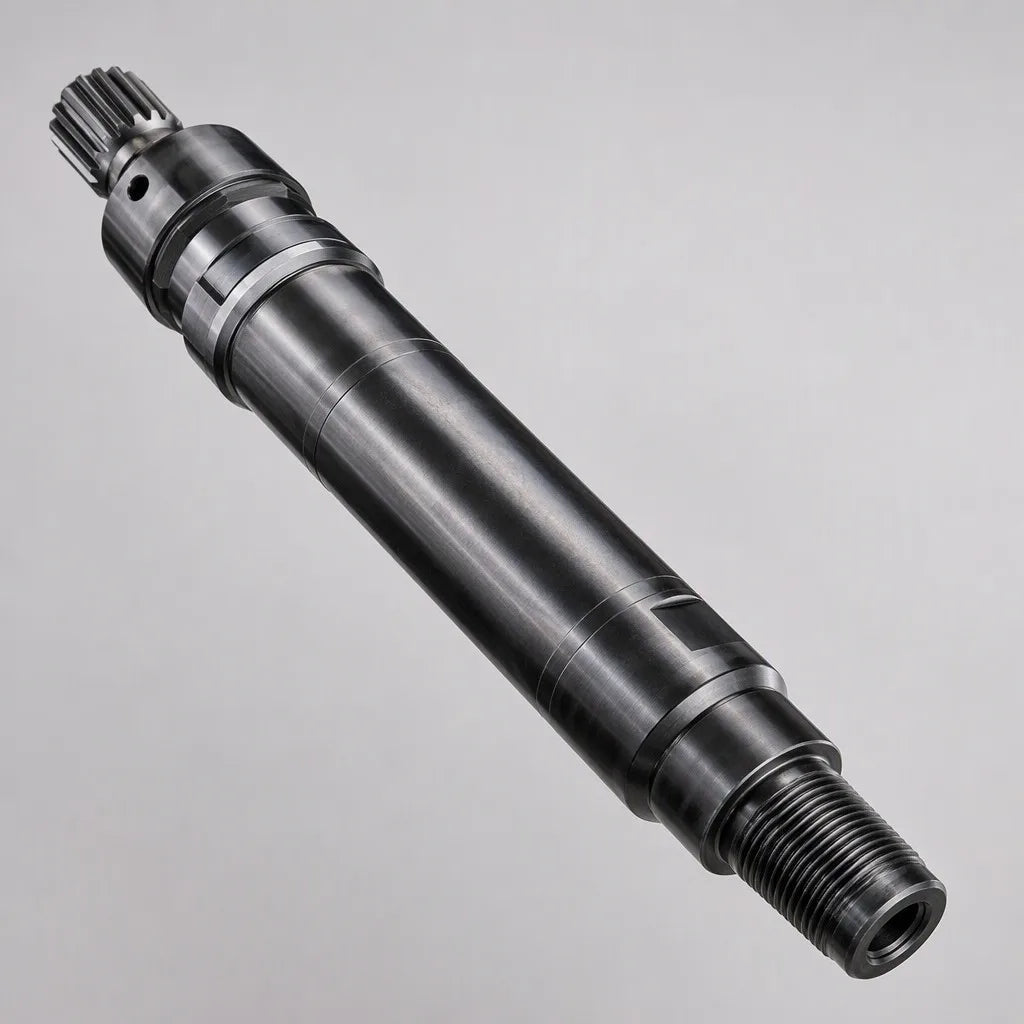

12. PerfoMax CIR90: How to Frame the Spare-Parts Request

PerfoMax’s current CIR90 Low-Pressure DTH Hammer is listed as a valve-equipped, single-piston hammer for 90–130 mm holes, with a CIR90 bit shank and T48×10 square-thread top sub. The current product page also states that the specific configuration and availability should be confirmed with the sales team because model or batch differences can matter.

That makes the correct spare-parts workflow straightforward: identify the exact supplied CIR90 configuration first, then request the matching parts list and confirm which service or replacement components are available for that configuration. Do not infer an internal spare list from the generic CIR90 name alone.

Buyers can also review current DTH Tools and use Request a Quote to send the hammer model, photos, parts references, fleet size, site location and replenishment requirements.

FAQ

What spare parts should be kept for a DTH hammer?

Start with the manufacturer’s model-specific parts list. In planning terms, separate routine service consumables, wear/repair components and high-value contingency items. The exact O-rings, valves, chucks, cylinders, pistons or retaining parts vary by hammer architecture.

Should a remote drilling site keep a complete spare DTH hammer?

Sometimes. A standby hammer is most defensible when the rig is production-critical, replenishment is slow, field rebuilding is difficult and the cost of downtime is high. It is not a universal requirement for every rig.

Can parts from two same-size DTH hammers be interchanged?

Do not assume so. Confirm manufacturer, model, variant, shank, top-sub configuration and exact part number or drawing. Similar outside diameter does not prove internal dimensional or airflow compatibility.

How do I set a reorder level for DTH hammer spares?

Use expected part consumption during the realistic replenishment lead time, then add safety stock based on demand variability and downtime risk. Update the number with actual service history.

Are foot valves and blow tubes universal DTH hammer spare parts?

No. Some hammer designs use valve or foot-valve components and others use different or valveless architectures. Confirm the exact hammer manual before adding those items to a kit.

Technical References

1. Epiroc — Down-the-hole drilling tools, accessories and spare-parts support.
2. Epiroc — DTH 5 hammer platform and spare-parts commonality.
3. Robit — DTH Hammer Operation and Service Manuals.
4. Rockmore International — DTH Hammer Operation and Service Guides.

Planning DTH hammer spares for a new site or fleet? Send PerfoMax the exact hammer model/configuration, current parts references, number of hammers, service history, site location and target replenishment time through Request a Quote. The matching configuration and component availability should be confirmed in the quotation before purchase.
