A useful DTH hammer daily inspection is not a substitute for the operation and service manual for the exact hammer model. Its job is to catch the conditions that commonly accelerate wear or cause downtime before the hammer goes back downhole: poor lubrication, contamination, damaged connections, abnormal bit or chuck wear, restricted flushing, air-supply problems, and drilling behavior that has changed from the normal baseline.
For quarry, mining, construction, and water-well crews, the most practical routine is to divide the day into three inspection gates: before the shift, while drilling, and after shutdown. The exact oil quantity, torque, wear limit, service interval, and allowable pressure must always come from the hammer manufacturer's current manual.
Quick Daily Inspection Map
| Inspection gate | Main purpose | Typical items to verify | Escalate when |
|---|---|---|---|
| Pre-shift | Prevent known defects from entering the hole | Threads, exterior condition, bit, flushing passages, lubrication, clean air path | Cracks, severe galling, deformation, blocked passages, uncertain lubrication, or incompatible components are found |
| During drilling | Detect a change before it becomes a failure | Penetration-rate trend, pressure/airflow behavior, cuttings return, vibration/sound, lubrication delivery | Performance changes suddenly or does not recover after basic external checks |
| Shutdown | Leave the hammer clean, protected, and traceable | Exterior cleaning, moisture/contamination control, protected connections, storage lubrication as specified, inspection record | Water, mud, corrosion, damaged threads, or abnormal wear requires service before the next shift |
1. Pre-Shift: Start With Cleanliness and Identification
Before checking wear, confirm that the hammer, bit, drill pipe connection, and compressor setup are the components intended for the job. A daily inspection cannot correct a mismatched system. If a hammer, bit, or pipe was changed since the previous shift, verify the model, shank/interface, connection, and operating limits before drilling.
Then control contamination. Dust, cuttings, and debris can enter the drill string whenever a joint is opened. Mincon specifically recommends protecting exposed tool joints with caps during storage or transit and keeping servicing practices clean. Do not place an open hammer, bit shank, or pipe connection directly on dirty ground.
- Confirm the hammer ID/model and the bit/shank being used.
- Remove protective caps only when the connection is ready to be made.
- Wipe dirt from connection shoulders and threads before inspection or assembly.
- Keep replacement components capped or otherwise protected until use.
- If contamination has entered an open connection, clean it before running the hammer.

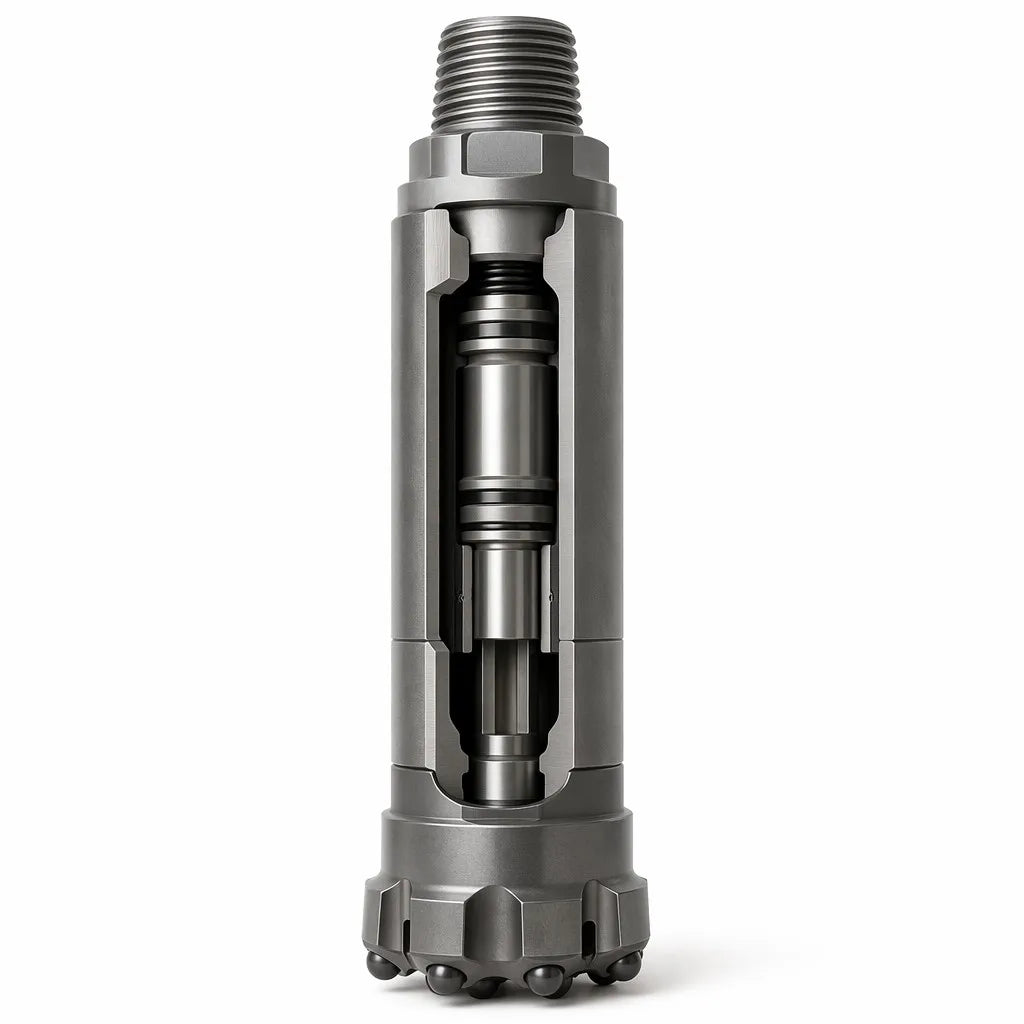

2. Inspect the Backhead, Threads, and Outer Sleeve
The external inspection should be visual and conservative. Look for damage that could affect assembly, alignment, sealing, or safe service. The daily check is not the time to invent a universal acceptance limit: thread dimensions, sleeve wear limits, and replacement criteria are model-specific.
| Area | What to look for | Daily action |
|---|---|---|
| Backhead / top sub | Cracking, deformation, damaged shoulders, obvious corrosion | Clean and inspect; stop and refer to the model manual if damage could affect the connection |
| Pin and box threads | Galling, flattened or torn thread crests, burrs, cross-threading evidence, dirt | Do not force damaged or dirty threads together; clean and escalate doubtful damage |
| Wear sleeve / casing | Dents, deep scoring, cracking, abnormal local wear | Compare with the manufacturer's inspection and wear criteria |
| Chuck area | Visible damage, abnormal looseness, accelerated external wear | Investigate before drilling if the condition differs materially from the normal baseline |
Use the assembly method and thread lubricant specified for the exact system. Mincon's current guidance for its tool joints, for example, specifies applying grease to the pin thread rather than the box thread. Do not generalize one manufacturer's grease chemistry or torque procedure to every hammer family.
3. Inspect the DTH Bit Before It Goes Downhole
The bit is both the rock-breaking tool and one of the easiest places to see developing problems. Inspect the face, gauge, buttons, flushing holes, and shank/retention area whenever the bit is accessible. A damaged or badly worn bit can increase vibration, reduce flushing quality, and load the hammer unevenly.
- Check carbide buttons for cracking, breakage, loss, or clearly abnormal uneven wear.
- Compare gauge wear around the circumference rather than judging only the face buttons.
- Confirm flushing/exhaust passages are open and free from packed cuttings or debris.
- Inspect the bit shank and spline/contact areas for obvious damage, burrs, or abnormal wear.
- Check the retention components according to the hammer design whenever the bit is removed.
If the crew measures button flats, gauge diameter, shank wear, or other dimensions, use the OEM's stated method and limit. A daily checklist should record the measurement; it should not create a new universal discard value.
4. Verify Lubrication Before Applying Load
Lubrication is a critical daily control because the DTH piston and other internal moving surfaces operate under repeated high-energy impact. Mincon states that the correct type and quantity of rock drill oil should be used and notes that water injection can require additional lubrication to maintain internal protection. The applicable amount depends on hammer size, operating conditions, temperature, water use, and the manufacturer's instructions.
- Verify that the lubricator/oiler contains the specified rock drill oil.
- Confirm the lubrication delivery system is functioning rather than checking only the reservoir level.
- For a new, serviced, or stored hammer, follow the manufacturer's priming/start-up procedure before full load.
- Where water injection is used, follow the model-specific wet-drilling lubrication guidance.
- If oil delivery is uncertain, correct the lubrication issue before continuing to drill.
Mincon's published start-up guidance also recommends introducing lubrication before the hammer is put under drilling load and checking the backhead torque while the hammer is stationary. Treat that as a manufacturer-specific procedure and follow the current manual for the hammer actually on site.
5. Check the Air Path, Not Just the Compressor Gauge
A normal compressor reading does not prove that the hammer is receiving clean, adequate air. The practical daily check follows the full air path: compressor delivery, filters/separators used by the rig, hoses, fittings, drill-string connections, and the hammer. Look for obvious leaks, restrictions, water or contamination, and changes from the normal pressure/flow behavior for the same setup.
- Listen and check for leakage at hoses, fittings, and accessible connections.
- Inspect hoses for visible damage, kinks, or severe abrasion.
- Confirm the air-treatment and water-management equipment on the rig is in serviceable condition.
- Compare operating pressure/flow behavior with the hammer manufacturer's required range and the crew's normal baseline.
- Do not compensate for an unexplained air loss simply by increasing compressor settings beyond equipment limits.
6. Startup: Use a Controlled Functional Check
After the physical inspection, the first drilling minutes provide a functional check. The objective is not to run the hammer at maximum settings immediately. Establish the collar and confirm the system sounds, feeds, rotates, lubricates, and flushes normally for the specific rig and ground conditions.
Watch for a stable response: the hammer should develop its normal drilling behavior without a sudden pressure anomaly, excessive vibration, poor cuttings return, or an unexplained drop in penetration rate. Mincon's current drilling guidance emphasizes balancing airflow, feed force, rotation speed, and flushing rather than maximizing any single parameter.
7. During Drilling: Monitor Changes, Not One Universal Number
A daily inspection continues while the hammer is downhole. The most useful operating signals are trends relative to the same hammer, hole size, rock, and rig. A change is often more informative than an isolated number.
| Observed change | Possible inspection direction | First response |
|---|---|---|
| Penetration rate falls unexpectedly | Bit wear, changing rock, inadequate flushing, air loss/restriction, feed/rotation imbalance, internal wear | Reduce uncertainty by checking the external system and operating conditions before assuming internal hammer failure |
| Pressure/air behavior changes suddenly | Leak, restriction, water condition, bit/flushing change, hammer condition | Compare compressor output and the complete air path with the normal setup |
| Cuttings return becomes weak or irregular | Flushing restriction, wet/sticky cuttings, water inflow, hole instability | Protect hole cleaning and avoid continuing blindly into a packing/sticking problem |
| Vibration or sound becomes abnormal | Bit/ground change, poor collaring, feed/rotation imbalance, damaged tooling | Pause and inspect before the new condition causes secondary damage |
| Lubrication evidence changes | Oiler empty, delivery fault, water interaction, incorrect setting | Verify the lubrication system immediately |
If the same symptom persists after external causes are checked, move from the daily operator checklist to a model-specific service inspection. Rockmore publishes separate DTH operation/service and failure-troubleshooting guides, reflecting the practical boundary between routine field checks and deeper teardown diagnosis.
8. Every Time a Joint Is Opened: Treat It as a Contamination Event
Adding a pipe, changing a bit, breaking a connection, or removing the hammer creates a new contamination opportunity. This is one of the highest-leverage moments in the shift.
- Place the string and component where the open connection will not contact soil or cuttings.
- Cap exposed ends when the joint will remain open.
- Clean thread and shoulder surfaces before reconnecting.
- Inspect for fresh galling or mechanical damage while the connection is visible.
- Apply the specified thread compound using the correct procedure for that connection system.
- Reconnect without forcing a damaged or misaligned thread.
9. Shutdown: Leave the Hammer Ready for the Next Shift
End-of-shift care should remove obvious external contamination, protect open connections, and address moisture according to the manufacturer's instructions. This is especially important after wet drilling or water injection because corrosion and inadequate internal lubrication can become storage problems even when the hammer drilled normally during the shift.
- Clean the outside of the hammer and connection areas before storage or service.
- Protect exposed joints with clean caps or equivalent protection.
- Follow the OEM shutdown procedure for water removal and lubrication after wet operation.
- If the hammer will be stored, follow the manufacturer's corrosion-protection/storage-oil procedure. Mincon, for example, advises introducing a small amount of rock drill oil and rotating the hammer to coat wear surfaces.
- Record damage or abnormal performance so the next shift does not unknowingly put a questionable hammer back into service.
10. When a Daily Check Should Become a Workshop Inspection
Routine inspection has a clear limit. Move the hammer to controlled service inspection when the evidence suggests that an internal component must be measured, the unit must be dismantled, or damage cannot be safely classified in the field.
- Visible cracking, significant deformation, severe thread galling, or repeated connection problems.
- Persistent low performance after compressor, air path, lubrication, bit, feed, rotation, and ground changes have been checked.
- Repeated abnormal air consumption or pressure behavior that points to internal leakage.
- Abnormal chuck/wear-sleeve condition that requires dimensional comparison with OEM wear limits.
- Evidence that dirt, mud, corrosive water, or other contamination has entered the hammer.
- Any measurement at or near the replacement limit in the current manufacturer manual.
Robit currently publishes operation and service manuals for its H-Series DTH hammers, while Rockmore publishes operation/service, assembly/disassembly, and failure-troubleshooting resources. Use the current manual for the exact hammer model rather than transferring service limits from a different brand or size.
11. Simple Daily Inspection Record
| Record | Why it matters |
|---|---|
| Date / shift / operator | Creates traceability for repeated symptoms |
| Hammer model or ID | Links the observation to the correct service limits and history |
| Bit model / shank / condition | Separates bit wear from hammer performance |
| Hole diameter / depth / application | Provides operating context |
| Rock and water condition | Explains changes in drilling behavior |
| Pressure / airflow or compressor setup | Provides an air-system baseline |
| Lubricant / oiler condition | Supports lubrication troubleshooting |
| Penetration-rate trend | Shows whether performance is stable or deteriorating |
| Observed wear / damage / corrective action | Prevents unresolved defects from carrying into the next shift |
Common Daily-Inspection Mistakes
- Using the checklist as a service manual. A daily visual check cannot replace dimensional wear limits, torque procedures, or teardown instructions.
- Greasing over dirt. Lubricant does not make a contaminated thread clean.
- Leaving open joints on the ground. Connection changes are a major opportunity for contamination to enter the drill string.
- Assuming low penetration automatically means a worn hammer. Bit condition, rock change, flushing, feed, rotation, and the external air path should be checked first.
- Compensating with more pressure or feed before finding the cause. Higher settings can increase stress without fixing the underlying problem.
- Failing to record recurring symptoms. A small pressure or performance change becomes easier to diagnose when the previous shift documented it.
Information to Provide When You Need Replacement Tools or Technical Support
If an inspection identifies a replacement or compatibility question, provide enough information to avoid a second round of guessing. For a DTH hammer, bit, or related component RFQ, confirm:
- hammer brand/model or existing hammer identification;
- bit shank/interface and target bit diameter;
- drill-pipe connection and size;
- hole diameter and typical hole depth;
- rock type, abrasiveness, fracture condition, and water condition;
- compressor working pressure and available airflow;
- application: quarry, mine, water well, foundation, or other drilling;
- the observed wear/failure symptom and, where useful, clear photos and measurements.
PerfoMax's current DTH Tools range covers hammers, bits, pipes, and related components. For a configuration or replacement check, send the operating information through the Request a Quote page rather than ordering from diameter alone.
Frequently Asked Questions
How often should a DTH hammer be inspected?
Use a routine pre-shift and during-operation check as an operator discipline, but follow the exact manufacturer's manual for formal inspection and service intervals. Severe dust, water, abrasive rock, unusual wear, or a performance change may justify checking components sooner.
Do I need to disassemble the DTH hammer every day?
No universal rule supports daily teardown. Daily checks should focus on accessible condition, cleanliness, lubrication, connections, bit condition, air-system behavior, and operating trends. Disassembly should follow the model-specific service procedure when symptoms, scheduled service, or measurements justify it.
What is the most important pre-shift check?
There is no single item that replaces the rest, but lubrication and contamination control are high-leverage checks because poor oil delivery or dirt entering the drill string can damage internal wear surfaces quickly. Bit, thread, and air-path condition should be checked at the same time.
What should make an operator stop drilling and inspect?
A sudden unexplained change in penetration rate, air/pressure behavior, cuttings return, vibration/sound, lubrication delivery, or visible tooling condition is a practical stop-and-check signal. The aim is to identify the cause before continued drilling creates secondary damage or a stuck-hole event.
Can the same wear limits be used for every DTH hammer?
No. Wear limits, dimensions, torque values, lubricant quantities, air requirements, and replacement criteria depend on the hammer model and manufacturer. Use the current OEM manual and the exact part data for the unit being inspected.
