Quick answer: A cracked, chipped, loose, deformed, or incorrectly matched foot valve (often called a blow tube in some DTH tooling documentation) can contribute to weak, intermittent, or absent hammer impact on a design that actually uses one. But those symptoms are not unique to the foot valve. Low air supply, blocked bit passages, contamination, lubrication problems, internal hammer wear, or an incorrect bit/shank can produce similar behavior. The correct troubleshooting sequence is: confirm the hammer and bit-shank design first, inspect the foot-valve interface if that design uses one, and rule out the other air-cycle and mechanical causes before replacing parts.
This guide is for quarry, mining, construction, water-well, distributor, and maintenance teams working with DTH hammers. It focuses on practical diagnosis and procurement checks, not on model-specific assembly dimensions. Foot-valve geometry, insertion depth, projection, and replacement procedure must follow the exact hammer/bit manufacturer drawing or service manual.
1. First Confirm Whether Your DTH System Uses a Foot Valve
The first mistake in foot-valve troubleshooting is assuming every DTH hammer uses the same air-control architecture. It does not. Some traditional DTH bit-shank systems use a plastic foot valve or blow tube as part of the hammer/bit air-cycle interface. Other systems are intentionally designed without one.
Mincon, for example, describes its MC shank as a footvalve-free design and explicitly presents elimination of the footvalve as a reliability feature. That is an important diagnostic boundary: never add, remove, or substitute a foot valve based only on appearance or on experience with another hammer family.
| What to identify | Why it matters | Evidence to use |
|---|---|---|
| Hammer brand, model, and size | Defines the internal air-cycle architecture | Nameplate, parts book, service manual |
| Exact bit shank | Controls the hammer-to-bit interface | Shank code, drawing, known matching bit |
| Foot-valve / valveless design | Determines whether a valve should be present at all | OEM drawing, supplier confirmation |
| Existing valve or blow-tube part | Confirms material, geometry, and fit | Part number, dimensions, clear photos |
| Recent change in bit or hammer | Helps identify a compatibility error | Purchase records and old/new tooling comparison |
PerfoMax's current DTH Drill Bit Selection page uses the same principle: compatibility must be checked by hammer shank and drawing, including whether the connection is foot-valve or valveless.
2. What the Foot Valve Does—and Why a Small Part Can Stop a Large Hammer

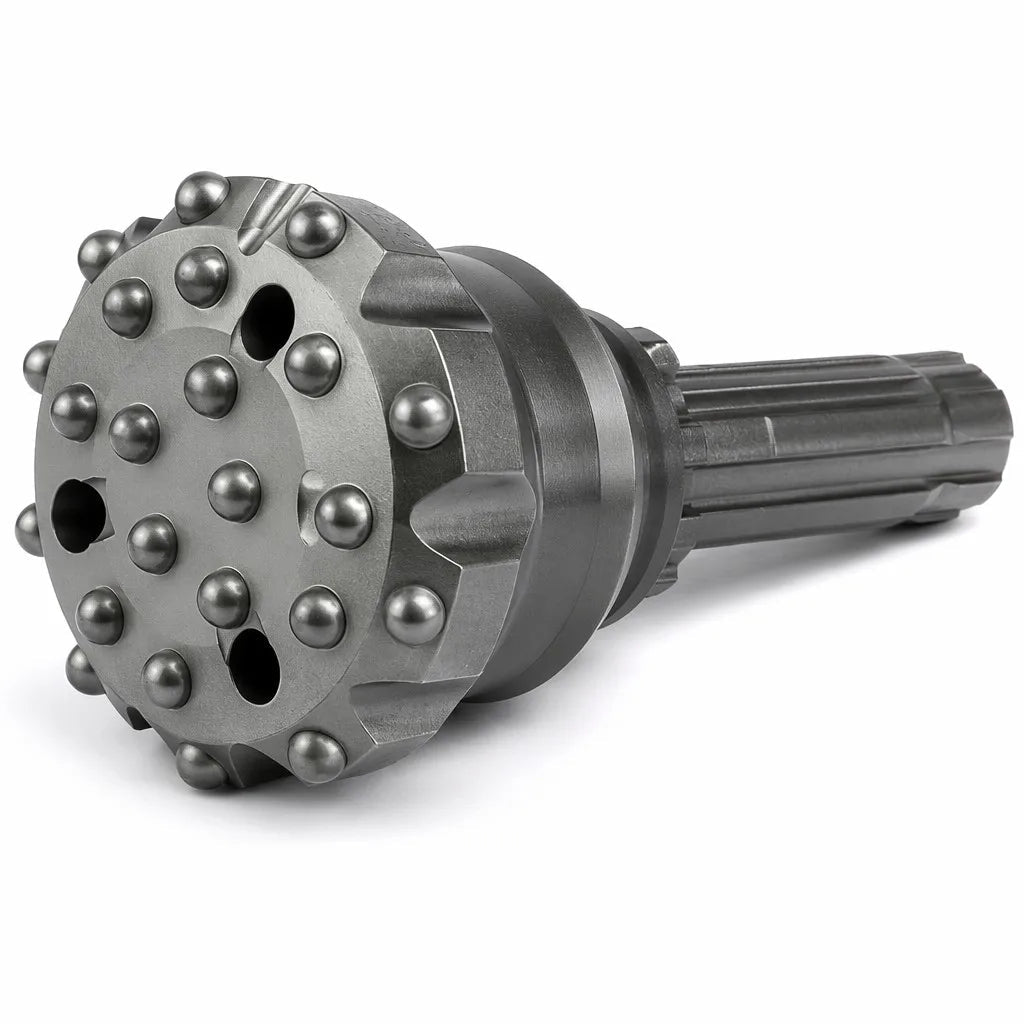

On DTH systems designed around a foot valve, the valve sits at the bit-shank interface and participates in controlling the compressed-air cycle between the hammer and bit. Its exact function and geometry vary by design, so it is safer to think of it as a design-specific air-control and sealing interface rather than as a universal interchangeable tube.
The shank itself is also a critical part of energy transfer. If the valve is damaged, loose, incorrectly sized, or installed in the wrong shank, the hammer may not maintain the intended air cycle. At the same time, the same hammer symptoms can occur even when the valve is healthy. This is why a symptom should trigger an inspection—not an automatic parts order.
3. Symptoms That Justify Foot-Valve Inspection
Drill King International's maintenance guidance specifically recommends inspecting plastic foot valves or blow tubes for chips, cracks, and loose fit. Those conditions deserve attention, but operating symptoms remain non-specific.
| Observed symptom | Foot-valve possibility | Other causes to check before concluding |
|---|---|---|
| Hammer will not start or has no impact | Cracked, missing, loose, or wrong valve on a valve-equipped design | Insufficient air pressure/flow, blocked passages, contamination, internal parts stuck or worn, wrong bit/shank |
| Impact starts and stops | Valve fit or damage may disturb the air cycle | Unstable air supply, moisture/icing, lubrication issue, debris, intermittent internal sticking |
| Impact is weaker than normal | Valve damage or leakage may contribute | Compressor delivery, hose losses, worn piston/cylinder, bit condition, excessive back pressure |
| Plastic fragments appear during service | Strong reason to inspect the valve and mating area immediately | Confirm fragments are actually from the valve and identify why it failed |
| New valve fails again quickly | Replacement may be wrong or the interface may be damaging it | Wrong part, shank mismatch, damaged mating surfaces, internal wear, incorrect assembly procedure |
Diagnostic rule: visible physical damage is stronger evidence than a performance symptom alone. If the valve looks intact but the hammer has weak/no impact, continue the system-level troubleshooting sequence.
4. Common Foot-Valve Failure Modes to Look For
Exact acceptance limits belong to the hammer manufacturer's procedure. In the field, however, several qualitative failure modes can be screened without inventing a universal tolerance.
- Chipping: missing material on the end or edge of the plastic component.
- Cracking: visible splits that can progress under repeated impact and air cycling.
- Loose fit: the component no longer seats as intended in the bit shank.
- Deformation: heat, impact, wear, or incorrect assembly may leave the part visibly distorted.
- Wrong replacement: a visually similar part may have the wrong outside diameter, inside diameter, length, material, or seating geometry.
- Repeated failure: a new valve breaks again because the root cause sits elsewhere in the hammer/bit interface.
Do not establish a pass/fail decision from generic internet dimensions. Compare the part with the exact model drawing, a verified new part, or the supplier's controlled specification.
5. A Safe 8-Step Inspection Workflow
- Stop drilling and isolate compressed air. Follow the rig and hammer manufacturer's lockout, depressurization, and disassembly procedure before handling the bit or hammer.
- Confirm the model and shank. Record hammer make/model, hammer size, bit shank code, and current bit diameter before removing parts from the decision context.
- Confirm foot-valve vs valveless architecture. Check the service manual or drawing. If the design is valveless, stop treating a missing foot valve as a fault.
- Clean before inspecting. Remove loose dust, cuttings, oil sludge, and contamination so damage is not hidden and debris is not introduced during reassembly.
- Inspect the valve/blow tube. Look for cracks, chips, looseness, deformation, abnormal wear, and evidence that the component has moved from its intended seat.
- Inspect the mating shank and hammer interface. Check splines, shoulder/contact areas, retaining features, chuck area, and visible air passages for damage or debris.
- Compare with controlled data. Verify part number and dimensions against the exact hammer/bit documentation. Do not copy a dimension from another shank family.
- Reassemble and test only under the OEM procedure. If the valve is replaced but the symptom remains, move to air supply, lubrication, contamination, and internal hammer checks rather than repeatedly replacing the same part.
For a broader pre-shift process, use the related DTH Hammer Daily Inspection Checklist.
6. Why a Replacement Foot Valve Can Fail Again
Repeated breakage is a root-cause problem. Replacing the visible failed part without checking the interface can produce a cycle of short service life and repeated downtime.
| Possible root cause | What to verify |
|---|---|
| Incorrect valve part | Exact hammer/shank family, part number, dimensions, and manufacturer specification |
| Incorrect bit shank | Bit shank matches the hammer and uses the intended valve/valveless architecture |
| Damaged mating area | Shank seat, chuck, splines, retaining components, and contact surfaces |
| Contamination | Debris around the shank/air passages and cleanliness during assembly |
| Internal hammer wear or sticking | Piston/cylinder and other internal components according to service limits |
| Incorrect service procedure | Assembly sequence, component orientation, lubrication, and approved replacement method |
If a replacement fails unusually quickly, preserve the failed part and take photos before discarding it. For a supplier or maintenance technician, the fracture pattern plus the hammer/shank identification can be more useful than a simple statement that "the hammer stopped."
7. Differential Diagnosis: Weak or No Impact Is Not Automatically a Foot-Valve Failure
Broad DTH hammer troubleshooting should remain systematic. Drill King lists several maintenance and troubleshooting areas beyond the foot valve, including air supply, lubrication, contamination, bit condition, blocked passages, and worn or damaged components. Use the following order to avoid tunnel vision:
- Air source: confirm compressor output and that the hammer receives the required pressure and flow for its model.
- Air path: check hoses, fittings, drill pipe, and bit passages for restriction, leakage, water, or debris.
- Lubrication: verify the correct rock-drill oil and delivery rate for the hammer and operating conditions.
- Bit/shank compatibility: confirm that the bit is actually designed for the hammer and that the foot-valve/valveless architecture matches.
- Foot valve/blow tube: on applicable designs, inspect physical condition and fit.
- Internal hammer condition: if external checks pass, follow the hammer service manual for piston, cylinder, check valve, wear sleeve, chuck, and other internal parts.
For a broader symptom tree, see DTH Hammer Troubleshooting: Low Penetration, No Impact, and Common Failure Causes.
8. When to Replace the Foot Valve—and When to Escalate
A replacement is reasonable when the exact model is confirmed to use a foot valve and the installed part is visibly damaged, loose, deformed, missing, or outside the manufacturer's controlled specification. Escalate to deeper hammer service when:
- the replacement part is verified correct but the hammer symptom remains;
- the new valve fails repeatedly;
- the shank, chuck, spline, retaining system, or mating areas show abnormal wear or damage;
- internal sticking, contamination, or piston/cylinder wear is suspected;
- you cannot identify the hammer/shank architecture with confidence.
Do not improvise a valve by trimming, sleeving, gluing, or substituting a similar plastic tube. A DTH hammer cycles at high frequency and depends on controlled internal clearances and air paths. Use the correct service part for the verified design.
9. What to Send When Ordering a Replacement or Matching a New Bit
The fastest way to avoid another wrong part is to send enough information for the supplier to identify the whole interface.
- hammer brand, exact model, and nominal size;
- bit shank code or drawing;
- current bit diameter;
- clear photos of the complete bit shank and the installed/failed valve;
- valve/blow-tube part number if available;
- measured dimensions only as supporting evidence, not as a substitute for model identification;
- description of the symptom: no impact, weak impact, intermittent impact, repeated breakage, or visible damage;
- how long the part operated before failure;
- whether the bit or hammer was recently changed;
- quantity and destination for the replacement order.
PerfoMax's DTH Drill Bit Selection page is intended for this matching process. You can also review the broader DTH Tools range or send the hammer model, shank, photos, and drilling conditions in an RFQ.
10. Common Foot-Valve Troubleshooting Mistakes
- Assuming every hammer uses a foot valve. Some designs are intentionally valveless.
- Diagnosing from one symptom. No impact can have several air, lubrication, contamination, and mechanical causes.
- Ordering by hammer diameter only. The exact hammer model and bit shank matter.
- Copying a dimension from another brand or shank. Foot-valve geometry is design-specific.
- Replacing the valve without inspecting the shank and chuck area. Repeated breakage can indicate another interface problem.
- Discarding the failed part immediately. Keep it for root-cause photos and comparison.
- Continuing to drill with visible plastic damage. Stop, isolate the system, and inspect according to the manufacturer procedure.
FAQ
Does every DTH hammer have a foot valve?
No. Some traditional DTH systems use a foot valve or blow tube at the bit-shank interface, while other designs are intentionally valveless. Confirm the exact hammer and shank documentation before diagnosing or ordering a part.
Can a broken foot valve cause a DTH hammer to stop impacting?
It can contribute to weak, intermittent, or absent impact on a design that depends on that component. However, the same symptoms can also come from air-supply problems, blocked passages, contamination, lubrication issues, an incorrect bit/shank, or internal hammer wear.
Can I run a DTH hammer without the foot valve?
Only if that specific hammer/shank system is designed to operate without one. Never remove a required foot valve to imitate a valveless design; the internal architecture is different.
What information should I send to buy the correct replacement?
Send the hammer brand/model, bit-shank code or drawing, photos of the shank and failed component, part number if available, symptom description, and the history of any recent bit or hammer change.
Why does a new foot valve keep breaking?
Repeated failure suggests the root cause may not be the valve alone. Re-check the replacement part, hammer/shank compatibility, mating surfaces, contamination, assembly procedure, and internal hammer condition before fitting another part.
Technical References
- Mincon — MC Shank for DTH Hammers: confirms that DTH shank architecture can be footvalve-free and that footvalves are not universal across hammer systems.
- Drill King International — Best Practices for Maintaining DTH Hammers and Drill Bits: maintenance guidance covering foot-valve/blow-tube inspection and broader DTH troubleshooting factors.
