Quick answer: treat the chuck and wear sleeve as a linked wear system, not as two unrelated parts. The chuck is exposed to repeated bit movement, spline contact, abrasive cuttings, and thread loading, while the wear sleeve protects the hammer body and carries external wear from the hole. OEM guidance shows that the chuck often becomes the first major external wear item and that delaying chuck replacement can accelerate wear into the sleeve. Inspect both parts together, record measurements at repeatable locations, and compare the results with the limits for the exact hammer model. There is no universal discard diameter or wall-thickness limit that is safe to apply across all DTH hammers.
This guide is for quarry, mining, water-well, construction, and drilling-service teams that need a practical field method for deciding whether a DTH hammer chuck or wear sleeve can remain in service, needs closer monitoring, or should be replaced.
1. What the Chuck and Wear Sleeve Actually Do

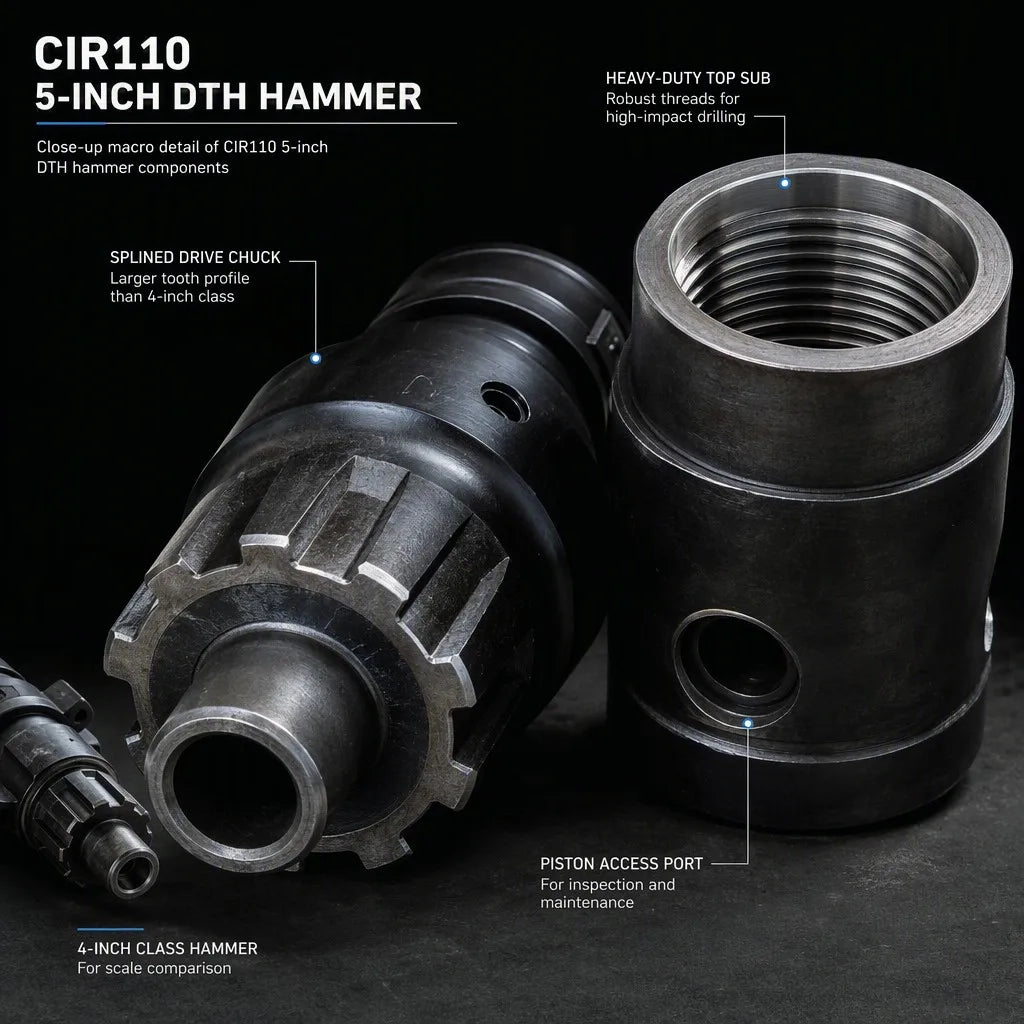

The chuck is the lower hammer component that interfaces with the drill-bit shank. Depending on the hammer design, it provides the threaded connection to the hammer body and the spline engagement that transfers rotation to the bit while allowing the bit to move axially during the percussion cycle.
The wear sleeve is the hardened outer body surrounding the hammer internals. Its job is not only to protect internal components from the borehole environment; it also provides the structural housing and the external surface that is continuously exposed to cuttings, wall contact, abrasion, and handling loads.
These parts wear together. A severely worn chuck can allow unfavorable contact or load distribution near the chuck end of the hammer, while an excessively worn sleeve can reduce the remaining section available to support and protect the internal assembly. That is why maintenance decisions should consider the condition of the bit, chuck, sleeve, threads, splines, and retaining components as one system.
2. Wear Signs at a Glance
| Inspection area | What to look for | Why it matters | Typical action |
|---|---|---|---|
| Chuck outer wall / bit-shoulder end | Localized thinning, uneven wear, deep flats, impact marks | May indicate the chuck is approaching its model-specific wear limit | Measure and compare with the exact OEM limit |
| Chuck splines | Rounded spline edges, severe step wear, asymmetric contact | Poor engagement can increase movement and accelerate bit/chuck wear | Inspect whenever the bit is removed; replace if outside model criteria |
| Chuck threads | Galling, torn flanks, deformation, contamination, corrosion | Damaged threads can make service difficult and compromise the joint | Clean, inspect and follow the hammer manual for repair or replacement |
| Wear sleeve outside diameter | Reduced diameter, taper, local flats, heavy wear near chuck end | External abrasion can reduce sleeve life and structural margin | Measure at defined locations and trend the minimum value |
| Wear sleeve bore / shoulders | Galling, pick-up, scoring, damaged retaining-ring shoulders | Internal damage can affect piston guidance and component seating | Service only within OEM instructions; replace when specified |
| External surface | Cracks, gouges, welding damage, hammer blows, out-of-round areas | Hard sleeves are sensitive to improper service methods | Quarantine cracked or distorted parts for technical review |
3. Why Chuck Wear and Wear-Sleeve Wear Are Linked
Robit's current H-series service manual explicitly notes that wear-sleeve wear can be slowed by replacing the chuck before the chuck wear area progresses into the sleeve. Mincon likewise advises monitoring the chuck because replacing it when needed can help avoid excessive wear on the hammer wear sleeve.
Rock Hog's DTH maintenance documentation also states that the chuck normally wears first and that the wear sleeve commonly wears more heavily at the chuck end. The exact wear pattern will vary with hammer design, formation abrasiveness, bit condition, airflow, drilling speed, and operating practice, but the maintenance implication is consistent: do not judge the sleeve without inspecting the chuck, and do not judge the chuck without checking the bit and sleeve.
A useful field habit is to photograph the chuck end and record the same sleeve measurement points every service interval. A trend is often more informative than a single measurement because it shows whether wear is stable, accelerating, or concentrated in one zone.
4. A 7-Step DTH Chuck and Wear-Sleeve Inspection Workflow
- Make the hammer safe. Isolate the drill, release stored air pressure, remove the tool according to the rig and hammer manufacturer's procedure, and use the required PPE. Never start dimensional inspection on a pressurized or unsupported drill string.
- Identify the exact hammer. Record manufacturer, model, nominal size, shank family, serial/revision where available, and the current chuck part number. Wear limits are model-specific.
- Clean before measuring. Remove rock dust, dried grease, corrosion products, and adhered cuttings from the surfaces being measured. Do not grind away material simply to make a measurement look clean.
- Inspect the chuck first. Check outer wall thickness or diameter at the locations specified in the service manual, then inspect splines, bit-contact surfaces, and threads. Inspect the chuck splines whenever the bit is removed.
- Measure the wear sleeve at repeatable points. OEM manuals commonly specify outside-diameter checks at one or both ends. Use a calibrated vernier caliper or micrometer suitable for the diameter, and record the smallest value plus its location.
- Inspect internal surfaces during scheduled service. When the hammer is already dismantled, check sleeve bore condition, retaining-ring shoulders, thread condition, and signs of pick-up, galling, scoring, or contamination according to the service manual.
- Classify the result. Mark the component as serviceable, monitor closely, replace at the next planned service, or remove from service now. Base the decision on the exact model's limits and visible damage—not on a limit copied from another hammer family.
5. How to Measure Wear Without Inventing a Universal Limit
The most important measurement rule is simple: use the limit from the exact hammer manual. Different hammer families can have very different nominal outside diameters, sleeve constructions, chuck geometries, and reversible/non-reversible sleeve designs.
For example, Robit's H-series manual lists different minimum wear-sleeve outside diameters for H4, H5, H6, and H8 models, while Mincon model specification sheets publish separate discard limits and may explicitly state whether a sleeve is reversible. Rock Hog service manuals provide still different dimensions for their hammer families. Those numbers are valid for the referenced models only; they are not generic DTH-hammer rules.
A practical measurement record should include:
- hammer make, model, and size;
- measurement tool used;
- sleeve outside diameter at the chuck end and backhead end, plus any visibly worn middle zone;
- minimum measured value and exact location;
- chuck wall or diameter measurement at the manual-defined point;
- spline and thread condition;
- date, drilling hours or drilled metres if available;
- bit shank type and current bit condition;
- photos taken from the same angles.
Trend these values over time. If wear accelerates suddenly, investigate the operating condition rather than treating the new measurement only as a spare-parts question.
6. Service Methods That Can Damage the Wear Sleeve
A large share of avoidable sleeve damage happens during disassembly rather than drilling. Rock Hog specifically recommends a wrap-around wrench when loosening chuck or backhead threads so the sleeve is not pinched out of round. Its service guidance also warns against pounding on the hardened sleeve or welding on it because either practice can crack the sleeve.
| Service mistake | Risk | Better practice |
|---|---|---|
| Gripping the sleeve with an unsuitable narrow tool | Local deformation or out-of-round damage | Use the hammer manufacturer's recommended wrap-around or service wrench |
| Striking the sleeve directly with a heavy hammer | Cracking or impact damage in hardened material | Use the specified tooling, dolly, soft-faced mallet, or service fixture for that procedure |
| Welding on the wear sleeve to gain purchase | Heat-affected cracking and loss of component integrity | Do not weld unless the exact OEM procedure explicitly permits it |
| Opening a dry or contaminated chuck thread | Galling and thread damage | Keep service threads clean and use the specified thread grease |
| Reassembling with dirty internal parts | Abrasive wear and early internal damage | Clean parts and lubricate according to the hammer manual |
7. Replace Now, Monitor, or Keep Running?
| Condition | Decision direction |
|---|---|
| Measured dimension is below the exact model's discard limit | Replace. Do not extend the interval using a limit from another model. |
| Crack, serious distortion, severe thread damage, or badly damaged retaining shoulder | Remove from service and inspect. Structural damage overrides a normal dimensional reading. |
| Chuck splines are badly worn or no longer match the bit interface correctly | Replace or follow the OEM service criterion. Do not install a new bit into a badly worn chuck. |
| Dimensions remain within limit but wear is concentrated at the chuck end | Monitor more frequently. Also inspect chuck condition, bit wear, alignment and drilling conditions. |
| Wear rate has increased but measurements are still acceptable | Investigate root cause. Check bit condition, contamination, operating practice and formation change before simply resetting the interval. |
Some hammer designs allow the wear sleeve to be reversed after reaching a specified intermediate wear condition; others are explicitly non-reversible. Never assume that “flipping the sleeve” is universally allowed. Confirm the exact design before doing it.
8. Common Causes of Accelerated Chuck and Sleeve Wear
Abnormal wear is often a system symptom. The following checks are useful when a chuck or sleeve wears faster than expected:
- Bit condition: an undersized, badly worn, or poorly matched bit can increase unfavorable movement and load at the chuck. Mincon advises against running worn or undersized bits because this can accelerate chuck and sleeve wear.
- Spline engagement: badly worn chuck splines or bit shank splines can increase movement and reduce clean rotational load transfer.
- Formation abrasiveness and cuttings: external wear rate changes with the rock formation, drilling speed, and airflow. Abrasive cuttings can increase external sleeve wear.
- Contamination: debris entering the hammer increases internal wear. Cleanliness is a recurring requirement in OEM maintenance guidance.
- Lubrication and thread care: insufficient lubrication or damaged service threads can create additional wear and make routine dismantling more destructive.
- Drill-string alignment and hole condition: severe side loading, unstable ground, and repeated wall contact can produce uneven external wear. If wear is strongly one-sided, inspect the drilling system rather than assuming normal uniform abrasion.
9. What to Record Before Ordering Replacement Parts
A vague request such as “need a 6-inch DTH hammer chuck” is not enough for reliable replacement-part matching. Before sending an RFQ, record:
- hammer manufacturer and exact model;
- nominal hammer size;
- bit shank family;
- existing chuck and wear-sleeve part numbers, if readable;
- backhead connection if a complete hammer assembly is being discussed;
- measured sleeve outside diameter at the worn and unworn zones;
- chuck spline and thread photos;
- bit shank photos and current bit condition;
- hole diameter, rock type and drilling application;
- air pressure / operating condition if abnormal wear is being diagnosed;
- whether the requirement is a single replacement, service kit, or planned spare-parts quantity.
If the existing parts cannot be positively identified, do not purchase on nominal hammer size alone. Ask the supplier to match the interface from model, part number, dimensions, and clear photos.
10. Frequently Asked Questions
When should a DTH hammer chuck be replaced?
Replace it when it reaches the wear criterion in the exact hammer manual, when threads or splines are no longer serviceable, or when visible damage makes continued use unsafe. Do not use a generic wall-thickness number across different hammer families.
Where does a DTH wear sleeve usually wear fastest?
Several OEM service manuals note heavier wear near the chuck end, but actual patterns depend on formation, drilling speed, airflow, bit condition, alignment, and hammer design. Measure the full relevant area rather than checking only one point.
Can I reverse or flip a worn DTH wear sleeve?
Only if the exact hammer design and service manual permit it. Some models provide a reverse limit; other models are explicitly non-reversible. Treat reversal as model-specific, not as a general repair method.
Can I weld or hammer on a wear sleeve to loosen the chuck?
Do not improvise. OEM maintenance guidance warns that welding or direct heavy hammering can crack hardened sleeves. Use the specified service wrench and disassembly tooling for the exact hammer.
Should the chuck be inspected every time the bit is changed?
Yes, a bit change is an efficient inspection opportunity. Check the chuck splines, visible wall condition, thread condition, and the bit shank before installing the replacement bit. A new bit should not be installed into a badly worn interface.
11. Build the Inspection Into Your Maintenance Routine
Chuck and wear-sleeve inspection is most useful when it becomes a recorded maintenance routine rather than an emergency check after performance has already fallen. Track dimensions, photographs, bit condition, and drilling context. That gives the maintenance team evidence for planned replacement and gives procurement a much cleaner specification for the next order.
For current PerfoMax system options, review the DTH Tools collection, the DTH Drill Bit Selection page, and the 76 mm DTH Drill Pipe. If you need help matching a replacement chuck, wear sleeve, bit interface, or related DTH components, send the current hammer model, dimensions, photos, and application details with your RFQ.
