Rotary head or saver sub
API 2-3/8 REG
Mating API 2-3/8 REG connection and shoulder
Confirm box/pin orientation across the complete string.
DTH Drill Pipe

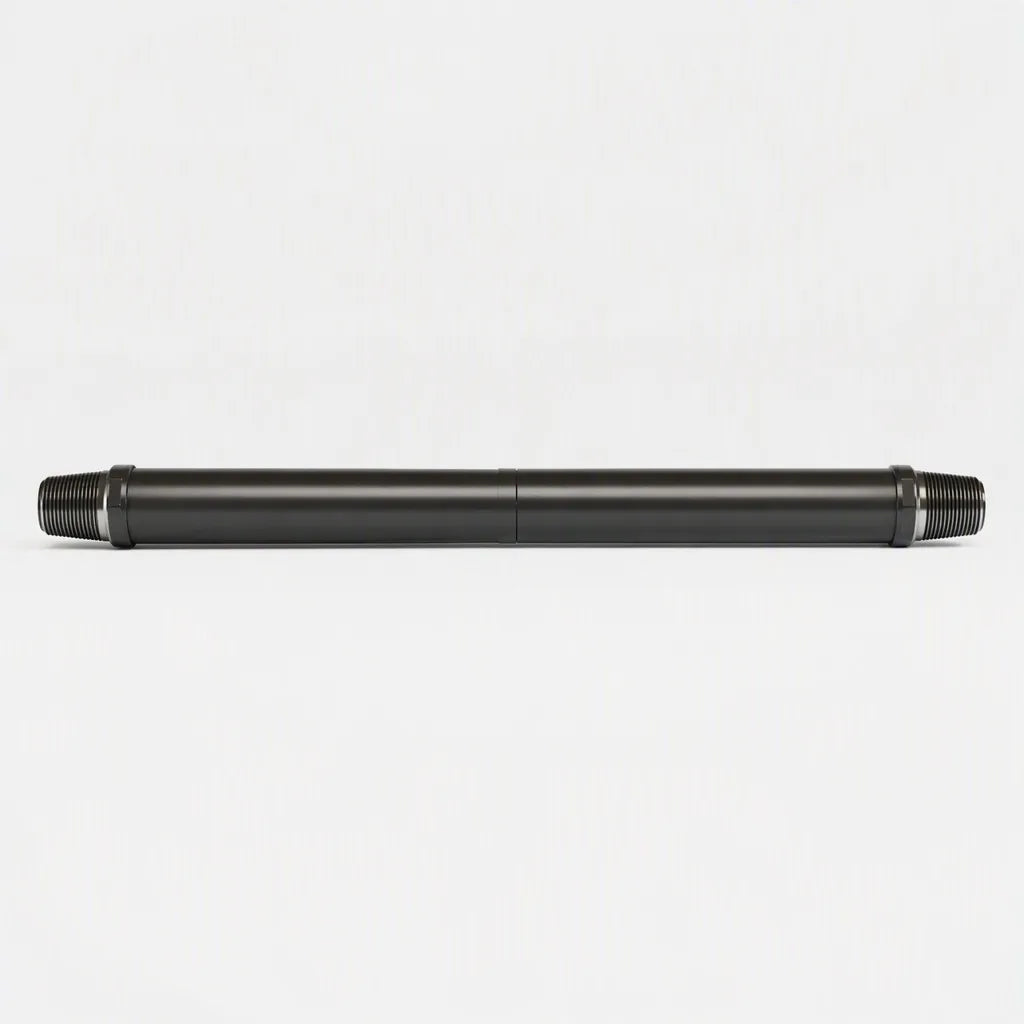

76 mm DTH Drill Pipe, API 2-3/8 REG
Model:76 mm / API 2-3/8 REG
Selected configuration:1000 mm
Selected reference:PFM-DTH76-238-1000
76 mm DTH drill pipe with API 2-3/8 REG box × pin connection, quoted by length, wall, bore and rig/hammer interface.
Specify the complete drill string interface—not only the outside diameter—to control fit, airflow and joint life.
- 76 mm outside diameter
- API 2-3/8 REG box × pin connection
- Length and section dimensions confirmed by drawing
Select
Request a Configuration-Based Quote
Send outside diameter and requested length, current thread evidence, rig or saver interface, hammer top-sub, operating context, quantity, destination, inspection and packing needs.
Technical Review Scope
Configuration and Quotation Guidance
76 mm DTH drill-pipe configuration inquiry. This page records an API 2-3/8 REG connection reference and 1,000, 1,500, 2,000 and 3,000 mm length references. Those references do not by themselves define a complete drill-string configuration.
Compatibility notice: a pipe described as API 2-3/8 REG must not be treated as a direct mate to a top sub described as T48×10. CIR90 naming and 76 mm pipe outside diameter do not prove compatibility. A match may be stated only when a controlled same-thread, alternate-top-sub or crossover drawing identifies both interfaces and its revision is included in the quotation.
Configuration identity
PFM-DTH76-238-1000, PFM-DTH76-238-1500, PFM-DTH76-238-2000 and PFM-DTH76-238-3000 are length inquiry references, not complete orderable SKUs. They do not lock wall, bore, joint geometry, material, weight, operating condition or drawing revision.
Buyer inputs
- Pipe outside diameter and requested length.
- Current thread reference and photos or drawings of both threaded ends and shoulders.
- Rig rotary-head or saver-sub interface and hammer top-sub interface.
- Hole and depth requirement, compressor or air requirement, rig torque, pullback and operating condition.
- Quantity, destination and any inspection or packing requirement.
Engineering and quotation outputs
Before technical approval, the quotation drawing must return wall, bore, joint geometry, make-up and overall length, wrench flats, thread and shoulder details, material and heat-treatment basis, mass, allowed operating conditions and drawing revision. A buyer may submit “not sure”; the engineering outputs must not be guessed by the buyer.
Construction boundary
Joint construction, pipe-body material, heat-treatment basis and weld process are controlled quotation and drawing items; they are not defined by this inquiry page.
Inspection and records boundary
Any weld inspection or NDT method, sample or batch scope, acceptance criteria and report requirement must be expressly accepted in the quotation or purchase order; none is included by default.
Selection & Technical Guides
Use these guides to prepare drill-string and inspection questions; they do not establish compatibility or the supplied pipe construction.
- DTH Drill Pipe Thread Compatibility: API REG Size Guide
- DTH Drill Pipe Diameter Selection: Match Pipe OD to Hole Size, Hammer and Air Flow
- DTH Drill Pipe Length Selection: How to Choose 1 m, 1.5 m, 2 m, or 3 m
- DTH Drill Pipe Thread Care: Cleaning, Greasing, Make-Up, and Galling Prevention
- DTH Drill Pipe Pre-Shipment Inspection: Thread, Straightness, Weld, and Packing Checklist
At a Glance
76 mmOutside Diameter
API 2-3/8 REG box × pinThread Connection
1.0 / 1.5 / 2.0 / 3.0 mListed Lengths
Technical Specifications
| Outside Diameter | 76 mm |
|---|---|
| Thread Connection | API 2-3/8 REG box × pin |
| Listed Lengths | 1.0 / 1.5 / 2.0 / 3.0 m |
| Wall, Bore and Joint Dimensions | Drawing-controlled |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
DTH hammer top sub
API 2-3/8 REG
Mating thread, shoulder and airflow path
Provide hammer make/model or top-sub drawing.
DTH Drill-Pipe Configuration
Threaded Torque and Airflow Path
The box × pin joints transmit rotary torque while the internal bore carries compressed air to the DTH hammer.
Buyer value
A correctly matched connection and bore support joint life, airflow and stable make-up across the drill string.
Selection condition
Confirm thread gauge, shoulder dimensions, wall, bore, make-up practice and mating components.
Application Scenarios
- DTH production drilling

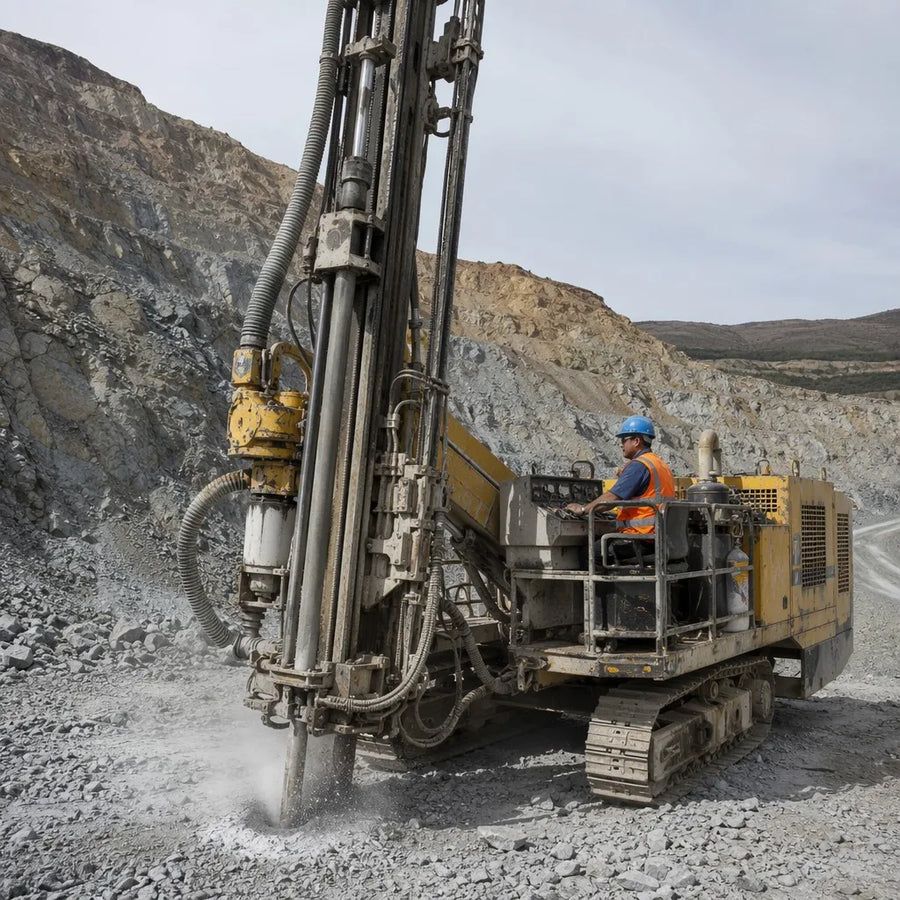

- Quarry and mining blast holes
- Water-well and foundation drilling
Quality and Pre-Shipment Checks
01

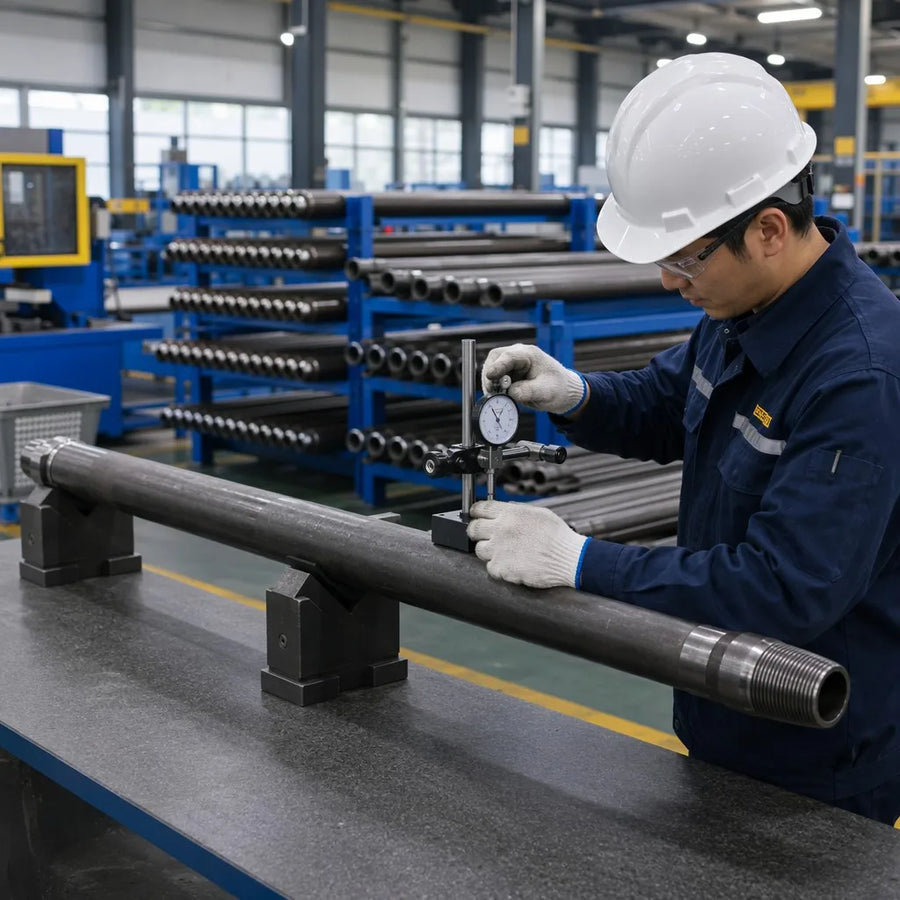

Thread, Dimension and Visual Check
Recorded before shipment when included in the quotation
Approved length, OD, connection and ordered inspection scope
Verify specified dimensions, connection condition, markings and visible surface condition against the approved order.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed in written quotation
Lead TimeConfirmed in written quotation
Available Supply Configurations
- Final packing list confirmed in the written quotation

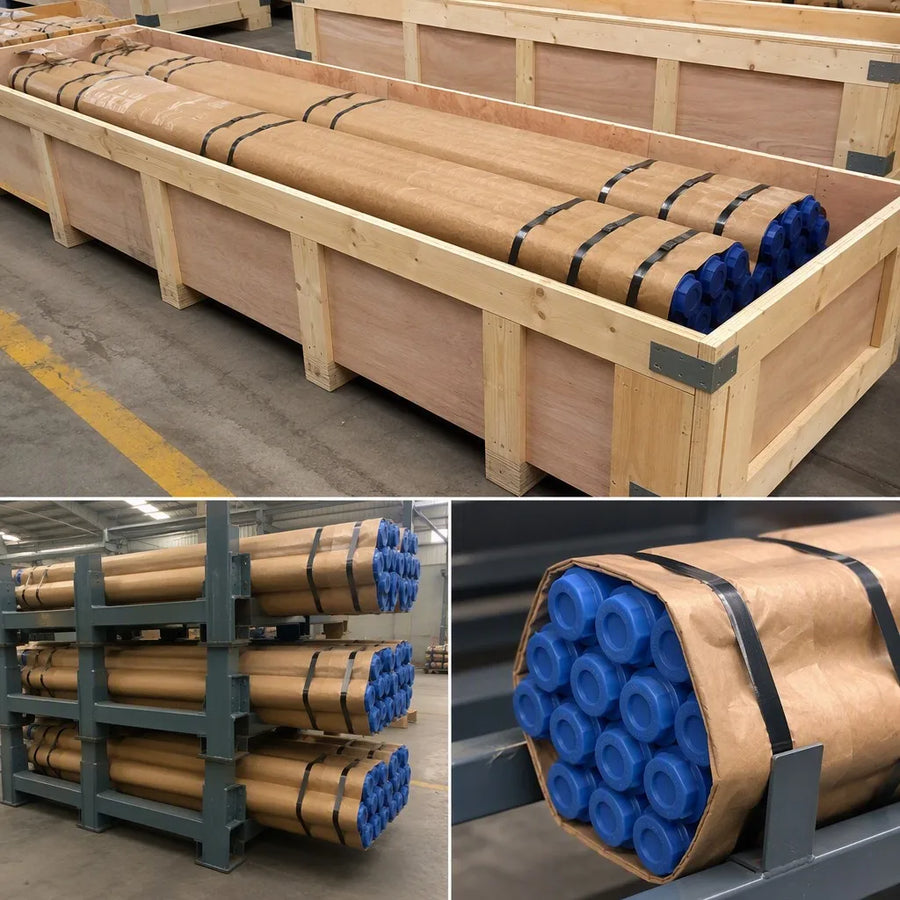

Export Packing
Final packaging, corrosion protection, crate or pallet method and shipping marks are confirmed in the written quotation.
Warranty and After-Sales
Warranty, spare-parts scope and service terms are confirmed in the written quotation for the selected supplier configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list; any additional certificates are confirmed per order
Frequently Asked Questions
Is 76 mm outside diameter enough to confirm compatibility?
No. Also confirm API 2-3/8 REG box/pin orientation, joint and shoulder dimensions, wall, bore, length, rotary-head or saver-sub connection, and hammer top sub.
Can you quote a length outside 1–3 m?
Yes, as a drawing-controlled configuration. Provide the required finished length, rig/hammer interface, handling limits, quantity and delivery country.
Matched Hammer and Rotary Interfaces
A complete 76 mm DTH string combines the rotary head or saver sub, API 2-3/8 REG drill pipe, matched hammer top sub and bit.
Ready to Confirm the Configuration?
Request a Quote for 76 mm / API 2-3/8 REG
Engineering will return the pipe geometry, interfaces, material and operating basis, controlled drawing revision and approved configuration ID. The approved identity must carry through quotation, purchase order, packing list and repeat order.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence
Product, Component, Configuration and Packing Views
Specify the complete drill string interface—not only the outside diameter—to control fit, airflow and joint life.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
