Direct answer: choose DTH drill pipe length from the rig outward, not from target hole depth alone. The pipe must fit the drill rig’s feed or mast, rod handler or manual handling method, breakout/clamping position, and available working clearance. Once those limits are satisfied, a longer pipe can reduce the number of rod-adding cycles for the same hole, while a shorter pipe can be easier to handle on compact feeds or restricted sites.

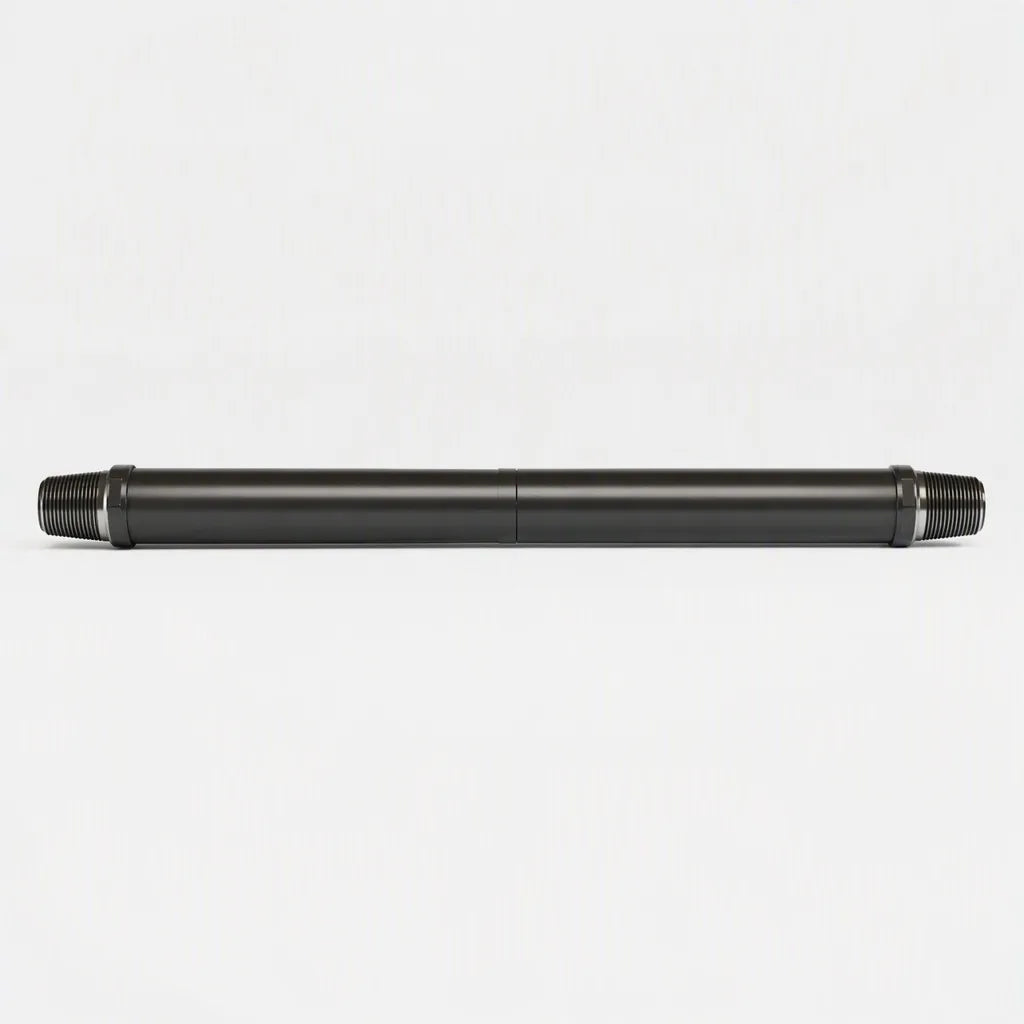

For PerfoMax’s current 76 mm DTH drill pipe configuration, the inquiry lengths are 1,000, 1,500, 2,000, and 3,000 mm with an API 2-3/8 REG box × pin connection. These are quotation configurations, not a rule that one length is universally best. The final pipe length, wall, bore, joint dimensions, and make-up details should be confirmed against the actual rig and hammer before ordering.
1. Why DTH Drill Pipe Length Is a Rig-Compatibility Decision
A DTH drill pipe has to do more than reach the bottom of the hole. It must physically move through the machine’s drilling cycle. Before comparing 1 m versus 3 m pipe, confirm the rig can load, clamp, rotate, make up, break out, and store that length safely.
OEM drill-rig specifications make this relationship clear. Epiroc’s SmartROC D60, for example, offers an extra-long feed option designed around 8 m pipes and states that this configuration can drill a 16 m production hole with only one rod addition. Epiroc’s Smart DM45 is designed around a 9.1 m pipe change. These are much larger pipe lengths than the PerfoMax 1–3 m options, but the engineering lesson is the same: the rig is built around a particular pipe-handling envelope.
2. The Four Length Options on PerfoMax’s 76 mm DTH Pipe
| Inquiry length | Operational tendency | Main advantage | Main check before ordering |
|---|---|---|---|
| 1,000 mm / 1 m | Shortest of the four options | Fits shorter handling envelopes more easily and gives fine depth increments | Higher number of pipe additions for the same planned depth |
| 1,500 mm / 1.5 m | Compact-to-medium length | Balances handling length with fewer additions than 1 m pipe | Confirm feed travel, clamp spacing, and storage method |
| 2,000 mm / 2 m | Medium length | Reduces additions further when the rig can handle it | Confirm usable feed stroke and manual/automatic rod handling |
| 3,000 mm / 3 m | Longest current PerfoMax inquiry option | Fewest pipe sections among these four for the same theoretical drilled length | Requires sufficient mast/feed, breakout position, lifting/handling, and site clearance |
This table is a selection guide, not an operating limit. A 3 m pipe should not be specified simply because it minimizes the number of joints. If the rig cannot correctly handle 3 m pipe, the theoretical cycle-time advantage disappears immediately.
3. How Pipe Length Changes the Number of Rod-Adding Cycles
For a simplified planning example, assume a theoretical 12 m drilled interval and pretend that each pipe contributes its full nominal length. The approximate number of pipe sections would be:
| Nominal pipe length | Approximate pipe sections for 12 m | Approximate additions after the first pipe |
|---|---|---|
| 1 m | 12 | 11 |
| 1.5 m | 8 | 7 |
| 2 m | 6 | 5 |
| 3 m | 4 | 3 |
The pattern is useful: longer pipe means fewer pipe-addition events for the same theoretical length. That is why long-feed production rigs can use long pipes to reduce rod-handling interruptions.
However, do not use this simple division as a final hole-depth calculation. Actual drilling advance depends on effective make-up length, hammer and top-sub geometry, starter components, thread engagement, usable feed travel, collaring position, and the rig’s operating sequence. When ordering replacement pipe, ask whether the stated length is overall length, make-up length, or another manufacturer-defined reference.
4. Five Checks That Decide Whether 1 m, 1.5 m, 2 m, or 3 m Will Work
Check 1: Usable feed stroke and mast clearance
The first gate is physical. Measure or obtain the rig manufacturer’s approved drill-pipe length. Do not assume the total mast length equals usable pipe length. The rotary head, clamps, breakout device, hammer, safety guards, and head-travel limits all consume space.
Check 2: Rod handling method
An automatic carousel, loader, rod rack, manual loading system, or excavator-assisted setup creates different practical limits. A pipe that fits the mast can still be unsuitable if the handler cannot pick it up, align it, store it, or present it to the rotary head correctly.
Check 3: Breakout and wrench-flat position
The rig must be able to grip and break the connection at the right location. PerfoMax’s current 76 mm pipe specification explicitly requires the make-up length, overall length, and wrench-flat arrangement to be checked as part of the drill string. This is especially important when replacing pipe from another supplier.
Check 4: Planned hole depth and production cycle
Once the rig accepts more than one pipe length, compare how many additions are required for the typical hole. A longer pipe can reduce interruptions, but a shorter pipe can make sense when holes are shallow, the rig works in confined space, or frequent depth changes make long sections inconvenient.
Check 5: Transport, rack, and site clearance
Pipe length affects more than drilling. Check storage racks, transport bundles, loader reach, overhead clearance, underground heading dimensions, and the space available beside the rig. A pipe that works mechanically on the drill can still create a poor site workflow.
5. Pipe Length Does Not Replace Thread and Drill-String Compatibility Checks
Length is only one specification. PerfoMax’s current 76 mm DTH pipe uses an API 2-3/8 REG box × pin connection, but thread name and nominal pipe OD alone are not enough to confirm a drop-in replacement.
Before ordering, verify:
- rotary head or saver-sub connection and shoulder;
- DTH hammer top-sub connection;
- pipe OD and joint OD;
- wall thickness and internal bore;
- overall length and effective/make-up length reference;
- wrench-flat position and breakout arrangement;
- operating torque and pullback requirements;
- compressor output, required airflow, hole diameter, and target depth.
This matters because a 3 m pipe with the “right” API thread can still be the wrong replacement if the joint geometry, bore, wall, or handling dimensions do not match the rig and hammer system.
6. Does Longer DTH Pipe Improve Drilling Performance?
Longer pipe can improve the drilling cycle by reducing rod additions, but it does not directly increase rock penetration rate. Penetration rate is controlled by the hammer/bit system, air supply, rock condition, operating parameters, hole cleaning, and other variables. Pipe length mainly changes how the drill string is handled between drilling intervals.
Longer pipe also adds more weight per individual section and needs more physical clearance. Mincon’s current drill-pipe range illustrates how wide the industry can be: it lists pipe lengths from 0.5 m to 12 m across its product range. That wide span is evidence that pipe length is application- and rig-specific rather than a universal “standard length.”
For buyers, the correct question is therefore not “What is the best DTH pipe length?” but “What is the longest practical pipe length that my approved rig configuration can handle reliably, and does that length improve my actual drilling cycle?”
7. A Practical Selection Workflow
- Identify the rig. Record manufacturer, model, mast/feed configuration, rotary head, and saver sub.
- Identify the hammer. Record hammer model and top-sub connection.
- Measure the working pipe. Record overall length, connection, joint OD, pipe OD, wrench flats, and any drawing number.
- Confirm the rig’s approved pipe length. Use the OEM manual or machine configuration, not a visual estimate of the mast.
- Define the hole plan. Give typical and maximum depth, hole diameter, drilling direction, and production pattern.
- Compare addition cycles. Estimate how many pipe additions each feasible length creates for a normal hole.
- Check handling and clearance. Include carousel/rack/manual handling, transport, and site restrictions.
- Freeze the quotation drawing. Confirm length reference, thread, wall/bore, joint dimensions, and inspection scope before volume production.
8. Common DTH Drill Pipe Length Selection Mistakes
- Choosing by hole depth only. A 30 m hole does not tell you whether the rig should use 1 m, 3 m, or much longer pipe.
- Assuming the longest pipe is automatically most productive. It only helps if the feed, handler, clamps, site, and operating sequence support it.
- Using total mast length as usable pipe length. Head travel, clamps, hammer, guards, and breakout geometry reduce usable space.
- Confusing overall length with effective drilling advance. Thread engagement and component geometry matter.
- Matching only “76 mm + API 2-3/8 REG.” Wall, bore, joint geometry, wrench flats, and operating requirements still need confirmation.
- Ignoring storage and manual handling. A technically compatible pipe can still create an unsafe or inefficient site workflow.
9. RFQ Checklist for DTH Drill Pipe Length
For a replacement or new drill-string quotation, send:
- rig make, model, and mast/feed configuration;
- rotary head or saver-sub connection;
- hammer make/model and top-sub thread;
- current pipe OD and connection;
- required pipe length—or current pipe overall and make-up length;
- photos of both threaded ends and wrench flats;
- current pipe drawing if available;
- hole diameter, typical depth, and maximum depth;
- compressor pressure and airflow;
- quantity, destination, packing requirement, and inspection requirement.
10. PerfoMax 76 mm DTH Drill Pipe Length Options
PerfoMax’s current 76 mm DTH Drill Pipe, API 2-3/8 REG is offered for quotation in 1,000, 1,500, 2,000, and 3,000 mm lengths. The current product page defines the connection as API 2-3/8 REG box × pin and requires wall, bore, joint dimensions, make-up length, and operating requirements to be confirmed in the quotation.
If you are building or replacing a complete DTH string, review the PerfoMax DTH Tools collection. For a length or compatibility check, send your rig, hammer, current pipe drawing, and hole plan for quotation review.
FAQ
Can I replace a 1.5 m DTH pipe with a 3 m pipe if the thread is the same?
Not automatically. The rig must have enough usable feed/mast length, the clamps and breakout device must work at the correct position, the handling system must accept 3 m pipe, and the rest of the pipe geometry must match. Same thread does not prove full compatibility.
Does a longer DTH drill pipe drill faster?
It can reduce the number of rod-adding cycles for the same hole when the rig supports the longer pipe. It does not by itself increase penetration rate in the rock.
Is 1 m pipe better for shallow DTH holes?
It can be practical on compact feeds, restricted sites, or jobs that benefit from shorter handling increments, but hole depth alone is not enough to choose it. Confirm the machine configuration and cycle time.
How do I calculate how many DTH pipes I need for one hole?
For planning, divide the required drilled interval by the effective advance per pipe and round up. Do not automatically divide by catalog overall length unless the supplier confirms that this is the correct working reference. Allow for the hammer, starter components, thread make-up, and usable feed stroke.
What is the safest information to send when I do not know my required pipe length?
Send the rig and feed configuration, hammer model, current working pipe drawing or measured dimensions, typical hole depth, and clear photos of the connections and wrench flats. A supplier can then check length as part of the complete drill-string fit.
Technical Sources
- Epiroc — SmartROC D60: OEM example showing how an 8 m pipe/extra-long feed configuration reduces rod additions for 16 m production holes.
- Epiroc — Smart DM45: OEM example of a multi-pass rotary/DTH rig designed around a specified pipe-change length.
- Mincon — Drill Pipe: manufacturer product range showing that drill-pipe lengths vary widely by application and system.
OEM rig examples above illustrate pipe-length selection principles; they are not operating limits for PerfoMax pipe or for every DTH rig. The rig manufacturer’s approved configuration and the final quotation drawing control compatibility.
