DTH Drill Pipe Wall Thickness and Bore: How to Balance Airflow, Strength, and Weight

Quick answer: Do not choose DTH drill pipe wall thickness by a universal “thicker is better” rule. Once the pipe thread, outside diameter and length are fixed, wall thickness and internal bore must be checked as a system against the DTH hammer’s air requirement, compressor delivery, drill-string torque and pullback, hole depth, pipe weight, rod handling and the supplier’s approved pipe/joint design. A thicker wall can increase section capacity and mass, but at the same outside diameter it also reduces the nominal tube-body bore. A thinner wall increases bore area and reduces weight, but it still has to satisfy the required mechanical loads and fatigue life.

This guide is for mining, quarrying, construction, water-well and drilling-service buyers who already know the approximate pipe OD and connection family and now need to decide what wall/bore configuration should be quoted. It deliberately does not replace the pipe manufacturer’s load limits, hammer manual, rig manual, quotation drawing or engineering approval.

1. Why Pipe OD Is Not the Complete DTH Drill Pipe Specification

Buyers often describe a replacement as “76 mm DTH pipe” or “76 mm, 2-3/8 REG.” That identifies important parts of the item, but it still does not define the pipe-body wall thickness, internal bore, tool-joint bore, joint geometry, weight or allowable load.

Current OEM ranges show why. Robit lists 76 mm DTH drill pipes with the same nominal outside diameter and 2⅜ REG connection in more than one wall-thickness configuration, including 4 mm and 8.8 mm examples. Epiroc’s current DTH catalogue likewise lists multiple wall-thickness options within the same 76 mm pipe diameter in one design family. The practical point is not that either wall is universally preferred; it is that the same OD can legitimately be engineered into different pipe configurations.

2. The Basic Geometry: Thicker Wall Means Smaller Bore at the Same OD

For a simple straight tube body, the nominal internal diameter is approximately:

Tube-body ID ≈ OD − 2 × wall thickness

For illustration only, a 76 mm tube body with a 6 mm wall has a nominal body ID of about 64 mm, while the same 76 mm OD with an 8 mm wall has a nominal body ID of about 60 mm. That example is geometry, not a PerfoMax product specification and not a complete flow calculation. Real DTH pipes also include tool joints, welded ends and connection bores that can differ from the tube-body ID.

Flow area changes with the square of diameter. For a given volumetric flow, reducing bore area increases mean air velocity through that section. Whether that creates a meaningful pressure loss depends on the full system: compressor delivery, air density, pipe length, surface roughness, joints/adapters, leakage, water injection and the hammer’s operating demand. That is why buyers should not select a wall from OD alone.

3. Airflow: Start From the Hammer and Compressor, Not From a Wall-Thickness Table

The DTH hammer is powered by compressed air delivered through the drill string. Before choosing a pipe bore, obtain the hammer manufacturer’s required operating pressure and air-consumption data for the intended operating point, then verify what the compressor can actually deliver under the site conditions.

A practical airflow check should include:

• hammer model and size;
• required operating pressure and air consumption from the hammer documentation;
• compressor rated flow and pressure, plus expected site derating where applicable;
• total pipe length / planned hole depth;
• pipe-body ID and the minimum bore through tool joints, saver subs and adapters;
• number of connections and any known restrictions;
• expected leakage condition and connection wear;
• whether water injection, foam or other flushing additions are used.

Buyer rule: do not ask, “What wall thickness works with a 4-inch hammer?” Ask, “For this hammer air demand, this compressor, this pipe length and these joint bores, which approved pipe configuration preserves adequate delivery while meeting mechanical loads?”

4. Mechanical Load: Wall Thickness Is Not Selected for Airflow Alone

DTH drill pipes also transmit rotation and carry axial loads while being exposed to bending, vibration, repeated make-up/breakout and impact from handling. Sandvik describes DTH drill pipes as having to withstand significant torsional and axial loads and highlights consistent wall thickness and strength as quality factors.

The mechanical side of the selection therefore needs at least:

• maximum rotary torque expected at the pipe;
• feed and pullback capability of the rig;
• planned hole depth and resulting string weight;
• hole inclination and bending / dogleg risk;
• rock and overburden conditions that may increase sticking or reaming loads;
• pipe length and unsupported span during handling;
• joint design and connection load rating;
• material, heat treatment and weld/joint design used by the pipe manufacturer.

A thicker tube wall can increase the available pipe-body section, but the weakest approved component in the complete pipe and joint design still governs. Do not calculate a theoretical tube capacity and assume the connection, weld or tool joint automatically has the same allowable load.

5. Weight and Handling: More Steel Is Not Free

For the same OD and length, a thicker wall normally means more steel and a heavier pipe. That can matter even when one pipe seems easy to handle, because the effect accumulates across a complete string.

Robit’s current 76 mm table illustrates the direction of this tradeoff: the listed 4 mm and 8.8 mm wall configurations at the same OD have materially different weights at the same nominal lengths. Those figures are Robit product data, not PerfoMax specifications, but they demonstrate why wall choice changes more than just “strength.”

Before increasing wall thickness, confirm:

• rod changer / carousel mass and dimensional limits;
• manual handling limits and site lifting method;
• mast/feed length and pipe support arrangement;
• rig pullback margin at maximum planned depth;
• transport and storage implications for long strings.

In deep drilling, the selection can become a three-way optimization: sufficient structural margin, sufficient internal air path, and acceptable total string mass. Depth alone does not prove that the thickest available wall is the best choice.

6. Thin vs Thick Wall: Directional Tradeoffs

This table is directional only. Material grade, heat treatment, joint geometry, weld design, OD, length and manufacturer-specific ratings can change the actual allowable performance. The approved drawing and supplier engineering data control.

7. A 7-Step Wall Thickness and Bore Selection Workflow

1. Lock the connection and outside diameter first. Confirm rotary-head/saver-sub connection, hammer top-sub connection, pipe OD and end arrangement.
2. Identify the hammer operating requirement. Record hammer model, working pressure and required air consumption from its technical data.
3. Define the air-delivery path. Record compressor flow/pressure, planned depth, pipe length, pipe-body bore and minimum joint/adapter bore.
4. Define mechanical demand. Record rig torque, feed/pullback, planned maximum depth, hole inclination and expected sticking/bending conditions.
5. Check handling and string mass. Confirm rod changer, mast, lifting and pullback constraints.
6. Compare complete manufacturer-approved pipe designs. Do not compare wall thickness in isolation; compare material, tube, tool joints, weld, thread, weight, bore and rated limits together.
7. Freeze the RFQ drawing before bulk order. Put wall/bore, OD, length, connection, joint dimensions and required inspection evidence into the quotation or approved drawing.

8. What the Current OEM Data Tells Buyers

Three current primary sources reinforce the same buying principle:

• Sandvik: DTH pipe design must handle torsional and axial loads, while consistent wall thickness and straightness are treated as quality characteristics.
• Robit: the same 76 mm nominal OD and 2⅜ REG connection can be offered with different wall thicknesses, demonstrating that OD/thread do not uniquely define the pipe.
• Epiroc: its current DTH catalogue also lists different wall configurations within the same nominal pipe diameter in its own product families.

None of these sources supports a universal rule such as “use 4 mm below X metres” or “use 8 mm above Y metres.” The correct configuration is product- and system-specific.

9. Common DTH Drill Pipe Wall/Bore Selection Mistakes

1. Ordering only by OD and thread. Two pipes can share both and still differ materially in wall, bore, weight and joint design.
2. Choosing the thickest wall by default. More wall also changes mass and bore; it is not a free upgrade.
3. Choosing the thinnest wall for airflow. Mechanical load and fatigue requirements still control.
4. Checking the tube-body bore but not the joint bore. The smallest section in the air path may be elsewhere.
5. Ignoring accumulated string weight. A small per-metre mass difference becomes larger over a long string.
6. Using another supplier’s wall table as a design rule. Material, joint, weld and allowable loads are supplier-specific.
7. Changing wall without checking rig handling. The rod changer and pullback system may have practical limits.
8. Approving by sample fit only. A pipe can thread onto the hammer and still be the wrong wall/bore configuration for the job.

10. What to Send in a DTH Drill Pipe Wall/Bore RFQ

• rig make/model;
• rotary head or saver-sub connection;
• DTH hammer make/model and top-sub connection;
• hammer operating pressure and air-consumption requirement;
• compressor model, rated flow and pressure;
• target hole diameter and typical / maximum hole depth;
• pipe OD and required thread/end arrangement;
• preferred or existing pipe length;
• current pipe wall thickness and bore, if replacing an existing string;
• tool-joint / connection bore where known;
• rig torque, feed/pullback and rod-handler limits where available;
• drilling direction and ground conditions;
• current-pipe drawing, marking or clear photos;
• quantity, destination, packing and inspection/document requirements.

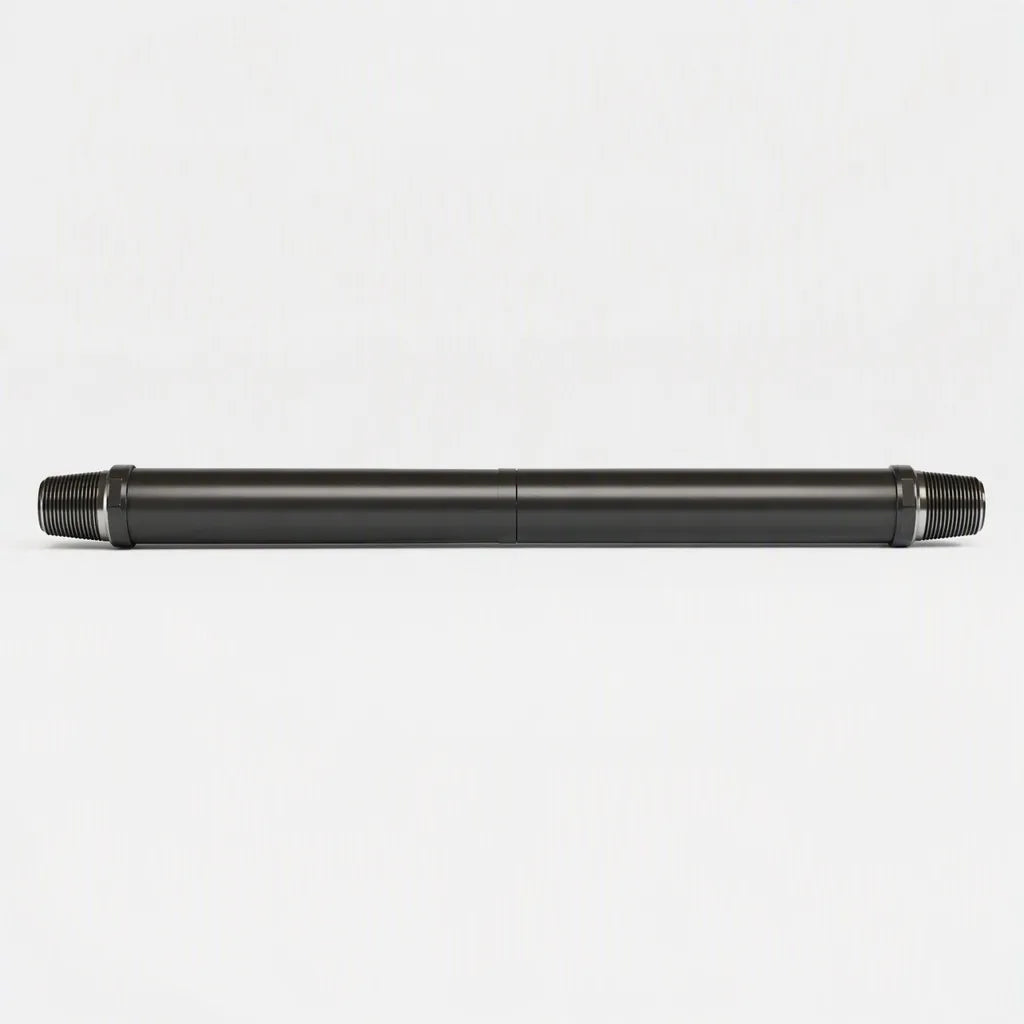

11. PerfoMax 76 mm DTH Drill Pipe: How to Specify Wall and Bore

PerfoMax’s current 76 mm DTH Drill Pipe is listed with an API 2-3/8 REG box × pin connection and inquiry lengths of 1,000, 1,500, 2,000 and 3,000 mm. The current product page intentionally keeps pipe-body wall/bore and several joint dimensions quotation-controlled rather than presenting one universal configuration.

For a wall/bore review, PerfoMax currently asks buyers to confirm the rotary head/saver sub, hammer top sub, pipe OD/wall/bore, joint dimensions, torque, pullback, depth and operating conditions. That is the right level of system information for this decision.

If you are still deciding the outside diameter, first read DTH Drill Pipe Diameter Selection: Match Pipe OD to Hole Size, Hammer and Air Flow. If thread identity is the unresolved issue, use DTH Drill Pipe Thread Compatibility: API REG Size Guide. Buyers can also review current DTH Tools and submit the full system through Request a Quote.

FAQ

Does a thicker DTH drill pipe wall always last longer?

No. A thicker wall changes the pipe-body section and mass, but service life also depends on material, heat treatment, joint/weld design, connection condition, loads, bending, drilling practice and fatigue. Use the manufacturer’s complete approved design and load limits rather than wall thickness alone.

Can two 76 mm DTH drill pipes have different wall thicknesses?

Yes. Current OEM catalogues show multiple wall configurations at the same nominal OD. That is why “76 mm pipe” is not a complete replacement specification.

Does a smaller pipe bore reduce DTH hammer performance?

It can become part of an air-delivery restriction, especially as flow demand and total pipe length increase, but the effect depends on the complete system. Check the hammer demand, compressor delivery, tube bore, tool-joint bore, adapters, leakage and total depth rather than blaming one dimension by itself.

Should deep holes always use thicker-wall pipe?

No universal rule supports that. Deeper strings can increase axial load, pullback demand, string weight and air-path length at the same time. The selected pipe must satisfy both mechanical and air-delivery requirements within the rig and supplier limits.

What is the fastest way to avoid ordering the wrong DTH pipe wall?

Send the existing pipe drawing or measured OD/wall/bore, hammer model, compressor data, rig torque/pullback and maximum depth with the RFQ. Ask the supplier to return the proposed pipe-body and joint dimensions in the quotation drawing before bulk production.

Technical References

1. Sandvik Mining and Rock Solutions — Down-the-Hole Drilling Catalogue 2025.
2. Robit — DTH Drill Pipes.
3. Epiroc — DTH Product Catalogue.
