Quick answer: inspect DTH drill pipe as a complete load-carrying and air-delivery component, not just as a tube with usable threads. Clean and check the pin, box, shoulders, tool joints, pipe body, weld/end-transition areas and bore whenever pipe is removed for routine maintenance, and inspect again after abnormal events such as severe vibration, thread seizure, jamming, hard recovery loads or handling impact. Quarantine the pipe if you find a visible crack, permanent bend, severe dent or buckle, damaged shoulder/sealing contact, a thread that no longer makes up correctly, evidence of washout/air leakage, or body loss beyond the manufacturer’s acceptance limits.
There is no responsible universal rule such as “replace after X drilling hours” or “discard at Y% thread wear” for every DTH pipe. Connection geometry, pipe wall, operating torque, pullback, hole depth and manufacturer acceptance criteria vary. Field inspection should identify suspect pipe; controlled drawings, gauges and the applicable manufacturer/site inspection procedure should decide dimensional acceptance.
1. What Should You Inspect on a DTH Drill Pipe?
A DTH pipe transmits rotation and feed/pullback while also carrying compressed air to the hammer. Defects at the connection or in the pipe body can therefore affect mechanical reliability, air delivery and hole quality at the same time.
| Inspection Area | What to Look For | Why It Matters |
|---|---|---|
| Pin thread | Galling, flattened or torn crests, cross-thread marks, corrosion, impact damage, contamination | Damaged thread geometry can prevent proper make-up and concentrate load |
| Box thread | Wear, debris, corrosion, local deformation, evidence of forced make-up | The box must mate smoothly with the correct pin without binding or abnormal looseness |
| Shoulder / contact face | Washout, fretting, dents, uneven contact, erosion | Shoulder condition affects joint seating and load transfer on shouldered connections |
| Tool joint and transition | Cracks, abnormal wrench marks, impact damage, heat/discoloration | High local stress is carried through the end connection and transition area |
| Pipe body | Bending, dents, buckling, deep abrasion, pitting/corrosion, local wall damage | Body condition affects straight drilling, strength and safe pullback |
| Weld / end zone | Visible cracking or abnormal surface condition | Suspected cracking requires qualified evaluation rather than continued drilling |
| Internal bore | Scale, debris, restriction, corrosion products where visible | Restriction can reduce usable airflow and contaminate downstream tooling |
2. A Practical 7-Step Field Inspection Sequence
- Clean the pipe before judging it. Remove dirt and old thread compound from the connection so damage is not hidden. Keep exposed joints capped during storage and handling where practical.
- Inspect pin and box threads under good light. Look for cross-threading, galling, torn metal, impact damage, corrosion and abnormal wear. Do not use forced make-up as a “test” of a questionable thread.
- Inspect the shoulder/contact surfaces. Check for uneven contact, dents, fretting and erosion. A thread can look acceptable while the seating surface is already damaged.

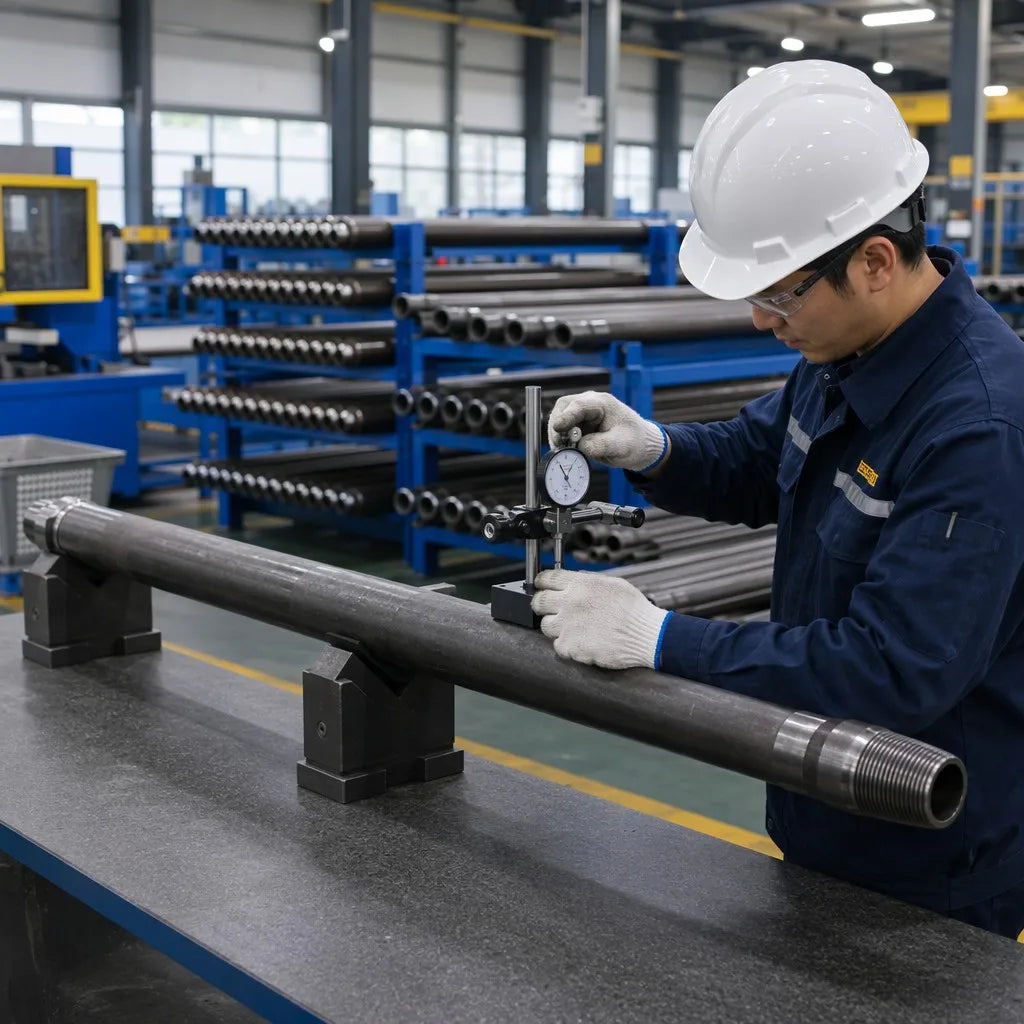

- Check straightness. Roll or support the pipe using the site/manufacturer procedure and look for obvious runout or permanent bend. Epiroc explicitly requires drill pipes used with its pipe-support system to be straight and in good condition.
- Inspect the pipe body and end transitions. Look for dents, buckles, deep wear, corrosion and cracks, especially after a stuck-string recovery or severe handling impact.
- Check bore cleanliness and airflow path when restriction is suspected. Scale or debris inside the pipe can reduce effective air delivery and send contamination toward the hammer.
- Classify the result. Return clearly acceptable pipe to service, clean/service minor correctable issues, and quarantine anything with uncertain crack, straightness, thread-fit or wall-condition status until it is checked against the controlled acceptance criteria.
3. Thread Wear: When Is Cleaning Enough and When Should the Pipe Be Quarantined?
Thread condition is one of the easiest inspection points to see and one of the easiest to misjudge. Mincon recommends keeping drill-pipe threads clean and correctly greased to reduce tool-joint wear. That is preventive maintenance, not a license to keep damaged connections in service indefinitely.
| Condition | Field Response | Reason |
|---|---|---|
| Dirty thread or dried compound, no visible damage after cleaning | Clean and apply the specified thread compound before reuse | Contamination can create false roughness and accelerate wear |
| Light cosmetic polishing with correct make-up and dimensions within acceptance criteria | Monitor and keep in controlled service | Appearance alone does not prove rejection |
| Cross-threading, torn metal, heavy galling or deformed thread form | Quarantine | Geometry and load distribution may be compromised |
| Connection will not make up smoothly with the correct mate | Quarantine and identify the cause | Forcing the joint can worsen damage or create a false fit |
| Abnormal looseness, repeated backing-off or leakage at the joint | Quarantine and inspect thread plus shoulder | The symptom may indicate wear, damage or mismatched connection geometry |
| Washout or erosion at the shoulder/contact area | Remove from normal service pending evaluation | Air leakage and poor seating can damage the joint further |
If your connection is API REG or another rotary-shouldered connection, use the correct controlled thread identification and gauging procedure. API’s standards catalog lists API Spec 7-2 for threading and gauging of rotary shouldered connections and API RP 7G-2 for inspection/classification of used drill-stem elements. Those standards can be useful technical references, but the supplied DTH pipe drawing and manufacturer acceptance criteria still control the exact product you are inspecting.
4. Why Bent Drill Pipe Should Not Be Ignored
Drill-pipe straightness is directly connected to smooth rotation and hole control. Sandvik describes DTH drilling pipes as engineered for straightness, thickness and strength, while Epiroc instructs technicians to make sure drill pipes are straight and in good condition before loading a drill string into its pipe-support system.
A permanently bent pipe can create cyclic side loading, vibration, poor support through guides and additional stress on the rotary head, connections and hammer. In the hole it can also contribute to irregular contact and make an existing deviation problem worse.
Do not assume a visibly bent DTH pipe can simply be straightened and returned to full service. Whether repair is permitted depends on the pipe design, material, heat treatment, severity/location of deformation and the manufacturer’s repair procedure. When straightness is outside the approved limit—or the pipe has been bent by a severe downhole or handling event—quarantine it and evaluate it using the controlled procedure.
5. Cracks, Dents, Corrosion and Wall Loss: What Requires Escalation?
Visible cracking is not a “monitor until next shift” condition. Remove the pipe from the active string and have the suspect area evaluated by qualified personnel using the site/manufacturer inspection procedure. Appropriate non-destructive examination may be required depending on the component, defect location and governing procedure.
Dents and corrosion need similar discipline. A shallow cosmetic mark is not the same as a local buckle, deep gouge or wall-thinning condition, but a generic article cannot provide a safe universal depth or percentage limit. Measure against the original/controlled dimensions and the supplier’s acceptance criteria.
For DTH pipe, pay particular attention after:
- a stuck-string recovery with unusually high pullback or torque;
- a sudden high-vibration event or severe hole deviation;
- thread seizure or difficult breakout;
- impact during loading, transport or pipe handling;
- evidence of air leakage around a joint;
- repeated abnormal wear appearing at the same end or tool-joint location.
6. Symptoms That Point to a Pipe or Connection Problem
| Operating Symptom | Pipe / Joint Checks | Other Causes to Rule Out |
|---|---|---|
| Sudden increase in vibration | Straightness, loose/damaged joint, dented body, damaged shoulder | Bit wear, formation change, hammer condition, poor collaring |
| Unusual difficulty making up a connection | Thread cleanliness, galling, cross-threading, wrong thread family | Wrong mating component or contamination |
| Air leakage at a joint | Shoulder/contact surface, thread damage, mismatch | Other air-system leaks upstream |
| Repeated difficult breakout | Thread damage, wrong compound, connection condition | Operating torque/make-up procedure and rig settings |
| Hole begins wandering more than normal | Bent pipe, pipe-support interaction, joint condition | Collaring, geology, bit face/gauge condition, feed/rotation settings |
| Hammer feels starved for air | Bore restriction, joint leakage | Compressor delivery, hose/manifold losses, hammer restriction, hole-cleaning demand |
Do not replace pipe on symptoms alone. Use the symptom to decide what to inspect, then compare the component against the approved limits.
7. What Usually Causes Premature DTH Drill Pipe Damage?
Most pipe failures are system problems before they become component problems. Common contributors include:
- Dirty or dry threads: contamination and insufficient specified thread compound increase joint wear and the risk of galling.
- Cross-threading or mismatched connections: the nominal pipe OD does not prove the pin, box and shoulder geometry match.
- Poor alignment and pipe support: side loading and vibration increase stress through the pipe and tool joints.
- Excessive shock and stuck-string recovery loads: abnormal torque and pullback can damage connections or permanently deform pipe.
- Handling impact: dropping or striking pipe can dent the body or damage pin/box ends before the pipe reaches the hole.
- Abrasive/corrosive conditions: external wear, moisture and contamination can attack the body and connection over time.
- Running one pipe repeatedly in the same position: some drilling programs rotate pipe position to distribute wear, following the equipment supplier’s procedure.
Mincon also notes that straighter pipe reduces stress on the rig and recommends keeping joints clean, protected and correctly greased. These are useful preventive principles across DTH operations even though exact service limits remain product-specific.
8. When Should a DTH Drill Pipe Be Replaced?
Use a condition-based decision rather than a fixed calendar interval.
| Decision | Typical Finding | Action |
|---|---|---|
| Immediate quarantine | Visible crack; severe permanent bend/buckle; major impact damage; obvious thread deformation; shoulder washout; suspected structural failure | Do not return to normal drilling until qualified evaluation is complete |
| Quarantine for measurement / inspection | Questionable straightness, thread fit, wall loss, deep pitting/gouging, repeated leakage or abnormal vibration tied to one pipe | Check against drawing, gauges and manufacturer/site acceptance criteria |
| Service and monitor | Dirty threads, old compound, superficial rust or cosmetic marks with no measurable rejection condition | Clean, protect, lubricate as specified and document condition |
| Return to service | Clean, straight pipe; threads/shoulders mate correctly; body and bore show no rejectable damage | Reinstall using the approved make-up and handling procedure |
9. Inspection and Replacement RFQ Checklist
If a pipe is being replaced—or a supplier is helping diagnose recurring pipe damage—send enough information to identify both the component and the loading environment:
- pipe outside diameter and current overall length;
- thread designation on both ends and whether the connection is box × pin;
- pipe wall / internal diameter if known, or an existing controlled drawing;
- rotary head or saver-sub connection;
- DTH hammer make/model and top-sub connection;
- rig model, operating torque/pullback information if available;
- hole diameter, typical depth and drilling angle;
- compressor operating pressure and airflow;
- rock type, abrasiveness, fractures and water conditions;
- exact failure or wear location, with close photos after cleaning;
- straightness/runout or thread-gauge results if available;
- quantity, destination and required inspection/material documentation.
PerfoMax currently lists a 76 mm DTH drill pipe with API 2-3/8 REG box × pin connection in its DTH Tools range. The current product data also treats wall/bore, joint dimensions, straightness/runout and inspection scope as quotation-controlled items rather than assumptions from OD alone. Review the current PerfoMax DTH Tools range, or send an RFQ with your existing pipe drawing and failure photos.
For related selection checks, see DTH Drill Pipe Thread Compatibility: API REG Size Guide and DTH Drill Pipe Diameter Selection: Match Pipe OD to Hole Size, Hammer and Air Flow.
Frequently Asked Questions
How often should DTH drill pipe be inspected?
Use a routine site interval plus event-triggered inspection. Threads and visible body condition should be checked whenever pipe is handled/removed during normal maintenance, while abnormal events—severe vibration, sticking, seizure, hard recovery loads or handling impact—justify an immediate focused inspection. The fleet owner or manufacturer should define the formal interval for the application.
Can I keep using a DTH pipe with worn threads if it still screws together?
“It screws together” is not enough to establish serviceability. Clean the connection, verify that the correct pin and box make up smoothly, inspect the shoulder/contact surface and compare thread condition with the applicable gauge/drawing criteria. Deformed, heavily galled or abnormally loose connections should be quarantined rather than forced back into service.
Can a bent DTH drill pipe be straightened?
Do not assume field straightening is acceptable. Repairability depends on pipe construction, material/heat treatment, where the bend occurred and the manufacturer’s repair criteria. A pipe outside the approved straightness limit should be quarantined until the permitted repair or replacement decision is confirmed.
What causes DTH drill pipe threads to gall?
Common contributors include contamination, insufficient or incorrect thread compound, misalignment/cross-threading, damaged mating parts and abnormal make-up/breakout conditions. Clean and protect the connection and follow the specified compound and make-up procedure rather than compensating for damage with more force.
What information should I send when ordering replacement DTH pipe?
Send OD, length, wall/ID if known, exact pin and box connection, rotary-head/saver-sub interface, hammer top-sub connection, rig model, hole diameter/depth, compressor condition and a drawing or clear photos of the current pipe. If the old pipe failed, include the failure location and close-up images after cleaning.
Technical References
- Mincon — Guide to European Geothermal Well Drilling: drill-pipe straightness, thread cleanliness and thread-greasing guidance.
- Mincon — Drill Pipe: relationship between pipe straightness and smoother drilling / lower rig stress.
- Sandvik — Down-the-Hole Drilling Tools: DTH pipe straightness, wall/thickness and strength as core engineering attributes.
- American Petroleum Institute — Standards Catalog: API Spec 7-2 and API RP 7G-2 references for rotary-shouldered connections and used drill-stem inspection/classification.
Inspect the Pipe as Part of the Whole Drill String
The lowest-risk maintenance decision is not “Does this pipe still look usable?” It is: Does the pin, box, shoulder, body, straightness and bore remain within the controlled condition required for this drill string and operating load? Clean the component, preserve evidence from abnormal events, quarantine uncertainty and use the approved dimensions/gauges before returning suspect pipe to production.
