Direct answer: good DTH drill pipe thread care starts before the connection is made. Keep pin and box connections clean and protected, inspect the threads and shoulders after cleaning, confirm that the mating parts are the exact same connection, apply the supplier-specified thread compound using the supplier-specified method, align the pipe before make-up, and use the approved make-up procedure and torque. If the joint is cross-threaded, deformed, badly galled, washed out, or mismatched, more grease and more torque are not repairs.
This guide is for drilling contractors, quarry and mine maintenance teams, water-well crews, distributors, and buyers responsible for DTH drill pipes and API REG-style rotary-shouldered connections. It focuses on routine connection care: cleaning, lubrication, make-up, breakout, galling prevention, handling, and storage. It does not replace the pipe manufacturer’s controlled drawing, thread gauge, or torque procedure.
1. What Proper DTH Drill Pipe Thread Care Is Trying to Prevent
A DTH pipe connection has to transmit rotation and feed/pullback while maintaining a reliable compressed-air path to the hammer. Small maintenance errors at the connection can therefore become expensive problems downhole.
| Thread-care failure | What happens at the connection | Possible field result |
|---|---|---|
| Sand, scale or metal debris on threads | Contamination interferes with smooth make-up and can score mating surfaces | High make-up/breakout effort, accelerated wear, false fit |
| Dry or incorrectly lubricated joint | Sliding surfaces see higher friction during make-up and breakout | Galling, torn metal, difficult breakout |
| Misalignment or cross-threading | Pin enters the box at the wrong angle or thread starts incorrectly | Damaged thread form, poor shoulder seating, premature rejection |
| Wrong connection size or style | Nominally similar parts do not have the same thread geometry | Partial engagement, damaged threads, unsafe load path |
| Damaged shoulder/contact face | Joint cannot seat as designed | Fretting, leakage, washout, abnormal load distribution |
| Unprotected threads in storage | Moisture, dirt and impact reach exposed pin/box surfaces | Corrosion, dents, contamination before the pipe reaches the rig |
The practical objective is not to make the connection “easy to screw together.” It is to preserve the geometry, contact surfaces and repeatable make-up behavior required by the specific drill string.
2. A 7-Step DTH Drill Pipe Thread-Care Workflow
- Protect the connection before use. Keep thread protectors on exposed ends during transport and storage. Remove them only when the pipe is ready to be inspected and connected.
- Clean old compound and contamination. Remove dirt, dried compound, rust scale and loose particles without cutting or deforming the thread. Do not judge thread condition through a heavy layer of old grease.
- Inspect pin, box and shoulder. Look for galling, torn or flattened crests, cross-thread marks, dents, corrosion, fretting, erosion and uneven shoulder contact. Suspect connections should be quarantined before fresh compound hides the evidence.
- Confirm the exact mating connection. “API REG” alone is incomplete. Check the complete designation—such as API 2-3/8 REG—plus pin/box orientation and the mating top sub, saver sub or adjacent pipe.
- Apply the specified thread compound correctly. Use the compound, quantity and application location required by the pipe/connection supplier. Do not assume every rotary-shouldered connection uses the same greasing instruction.
- Align and make up without forcing the start. Support the pipe so the pin and box enter concentrically. If the connection will not start or advance normally, stop and identify the cause rather than using extra rotation or feed force.
- Use the approved make-up and breakout procedure. Follow the connection/rig supplier’s torque and handling guidance. After breakout, inspect abnormal tightness, metal transfer or shoulder damage before returning the joint to service.
3. Cleaning DTH Drill Pipe Threads: What to Remove and What to Look For
Cleaning is an inspection step, not just housekeeping. The connection should be clean enough for the crew to see the thread flanks, crests, roots and shoulder/contact face. Old compound can trap grit, while fresh grease can hide early metal transfer.
After cleaning, separate serviceable contamination from damage that needs escalation:
| Finding after cleaning | Field response | Why |
|---|---|---|
| Dirt or dried compound, no visible metal damage | Clean fully, re-inspect and reapply the specified compound | Contamination is correctable if the underlying geometry is sound |
| Light superficial corrosion with no measurable rejection condition | Clean, protect and monitor under the site procedure | Appearance alone does not establish rejection |
| Torn metal, heavy galling or deformed thread crest | Quarantine | Thread geometry and load distribution may be compromised |
| Cross-thread marks or connection will not start normally with the correct mate | Quarantine and verify the connection | Forcing make-up can convert a minor problem into major damage |
| Shoulder dents, fretting or washout | Remove from normal service pending evaluation | The joint may not seat or seal/load as intended |
| Repeated metal flakes in compound after breakout | Stop and inspect both mating components | Metal transfer can be an early galling or mismatch signal |
Do not use a generic internet wear limit for every DTH pipe. Thread form, joint dimensions, material, heat treatment and acceptance criteria vary. When the condition is uncertain, use the supplier drawing, proper gauges and the controlled inspection procedure.
4. DTH Drill Pipe Thread Grease: Pin, Box, or Both?
This is one of the most useful places to avoid a universal rule. Different manufacturers publish different application instructions for their own connection systems.
For example, Mincon’s DTH service guidance instructs users, in its covered tool-joint context, to grease the pin thread rather than packing grease into the box. By contrast, NOV’s rotary-shouldered drill-stem guidance describes applying a uniform layer of thread compound to pin and box surfaces for the connections covered by its procedure.
The takeaway is not that one source is right and the other is wrong. The takeaway is that compound placement is connection- and supplier-specific. Do not copy a “pin only” or “coat both sides” habit from a different drill string. Follow the controlled instruction for the pipe and mating components you actually use.
Thread compound has several jobs: it reduces harmful friction during make-up/breakout, helps limit galling, provides corrosion protection and supports repeatable joint behavior. But it cannot correct a mismatched thread or restore damaged geometry.
- Use the specified thread compound rather than an arbitrary general-purpose grease.
- Keep compound free of sand, metal chips and water contamination.
- Apply a controlled layer rather than using excess compound to hide rough or damaged threads.
- Keep the internal air passage clear; do not intentionally pack compound into the bore.
- If changing compound brand/type, verify whether the connection supplier requires a torque/procedure review because friction behavior can differ.
5. Make-Up: Alignment, Thread Compound, and Torque Work as a System
There is no responsible universal make-up torque for “DTH drill pipe.” Torque depends on connection design and size, tool-joint geometry, material, thread compound/friction characteristics, rig setup and the supplier’s procedure. The current PerfoMax 76 mm DTH pipe page therefore treats required torque as part of the complete drill-string confirmation rather than a value inferred from the 76 mm outside diameter.
Before powered make-up:
- confirm the pin and box are the same connection designation;
- support the pipe so the centerlines are aligned;
- start the connection without impact or forced cross-threading;
- stop if resistance appears earlier or differently than normal;
- make up using the approved rig/tool procedure and specified torque controls.
API Specification 7-2 is an important reference for threading and gauging rotary shouldered connections such as REG styles. It helps define connection geometry and gauging, but it should not be treated as a substitute for the field compound, torque and handling instructions from the actual pipe/connection supplier.
6. What Causes DTH Drill Pipe Threads to Gall?
Galling is adhesive metal damage that can develop when loaded thread surfaces slide with too much friction or poor surface conditions. In practice, the root cause is often a combination rather than one isolated mistake.
| Likely contributor | What to check | Corrective direction |
|---|---|---|
| Insufficient or wrong compound | Compound type, application method, contamination | Return to supplier-specified compound and procedure |
| Dirty threads | Sand, scale, metal particles, dried compound | Clean before make-up; protect exposed ends |
| Misalignment / cross-threading | Pipe support, rod handling, thread-start marks | Correct alignment; quarantine damaged parts |
| Mismatched connection | Full thread designation, pin/box ends, top-sub/saver-sub identity | Use the correct mating component or engineered crossover |
| Damaged shoulder or prior galling | Fretting, washout, torn metal, uneven seating | Inspect both mates; do not keep re-greasing a damaged joint |
| Incorrect make-up behavior | Torque procedure, rig settings, unexpected resistance | Verify controlled supplier/rig procedure |
A useful maintenance rule is: if a joint repeatedly needs more force than comparable joints, treat that as a symptom to investigate—not as a reason to keep increasing force.
7. Why Is Breakout Torque Suddenly High?
A connection that becomes unusually difficult to break out can point to galling, contamination, poor lubrication, abnormal make-up, shoulder damage, downhole tightening, misalignment or a connection mismatch. The safest response is diagnostic rather than purely mechanical.
- Record which pipe/joint position caused the abnormal breakout.
- After separation, clean the pin, box and shoulder before adding new compound.
- Look for metal transfer, torn threads, fretting and contact marks.
- Compare the thread designation and mating component identity.
- Review the compound and make-up procedure used on that joint.
- If damage or abnormal fit is present, quarantine both mating components until they are evaluated.
NOV’s rotary-shouldered connection maintenance guidance links correct compound, make-up and connection care with reduced galling and more controlled breakout behavior. The exact limits still belong to the connection-specific procedure.
8. Thread Protection During Storage and Transport
Thread care continues after drilling stops. Mincon’s DTH guidance emphasizes protecting exposed tool joints during storage and transit so contamination does not enter the pipe. For any pipe fleet, the principle is sound: clean and inspect the connection, apply the specified protective/compound treatment where required, and install suitable thread protectors before the pipe is moved or stored.
- Do not drag threaded ends on the ground.
- Keep pin and box ends capped when not being assembled.
- Replace damaged protectors that no longer shield the thread.
- Keep stored pipes away from standing water, corrosive contamination and uncontrolled impact.
- Before re-use after storage, remove protectors and inspect rather than assuming the protected joint is automatically serviceable.
9. Pre-Shift DTH Thread-Care Checklist
- Thread protectors removed only when the pipe is ready for use.
- Pin, box and shoulder clean enough for visual inspection.
- No visible galling, torn metal, cross-threading, dents or washout.
- Full connection designation confirmed against the mating component.
- Correct supplier-approved thread compound available and uncontaminated.
- Compound applied using the correct supplier method and location.
- Pipe handling/rod changer supports alignment before make-up.
- Rig make-up procedure and torque settings confirmed for the connection.
- Abnormal breakout joints identified and quarantined for inspection.
- Spare thread protectors available for removed or stored pipe.
10. When Thread Care Becomes a Replacement or RFQ Problem
Routine cleaning and compound cannot solve a connection that is already damaged or incompatible. If you are replacing pipe, investigating repeated galling, or mixing a new pipe into an existing string, send enough information for the supplier to verify the complete interface:
- rig make/model and rotary-head or saver-sub connection;
- DTH hammer make/model and top-sub connection;
- pipe outside diameter and length;
- complete pin and box thread designation;
- current pipe drawing or clear photos of both threaded ends;
- photos of galling, shoulder damage or abnormal wear after cleaning;
- current thread compound and make-up procedure if troubleshooting repeated damage;
- hole diameter, typical depth and operating conditions;
- quantity, destination and inspection/documentation requirements.

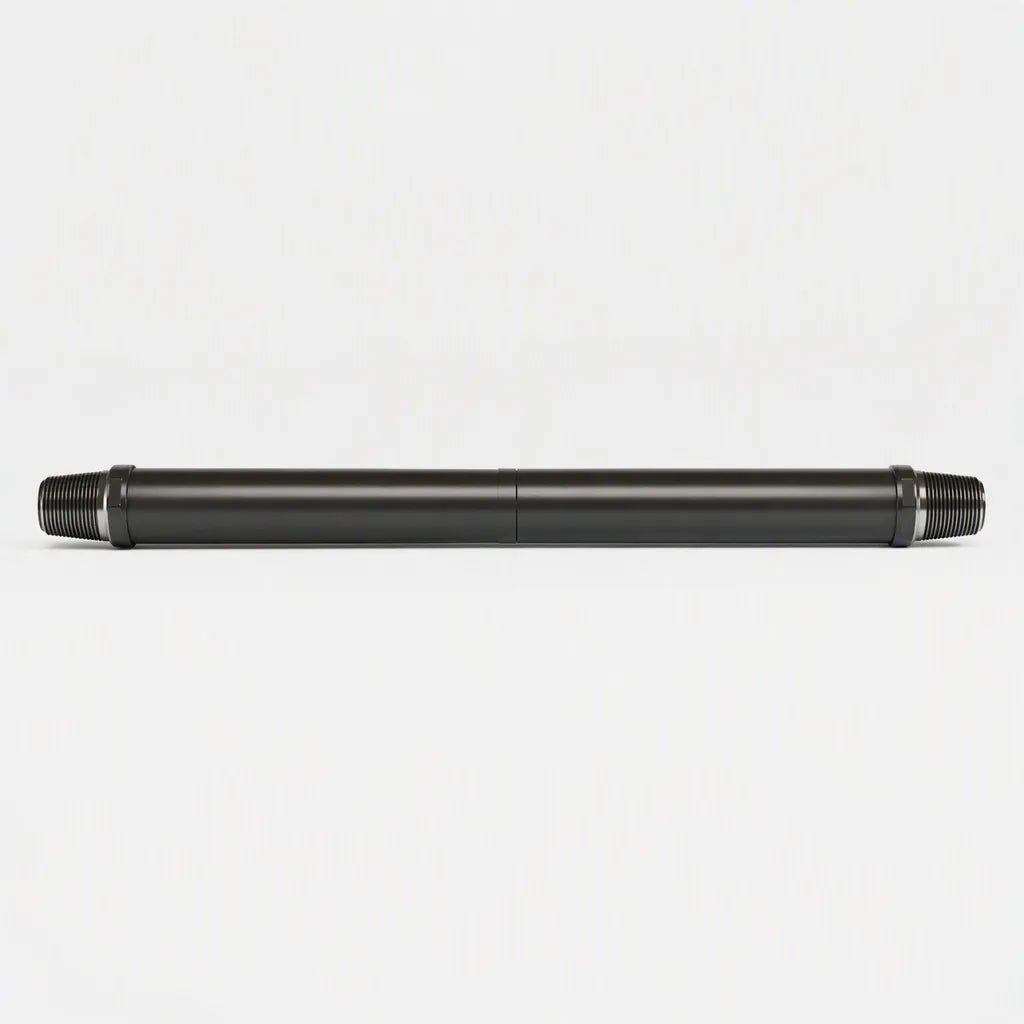

PerfoMax currently lists a 76 mm DTH Drill Pipe with API 2-3/8 REG box × pin connection in its DTH Tools range. The current product specification also requires the rotary-head/saver-sub interface, hammer top-sub, pipe dimensions and required torque to be checked as one drill string.
If the problem is whether the connections are the same thread at all, first review DTH Drill Pipe Thread Compatibility: API REG Size Guide. If the problem is whether a used pipe should stay in service, see DTH Drill Pipe Inspection Guide: Thread Wear, Bending, Cracks, and When to Replace.
Frequently Asked Questions
What causes DTH drill pipe threads to gall?
Common contributors include dirty threads, insufficient or inappropriate thread compound, misalignment, cross-threading, damaged mating surfaces, incorrect make-up behavior and connection mismatch. Clean and inspect both mating parts before deciding the problem is simply “not enough grease.”
Should thread grease go on the pin, the box, or both?
Follow the connection supplier’s procedure. Published instructions differ by system: Mincon gives a pin-thread application instruction in the DTH tool-joint guidance cited below, while NOV’s rotary-shouldered drill-stem guidance specifies compound coverage on pin and box surfaces for its covered connections. Do not transfer one supplier’s rule to a different pipe system without verification.
Can more grease fix a damaged or cross-threaded connection?
No. Compound reduces friction and helps protect serviceable connection surfaces; it does not restore deformed thread geometry, repair torn metal, correct a mismatched thread or restore a damaged shoulder. Quarantine visibly damaged or abnormal-fitting components.
Why is one DTH drill pipe joint much harder to break out than the others?
Possible causes include galling, contamination, poor or wrong compound, abnormal make-up, misalignment, shoulder damage or downhole tightening. Mark the joint, clean it after breakout and inspect both mating components before reuse.
How often should DTH pipe threads be cleaned and inspected?
Use the fleet/site procedure, but thread condition should be checked whenever a connection is exposed during normal pipe handling and immediately after abnormal events such as seizure, difficult breakout, cross-threading, impact or suspected leakage. Do not apply fresh compound over an uninspected abnormal connection.
Technical References
- Mincon — Extending Hammer Life in Blast Hole Drilling: DTH tool-joint thread protection and grease-application guidance.
- Mincon — How to Lower Drilling Costs in Mining: saver-sub inspection and connection-care context.
- NOV — Care and Maintenance of Rotary-Shouldered Connections: thread-compound and galling-prevention guidance.
- NOV — Making-Up Connections: connection make-up and thread-compound procedure.
- American Petroleum Institute — Standards Plan: API Specification 7-2 for threading and gauging rotary shouldered connections.
Keep the Connection Controlled, Not Just Lubricated
The lowest-risk thread-care habit is to treat every joint as a controlled interface: clean → inspect → confirm the exact connection → apply the specified compound → align → make up by the approved procedure → investigate abnormal breakout → protect after use. That sequence prevents a maintenance shortcut from becoming a downhole failure or an avoidable replacement order.
