DTH Drill Pipe Diameter Selection: How to Match Pipe OD to Hole Size, Hammer and Air Flow
Short answer: choose DTH drill pipe diameter as part of the complete drilling system, not from pipe OD alone. The pipe must leave a workable annulus for cuttings return, carry enough compressed air to the hammer, match the hammer top-sub connection, and remain suitable for the rig, hole depth and ground conditions. A smaller pipe is not automatically safer, and a larger pipe is not automatically better.
For procurement teams, the practical sequence is: required hole diameter → bit and hammer → compressor capacity → pipe OD and air passage → thread/top-sub compatibility → rig and handling limits. This avoids a common purchasing mistake: ordering a pipe that connects mechanically but creates poor hole cleaning or does not match the rest of the DTH system.
What Does DTH Drill Pipe Diameter Change?
In conventional down-the-hole drilling, compressed air travels down the drill string to operate the hammer. After passing through the hammer and bit, the exhaust air carries broken rock upward through the annular space between the drill string and the borehole wall. That means pipe diameter affects both internal air delivery and external return-flow geometry.
The geometric annular area can be screened with:
Annular area = π/4 × (hole diameter² − pipe OD²)
This equation is useful for comparison, but it is not a stand-alone DTH design rule. Actual cuttings transport also depends on compressor flow and pressure, leakage, depth, water, cuttings size and density, bit flushing, hole condition and changes in the effective borehole diameter.
OEM rig specifications show why pipe OD cannot be selected in isolation. Sandvik lists the Leopard DI550 for 90–165 mm holes with 4-, 5- and 6-inch DTH hammers, 76, 89, 102 and 114 mm drill rod/tube diameters, and a defined flushing-air system. Epiroc likewise specifies DTH rigs by a combination of hole range, hammer size and available air capacity rather than by one universal pipe-to-hole ratio.
The Six Variables That Should Control Pipe Diameter Selection
| Variable | Why It Matters | What the Buyer Should Confirm |
|---|---|---|
| Hole / bit diameter | Sets the outer boundary of the annulus used for return air and cuttings. | Finished hole diameter and expected bit wear range. |
| DTH hammer | Hammer body size, air demand and top-sub connection constrain the drill string. | Make, model, nominal size and exact top-sub thread. |
| Pipe outside diameter | Changes annular area, clearance and drill-string stiffness/handling. | Actual OD, not only a product-family name. |
| Pipe air passage | The pipe must deliver the compressor air to the hammer without creating an unsuitable restriction. | Pipe bore/ID and wall specification from the supplier. |
| Compressor | Return velocity and hammer performance depend on available air volume and pressure. | Working pressure and free-air delivery at operating conditions. |
| Depth and ground | Deep, wet, fractured or collapsing holes can change flushing demand and sticking risk. | Target depth, rock condition, water inflow and any casing requirement. |
Smaller vs Larger DTH Pipe OD: The Real Trade-Off
| Choice | Potential Benefit | Potential Risk |
|---|---|---|
| Smaller pipe OD | More physical clearance in the borehole; may ease passage through irregular sections. | Larger annular area can reduce average upward return-air velocity for the same volumetric flow, making cuttings transport harder. |
| Larger pipe OD | Smaller annular area can increase average return velocity when the available return airflow is unchanged. | Too little physical clearance can increase rubbing, jamming and sensitivity to hole deviation, cuttings beds or swelling/collapsing ground. |
The correct answer is therefore a working window, not “largest pipe possible” or “smallest pipe possible.” The selected OD must support hole cleaning without sacrificing adequate mechanical clearance.
How to Select DTH Drill Pipe Diameter in 7 Steps
1. Start with the required finished hole diameter
Define the actual production requirement first: blast-hole diameter, water-well pilot or production diameter, foundation socket diameter, or another specified hole size. Do not start with whatever pipe is already in stock.
2. Select the bit and hammer size for that hole
The hammer must operate within a suitable bit/hole range. OEM data illustrates that the relationship is a range, not a single one-to-one pairing. For example, Epiroc's SmartROC D60 is specified for 110–178 mm DTH holes and 4-, 5- or 6-inch hammer sizes, depending on configuration.
3. Confirm the exact hammer top-sub connection
Diameter does not solve thread compatibility. A pipe can be geometrically suitable but still fail to connect to the hammer. Confirm the exact top-sub thread on the selected hammer and the pin/box configuration of the drill pipe before ordering.
4. Check the compressor against hammer and hole-cleaning demand
Record both pressure and free-air delivery. The compressor has to operate the hammer while providing enough exhaust flow to lift cuttings through the actual annulus. If hole cleaning is weak, increasing pressure alone may not solve a volume-limited return-flow problem.
5. Compare candidate pipe ODs by annular area
Use the annular-area equation as a screening tool. If one pipe creates a much larger annulus than another, the same return airflow will produce a lower average upward velocity in that larger area. If the annulus becomes very narrow, however, the drill string has less tolerance for deviation, wall contact and accumulated cuttings.
6. Check pipe bore, wall, length and rig handling
Two pipes with a similar OD can have different internal passages, wall sections, connection geometry and lengths. These affect air delivery, structural capacity and rod-handling compatibility. Use the supplier's current drawing or specification rather than assuming OD alone defines the pipe.
7. Validate the complete combination before the RFQ is released
Send the supplier the hole diameter, hammer model, top-sub thread, compressor data, target depth, pipe length and operating conditions. Ask for confirmation of the complete drill-string combination, not just confirmation that a pipe exists in the requested diameter.
Where Does a 76 mm DTH Drill Pipe Fit?

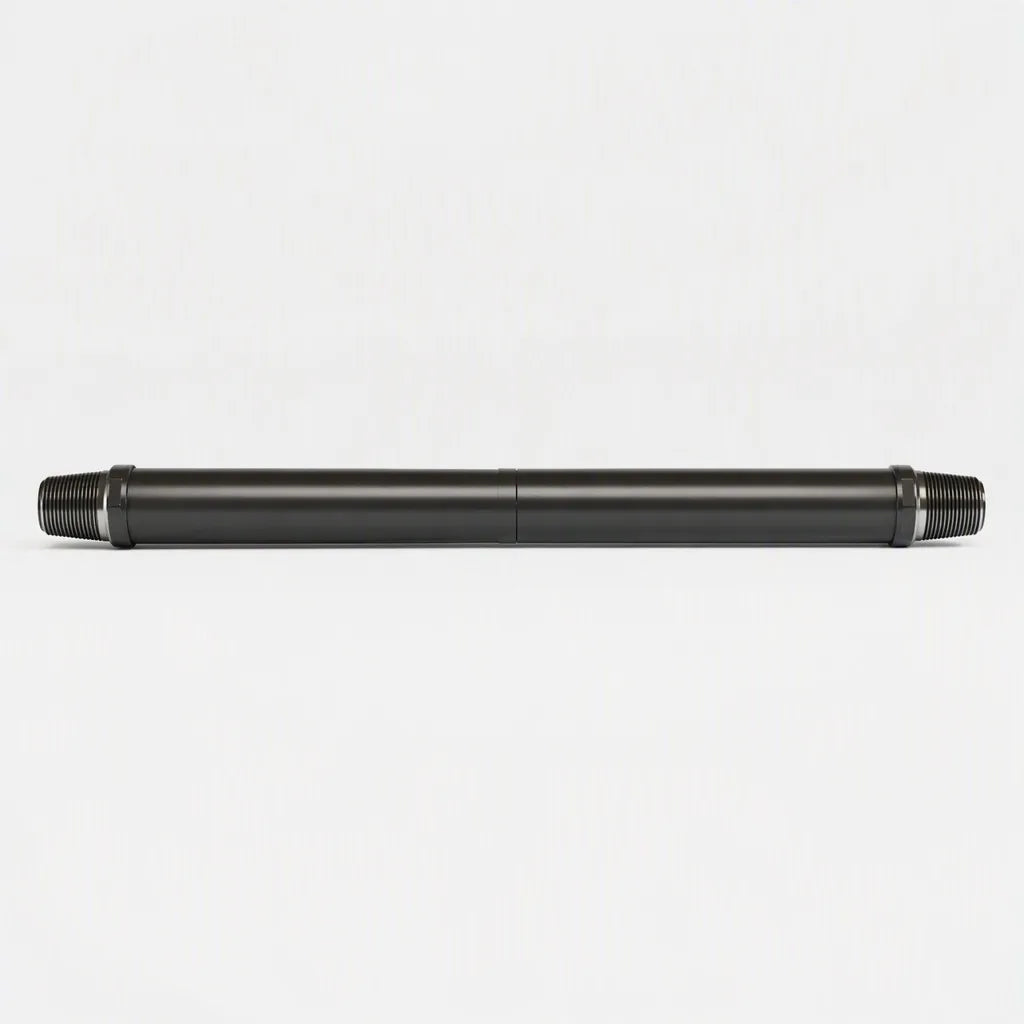

PerfoMax currently offers a 76 mm OD DTH drill pipe with API 2-3/8 Reg pin × box connections, available in 1000, 1500, 2000 and 3000 mm lengths. It is a real option when the selected hammer, hole geometry, compressor and rig are compatible with that pipe size and connection.
Do not interpret “76 mm pipe” as a universal recommendation for every 3-inch or 4-inch DTH system. The current PerfoMax product page specifically requires confirmation of the hammer's top-sub connection. A hammer configuration with another thread does not directly mate with the 2-3/8 Reg pipe unless a separately verified adapter arrangement is used.
Common Procurement Mistakes
- Choosing pipe only by nominal hammer inch size. Hammer size is useful context, but actual OD, bit range, top-sub thread and OEM configuration still matter.
- Assuming more annular clearance always improves flushing. A larger annulus can reduce return velocity when airflow is fixed.
- Choosing the largest pipe that physically fits the hole. Mechanical clearance must remain adequate for deviation, wall contact and cuttings.
- Ignoring the pipe's internal air passage. OD tells you the outside geometry; it does not by itself verify air-delivery capacity.
- Checking thread after the purchase order. Connection compatibility should be verified before quotation and again against the final hammer configuration.
- Treating poor hole cleaning as a pipe-only problem. Bit flushing, compressor condition, leakage, water, worn tooling, cuttings characteristics and operating parameters can produce similar symptoms.
Field Symptoms That Can Point to a Pipe-Size or System-Matching Problem
| Symptom | Possible System Cause | What to Check First |
|---|---|---|
| Cuttings return becomes weak | Return-air velocity may be inadequate; compressor flow may be insufficient; bit flushing may be restricted. | Compressor output, leaks, bit flushing, hole/pipe geometry and water conditions. |
| Cuttings accumulate and are repeatedly reground | Hole cleaning is not keeping pace with penetration. | Return airflow, annular area, bit condition and penetration/feed settings. |
| Pipe frequently rubs or sticks | Clearance may be too tight for hole deviation or ground condition. | Actual hole diameter, pipe/coupling OD, deviation, wall condition and cuttings bed. |
| Hammer performance drops as depth increases | Air-delivery losses, leakage or increasing flushing demand may be involved. | Pressure/flow at operating depth, connections, pipe bore and compressor capacity. |
| A replacement pipe connects but drilling deteriorates | The connection may match while OD/ID or overall system geometry differs. | Compare the old and new pipe dimensions, not just thread designation. |
These symptoms are diagnostic prompts, not proof that pipe OD is wrong. Change one variable only after checking the full air and drill-string system.
Pre-Purchase RFQ Checklist
For a reliable DTH drill-pipe quotation, provide:
- Required hole diameter or bit gauge.
- DTH hammer manufacturer, model and nominal size.
- Exact hammer top-sub thread and connection gender.
- Compressor working pressure and free-air delivery.
- Target hole depth and typical drilling angle.
- Rock type, degree of fracturing and abrasiveness if known.
- Expected water inflow or water injection.
- Current pipe OD, length and connection if replacing an existing string.
- Rig model and rod-handling constraints.
- Any known problems: weak flushing, stuck pipe, rapid wear or pressure loss.
If you are evaluating the PerfoMax 76 mm pipe, include the hammer model and exact top-sub thread so the 2-3/8 Reg connection can be checked before quotation.
Frequently Asked Questions
Is a smaller DTH drill pipe always better because it leaves more clearance?
No. More clearance increases annular area. At the same return-air volume, that tends to reduce average upward velocity, which can make cuttings removal harder. The pipe still needs adequate mechanical clearance, so selection is a balance.
Can I choose DTH pipe diameter from hole diameter alone?
No. Hole diameter is the starting boundary, but hammer size and top-sub, compressor air delivery, pipe air passage, depth, ground condition and rig handling also matter.
Can a 76 mm DTH pipe be used with a 4-inch hammer?
It can be a candidate in some 4-inch DTH systems, but nominal hammer size alone is not enough to approve compatibility. Verify the hammer's exact top-sub thread, body/bit geometry, compressor requirement, rig configuration and the intended hole diameter. PerfoMax's current 76 mm pipe uses API 2-3/8 Reg pin × box connections.
Does pipe ID matter if OD and thread are correct?
Yes. The internal air passage affects how compressed air reaches the hammer. Confirm the supplier's current pipe bore/wall specification and evaluate it with the hammer and compressor requirements.
Why can a DTH string have poor flushing even when the pipe diameter looks correct?
Because pipe OD is only one variable. Compressor output, leakage, bit flushing passages, water, cuttings characteristics, worn components, hole depth and operating settings can all reduce effective hole cleaning.
Technical References
- Sandvik — Leopard DI550 DTH drill rig technical specifications: hole range, hammer sizes, flushing-air capacity and supported drill rod/tube diameters.
- Sandvik — Down-the-hole drilling tools: DTH pipes as part of the integrated rig/tool system.
- Epiroc — SmartROC D60: DTH hole range, hammer sizes and air-capacity data for a current production rig.
- Epiroc — Down-the-hole drilling tools: current DTH hammers, bits, pipes and related system components.
Match the Pipe to the Whole DTH System
The safest purchasing decision is not “Which pipe diameter is standard?” but “Which pipe diameter makes this specific hole, hammer, compressor and connection work together?” Start with the hole requirement, verify the hammer and air system, compare annular geometry, then confirm pipe dimensions and thread before ordering.
Review the PerfoMax 76 mm DTH drill pipe if API 2-3/8 Reg is relevant to your system, or send your drilling parameters to PerfoMax for an RFQ compatibility check.
