Quick answer: Before accepting a bulk DTH drill pipe shipment, verify the ordered configuration first, then inspect the interfaces and evidence that can create expensive field failures: thread identity and condition, shoulder/contact surfaces, overall and joint dimensions, straightness/runout, friction-weld condition where applicable, bore cleanliness, traceability documents, thread protection, and export packing. Do not substitute a generic tolerance for the approved drawing, purchase order, or agreed inspection plan. The buyer and supplier should define acceptance limits and the required inspection/NDT scope before shipment.
This guide is for mining, quarrying, water-well, construction and drilling-service buyers who need a practical pre-shipment quality-control framework for new DTH drill pipes. It focuses on what a procurement or QA team can verify before the pipe is released, rather than on field wear limits for used pipe.
1. Start With Ordered Identity, Not Appearance
A clean, straight-looking pipe can still be the wrong pipe. Begin by matching the physical lot against the latest approved purchase order, drawing, quotation, or order acknowledgement. Configuration control should come before cosmetic inspection.
| Item to confirm | Why it matters | Preferred evidence |
|---|---|---|
| Pipe OD and ordered length | Controls rig handling, drill-string geometry and the ordered item identity. | PO/drawing plus measured result. |
| Thread designation and end arrangement | Must match the rotary head/saver sub and hammer top-sub connection. | Approved drawing, order description, marking and agreed thread check. |
| Wall thickness / bore when specified | Affects airflow capacity and mechanical design; it cannot be inferred safely from OD alone. | Drawing or quotation-controlled dimensions. |
| Joint geometry and wrench flats | Affects make-up, handling and service compatibility. | Approved drawing and dimensional record. |
| Quantity, lot and marking | Inspection evidence must trace to the actual shipment. | Packing list, bundle ID, lot/batch identification when required. |
| Required certificates / NDT records | Only useful when their scope and lot linkage match the PO. | Purchase order or inspection-and-test plan document list. |
Do not treat “76 mm DTH pipe” or “API 2-3/8 REG” as the complete specification. The connection name is important, but a purchase also needs the correct end arrangement, pipe dimensions, length, joint details and mating equipment context.
2. Inspect Threads and Shoulders as Functional Interfaces
DTH pipe connections repeatedly transmit rotation, feed/pullback loads and compressed air through a string that is made up and broken down many times. That makes the thread and its contact surfaces high-consequence interfaces.
Visual screening
- Confirm the correct box/pin or other ordered end arrangement.
- Check for crushed or dented thread crests, severe burrs, impact marks, corrosion, contamination or handling damage.
- Check the shoulder/contact areas for damage that could prevent proper seating where the connection design uses those surfaces.
- Confirm thread protectors can be fitted securely after inspection.
Formal conformity
Visual inspection and hand engagement are screening tools, not complete thread metrology. If thread geometry is a contractual acceptance characteristic, the quality plan should name the required gauge, master, dimensional method or governing standard. API identifies Spec 7-2 as the specification for threading and gauging rotary shouldered connections; however, the buyer should apply the exact drawing/standard referenced by the order rather than assuming that a connection name alone proves conformity.
A mating test with a known-good component can expose gross fit problems, but it does not by itself verify profile, lead, diameter, taper, shoulder position or every other controlled characteristic.
3. Verify the Dimensions That Define the Ordered Pipe
Measure the characteristics that control identity and compatibility. The exact list depends on the approved design, but it can include:
- overall length and make-up length;
- pipe outside diameter;
- wall thickness and/or internal bore when drawing-controlled;
- tool-joint outside diameter and relevant joint lengths;
- wrench-flat size and position;
- thread-related dimensions required by the inspection plan;
- shoulder/contact positions or other connection features.
Use measurement equipment appropriate to the tolerance and record the drawing revision, units and result. If a shipment contains several lengths, threads or wall configurations, keep the records separated by item or lot.
4. Check Straightness and Runout With an Agreed Method
Straightness is not just a cosmetic characteristic. Sandvik describes DTH drilling pipes made from cold-drawn seamless tubing to support straightness, consistent thickness and strength. In procurement inspection, the practical lesson is to verify straightness using a repeatable method rather than judging a long pipe by eye.
The inspection plan should define:
- how the pipe is supported, such as suitable rollers or V-blocks;
- whether the characteristic is straightness, radial runout, total indicated variation or another drawing-defined measure;
- where readings are taken and whether the pipe is rotated;
- the acceptance limit from the approved drawing or contract;
- how nonconforming pieces are identified, segregated and dispositioned.
A number without the measurement setup is difficult for the supplier and buyer to reproduce later. Avoid borrowing a straightness tolerance from another pipe diameter, thread family or manufacturer unless the contract explicitly adopts it.
5. Inspect the Friction-Weld Zone—and Define NDT Scope Before Shipment
Many DTH drill pipes use separate tool-joint/end pieces joined to a pipe body by friction welding. Sandvik’s DTH pipe information describes friction-welded end pieces, while PerfoMax’s current 76 mm pipe page identifies alloy-steel tool joints with a welded pipe body and lists friction-weld appearance plus NDT scope as an order-dependent inspection option.
For pre-shipment control, separate three questions:
- Visual condition: Is the weld/transition zone free from obvious abnormal cracks, severe undercut-like damage, gross mismatch, heavy impact damage or other visible conditions that conflict with the agreed standard?
- Dimensional condition: Are runout, joint position and other controlled dimensions within the drawing limits?
- NDT evidence: If ultrasonic or another NDT method is required, was the method, coverage, acceptance criterion and sampling/100% scope defined in the PO or ITP, and does the report trace to this lot?
Do not assume every supplier or every order uses the same NDT scope. Sandvik publicly describes welding-process control and ultrasonic weld inspection in its own quality assurance, but that is an OEM practice—not a universal acceptance requirement for every DTH pipe. Buyers who need NDT should specify it before production or shipment.
6. Confirm Bore and Flushing-Path Cleanliness
The pipe is also an air passage between the rig and the DTH hammer. Before packing, check that the bore and end openings are clean and free from obvious obstruction, loose scale, foreign material or shipping debris. When internal diameter, wall thickness or other bore features are drawing-controlled, inspect them using the specified method rather than treating “air can pass through” as dimensional proof.
After inspection, protect the ends so cleaning and measurement are not undone during handling.
7. Decide Which Checks Are 100%, Sampled, or Document-Based
“QC before shipment” is not an inspection plan. A useful plan tells both parties which characteristics are checked on every piece, which are sampled, and which are verified through process or material records.
| Control type | Typical purpose | Boundary |
|---|---|---|
| 100% identity / visual check | Wrong item, end arrangement, severe handling damage or other critical configuration errors. | Exact scope should still be written into the quality plan. |
| Dimensional sampling | Drawing dimensions on an agreed number of pieces per lot. | Sample size, method and acceptance rule must be agreed. |
| Thread gauging | Formal connection conformity where specified. | Use the specified gauge/standard; do not substitute hand fit. |
| NDT | Weld/joint integrity evidence when required. | Method, coverage, acceptance criteria and lot traceability must be stated. |
| Document review | Material, heat-treatment, dimensional or test records required by the PO. | A certificate proves only what it covers and must link to the shipment. |
Criticality, supplier history, project requirements and the cost of field failure should influence the scope. If the buyer requires third-party witnessing, define the hold/witness points before the goods are ready.
8. Build an Evidence Pack That Can Be Reconciled to the Shipment
A useful pre-shipment report should answer three questions months later: what was inspected, which lot or bundle did the result belong to, and what acceptance criteria were used?
- PO number, item code and latest drawing/quotation revision.
- Quantity and lot/bundle identity.
- Thread inspection method and results where required.
- Dimensional and straightness/runout results with measurement method.
- NDT report only when the order requires it, including traceability to the inspected lot.
- Material or heat-treatment records when specified in the PO.
- Representative photos of markings, threads, weld/transition zones and protected ends.
- Final packing photos and packing list tied to bundle identification.
Generic “QC passed” photos are weak evidence if they cannot be linked to the item, lot and acceptance requirement.
9. Treat Packing as the Last Quality Gate
Finished pipes can be damaged after they pass dimensional inspection. Before shipment release, verify that the agreed export packing protects the same interfaces you just inspected.
- Thread protectors are installed and secure.
- Ends and shoulders are protected against steel-to-steel impact.
- Bundles are restrained so pipes cannot repeatedly strike one another during truck, container or site handling.
- Any agreed corrosion protection is applied.
- Bundle labels identify the correct thread, length, quantity and shipment reference.
- Long bundles are supported and liftable without creating obvious bending or point-loading risk.
PerfoMax’s current 76 mm DTH drill pipe supply basis explicitly includes thread protection and export packing, so buyers can state their required packing and shipment-identification details in the quotation and PO rather than leaving them until loading day.
10. PerfoMax 76 mm DTH Drill Pipe: Inspection Inputs Buyers Can Specify

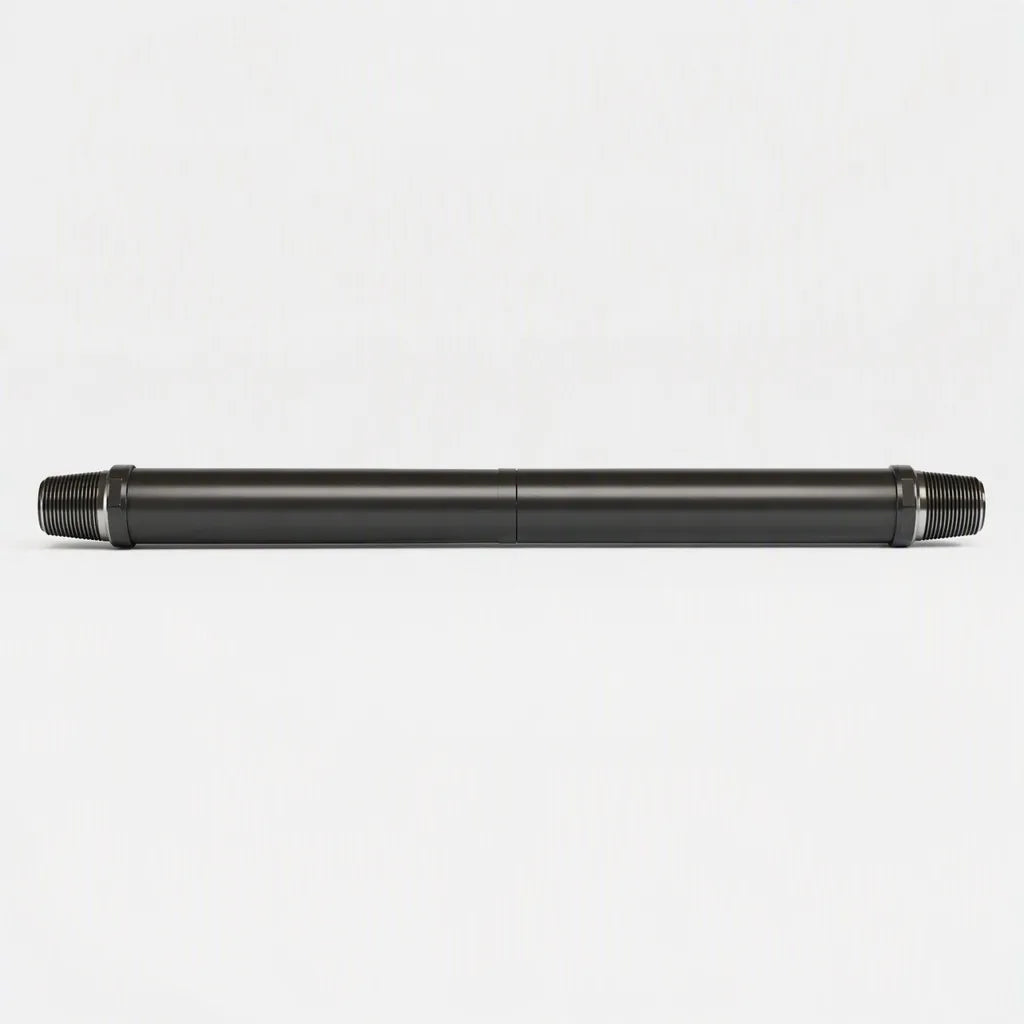

PerfoMax currently lists a 76 mm DTH Drill Pipe with API 2-3/8 REG box × pin connection and inquiry lengths of 1,000, 1,500, 2,000 and 3,000 mm. The current product page says compatibility should be confirmed against the rotary head/saver sub, hammer top-sub, pipe OD/wall/bore, joint dimensions, torque, pullback, depth and operating conditions.
For quality planning, the same current page lists the following available inspection/control items:
- thread gauge and shoulder-contact inspection;
- friction-weld appearance and NDT scope by order requirement;
- straightness, runout, overall length and joint dimensions;
- material / heat-treatment records when specified in the purchase order;
- thread protectors, bundled packing and shipment identification.
These are useful RFQ building blocks, but the quotation drawing and agreed inspection requirements should control the final acceptance criteria.
11. Common DTH Drill Pipe Pre-Shipment Inspection Mistakes
- Ordering by OD and thread name only. That omits wall/bore, length, joint geometry and mating-system details.
- Inspecting cosmetics before configuration. A visually good pipe can still be the wrong item.
- Using a generic straightness or runout tolerance. Acceptance limits must come from the ordered design or contract.
- Treating smooth hand engagement as thread certification. It can screen gross mismatch but cannot prove all thread geometry.
- Requesting NDT after production is complete. Method, scope and acceptance criteria should be agreed before they become schedule-critical.
- Accepting certificates without lot traceability. Evidence must link to the actual shipment.
- Ignoring packing after inspection. Unprotected threads can be damaged between the QC table and the buyer’s site.
12. RFQ and PO Checklist for DTH Drill Pipe Quality Control
Send enough information for the supplier to quote, manufacture and inspect the same pipe you intend to use:
- rig make/model and rotary-head or saver-sub connection;
- DTH hammer model and top-sub connection;
- pipe OD, thread and box/pin arrangement;
- required length;
- wall thickness, bore or current-pipe drawing when controlled;
- joint dimensions and wrench-flat requirements where relevant;
- quantity and delivery split;
- drawing revision and dimensional tolerances;
- thread-gauging method or referenced standard when required;
- straightness/runout measurement method and acceptance criterion;
- weld inspection and NDT method/scope/acceptance criterion if required;
- material/heat-treatment documentation requirements;
- marking and lot/bundle traceability requirements;
- thread protection, corrosion protection and export-packing requirements;
- destination and any container/handling restrictions.
For a field-maintenance perspective, see the related DTH Drill Pipe Inspection Guide. For connection selection, see DTH Drill Pipe Thread Compatibility: API REG Size Guide. Buyers can also review current DTH Tools or send the full configuration through Request a Quote.
FAQ
Is “API 2-3/8 REG” enough information to approve a DTH drill pipe?
No. It identifies an important connection family, but approval still requires the ordered end arrangement, pipe OD, length, wall/bore where specified, joint dimensions, mating rig/hammer interfaces and the acceptance criteria in the drawing or PO.
Does every friction-welded DTH pipe require ultrasonic testing?
Not as a universal rule. Some OEM quality systems use ultrasonic weld inspection, but the buyer should define whether NDT is required for the specific order, which method applies, whether the scope is 100% or sampled, and what acceptance criteria control.
How should DTH drill pipe straightness be checked?
Use the method defined by the drawing or inspection plan. A repeatable setup typically defines the pipe supports, measurement instrument, reading locations, whether the pipe is rotated, and the allowable straightness/runout limit. Visual judgment alone is not enough for a controlled dimensional characteristic.
Can a mating test replace a thread gauge?
No when formal thread conformity is required. A known-good mating component can reveal a gross mismatch, but proper gauging or dimensional inspection is needed for the characteristics controlled by the order or referenced standard.
What documents should a buyer request with DTH drill pipes?
Request only evidence that supports the agreed specification: dimensional/thread inspection results, lot traceability, material or heat-treatment records if required, NDT reports if required, packing list and shipment identification. Define these documents in the RFQ or PO so they are generated against the correct lot.
Technical References
- Sandvik Mining — Down-the-hole drilling pipes.
- American Petroleum Institute — API program updates including Spec 7-2, Threading and Gauging of Rotary Shouldered Connections.
