Rock Drilling Tool Export Packaging: Corrosion Protection, Crating, and Sea-Freight Checklist

Quick answer: A reliable rock drilling tool export packaging specification should control four risks separately: corrosion, damage to threads and other working interfaces, bending or impact during handling, and border problems caused by non-compliant wood packaging. The buyer should freeze the protection method, crate or bundle construction, marking, photo evidence, and receiving checks before shipment. “Seaworthy packing” alone is too vague to be an acceptance standard.

This checklist is written for mines, quarries, drilling contractors, distributors, and procurement teams buying button bits, drill rods, DTH pipes, hammers, shanks, or pneumatic rock-drill parts for international delivery. The exact solution still depends on tool geometry, bare-metal exposure, route, transit time, storage conditions, handling equipment, destination rules, and the supplier’s approved preservation materials.

What should a rock drilling tool export packing specification include?

At minimum, the purchase order or packing annex should identify the product and lot, define surface preservation, protect every connection and critical face, restrain the load without creating damaging point loads, specify any required wood-packaging compliance, and require evidence that can be checked before dispatch.

Start with the tool family, not a generic crate

Rock drilling tools do not all fail in transit in the same way. A compact button bit is vulnerable to carbide contact, thread damage, and corrosion inside the connection. A long rod or DTH pipe adds bending, rolling, end impact, and handling risks. A hammer or rock drill may have ports, splines, seals, or internal surfaces that require approved closures and preservation. The packing design should therefore follow the most sensitive feature of each item.

Button bits and other compact drilling tools

• Prevent carbide buttons and bit faces from striking each other or the crate.
• Protect internal or external threads from grit, moisture, and side loading.
• Use dividers, trays, sleeves, or individual wrapping when metal-to-metal contact could damage working surfaces.
• Keep labels readable after protective wrapping is applied.

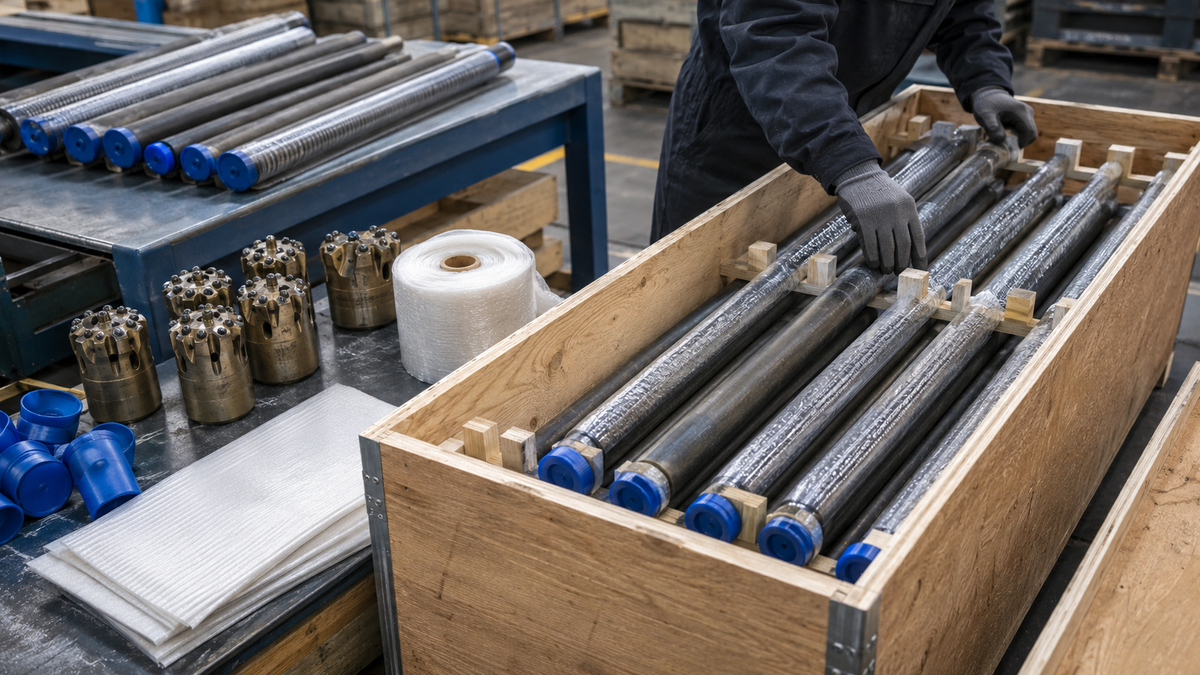

Drill rods, shank adapters, and DTH pipes

• Support long components at enough locations to avoid excessive sag and local bending during lifting or transport.
• Use end protectors on every connection and arrange bearers so protectors do not carry the bundle weight.
• Restrain rolling and longitudinal movement; do not rely on stretch film as structural restraint.
• Separate different lengths, connections, or lots when mixing them would make receiving control unreliable.

Hammers, rock drills, and service parts

• Close exposed ports and openings with clean, secure protectors suitable for the component.
• Immobilize heavy cylindrical items so they cannot roll or strike adjacent parts.
• Separate loose accessories and identify their relationship to the main assembly.
• Follow the equipment or preservation-material supplier’s instructions for internal protection; do not improvise with unknown oils or inhibitors.

How should corrosion protection be specified for sea freight?

Corrosion control begins before wrapping. Parts should be clean and dry, and the selected protective system should be compatible with the metals, coatings, elastomers, and later commissioning process. Packaging a damp part inside an impermeable barrier can trap the condition that the barrier was meant to prevent.

A buyer can specify a conventional rust-preventive coating, VCI film or paper, a sealed moisture-barrier system with desiccant, or a validated combination. The choice should be made from the route and exposure assumptions, not from a universal recipe. VCI suppliers note that enclosure and sealing are important to maintaining the protective environment; their product instructions should govern compatibility, application distance, sealing, and protection duration. For background, see the technical guidance from ZERUST on protecting bare steel during sea freight.

A practical corrosion-control hold point

1. Confirm the parts are clean, dry, and at a suitable temperature before closure.
2. Record the preservation material and its application method.
3. Check that sharp edges cannot puncture the barrier.
4. Place any VCI or desiccant according to the material manufacturer’s instructions.
5. Seal the barrier and inspect every seam, closure, and penetration.
6. Photograph the protected parts before the crate or outer wrap hides them.

Do not write an arbitrary number of desiccant bags into the purchase order without defining the barrier area, packing material, humidity assumptions, and calculation method. “One bag per crate” is not an engineering basis. Likewise, do not assume that a corrosion inhibitor approved for ferrous steel is automatically suitable for every mixed-metal assembly.

Protect threads and working interfaces from load, dirt, and impact

Thread caps and plugs do more than keep out dust. They reduce direct impact on thread crests and prevent small hard particles from being pressed into a connection. But a thin plastic protector is not a structural support. If a pipe bundle rests on its caps, handling loads can still reach the connection or split the protector.

For threaded rods and DTH pipes, the packing drawing should show the direction of box and pin ends, the type of protector, the bearer locations, and the restraint method. For tapered connections, protect both the tapered surface and the striking end. For splines, shanks, and precision faces, use sleeves or non-abrasive separators that cannot absorb water and hold it against the metal.

How should long tools be bundled, blocked, and crated?

A sound package lets the load be lifted, transferred, stacked where permitted, and transported without shifting. The crate or bundle must be designed for the actual gross weight, dimensions, center of gravity, lifting method, and transport sequence. These are engineering inputs; they should not be inferred from appearance.

• Bearers: Position them to support the load without forcing the product to bridge a long unsupported span or concentrate weight on a weak feature.
• Blocking: Prevent rolling and longitudinal movement. Blocks should engage robust surfaces, not threads, buttons, ports, or thin protectors.
• Separation: Use durable separators to stop steel-on-steel fretting and impact. Keep different SKUs or lots identifiable.
• Strapping: Select and tension strapping for the package design. Protect the product from strap-edge damage and avoid over-tension that distorts tubes or crushes protective material.
• Handling access: Mark and construct safe forklift or lifting points. Do not allow fork entry to contact the tools.
• Container restraint: Treat the crate and the container as two levels of restraint. A strong crate can still move if it is not properly secured in the cargo transport unit.

The joint IMO/ILO/UNECE Code of Practice for Packing of Cargo Transport Units provides non-mandatory global guidance on loading and securing cargo across sea and land transport. It emphasizes planning, proper packing, restraint, weight control, and accurate cargo information. The freight forwarder and packer should apply the current rules and approved securing methods for the specific shipment.

When does ISPM 15 matter for crates and pallets?

ISPM 15 addresses phytosanitary risk from wood packaging material made from raw wood in international trade. It covers items such as pallets, crates, blocks, and dunnage made from regulated raw wood. The standard excludes certain low-risk materials, including packaging made wholly from processed wood such as plywood, but a plywood case can still contain regulated solid-wood runners, blocks, or bracing.

The official IPPC ISPM 15 publication explains the standard’s scope, while the Australian Department of Agriculture’s ISPM 15 export FAQ gives a useful practical summary of exemptions and advises exporters to confirm importing-country requirements.

For purchasing control, do not merely write “plywood crate” and assume the package is outside the rule. Ask the supplier to identify every structural material: panels, pallet deck, runners, bearers, blocks, and dunnage. If regulated wood is used, require the applicable treatment and mark to be visible after packing. Always confirm the current destination-country requirements with the importer, carrier, forwarder, or competent plant-protection authority before dispatch.

Control moisture inside the package and container

Sea freight can expose cargo to long temperature and humidity cycles. Moisture can come from the cargo, damp timber, wet packing materials, the surrounding air, or container leakage. The packaging plan should therefore distinguish between corrosion protection immediately around the tool and moisture management at crate or container level.

• Do not load visibly damp cargo, dunnage, or absorbent packing materials.
• Inspect the container for damage, contamination, standing water, and unsuitable odors before stuffing.
• Keep barrier packaging intact and away from nails, sharp edges, and rough timber.
• Use desiccants only within a defined system and according to the supplier’s calculation and handling instructions.
• Do not block container ventilation or add ventilation as a reflex; the correct approach depends on cargo and voyage conditions.
• Arrange cargo so that condensation from container surfaces is less likely to reach the protected product directly.

What packing evidence should the supplier provide?

A compact evidence pack makes pre-shipment approval and receiving inspection faster. It should be agreed before production, not requested after the container has closed.

Rock drilling tool export packaging checklist for an RFQ

1. List each tool family, size, connection, length, quantity, and estimated or confirmed unit weight.
2. State transport mode, destination, planned route, expected storage, and whether the buyer will unpack immediately.
3. Define clean-and-dry acceptance and the approved corrosion-protection system.
4. Require caps, plugs, sleeves, face protection, and part-to-part separation where relevant.
5. Define bundle or crate type, support and restraint concept, package weight limit, and handling method.
6. Identify the party responsible for confirming ISPM 15 and other destination packaging requirements.
7. Require package numbering, labels, packing list fields, and photo evidence.
8. Define a pre-shipment hold point: no dispatch until the agreed evidence is accepted.
9. Define receiving inspection, notification timing, and how damaged or wet packaging will be quarantined.

Common export packing mistakes

• Using “standard export packing” or “seaworthy packing” without measurable requirements.
• Protecting the outside of a crate while leaving threads or carbide faces free to contact each other.
• Putting long rods on too few supports or using thread caps as load-bearing points.
• Wrapping parts before they are dry, then trapping moisture inside a sealed barrier.
• Applying a preservation material without checking metal, coating, seal, or commissioning compatibility.
• Checking plywood panels but overlooking raw-wood runners, blocks, or dunnage.
• Accepting photos of a closed crate that provide no evidence of internal protection and restraint.
• Mixing sizes, connections, or lots without a receiving-friendly identification plan.

Receiving checks after international shipment

Record the container and package condition before unpacking. Photograph dents, broken boards, wet areas, displaced straps, damaged marks, or punctured barriers. Open suspect packages in a controlled area, preserve evidence, and compare quantities and identities with the packing list. Do not put a corroded, contaminated, impact-damaged, or questionable connection into service until competent personnel have assessed it under the site’s quality and safety procedure.

For apparently sound packages, confirm that caps and closures remain fitted, barriers are intact, parts are dry, labels match, and no component shifted onto a critical interface. Receiving acceptance should close the same controls that were written into the RFQ.

Frequently asked questions

Is VCI film enough for drilling tools shipped by sea?

Not automatically. VCI is one possible element of a corrosion-control system. Suitability depends on the metals, cleanliness, enclosure, sealing, exposure, and product instructions. Mechanical protection and container-level moisture control are separate requirements.

Do plywood crates need an ISPM 15 mark?

Packaging made wholly from processed wood such as plywood is generally outside ISPM 15’s scope, but solid-wood runners, blocks, pallets, or dunnage can bring regulated material into the package. Confirm the full construction and destination rules for each shipment.

Should drill pipes be packed with thread protectors?

Yes, threaded ends should be protected from impact and contamination. The packing design must also keep bundle weight and restraint forces off the protectors and connections.

Can different drill-tool sizes share one crate?

They can only when separation, restraint, identification, weight distribution, and receiving control remain adequate. Separate packages are usually easier to verify when sizes, connections, or lots could be confused.

What photos should be required before shipment?

Request images before closure showing preservation, protectors, separators, and restraints; images after closure showing all sides and marks; and loading images showing package position and securing. Each package number should be traceable across the photos and packing list.

Turn packing requirements into a controlled quotation
