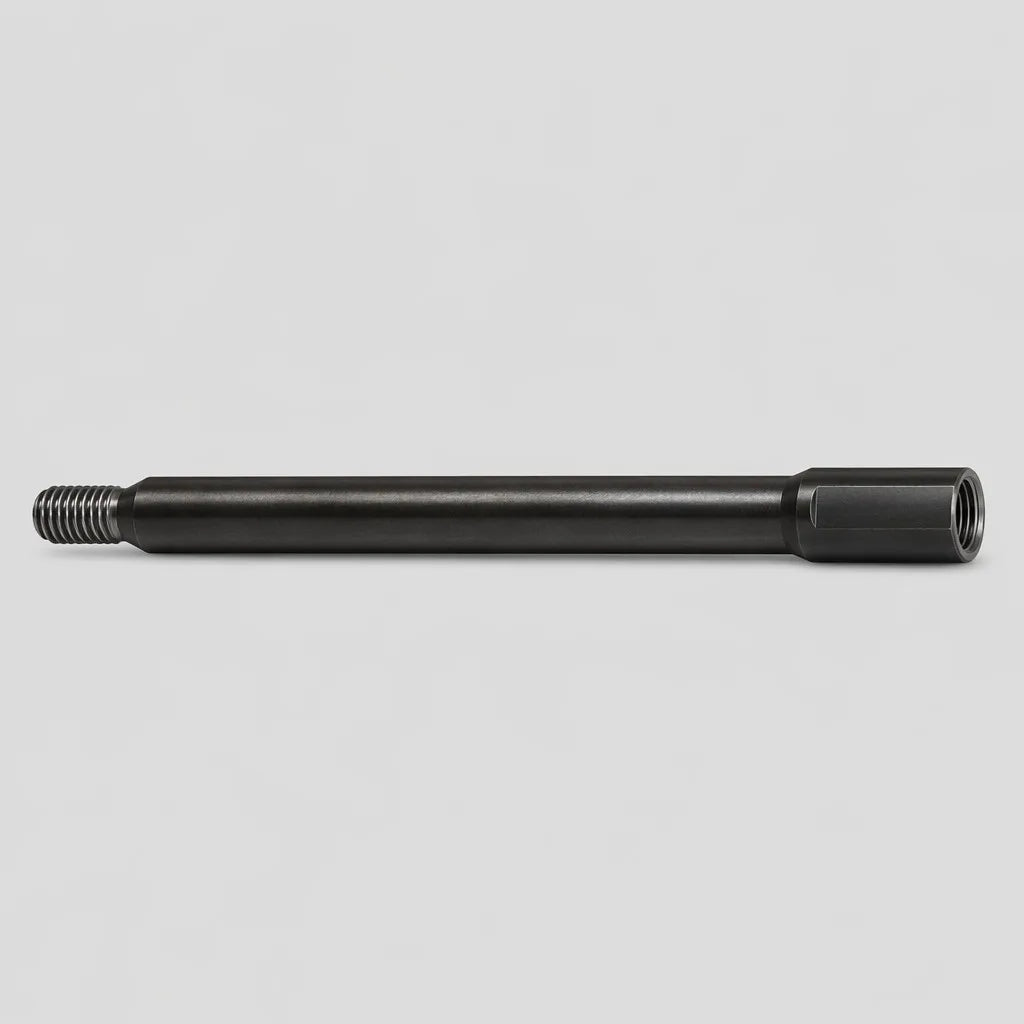

Direct answer: there is no universal “best” T38 drill rod length. Choose the longest rod that your installed rig, feed system, rod handling arrangement, guides and worksite can reliably accept—then confirm that the length fits the hole plan and the rest of the T38 drill string. PerfoMax currently offers male–male T38 extension rods in 3,050, 3,660, 4,270 and 4,880 mm inquiry lengths, but availability does not mean every length fits every rig.
The key distinction is simple: T38 defines the thread family; rod length defines a separate machine-handling and drilling-planning decision. A 4,880 mm T38 rod can have the correct thread and still be the wrong purchase if the rig feed, rod changer, carousel, centralizers, available headroom or transport setup cannot handle it.
This guide is for quarry, construction and production-drilling buyers comparing T38 rod lengths before a replacement order, fleet standardization or new drill-string purchase.
1. What Changes When T38 Rod Length Changes?
Changing from a 3,050 mm rod to a 3,660, 4,270 or 4,880 mm rod does not change the T38 thread designation, but it can change how the drill string is handled and how often rods must be added for a given hole plan.
- Rig fit: the feed beam, rod holder, carousel or rod changer must physically accept the rod length.
- Rod-addition frequency: longer usable sections can reduce the number of rod additions needed for a given drilled depth, provided the machine can handle them.
- Site handling: longer rods need more clearance for loading, unloading, storage and manual handling.
- Fleet standardization: changing length can create a second spare-parts and handling standard even when the thread remains T38.
- Connection architecture: male–male extension rods still require a separate same-family coupling between rods. An MF speed rod is a different configuration and should not be treated as the same product merely because the thread is T38.
Published rod ranges also vary by rod construction. Treat rod type, body, connection architecture and machine setup as separate approval fields rather than assuming that one T38 length range applies to every configuration.
2. 3050 vs 3660 vs 4270 vs 4880 mm: Practical Selection Matrix
| PerfoMax inquiry length | When it may be a good candidate | Main check before ordering |
|---|---|---|
| 3,050 mm | Existing fleets already standardized near 3 m; tighter handling or feed constraints; replacement where the installed rod length is already confirmed | Confirm nominal versus effective length and that the replacement matches the current rod drawing |
| 3,660 mm | Common practical mid-range option for many extension-drilling setups when the rig is already designed around this class of rod length | Verify feed length, rod holder/changer capacity and current fleet standard |
| 4,270 mm | Longer-section planning where fewer rod additions are desirable and the rig can handle a longer rod | Check feed beam, rod handling, guides, storage and transport clearance |
| 4,880 mm | Long-section option when the specific rig and handling system are confirmed for it | Do not infer compatibility from T38 thread alone; verify the machine and approved drill-string drawing explicitly |
These are selection directions, not universal equipment limits. The rig manufacturer’s documentation and the approved quotation drawing control the final configuration.
3. First Gate: Match the Rod to the Rig Feed and Rod Handling System
Before comparing drilling productivity, check whether the machine can physically load, hold and advance the proposed rod. This is the first gate because a mechanically incompatible rod length makes every downstream comparison irrelevant.
For mechanized top-hammer rigs, verify:
- usable feed length and feed-beam geometry;
- rod changer or carousel capacity;
- rod holder, guide and centralizer clearances;
- space required to load and unload the rod;
- the rig manufacturer’s approved rod configuration;
- whether the current drill string uses male–male extension rods or MF speed rods.
Long-feed rigs can reduce rod-handling cycles only when the feed, guides and loading system are designed for the selected section length. The operational advantage belongs to the verified machine-and-string configuration, not to the longest catalog rod by itself.
If the current rig uses 3,660 mm rods and you want to move to 4,270 or 4,880 mm, do not order first and “test the fit” later. Confirm the feed/handling envelope before quotation.
4. Rod-Changer Interface Release Matrix
A T38 rod should not be released for a mechanized rig from length and thread alone. The machine must be able to store, pick up, grip, guide, connect, retract and return the exact rod configuration without uncontrolled contact or an improvised handling step. Treat the rod changer, magazine, grippers, centralizer and feed as one machine-side interface.
Use the exact rig, feed and rod-handling option as the controlling reference. A fit on another machine in the same family is supporting evidence only. Where the rig manual, approved tooling list or machine drawing states a limit, that equipment-specific requirement overrides a generic catalog comparison.
| Release gate | Evidence to compare | Hold point |
|---|---|---|
| Rig and handler identity | Rig model, serial/configuration, feed option, changer or carousel type, and approved rod family | Machine variant or handler option is unknown |
| Length and end architecture | Overall-length datum, male–male or MF ends, coupling position, and the current proven rod | Only “T38” or a nominal length is supplied |
| Body and handling surface | Body diameter/profile, straight section available to the jaws, surface condition, and any upset or transition zones | A gripper would contact a thread, coupling, label ridge, upset or uncontrolled transition |
| Magazine or carousel fit | Pocket length, pocket spacing, retainers, separators, loading direction and stored quantity | The rod can bridge, foul an adjacent pocket or sit outside the retainer geometry |
| Gripper and transfer fit | Jaw type, open/closed clearance, clamping zone, transfer path and alignment with the drill axis | The rod slips, is visibly off-axis or needs manual guidance inside the danger zone |
| Guide and centralizer fit | Body clearance through supports and centralizer, coupling/end clearance, and full travel without contact | Binding, side loading or uncontrolled metal contact appears at any position |
| Feed and retraction envelope | Pickup position, connection position, usable travel, retraction clearance and return-to-storage path | The rod cannot complete the full approved sequence with guards and interlocks in service |
| Sequence and sensing | Rod-present sensing, jaw confirmation, pocket indexing, pusher/ejector action and the machine’s approved timing logic | A sensor disagrees with the physical state or an interlock must be bypassed |
Rod-handler disposition gate
| Status | When to use it | Buyer or site action |
|---|---|---|
| APPROVE REPLACEMENT | Controlled documentation matches the exact machine option and the complete handling sequence is already proven for the same rod configuration | Release the rod length, end type, body/profile and drawing revision together |
| CONTROLLED COMMISSIONING TEST | Documents match, but a new supplier, revised drawing or controlled length change still needs machine confirmation | Quarantine the lot until an authorized, recorded test passes |
| HOLD FOR MACHINE DATA | A pocket, jaw, clamping-zone, guide, feed or sensor requirement is missing | Obtain the rig/handler manual, approved-tool list, drawing or verified measurement |
| RESELECT CONFIGURATION | The rod cannot complete the approved path or requires altered guards, defeated interlocks, hand assistance or forced engagement | Select another approved length, body or end architecture; do not modify the machine from this guide |
Controlled commissioning without percussion
- Establish the safe test boundary. Follow the rig manufacturer’s isolation, guarding, exclusion-zone and maintenance-mode instructions. Only trained, authorized personnel should perform the test.
- Verify one identified rod. Record the rod drawing revision, measured overall length, end architecture and body/profile before it enters the magazine.
- Check static fit first. With energy states controlled as required by the machine procedure, confirm pocket seating, retainer engagement, jaw contact area, centralizer clearance and connection alignment.
- Step through the approved handling sequence. Use the machine’s authorized test or maintenance mode; keep percussion disabled. Observe pickup, transfer, gripping, guide entry, connection position, retraction and return to storage.
- Stop on any abnormal condition. Binding, slipping, side loading, unintended contact, a sensor mismatch or need for hand assistance is a failed test—not a reason to override an interlock.
- Release only after repeatable completion. Record the result and retain the tested rod identity. Any change to length, body, end type, supplier drawing or handler configuration requires a new review.
Copy-ready rod-handler approval record
Rig / serial or configuration: ____ Feed / handler option: ____
Magazine / carousel / pocket: ____ Approved rod family: ____
Rod drawing / revision: ____ Overall length datum: ____
End architecture: M/M + sleeve / MF Body / profile: ____
Jaw and clamping zone verified: yes / no Centralizer clearance verified: yes / no
Pickup-to-return sequence completed: yes / no Sensor / interlock result: ____
Decision: approve / controlled test / hold / reselect Approver / date: ____
This record supplements the machine documentation; it does not authorize changes to the rod handler, controls, guards or safety interlocks.
5. Hole Depth Matters—but Nominal Rod Length Is Not Exact Drilled Depth
A buyer may be tempted to divide the target hole depth by the rod’s catalog length and treat the result as the required rod count. That is useful only as rough planning.
The actual usable extension per rod can differ from the nominal rod length because the complete string includes the shank adapter, coupling engagement, bit connection, feed position and operating geometry. For that reason:
- use nominal length for preliminary logistics planning;
- use the rig/tool drawing or the current proven drill string for exact rod-count planning;
- do not promise a precise drilled depth from rod length alone;
- when changing length, compare the actual rod-addition sequence on the target rig.
The general trade-off is straightforward: if two rod lengths are both approved on the same machine, a longer usable section can mean fewer rod additions for the same hole depth. But that benefit must be weighed against handling, storage, transport and machine constraints.
6. Calculate Required Rod Count from Declared Effective Contribution
Do not calculate a purchase quantity by dividing hole depth by the catalog rod length unless the approved drawing explicitly states that the catalog length is the installed drilling contribution. For male–male extension rods, coupling engagement and the complete starting string can make the usable contribution different from overall rod length.
Use four controlled inputs
| Variable | Meaning | Evidence required |
|---|---|---|
| D | Required drilled depth, including any project-defined allowance already approved by the drilling plan | Hole plan, blast plan or site work instruction |
| S | Verified drilled depth available from the starting rod/string before the first extension is added | Rig and tool drawing or a measured, proven site configuration |
| E | Effective drilled-length contribution of each added rod after the specified connection engagement | Supplier drawing showing the length datum, thread engagement and assembled contribution |
| C | Physical capacity for rods in the carousel, rack or approved manual-handling plan | Rig documentation and site handling plan |
Added rods required: Nadd = ceiling(max(0, D − S) ÷ E)
Total rods in the planned string: one starting rod plus Nadd, when S is based on one starting rod. If the starting configuration contains another arrangement, state it explicitly and calculate from that approved baseline.
Use one unit throughout. The formula plans quantity; it does not approve a rod length that the feed, guides, changer, storage or worksite cannot handle.
Worked example using declared project inputs
Suppose a hole plan requires D = 12.0 m. The verified starting configuration provides S = 3.2 m of drilled depth, and the approved assembled drawing declares E = 3.4 m for each added rod.
Nadd = ceiling((12.0 − 3.2) ÷ 3.4) = ceiling(2.59) = 3
The planned string therefore needs one starting rod plus three added rods: four rods in this example configuration. These values are calculation inputs, not universal T38 dimensions. If the supplier cannot declare S and E for the quoted assembly, hold the quantity decision.
Length-and-quantity release gate
| Evidence state | Buyer decision | Required action |
|---|---|---|
| Overall length, assembled effective contribution, starting contribution and rig capacity are documented; the calculation reaches the planned depth | READY TO SPECIFY | Put the rod count, drawing revision and approved length on the RFQ and purchase order |
| A proven current string is being reordered, but one drawing field is still being formalized | CONDITIONAL | Use the proven configuration only; do not approve a length change until the missing field is closed |
| Only nominal length is quoted, or the supplier cannot state the assembled contribution and engagement datum | HOLD FOR DRAWING | Request the controlled rod-and-coupling drawing before fixing quantity |
| The calculation works, but the selected rod exceeds feed, changer, rack, transport or handling capacity | RESELECT LENGTH | Evaluate another approved length and recalculate the complete string |
Copy-ready approval record
- Rig and rock-drill model / variant:
- Rod architecture: male–male extension or MF/speed rod:
- Quoted overall length and datum:
- Declared assembled effective contribution E:
- Starting configuration and verified contribution S:
- Required drilled depth D:
- Calculated added rods and total rods:
- Feed, changer, rack and site-handling capacity:
- Supplier drawing number and revision:
- Decision: READY TO SPECIFY / CONDITIONAL / HOLD FOR DRAWING / RESELECT LENGTH:
- Reviewer and approval date:
7. Longer Is Not Automatically Better
“Choose the longest rod to reduce couplings” is too simplistic. Longer rods can be useful, but only when the whole drilling system supports them.
| Potential benefit of a longer approved rod | Possible constraint |
|---|---|
| Fewer rod additions for a given hole plan | Feed or rod changer may not accept the longer rod |
| Fewer handling cycles during extension drilling | Loading and storage require more working clearance |
| Potentially simpler drilling sequence on a compatible long-feed rig | Transport, rack length and site logistics may become harder |
| Can fit a fleet standard built around longer sections | Mixing several rod lengths can complicate inventory control |
Likewise, a shorter rod is not automatically “less productive.” In restricted work areas, short feeds, manual handling conditions or fleets already standardized around shorter sections, it may be the more practical system choice.
8. Do Not Confuse Male–Male Extension Rods with MF Speed Rods
PerfoMax’s current T38 product page is specifically defined around male–male T38 extension rods. Two male-ended rods are joined by a separate T38 coupling sleeve.
An MF speed rod has an integral female end and is a different drill-string architecture. When asking for a replacement, “T38, 3,660 mm” is still incomplete. A correct RFQ should identify:
- T38 thread family;
- male–male extension rod or MF speed rod;
- nominal and, where relevant, effective length;
- rod body/profile and flushing passage;
- current coupling and bit connection;
- rig and rock-drill model.
Length matching cannot compensate for the wrong end configuration.
9. A 7-Step T38 Drill Rod Length Selection Workflow
- Identify the rig and rock drill exactly. Record make, model and variant rather than only the machine family.
- Map the current drill string. Record shank adapter, thread family, rod end type, coupling and bit.
- Measure or confirm the current rod. Do not rely only on a warehouse label; verify the drawing or actual rod when possible.
- Check feed and rod handling capacity. Confirm that the proposed length can be loaded, guided, stored and changed safely on the machine.
- Define the hole plan. Provide hole diameter, typical and maximum depth, drilling direction and application.
- Compare operational and logistics effects. Review rod additions, storage racks, transport length, site clearance and spare-parts standardization.
- Lock the specification before the order. Put rod length, end configuration, thread, body/flushing details and inspection scope on the quotation drawing.
10. Common T38 Rod-Length Ordering Mistakes
- Ordering by “T38” alone. Thread family does not define rod length or end type.
- Choosing the longest available rod without checking the rig. Stock availability is not machine approval.
- Assuming 4,880 mm can replace 3,660 mm directly. Feed, rod changer, guides and worksite handling must all be checked.
- Mixing male–male and MF language. They use different connection architecture.
- Using nominal rod length as exact drilled depth. Connection engagement and complete string geometry affect effective extension.
- Ignoring storage and transport. A longer rod can create problems before it ever reaches the drill rig.
- Changing one fleet without updating spare standards. Mixed rod lengths can increase picking and handling errors even when all rods are T38.
11. T38 Drill Rod RFQ Checklist
Send the following information before asking a supplier to recommend 3,050, 3,660, 4,270 or 4,880 mm:
- rig make and model;
- rock drill model and variant;
- shank adapter identification;
- thread family: T38;
- rod type: male–male extension rod or MF speed rod;
- current rod length and proposed rod length;
- photos or drawing of both rod ends;
- coupling type and bit thread;
- feed length / rod changer information if known;
- hole diameter, typical depth and maximum depth;
- application and rock condition;
- quantity, delivery destination and packing constraints;
- required material, heat-treatment, dimensional or inspection documents if these are part of your purchase specification.
For a system-level thread decision as well, see T38 vs T45 Top Hammer Threads: Compatibility and Selection Guide.
FAQ
Is 3,660 mm the standard T38 drill rod length?
It is a widely encountered rod length, but there is no universal T38 standard length for every rig and rod type. Current OEM catalogs list multiple T38 rod constructions and length ranges. Match the installed machine and drill-string configuration.
Can I replace a 3,660 mm T38 rod with a 4,880 mm T38 rod?
Not based on thread alone. Both may be T38, but the rig feed, rod changer, guides, storage and complete drill-string configuration must accept the longer rod.
Do longer T38 rods reduce the number of couplings?
For a given hole plan, longer usable rod sections can reduce the number of rod additions and therefore the number of connections handled during the drilling sequence. The exact count depends on effective string geometry and the rig setup.
Does rod length affect T38 thread compatibility?
No. T38 thread compatibility and rod length are separate checks. The threads can match while the rod length is still incompatible with the machine or handling system.
What is the safest way to choose between 3050, 3660, 4270 and 4880 mm?
Start from the current proven rod and the rig’s approved feed/handling configuration. Then compare the hole plan and site logistics. If changing length, confirm it on the quotation drawing before ordering.
