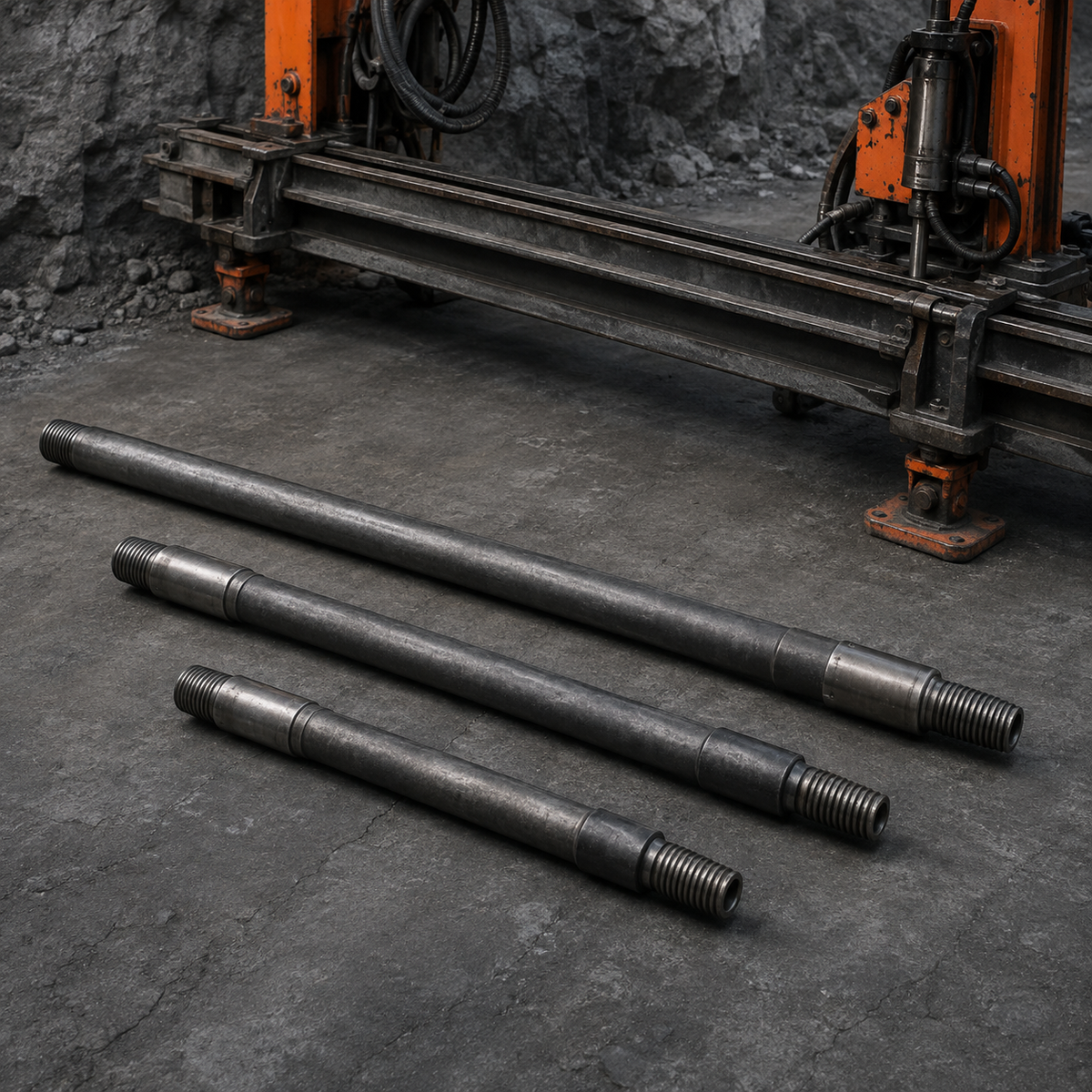

R32 Drill Rod Length Selection: Match Feed, Hole Depth, and Handling

Direct answer: choose an R32 drill rod length from the drill rig and work area outward—not from the target hole depth alone. The rod must fit the effective feed travel, rod supports, handler or magazine, collaring position, available setup space, and the planned extension sequence. Then confirm the end type, body, flushing passage, coupling arrangement, length basis, and tolerance before ordering.

A longer rod can reduce the number of connections needed for a given hole, but only when the feed and work envelope can load, support, and retract it safely. A shorter rod is easier to handle in confined headings and may suit short feeds, yet deeper holes require more joints and more connection management. The correct choice is therefore a system match, not simply “the longest available R32 rod.”

Why R32 Thread Does Not Define Rod Length

R32 identifies a thread family. It does not define overall rod length, usable drilling advance, male/male versus male/female ends, round versus hexagonal body, flushing-hole size, or the interfaces at the shank and bit sides.

Current OEM ranges demonstrate this clearly. Epiroc lists multiple R32 rod types and broad length ranges rather than one universal length. Robit’s current catalog also lists several R32 male/male and male/female lengths. Those catalogs are useful evidence that length is a selectable parameter, but their dimensions are not a promise of PerfoMax stock or proof that a given rod fits your rig.

For the current PerfoMax commercial pathway, the final R32 rod must be specified by length × body × end type. The written quotation and controlled drawing or data sheet should govern the supplied configuration.

The Five Variables That Control R32 Drill Rod Length Selection

Step 1: Measure the Effective Feed Envelope

The feed name or nominal feed length is not enough. Ask the rig owner or maintenance team for the usable dimensions that govern the actual rod:

• maximum rod length that can be loaded with the rock drill in the loading position;
• distance from the shank-side connection to the front support or centralizer;
• available travel after the rod is connected;
• clearance needed for the coupling sleeve or female end;
• space required to disengage and retract the rod;
• rod-handler, carousel, magazine, or rack length limits;
• any manufacturer-approved rod-length list for the exact rig and feed option.

A rod should not be selected merely because its overall length is less than a nominal beam dimension. Components occupy space at both ends, and the feed must still support the rod through collaring, drilling, connection, and withdrawal. When controlled rig documentation is available, use it instead of estimating from photographs.

Step 2: Separate Overall Rod Length from Useful Drilling Advance

Buyers often equate a 3 m-class rod with 3 m of useful hole advance. That is unsafe as a purchasing assumption. Overall rod length includes threaded ends and connection features, while the working arrangement also consumes length at the shank, coupling, support, and bit-side interfaces.

Use this planning logic:

1. Define required drilled depth or round advance. Record typical and maximum values separately.
2. Identify the starting position. Include collaring distance, any stand-off, and the feed’s actual geometry.
3. Map the complete string. Show shank adapter, coupling sleeves, rods, and bit-side component.
4. Determine single-pass or extension drilling. Do not assume one long rod is possible where the feed or heading cannot accept it.
5. Confirm usable reach with the rig or tooling supplier. Treat catalog overall length and achievable hole depth as different data fields.

If the project depends on a precise round length, put both the required hole depth and the proposed rod configuration on the technical review sheet. The supplier should confirm the selected configuration rather than infer it from one number.

Step 3: Decide Between Fewer Long Rods and More Short Rods

This is not a universal productivity ranking. Connection time, hole straightness, handling effort, feed behavior, ground condition, operator practice, and tool condition all affect the result. Select the shortest practical string architecture that meets the hole requirement without violating the rig or site envelope.

Step 4: Lock the End Type and Coupling Arrangement

Rod length cannot be finalized independently of the connection architecture. An R32 male/male extension rod normally uses a separate coupling sleeve between rods. An R32 male/female rod has an integrated female end for the intended rod-to-rod joint. The two arrangements should not be mixed by assumption.

For a deeper end-type decision, use the published R32 Extension Rod vs Speed Rod guide. For length selection, record these items on the same line:

• overall rod length and the length basis used by the supplier;
• R32 male/male or R32 male/female end configuration;
• coupling sleeve model and quantity where applicable;
• body shape and diameter;
• flushing-hole diameter;
• shank-side and bit-side mating components;
• supplier part number and drawing or data-sheet revision.

Two rods can share the same thread name and nominal length but still be unsuitable substitutes because their end type, body, flushing, or controlled dimensions differ.

Step 5: Check Handling, Storage, and Transport Before Ordering

Rod selection is incomplete until the site can receive and use the chosen length. Ask practical questions before the purchase order is issued:

• Can the transport package enter the mine, tunnel, container, or site store?
• Do racks support the full rod without damaging threads or creating a bending risk?
• Is lifting mechanized, and are approved lifting points or procedures defined?
• Can operators move the rod through the heading without striking services, ground support, or equipment?
• Will thread protectors remain fitted during transport and storage?
• Does the fleet benefit from standardizing one approved length, or does the application genuinely require several?

Longer is not automatically more economical. A rod that reduces one connection but causes awkward loading, unsuitable packing, or incompatible storage creates cost elsewhere.

R32 Rod Length Decision Table

Common R32 Drill Rod Length Mistakes

• Ordering by hole depth alone. Hole depth does not prove that a rod fits the feed or work envelope.
• Using nominal feed length as usable rod length. Supports, connections, retraction, and loading positions consume space.
• Assuming overall length equals drilling advance. Threaded ends and the assembled interfaces make those different values.
• Ignoring M/M versus M/F architecture. The joint arrangement affects the complete string and purchase scope.
• Copying a competitor’s standard length table. Catalog ranges show market options, not compatibility with your exact feed.
• Forgetting rod-handler limits. A rod can fit the beam but not the magazine or loading system.
• Leaving length tolerance undefined. The purchase order needs a controlled length basis and acceptance tolerance.
• Mixing old and new rods because both are marked R32. Verify body, ends, flushing, part numbers, and supplier documentation.

RFQ Checklist for R32 Drill Rod Length

Send the following information to avoid a quote based on assumptions:

1. drill rig and rock-drill model;
2. feed-beam model or option and approved rod-length range, if documented;
3. rod handler, magazine, or manual loading arrangement;
4. typical and maximum hole depth;
5. working-space restrictions and drilling direction;
6. R32 male/male or male/female end type;
7. required overall length and supplier length basis;
8. length tolerance and inspection method;
9. round or hexagonal body and body diameter;
10. flushing-hole diameter;
11. coupling sleeve details and quantity, if used;
12. shank adapter and bit-side interface;
13. current rod markings, photos, part number, or controlled drawing;
14. quantity, packing length, thread protection, documentation, Incoterm, and destination.

For a current product starting point, review PerfoMax R32 Drill Rod Selection — Length, Body and End Type. If any interface or length basis is uncertain, submit feed, rod, and drill-string evidence before a substitution is approved.

Frequently Asked Questions

What is the best R32 drill rod length?

There is no universal best length. The correct rod must fit the exact feed, handling system, work space, target depth, and connection architecture. Confirm those conditions before selecting from a supplier’s available range.

Should R32 rod length equal the required hole depth?

No. Overall rod length and useful drilling advance are not identical. The assembled shank, couplings, supports, bit-side interface, collaring position, and feed geometry all affect achievable reach.

Can I use a longer R32 rod to reduce couplings?

Only if the rig feed, rod supports, handler, work envelope, transport, and operating procedure accept it. Reducing joint count does not justify a rod that cannot be loaded, supported, or retracted correctly.

Can short R32 rods be combined for a deeper hole?

They can be used in an approved extension-drilling arrangement, but the end type, coupling or M/F joint sequence, thread condition, withdrawal method, and complete string compatibility must be defined first.

What should I measure on an existing R32 rod before ordering?

Record the overall length using an agreed basis, both end configurations, thread marking, body shape and diameter, flushing-hole diameter, coupling details, visible part number, and the exact feed and adjacent components. Photos should show both ends and any markings.

Technical References

• Epiroc — R drill strings and current R32 rod-type length ranges
• Robit — current R32 male/male and male/female rod catalog dimensions
• Sandvik — rig specification example identifying supported R28, R32, or T35 MF rods
