Do not assume that a new top hammer drill rod is compatible with a coupling, shank adapter, rod or bit simply because the thread designation matches. R32 must still mate with the correct R32 geometry, T38 with the correct T38 system, and so on—but designation is only the first gate. A severely worn female thread can concentrate load on the high points of a new male thread, while a worn rod end can damage a new coupling. The new component may then wear rapidly even though the nominal size is correct.
The practical rule is to inspect every mating interface before installing replacement parts. Replace components as a matched group when the existing threads are beyond the equipment or tool supplier’s wear limits, when wear is uneven, or when the cause of a failure may affect adjacent parts. Staged replacement can be reasonable when the remaining components are verified serviceable, correctly identified and kept under a documented inspection plan. “Same thread” does not mean “safe to mix at any condition.”

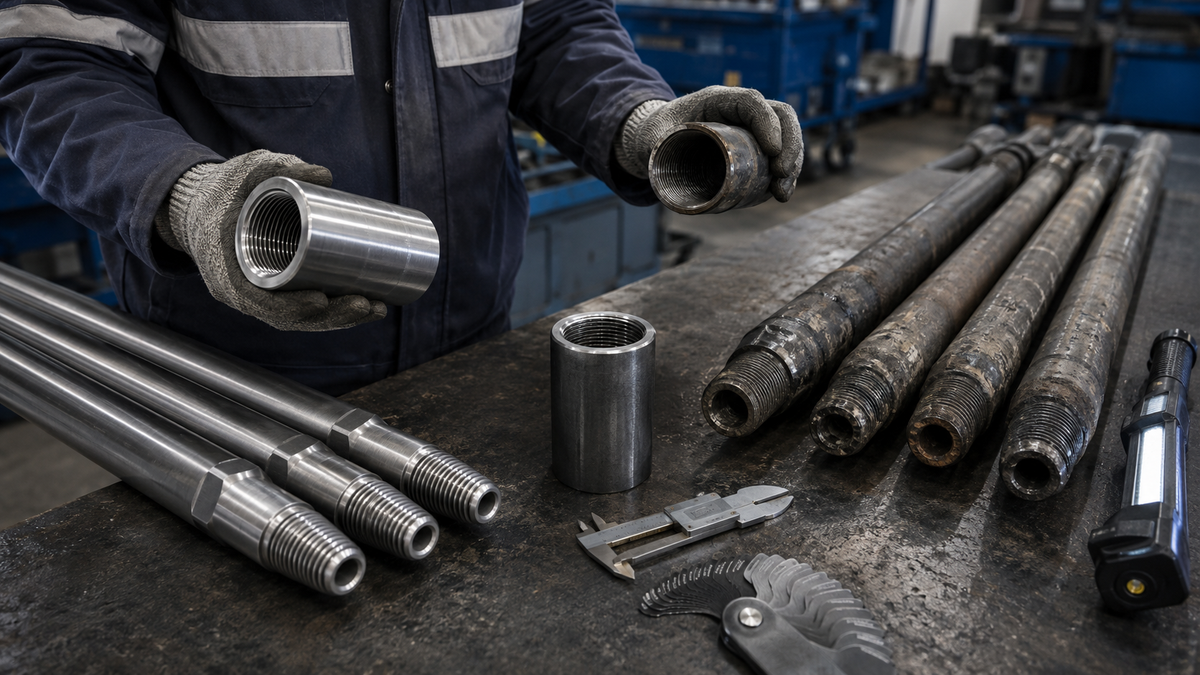

Why Mixing New and Worn Top Hammer Tools Creates Risk
A top hammer drill string transmits repeated impact energy, rotation torque, feed force and flushing through a chain of interfaces. The shank adapter connects the rock drill to the first rod; coupling sleeves join male-ended extension rods; an MF or speed rod has an integral female end; and the bit closes the string at the rock face. Thread flanks and contact shoulders must share load as designed.
Wear changes that load path. Rounded crests, worn flanks, pitting, deformation or excessive clearance reduce the effective contact area. The joint can begin to move, heat, rattle or tighten irregularly. Installing a pristine component next to that worn profile does not restore the joint to new condition. Instead, the worn side can impose its contact pattern on the replacement.
The Robit Top Hammer Troubleshooting Manual identifies worn threads and couplings in several rod and coupling failure modes, and advises against placing a worn coupling on a new rod. Its failure guidance also recommends changing related rods and couplings together in the affected situations. Treat that as a strong inspection principle, not a substitute for the limits specified for your exact tool system.
| Proposed combination | Default buyer decision | What must be confirmed |
|---|---|---|
| New rod + new correct coupling | Normally acceptable | Exact thread, dimensions, rod system, cleanliness and supplier documentation |
| New rod + serviceable used coupling | Conditional | Female-thread wear within the applicable limit; no cracking, deformation, heat damage or abnormal play |
| New rod + severely worn coupling | Reject the pairing | Replace the coupling and inspect every component that ran with it |
| New coupling + serviceable used rod | Conditional | Male thread passes the specified gauge or inspection method and wear is even |
| New component + unknown-history part | Quarantine until verified | Identity, thread family, wear condition, straightness, damage history and cleaning |
| Different thread families or uncertain profile | Do not assemble | Resolve by part number, drawing, approved gauge or supplier confirmation |
Age Is Not the Acceptance Criterion—Condition and Compatibility Are
An older component is not automatically unusable, and a visually clean component is not automatically serviceable. Operating hours, drilling meters and calendar age do not produce identical wear across rigs or applications. Rock abrasiveness, hole deviation, percussion and feed settings, lubrication, flushing water, handling and the number of make-and-break cycles all influence thread condition.
That is why a universal replacement interval would be misleading. Use the rock-drill manufacturer’s instructions, the drilling-tool supplier’s gauges or wear limits, and the site’s inspection history. If those limits are not available, do not invent a percentage or rely on a photograph. Ask the supplier for the correct inspection method for the exact R, T, ST or proprietary thread system.
Inspect Every Mating Thread Before Pairing a Replacement
Isolate the rig, release stored energy and follow the machine’s safe maintenance procedure before handling the drill string. Clean the components so that grease and cuttings do not hide damage. Then inspect both sides of every proposed joint.
Confirm identity before judging wear
- Verify thread designation and profile, not only nominal diameter.
- Check the supplier part number, rig or drifter model, rod end type and bit connection.
- Distinguish male/male extension rods from MF or speed rods with an integral female end.
- Confirm whether any crossover coupling is intentionally specified.
- Check flushing-bore continuity and the correct shank adapter interface.
If the markings are unclear, use the steps in PerfoMax’s guide to identifying R32, T38 and T45 top hammer threads. Never force a trial assembly to identify an uncertain thread.
Inspect male threads
Look for rounded or thinned profiles, pitting, galling, chipped starts, corrosion, dents and asymmetric polishing. Examine the whole engaged length. The easiest-to-see end may not be the most worn zone. A thread gauge, supplier template or documented dimensional method is more reliable than a quick visual judgment.
Inspect female threads
Use adequate lighting and the correct female-thread gauge or approved master. Check for widening, flattened profiles, cracks, heat discoloration, debris pressed into the flanks and a worn internal bridge where applicable. A coupling that spins freely by hand is not necessarily serviceable; excessive clearance can also make assembly feel easy.
Inspect the component beyond the thread
A thread can pass while the part fails another condition check. Inspect rod straightness, body dents, corrosion, flushing holes, coupling exterior, shank splines and striking face, bit body and any shoulder or stop that controls position. If a rod failed, identify why before fitting a replacement. Misalignment, hole deviation or a worn guide can damage the next rod even when the new joint is correct.
Check the Whole Drill-String Wear Chain
When one threaded component reaches its limit, inspect the parts immediately upstream and downstream. A new coupling between two heavily worn rods is not a repair strategy. A new rod connected to a worn shank adapter may inherit irregular loading at its first joint. A serviceable rod connected to a bit with damaged threads can still suffer accelerated wear.
Epiroc describes its T-series top hammer tools as a drill-string system covering rods, shank adapters and bits in defined T-thread dimensions. That system view is important for replacement purchasing: each part must match the interface and operating duty of the complete string, not merely resemble the removed item.
| Component | Compatibility question | Condition question |
|---|---|---|
| Shank adapter | Correct drifter interface, spline, thread and flushing arrangement? | Thread, spline, striking face and body serviceable? |
| Extension rod | Correct thread at both ends, body diameter, length and flushing bore? | Threads, body and straightness within limits? |
| MF/speed rod | Correct male and female ends for the planned string? | Both ends inspected independently? |
| Coupling sleeve | Correct thread and coupling design for the rods? | Female threads, bridge and outer body serviceable? |
| Button bit | Correct thread, diameter, face, skirt and flushing configuration? | Thread and bit body serviceable; buttons maintained correctly? |
When to Replace a Group Instead of One Part
Group replacement is the safer default when several components have run together to similar wear, when a worn coupling has contacted multiple rod ends, or when the failure mode suggests abnormal load throughout the string. It also simplifies inventory control because the maintenance team can start a documented set with a known installation date and inspection baseline.
Consider replacing the affected group when:
- the wear gauge or OEM method rejects one or more mating threads;
- multiple joints show the same rounding, pitting, galling or abnormal clearance;
- a coupling, rod or shank adapter has cracked or failed near the connection;
- the string has operated with persistent rattling, overheating, misalignment or difficult uncoupling;
- part identity or service history cannot be established;
- a new thread family or supplier system is being introduced and interchangeability has not been approved.
Group replacement does not necessarily mean discarding every tool on the site. Separate and inspect each string or controlled batch. Serviceable components can remain in matched, traceable sets if the applicable criteria allow it. Rejected parts should be physically segregated so they cannot return to the rack by mistake.
When Staged Replacement Can Be Reasonable
Staged replacement can control cost when the remaining tools are verified within condition limits, the failure cause is isolated and the site can monitor the first drilling period. For example, a damaged rod from handling may be replaced without automatically scrapping serviceable couplings that pass their specified inspection. The decision should be documented by component ID or batch, not left as an informal shift handover.
Before returning the mixed-age set to service:
- verify exact thread and system compatibility;
- record the inspection method and result for every mating component;
- clean and lubricate the threads according to the tool and rig guidance;
- confirm alignment, guides, feed setup and flushing condition;
- observe make-up, drilling stability, temperature and uncoupling behavior under the approved operating procedure;
- stop and re-inspect if abnormal play, noise, heat, vibration or thread damage appears.
Sandvik notes that systematic thread greasing helps open threads, increase drill-rod life and minimize rattling in its official thread-greasing system guidance. Lubrication is important, but it cannot restore a worn profile or make mismatched threads compatible.
Separate New, Serviceable and Rejected Inventory
Mixing often begins in the warehouse rather than the hole. Rods arrive without a clear link to the thread system, used couplings return to the new-parts bin, or parts from different rigs share a rack. A simple condition-control process reduces this risk.
- Use separate locations for new, inspected-serviceable, quarantine and rejected components.
- Tag the thread family, end type, length, supplier or batch and inspection status.
- Protect male and female threads from impact, contamination and corrosion.
- Do not use paint color alone as proof of thread identity.
- Record which rods and couplings operate as a set when group history matters.
- Destroy or permanently identify scrapped threads according to site procedure.
Replacement RFQ Checklist for Buyers
A supplier cannot confirm compatibility from “T38 rod needed” alone. Include the following information in the RFQ:
- rig and rock-drill or drifter model;
- existing shank adapter identification and thread;
- rod thread family, end type, body diameter, length and flushing bore;
- coupling design and any bridge or crossover requirement;
- bit thread, diameter and configuration;
- photos of markings and cleaned thread profiles;
- inspection or wear-gauge results for the retained components;
- failure symptoms and the component being replaced;
- whether the order must integrate with an existing mixed-age string;
- required drawing, inspection record, packaging and thread protection.
PerfoMax offers active T38 extension drill rods for verified T38 applications. Confirm the complete drill-string interface before ordering. For adjacent decisions, see the guides to R32 coupling sleeve selection and top hammer shank adapter compatibility.
Frequently Asked Questions
Can I put a new rod into a used coupling?
Only if the coupling is the exact compatible type and its female thread passes the applicable inspection. Do not pair a new rod with a severely worn, cracked, deformed or unknown-condition coupling. Inspect the other rod end that previously ran in that coupling as well.
Must every rod in the drill string be replaced at once?
Not in every situation. Group replacement is appropriate when wear or failure affects multiple mating parts. Staged replacement may be acceptable when each retained component is identified, inspected and within its specified limit. Follow the tool supplier and rig manufacturer’s guidance.
Can visual inspection alone approve a worn thread?
Visual inspection can reveal cracks, pitting, rounding, galling and heat damage, but it may not quantify profile wear or clearance. Use the correct supplier gauge, approved master or dimensional method when the acceptance decision requires it.
Is a used button bit safe with a new rod?
The thread must be compatible and serviceable, while the bit face, body, buttons and flushing features need their own inspection. A usable cutting face does not prove that the female thread is acceptable, and an acceptable thread does not prove the bit is otherwise fit for service.
Does fresh thread grease make a worn joint acceptable?
No. Correct lubrication helps reduce metal-to-metal contact, corrosion and difficult uncoupling. It does not rebuild worn flanks, correct excessive play or convert one thread profile into another.
Use a Condition-Based Replacement Decision
The best answer to “Can new and worn top hammer rods be mixed?” is conditional: match the exact system, inspect both sides of every joint, follow the specified wear method and replace the affected group when wear is shared. Never sacrifice a new rod to an unverified coupling simply to use the remaining inventory.
For a replacement review, send PerfoMax the rig and drifter model, thread designation, rod and coupling dimensions, cleaned photos, wear-inspection result and the parts you plan to retain. This allows the replacement rod pathway and compatibility risks to be checked before shipment.
