Direct answer: keep every delivered lot of rock drilling tools on receiving hold until the shipment has been checked against the approved purchase order, drawing or data sheet, packing list and inspection plan. Confirm identity and quantity first, then packaging, traceability, visible condition and agreed critical dimensions. Record the evidence and give the lot one controlled disposition: release, conditional hold, quarantine or reject.
An incoming inspection does not repeat the supplier’s entire manufacturing process, and it should not invent new tolerances after the goods arrive. Its job is to detect shipping damage, mixed or wrongly identified parts, missing documents and obvious nonconformities before the tools enter warehouse stock or reach a drilling site. The controlling requirements are the buyer-approved order documents; this guide provides the workflow, not universal acceptance limits.

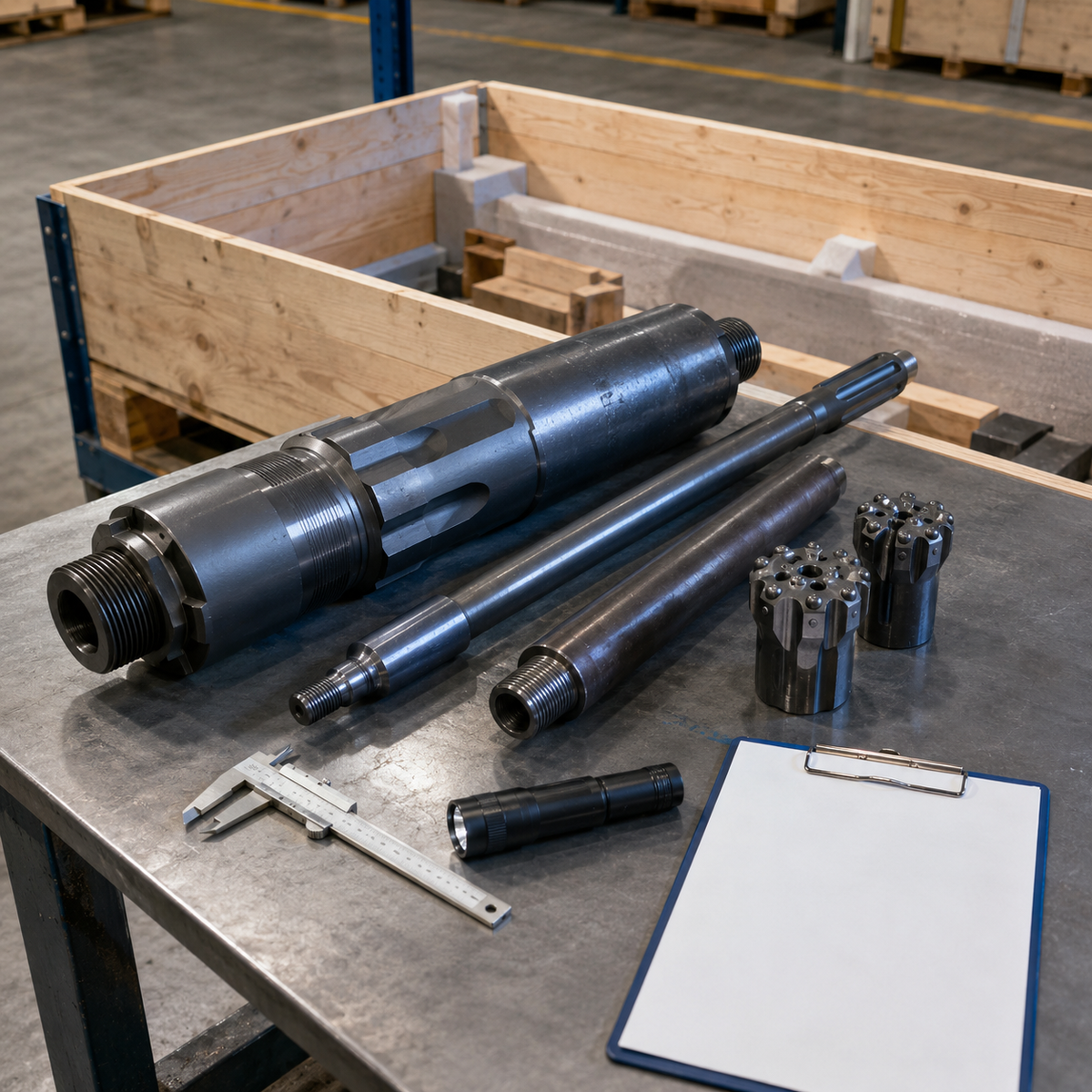

Incoming Inspection for Rock Drilling Tools: The Receiving Gate
| Gate | Question | Typical evidence | Possible disposition |
|---|---|---|---|
| 1. Shipment identity | Is this the supplier, purchase order, item and revision that were approved? | Purchase order, packing list, labels and supplier documents | Continue or hold for clarification |
| 2. Quantity and lot integrity | Are counts, bundles and lot or heat references consistent? | Count sheet, bundle labels and receiving photos | Continue, partial hold or discrepancy report |
| 3. Packaging condition | Did transport expose tools to impact, water, contamination or loss? | Photos before opening, crate condition and protective packing | Continue or quarantine affected packages |
| 4. Product conformity | Do sampled items match the approved configuration and critical characteristics? | Drawing, calibrated measurement results and visual inspection record | Release, expand inspection or hold |
| 5. Final disposition | Who authorizes stock release, concession, rework, return or rejection? | Signed receiving record, nonconformance report and supplier response | Controlled warehouse status |
The sequence matters. Counting unidentified parts or measuring a product against the wrong drawing can create convincing but useless records. Freeze the correct purchase-order and revision baseline before inspection begins.
Step 1: Preserve Evidence Before Opening the Shipment
Record the arrival date, carrier, container or airway-bill reference, package count and external condition. Photograph every side of damaged crates, torn wrapping, wet cartons, broken bands, missing caps or shifted bundles before unloading changes the evidence. If transport damage is possible, retain the packaging and follow the buyer’s carrier-claim procedure.
- confirm the number of crates, pallets, bundles and loose packages;
- check that package identifiers match the packing list;
- record water marks, punctures, impact marks, loose blocking or corrosion staining;
- confirm heavy tools were restrained so threads, shanks and carbide faces could not strike each other;
- separate visibly affected packages without mixing their contents with clean stock.
Do not wipe corrosion, straighten bent packaging or discard broken protectors until the original condition has been documented. Cleaning may be necessary later for inspection, but it should not erase the evidence needed to allocate responsibility.
Step 2: Match the Shipment to the Controlled Order
Receiving staff need the same revision-controlled information that procurement used to place the order. A supplier’s commercial description alone is not enough for look-alike drilling tools.
| Document or identifier | What to match | Why it matters |
|---|---|---|
| Purchase order | Supplier, item code, description, quantity, revision and required documents | Defines what was contractually ordered |
| Approved drawing or data sheet | Connection, dimensions, material or treatment requirements and marked revision | Controls technical acceptance |
| Packing list | Package numbers, item quantities and gross or net identification where required | Locates shortages and mixed packages |
| Certificate or test report | Document type, item or lot reference, result and issuing party | Connects required evidence to the received lot |
| Product and bundle marking | Part number, size, thread or shank, lot or heat reference where specified | Prevents release of the wrong or untraceable configuration |
A certificate should be checked for relevance, not merely presence. A material certificate that cannot be linked to the delivered lot does not establish lot traceability. Likewise, a supplier inspection report using an obsolete drawing revision should be held for review rather than automatically accepted.
Step 3: Verify Product Identity Before Measuring
Use the highest-confidence identifier available: controlled part number, supplier drawing, purchase-order line, durable marking and representative photographs. Then confirm the configuration details that distinguish similar tools.
| Tool family | Identity checks at receiving | Common mix-up risk |
|---|---|---|
| DTH hammer | Nominal class, outside configuration, top connection, chuck and approved bit-shank family | Same nominal inch class but different shank, thread or internal configuration |
| DTH bit | Shank family, diameter, face design, button arrangement, flushing holes and foot-valve requirement where applicable | Similar-looking shanks or wrong diameter within one package |
| DTH drill pipe | Thread family at both ends, outside diameter, length definition, wall or bore requirement and protector condition | Thread designation, pin/box orientation or effective-length mismatch |
| Top-hammer rod or coupling | R/T thread family, male-male or male-female architecture, rod length and coupling type | R32, T38 or T45 components mixed in look-alike bundles |
| H22 tapered tool | Shank size and length, taper family, rod length, bit socket and bit diameter | Assuming H22 alone defines the taper angle or complete fit |
| Pneumatic rock drill or breaker | Exact model, supplied accessories, inlet and hose interfaces, shank or chisel interface and nameplate data | Model suffix, air-leg pairing or accessory scope omitted |
These are identification prompts, not substitute specifications. If the purchase order did not define a critical interface, place the lot on hold and resolve the missing requirement before release.
Step 4: Inspect Packaging, Surfaces, Threads and Carbide
Perform the visual inspection under adequate task lighting. Rotate each sampled tool and inspect all functional zones. Look for transport impact, corrosion, contamination, incomplete protective coating, damaged threads, rolled edges, cracks, chipped carbide, loose buttons, blocked flushing holes, missing protectors, abnormal weld appearance or mixed markings.
Appearance must be judged against an agreed acceptance standard. A harmless variation in finish should not be treated like a functional defect, while a small crack at a stressed transition should not be dismissed as cosmetic. When classification is uncertain, photograph the location, record the item and lot, and escalate it for technical disposition.
Step 5: Measure Only Against Defined Characteristics
Create a receiving inspection plan that identifies each characteristic, its specification and tolerance, the method, the measuring device, the sample size and the person authorized to accept the result. Typical checks may include overall or effective length, body diameter, thread or shank identification, straightness method, bit diameter, flushing-hole presence and connection fit with an approved reference component.
Use measuring equipment that is suitable for the required tolerance and remains under the buyer’s calibration or verification system. NIST explains that metrological traceability belongs to a measurement result and depends on a documented chain of calibrations; simply owning a calibrated instrument does not automatically make every result traceable. ISO 10012:2026 similarly focuses on controlled measurement processes and equipment that are fit for their intended use.
- record the instrument identification and calibration status;
- state where and how the dimension was measured;
- record actual results rather than only “pass” where the characteristic is critical;
- control temperature, cleanliness and contact force when they can materially affect the result;
- do not force a suspect thread onto a machine, hammer or production component as an improvised gauge.
Step 6: Choose Sampling Before the Shipment Arrives
The buyer should define whether a characteristic receives 100% inspection, a fixed sample, risk-based sampling or an acceptance-sampling plan. Do not select the sample after seeing the lot and do not assume that one AQL value fits every defect or tool family.
ISO 2859-1:2026 provides AQL-indexed sampling schemes for inspection by attributes and includes rules for normal, tightened, reduced and skip-lot inspection. Applying it correctly requires the lot size, inspection level, AQL, sampling-plan type and switching rules to be agreed and recorded. Critical safety or compatibility characteristics may require stricter controls than minor appearance characteristics; the buyer’s contract and quality system determine that choice.
Randomize the sample across packages and positions. Inspecting only the easiest items at the top of one crate can miss mixed lots, packing damage at the bottom or variation between bundles.
Step 7: Release, Hold, Quarantine or Reject
A failed or uncertain result should trigger containment, not an informal warehouse decision. Identify the affected item, quantity, package and lot; prevent issue to production; preserve evidence; and notify the responsible procurement or quality owner. The supplier should receive a clear discrepancy statement with photographs, measurements, drawing references and the requested response.
| Status | Use when | Minimum control |
|---|---|---|
| Release | Required checks pass and documents are complete | Signed record and warehouse status changed to available |
| Hold | Evidence is incomplete or a technical question remains | No use until clarification and authorized disposition |
| Quarantine | Nonconforming or suspect items must be isolated | Physical segregation, system block and traceable identification |
| Conditional acceptance | The buyer’s authorized process approves a documented concession | Defined quantity, application, deviation and approver |
| Reject or return | The lot fails agreed acceptance criteria and no concession is approved | Disposition record, supplier agreement and shipping control |
Never blend accepted and suspect pieces after a partial inspection. If one package contains mixed configurations or an unexpected defect pattern, expand containment to the traceable population until the affected scope is understood.
Top Hammer Drill Rod Arrival-to-Stock Gate
A top-hammer drill rod shipment should not enter available stock merely because the bundle count is correct. Release each traceable bundle only after the receiving record connects it to the approved purchase-order line and confirms that transport, unloading, thread protection, rod-body condition, straightness evidence and flushing passages remain acceptable. This gate owns the arrival-to-stock decision; the supplier-side pre-shipment inspection remains a separate decision made before dispatch.
This method applies to extension rods, speed rods and related top-hammer string components received by mines, quarries, contractors and distributors. It does not create universal lifting points, straightness limits, thread dimensions, fit criteria or corrosion limits. Use the approved drawing, packing method, inspection plan and site handling procedure for those requirements. Where an acceptance value is missing, hold the affected scope for evidence instead of inventing a receiving limit.
| Arrival gate | Evidence to capture | Hold or quarantine trigger | Required action |
|---|---|---|---|
| 1. Unopened bundle and transport condition | Container or vehicle reference; package and band condition; shifted blocking; wetness, impact marks, corrosion staining and missing end protection; photographs before movement | Broken restraint, dropped or shifted bundle, water entry, visible bow, steel-to-steel impact or uncertain transport event | Identify and isolate the affected package before its contents are mixed with undamaged bundles. |
| 2. Bundle map and ordered identity | Package number, purchase-order line, controlled part number, R/T thread family, male-male or male-female architecture, ordered length, quantity and lot or bundle marking | Mixed thread families, conflicting labels, missing lot link, unexplained quantity or an item that cannot be reconciled to the order | Hold the bundle. Do not relabel or combine rods until procurement or quality resolves the identity. |
| 3. Controlled unloading and support | Approved site handling plan; lifting or handling equipment identification where required; support arrangement; any drop, impact, uncontrolled rolling or temporary overhang event | An event that may have bent, struck or overloaded a rod, or handling evidence that is incomplete after a suspected incident | Quarantine the exposed population and expand the straightness and end-condition checks under the buyer’s inspection plan. |
| 4. Protectors and thread ends | Protector quantity and condition; thread starts, crests, roots, shoulder or end face as applicable; contamination, rolled edges, dents and impact marks; representative photographs | Missing or displaced protector, contact damage, forced protector removal, corrosion at the connection or an uncertain thread identity | Segregate the affected rods. Clean only after the as-received evidence has been preserved, and use the approved drawing or controlled gauge method for disposition. |
| 5. Rod body and straightness evidence | Stable support condition, approved straightness method and limit, sample locations, instrument or fixture ID where applicable, actual results and surface observations | Visible permanent bow, kink, impact indentation, crack indication, unexplained out-of-limit result or no defined acceptance method | Do not hand-straighten or release by visual judgment alone. Hold the traceable scope for technical review. |
| 6. Flushing passage and end cleanliness | Presence and condition of each opening; shipping caps or plugs removed under control; visible debris, coating, water or obstruction; approved passage check and result | Blocked or uncertain passage, retained foreign material, water contamination or a method that could damage the bore | Hold the rod. Do not force an object through the bore or pressurize an unknown obstruction; use the buyer-approved cleaning and verification method. |
| 7. Surface and preservation condition | As-received photographs; dry or wet condition; preservation coverage; location and extent of discoloration, corrosion or pitting; cleaning method where authorized | Pitting, scaling, concentrated corrosion at a stressed zone, coating failure or surface condition that cannot be classified against the order | Quarantine the affected scope, preserve evidence and obtain a documented accept, rework or reject decision before restoring protection. |
| 8. Partial-lot control and final scope | Defect location by package, lot and sampled position; expanded-inspection rule; accepted, held and rejected quantities; storage location and status label | Suspect rods blended with released stock, a defect pattern whose population is unknown or a concession without named authorization | Keep each status physically and systemically separate. Release only the quantity whose identity and inspection result remain traceable. |
Assign one arrival disposition
| Status | Use when | Minimum control before the record closes |
|---|---|---|
| ACCEPT TO STOCK | Bundle identity, transport evidence and required sampled checks pass against the approved requirements. | Record the accepted package and quantity, restore specified protection, identify the storage location and sign the release. |
| CONDITIONAL—SEGREGATE | A known subset needs authorized cleaning, re-preservation or expanded inspection, while the unaffected scope remains positively identified. | Keep the subset blocked and separate. Conditional status is not permission for service unless the buyer’s authorized process expressly grants it. |
| HOLD FOR EVIDENCE | The rod may conform, but the drawing, lot map, straightness method, gauge status, sampling rule or acceptance criterion is missing. | Keep the affected scope unavailable until the missing evidence is supplied and a named authority records the disposition. |
| QUARANTINE / CLAIM | Wrong or mixed rods, transit impact, permanent bending, cracks, pitting, damaged threads, blocked passages or lost traceability create a defined nonconformity. | Identify the population, preserve photographs and measurements, open the nonconformance or carrier-claim record and prevent issue. |
Copy-ready drill rod receiving record
TOP-HAMMER DRILL ROD ARRIVAL RECORD
Purchase order / supplier:
Delivery, container or vehicle reference:
Arrival date / receiving location:
Package and bundle identifiers:
Controlled part number / drawing revision:
Thread family and rod architecture:
Ordered length / quantity:
Lot, heat or bundle marking:
Unopened-package photo references:
Transport, banding or water evidence:
Unloading / support event record:
Protector count and thread-end findings:
Body, surface and preservation findings:
Straightness method / limit / actual results:
Flushing-passage method / results:
Sampling plan / selected positions:
Affected package, lot and quantity:
Disposition: ACCEPT TO STOCK / CONDITIONAL—SEGREGATE /
HOLD FOR EVIDENCE / QUARANTINE-CLAIM
NCR, concession or claim reference:
Inspector / reviewer / approver / date:
For a controlled purchase description, start with the Drill Rods collection, then verify the exact configuration on the T38 extension rod or T45 extension rod route as applicable. Put the final thread family, rod architecture, length definition, marking, packing, evidence and acceptance requirements in the purchase order or RFQ; the approved order documents remain the release authority.
Pneumatic Rock Drill Receiving-to-Commissioning Gate
A pneumatic rock drill can pass the warehouse receiving check and still be unfit to pressurize. Treat stock release and commissioning release as two separate decisions. Receiving verifies that the ordered unit arrived in the correct, undamaged and traceable condition; commissioning verifies the delivered drill, air supply, hose train, lubricator, drill steel and site controls as one system. Do not use a factory no-load video as a substitute for the site gate.
This method applies to hand-held and air-leg drills received for a mine, quarry, tunnelling contractor, distributor workshop or rental fleet. It does not set a universal pressure, test duration, wear limit or performance target. Use the supplier-approved manual, quotation data, purchase order and the site's risk-controlled test procedure for those values.
| Gate item | Evidence to record | Release action |
|---|---|---|
| 1. Identity and supplied configuration | Model and serial or lot reference; nameplate; drill body; air leg where ordered; lubricator; hose and coupling type; steel shank and collar interface; included tools, spares and documents | Hold if the model, revision, interface or package scope cannot be reconciled to the purchase order. |
| 2. Transit and preservation condition | Unopened-package photos; port caps; corrosion protection; impact marks; cracked castings; bent or missing controls; loose fasteners; contamination or water entry | Quarantine any drill with suspected structural damage, internal contamination or an uncertain transport event. |
| 3. Isolated mechanical checks | With the air source disconnected and residual energy released: control movement, retainer engagement, accessible fasteners, chuck or shank area condition and correct assembly of guards or handles | Do not pressurize if a control sticks, the steel-retention arrangement is uncertain or required safety parts are missing. |
| 4. Air-system readiness | Hose condition and rating; compatible couplings; positive locking and restraint where required; isolation valve; drained separator; lubricator type, fill and flow direction; supplier-specified inlet pressure and air demand | Hold until the air system is identified, drained, restrained and capable of being measured at the tool inlet under the intended test condition. |
| 5. Controlled initial pressurization | Test-area authorization; operator and observer; gradual air admission; control and stop response; leakage; abnormal exhaust, vibration, heating or noise; visible lubrication evidence | Stop and isolate on uncontrolled movement, major leakage, abnormal sound, rapid heating or failed control response. |
| 6. Controlled functional drilling test | Approved steel and bit; rock or test medium; air-leg and flushing configuration where applicable; loaded inlet pressure; rotation, percussion, feed and flushing response; test duration; observations and photos | Compare only with the supplier-approved acceptance method and configuration. Hold unexplained underperformance rather than changing settings until it appears to pass. |
| 7. Final disposition | Inspector, date, drill identifier, air-system identifier, measured results, defects, corrective work, concession and named approver | Assign one status: ACCEPT TO STOCK, READY FOR CONTROLLED SERVICE, HOLD FOR EVIDENCE or QUARANTINE. |
How to use the four-status decision
- ACCEPT TO STOCK: identity, quantity, documents and received condition pass, but site commissioning has not yet been completed. Label the drill so warehouse release is not mistaken for permission to operate.
- READY FOR CONTROLLED SERVICE: receiving checks and the approved functional test pass, all results are traceable to the unit, and the authorized site representative signs the release.
- HOLD FOR EVIDENCE: the drill may be correct, but a document, interface confirmation, safe test setup or supplier-specific limit is missing. Keep it unavailable until the gap is closed.
- QUARANTINE: damage, wrong configuration, failed control response, severe leakage or another defined nonconformity makes use unacceptable. Isolate the unit and open the site's nonconformance process.
For each unit, record the purchase order, supplier, package and serial or lot reference; ordered configuration; receiving photos; accessories; hose, coupling, air-leg, lubricator and steel interfaces; isolation and restraint checks; test instrument IDs; actual loaded inlet pressure; test configuration; observed operation; defects; disposition; and approver. A blank field is not a pass—mark it not applicable or explain why evidence is unavailable.
When sourcing a new drill or replacement fleet, use the Rock Drills collection to define the commercial family, then confirm the exact configuration on the YT28 air-leg drill or YT24-series drill page before writing the receiving plan. The quotation and approved supplier data must control final acceptance.
Receiving Inspection Record: Minimum Evidence Pack
- supplier, purchase order, shipment and receiving date;
- item number, description, revision, quantity and package identifiers;
- lot, batch, heat or serial references required by the order;
- photos of unopened packaging, labels, protective condition and representative items;
- documents received and their relationship to the lot;
- inspection plan, sample selection and characteristics checked;
- instrument identification and actual measurement results for critical dimensions;
- defect description, location, quantity and classification;
- accepted, held, quarantined or rejected quantity;
- inspector, reviewer and final disposition authority;
- supplier correspondence, concession or corrective-action reference where needed.
Common Incoming Inspection Mistakes
- releasing the lot because the outer packaging looks good;
- checking a generic catalog description instead of the approved revision;
- counting bundles but not verifying pieces per bundle;
- accepting certificates that cannot be linked to the delivered lot;
- using an unidentified mating component as a go/no-go gauge;
- measuring without recording the method, instrument or actual result;
- sampling only from the easiest package;
- cleaning or reworking damage before evidence is preserved;
- placing rejected tools beside usable stock without a system block;
- accepting a deviation without named technical and commercial authorization.
Information to Lock Before the Next Purchase Order
Recurring receiving disputes usually begin with an incomplete order. Before the next shipment, give the supplier a controlled item description, interface and dimensional requirements, revision, marking and traceability rules, certificate list, packaging method, inspection and sampling plan, defect classes, acceptance criteria, notification period and required response to nonconformance. The supplier and buyer should use the same definitions of overall length, effective length, thread or shank family and lot identity.
Frequently Asked Questions
Should every rock drilling tool be inspected at receiving?
Every shipment should pass identity, quantity, packaging and document checks. Whether every piece needs dimensional or detailed visual inspection depends on the characteristic risk, contract, lot history and approved sampling plan.
Is a supplier pre-shipment inspection report enough?
No. It is useful evidence, but receiving inspection also detects transport damage, shortages, mixed packages and document-to-lot mismatches that may occur after the supplier’s inspection.
What should be checked first when drill rods arrive?
Confirm the controlled item and thread or shank family before measurement. Then check quantity, protectors, straightness or impact evidence, thread condition, markings, length definition and the critical dimensions listed on the approved drawing.
What happens if one sampled item fails?
Follow the approved sampling and nonconformance procedure. The correct action may be to reject the sample result, expand inspection, quarantine the traceable lot or request supplier clarification; it should not be improvised at the receiving dock.
Can a buyer use a production hammer or coupling to test fit?
Only when a controlled procedure explicitly approves the reference component and safe method. Forcing an uncertain connection can damage both parts and still provide no reliable dimensional record.
Technical References
- OSHA 1926.302 — Power-operated hand tools
- ISO 11148-5:2011 — Safety requirements for rotary percussive drills
- ISO 2859-1:2026 — Sampling procedures for inspection by attributes
- ISO 10012:2026 — Requirements for measurement management systems
- NIST — Metrological traceability policy and guidance
These references support sampling and measurement-control principles. The buyer’s purchase order, approved drawing, applicable law and quality procedure remain the acceptance authority for a specific shipment.
