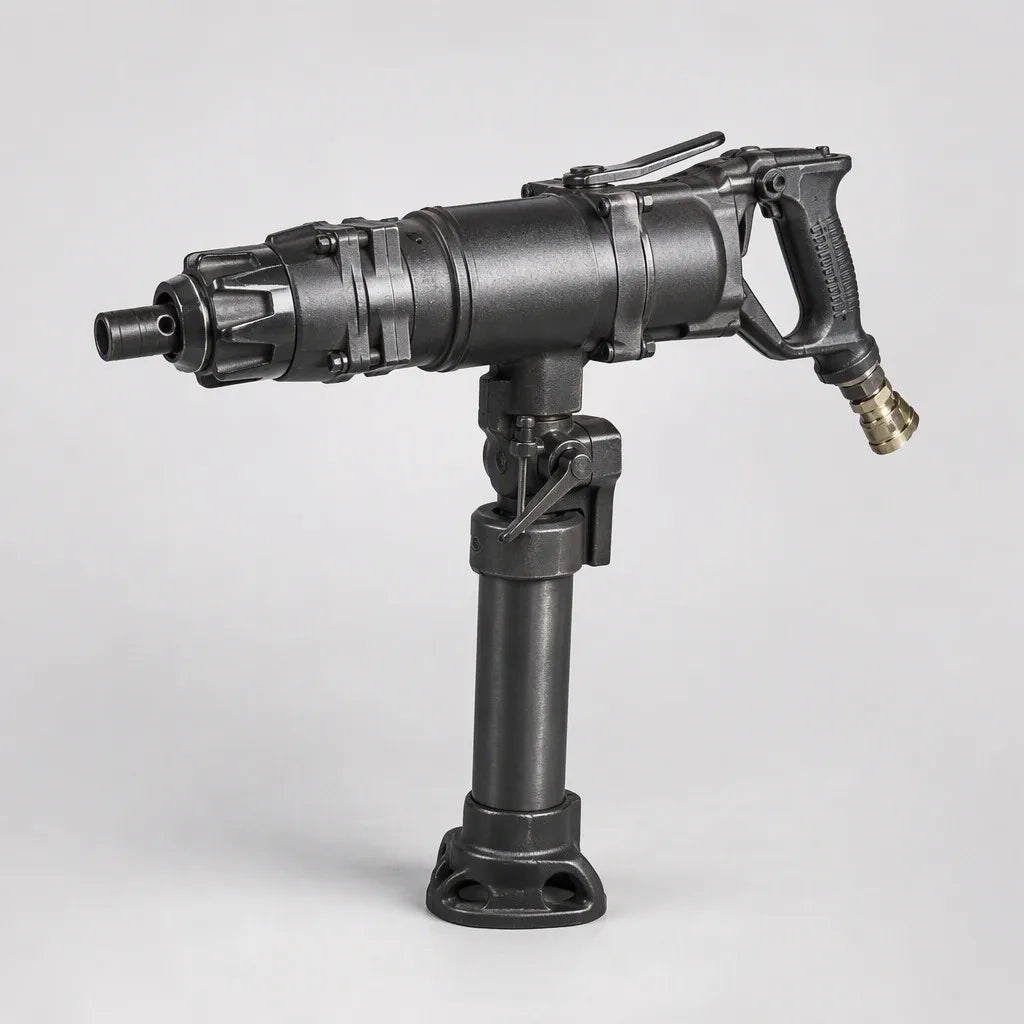

YT24-Series Air-Leg Rock Drill — Confirm YT24C or TY24

YT24C and TY24 are materially different configurations even though both appear under YT24-family naming. This page is a model-identification and quotation entry point, not a single orderable model.

Configuration identity: PFM-YT24 is a family inquiry reference, not an orderable model. Choose YT24C, TY24 or “Not sure — identification required.” If the exact suffix is not known, send the nameplate or marking and photos of the chuck or shank, mounting or air-leg interface, and hose, oiler and water connections. No model-specific quotation can be technically approved until the suffix, supplied shank, air-leg or feed interface, air requirement, accessories and spares, controlled data-sheet revision and approved configuration ID are confirmed.

Current inquiry scope

• Family reference: YT24.
• Current drill-steel reference: H22 × 108 class; the final shank must be confirmed for the selected suffix from the controlled model data sheet.
• The exact suffix or identification-required state must be recorded.

Model-identification states

Information to send

• Nameplate, model marking and clear photos of the drill body.

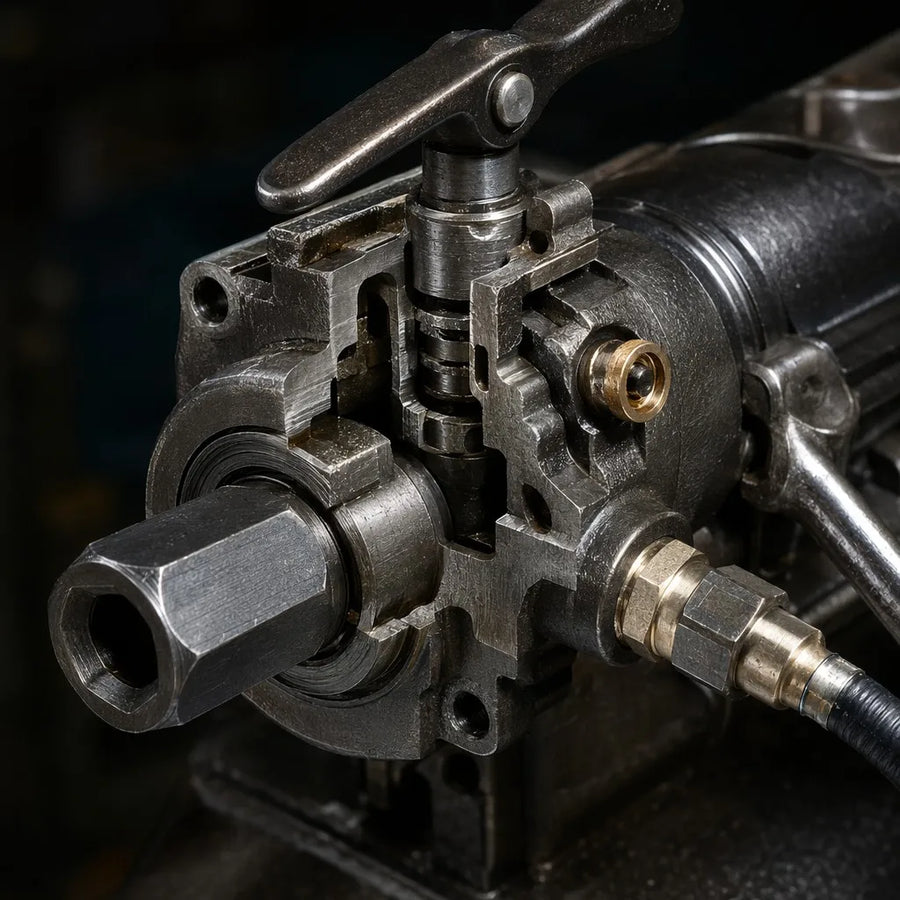

• Chuck or shank, drill steel and bit details.
• Air-leg or feed model, mounting interface and photos or drawing.
• Site air pressure and flow, hose, oiler, water or flushing arrangement.
• Required accessories, spares, quantity, destination and acceptance requirements.

Quotation and configuration boundary

Choosing YT24C or TY24 is a buyer statement, not a supplied-product fact. The technical review must confirm the exact suffix, interface chain, supply scope and controlled data-sheet revision and then return one approved configuration ID. PFM-YT24 must not enter a quotation or purchase order as the only model identity.

For adjacent published models and broader format comparison, review the Rock Drills Collection.
