A pneumatic rock drill converts compressed-air energy into four coordinated actions: percussion, bit indexing by rotation, forward feed, and cuttings flushing. Inside the drill, an automatic valve alternately routes air to opposite sides of a piston. The piston accelerates forward and strikes the drill-steel shank; during the return stroke, a rifle-bar or related ratchet mechanism turns the chuck and steel by a small angle. Air or water then carries broken rock away from the bit face. The exact passages, valve layout, rotation parts, and flushing arrangement vary by model, so a parts drawing for one drill should never be treated as universal.
This guide explains pneumatic rock drill anatomy for mine, quarry, tunnelling, and construction buyers who need to understand what is inside an air-leg or hand-held drill before comparing specifications, spare parts, or failure reports. For a broader explanation of the four drilling functions, see Percussive Rock Drilling Explained.

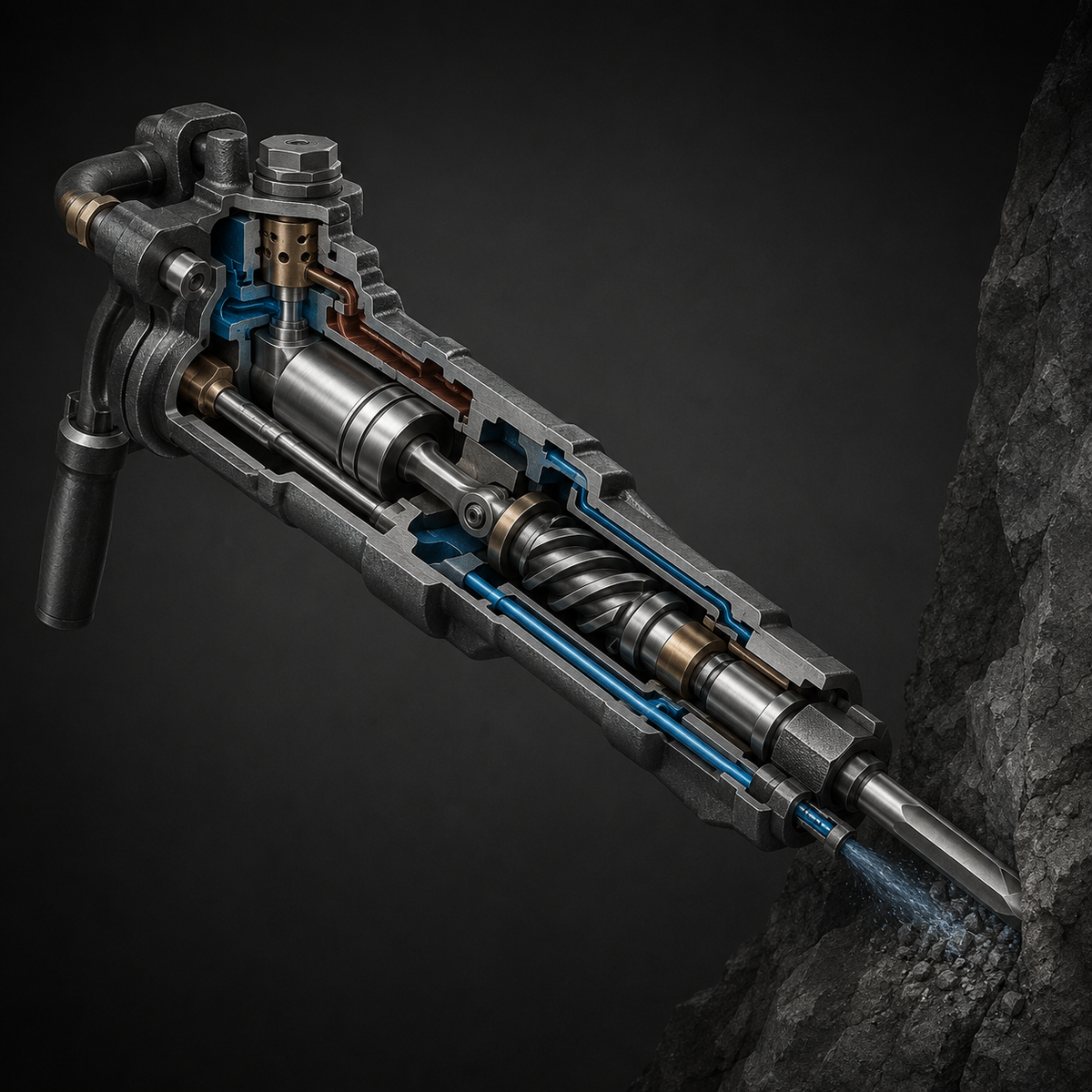

Pneumatic rock drill anatomy at a glance
| Component or path | Primary job | What the operator notices when it is not working correctly | What a buyer should confirm |
|---|---|---|---|
| Air inlet, throttle, and ports | Admit and distribute compressed air | Weak response, delayed starting, leakage, or unstable cycling | Connection size, hose arrangement, and specified working pressure and air consumption |
| Automatic control valve | Switch air between the piston’s drive and return sides | Hard starting, irregular blows, low impact, or excessive air use | Exact model and valve design; do not order by appearance alone |
| Piston and cylinder | Create the reciprocating impact stroke | Falling penetration, heat, blow-by, scoring, or abnormal vibration | Matched piston/cylinder dimensions and service limits from the correct manual |
| Rifle bar, rifle nut, ratchet, and pawls | Convert return-stroke motion into intermittent rotation | Poor or no rotation, uneven bit indexing, or rapid spline wear | Rotation design, direction, and complete part-number match |
| Chuck, chuck bushing, and shank interface | Hold, guide, rotate, and receive impact through the drill steel | Shank movement, poor energy transfer, heat, or damage at the striking end | Shank cross-section and length, such as the complete H22 specification where applicable |
| Retainer | Help keep the drill steel captured while allowing working movement | Unsafe steel retention or difficulty inserting and removing steel | Retainer type and compatible drill-steel shank |
| Flushing path | Carry air or water through the drill and steel to remove cuttings | Dust, blocked holes, regrinding, slow advance, or water entering the wrong chamber | Dry, air-flush, or water-flush configuration and connection details |
| Lubrication path | Deliver oil mist to loaded sliding and impact surfaces | Dry exhaust, heat, accelerated wear, or sticking | Required line oiler, oil grade, installation distance, and consumption guidance |
| Air leg or external feed | Maintain controlled contact between bit and rock | Bit bounce, unstable collaring, rod bending, or stalled rotation | Exact drill-to-leg pairing, feed range, mounting, and control arrangement |
First, separate the drill from the drill string
Buyers often use “rock drill” to mean the entire assembly, but the terms describe different parts of the system:
- Rock drill: the pneumatic machine containing the valve, piston, cylinder, rotation mechanism, chuck, controls, and internal air passages.
- Drill steel: the impact-transmission member fitted into the chuck. Depending on the system, this may be an integral steel or a tapered rod carrying a separate bit.
- Bit: the cutting end that contacts the rock and creates the hole.
- Air leg or pusher leg: the separate feed device that supports the drill and controls thrust in many underground applications.
- Line oiler and hoses: supply-side components that condition and deliver compressed air, lubrication, and—where used—flushing water.
This distinction matters when diagnosing performance or preparing an RFQ. A drill may cycle normally while a worn shank, blocked flushing hole, bent steel, unsuitable bit, leaking hose, or incorrectly matched air leg limits the actual drilling result.
How the pneumatic percussion cycle works
1. Compressed air enters through the throttle
When the operator opens the throttle, compressed air enters the backhead or inlet section. Internal passages deliver it to the automatic control valve and, depending on the design, to lubrication and flushing circuits. Pressure listed in a catalogue is not automatically the pressure available at the drill: hose length, internal diameter, couplings, leaks, simultaneous users, and compressor control can all create loss between the compressor and the inlet.
2. The control valve drives the piston forward
The valve exposes ports that pressurize the rear side of the piston while the opposite side can exhaust. The pressure difference accelerates the piston toward the front of the cylinder. The valve is self-cycling; its switching is governed by piston position and pressure changes rather than by an operator timing each blow.
Different drills may use different valve and port arrangements. The safe purchasing conclusion is therefore functional, not dimensional: the valve must alternate airflow reliably and must match the cylinder, backhead, piston, and ports of the exact model.
3. The piston strikes the drill-steel shank
At the end of the working stroke, the piston face contacts the striking end of the drill steel. The impact launches a stress wave through the steel toward the bit. The bit transfers that energy into the rock, creating crushed and fractured material at the bottom of the hole.
The piston does not normally “push the bit through the rock” like a rotary cutting tool. Its primary function is repeated impact. Correct contact geometry at the piston face and shank is important: a damaged, mushroomed, cupped, or incorrectly dimensioned shank can disturb energy transfer and generate damaging contact stresses.
4. Exhaust and port timing start the return stroke
Near the end of the forward stroke, the piston uncovers or covers ports that change the pressure conditions acting on the valve. Air is then redirected to return the piston. Spent air leaves through the exhaust path. Restrictions, contamination, icing, dry running, or excessive clearance can disturb this cycle, but diagnosis should follow the model’s service manual instead of assuming that every low-power symptom is a piston fault.
5. The rotation mechanism indexes the drill steel
In many hand-held and air-leg pneumatic drills, the drill steel turns slightly during the piston’s return stroke. A helical rifle bar and rifle nut work with a ratchet-and-pawl arrangement so that relative axial motion produces rotation in one direction. Straight splines then transmit that rotation through the piston or rotation sleeve to the chuck.
The purpose is indexing, not high-speed rotary cutting. Each impact should meet a slightly different part of the hole bottom so the bit continues to break fresh rock and form a round hole. If rotation disappears, the drill may still make noise and deliver blows, yet penetration and hole quality can deteriorate quickly.
What each major internal group actually does
Backhead, inlet, throttle, and control valve
The backhead closes the rear of the machine and contains or supports supply and control components. The throttle starts, stops, or modulates air admission. The control valve is the traffic controller of the percussion cycle. Because its surfaces and ports affect timing and leakage, dirt, corrosion, incorrect assembly, or unmatched replacement parts can cause disproportionate performance loss.
Piston, cylinder, and impact faces
The piston is both an air motor element and an impact mass. Its outside surfaces must move freely in the cylinder while limiting unwanted air bypass. The striking faces must remain suitable for impact contact. Wear assessment is model-specific: do not create an acceptance limit from a similar-looking piston. Confirm measurement points, clearance limits, surface requirements, and replacement criteria from the applicable technical documentation.
Rifle bar and ratchet rotation group
The rifle bar carries a helical form. Ratchet parts lock in one phase and release in the other, converting the piston’s return movement into one-way angular indexing. These loaded sliding surfaces depend on clean lubrication. Worn splines, damaged pawls, a broken spring, contamination, or incorrect assembly can appear as slow or intermittent rotation.
Not every pneumatic rock drill uses the same internal rotation concept. Some heavier drifters use a separate rotation unit. The phrase “pneumatic rock drill” describes the power source, not a guarantee that every model shares a rifle-bar layout.
Chuck, chuck bushing, retainer, and drill-steel shank
The chuck transmits rotation and guides the drill steel. The shank must fit the intended cross-section, across-flat dimension, and length. “H22” alone may not be a complete order description; buyers should also confirm shank length, collar position, taper or bit connection, flushing-hole arrangement, and the drill model.
The retainer helps prevent the steel from leaving the machine unexpectedly, but it is not a substitute for correct shank compatibility or safe handling. Before changing steel, isolate the air supply, bleed stored pressure, and follow the manufacturer’s procedure.
Flushing and lubrication passages
Flushing and lubrication serve different destinations even though both may travel through air passages. Lubricating oil is metered into the compressed-air supply to protect internal moving surfaces. Flushing air or water travels toward the drill-steel bore and bit to remove cuttings. A wet-drilling model may use concentric tubes or separated passages to keep water out of the percussion mechanism.
Never assume that a water connection proves two drills have the same internal flushing parts. Confirm whether the specific unit is dry-drilling, air-flushing, water-flushing, or convertible, and obtain the correct parts diagram before ordering tubes, seals, or backhead components.
How percussion, rotation, feed, and flushing depend on one another
| Function | If too low or interrupted | If excessive or incorrectly applied |
|---|---|---|
| Percussion | Weak rock breakage and low penetration | Do not exceed the manufacturer’s pressure; higher input can increase stress, vibration, and air demand |
| Rotation | Repeated blows on the same crater, poor hole shape, concentrated bit wear | Skidding or scraping rather than useful indexing, depending on bit and rock |
| Feed | Bit bounce, unstable collaring, poor energy transfer | Stalling, rod bending, difficult rotation, or excessive contact load |
| Flushing | Cuttings accumulation, dust, regrinding, blocked passages | More flow is not automatically better; the system must remain within the drill and site limits |
A useful diagnostic habit is to observe all four functions separately. “The drill is slow” is not yet a cause. Confirm inlet pressure under load, audible and tactile percussion, actual steel rotation, feed response, and flushing discharge before opening the machine.
Common anatomy misunderstandings that cause ordering errors
- “The model name is enough.” Model families can have suffixes, regional versions, production revisions, and different air-leg or flushing configurations.
- “If the piston fits, it is compatible.” Length, port timing, striking-face geometry, outside diameter, material, and mating valve/cylinder features all matter.
- “The rifle bar drives the impact stroke.” Compressed air drives the piston. The rifle mechanism usually recovers part of the return motion to index the steel.
- “The chuck only holds the steel.” It also guides the shank and transmits rotation, so wear or mismatch can affect both alignment and energy transfer.
- “Flushing air is the same as exhaust air.” The passages and control can differ. Treat the parts drawing and operating manual as authoritative for the exact model.
- “A louder drill is a stronger drill.” Sound alone cannot confirm useful impact energy at the bit. Air leakage, bit contact, steel condition, feed, and cuttings removal all affect output.
What to confirm before requesting a pneumatic rock drill or spare parts
- Full model and suffix: photograph the nameplate and record every letter and number.
- Application: hand-held, air-leg, stoper, or rig-mounted use; drilling direction; hole diameter and typical depth.
- Drill-steel shank: cross-section, across-flat size, shank length, collar details, and flushing-hole arrangement.
- Air supply at the drill: pressure under load, available flow, hose inside diameter and length, coupling type, and number of simultaneous tools.
- Flushing configuration: dry, air, or water; inlet connection; water pressure guidance; and correct flushing tubes or seals.
- Feed system: exact air-leg model or external feed arrangement, mounting, control location, and extension range.
- Parts evidence: parts-list revision, exploded drawing, existing part number, dimensions, and clear photographs of both the old part and mating features.
- Failure description: no impact, weak impact, no rotation, leakage, overheating, shank damage, or poor flushing—and what checks have already been completed.
For a currently listed example of the commercial pathway, review the YT28 air-leg pneumatic rock drill. The product page is a starting point for configuration review, not permission to assume that every YT28-labelled unit or spare part is identical. Buyers comparing complete machines can also use the published air-leg rock drill selection guide.
Frequently asked questions
What makes a pneumatic rock drill hammer automatically?
An internal valve alternately directs compressed air to opposite sides of the piston. Piston movement and port timing change the pressure conditions that shift the valve, creating a repeating forward and return cycle while the throttle remains open.
Why does the drill steel rotate if there is no separate rotation motor?
Many light pneumatic drills use a rifle-bar and ratchet mechanism. During the return stroke, helical engagement converts axial piston movement into a small angular movement, which the chuck transmits to the drill steel. Other pneumatic drills may use a separate rotation unit, so check the model design.
Does the piston strike the bit directly?
In a top-hammer pneumatic rock drill, the piston strikes the shank end of the drill steel inside the machine. Impact energy travels through the steel to the bit at the hole bottom. That is different from a DTH hammer, where the piston is located down the hole close to the bit.
Why are lubrication and flushing both essential?
Lubrication protects internal sliding and impact-loaded surfaces. Flushing removes newly broken material from the bit face and hole. One cannot replace the other, and their passages must remain correctly separated in water-flushed designs.
Can spare parts be ordered from the machine’s appearance?
No. Similar external castings can hide different valve, piston, rotation, chuck, thread, or flushing configurations. Use the full model, suffix, serial or production information where available, parts-list revision, dimensions, and photographs of mating features.
Turn the anatomy into a verifiable RFQ
A good pneumatic rock drill RFQ connects the internal mechanism to the operating system: exact drill and air-leg model, shank, air delivery at the inlet, flushing method, hole requirements, and parts evidence. If you are replacing a complete drill or trying to match uncertain spare parts, send PerfoMax the nameplate, current drill-steel details, air-supply information, application, and clear component photographs. That evidence is more reliable than a model nickname or a visual match.
