Direct answer: a pneumatic rock drill needs a controlled supply of the specified lubricant, but visible exhaust mist is not a universal feed-rate gauge. A light, repeatable oily trace may confirm delivery; persistent spray, dripping or pooling requires diagnosis. Do not reduce the feed merely until the exhaust looks clean. First determine whether the pattern follows startup, every drill on one branch, one oiler or one tool, then adjust only to the supplied drill-and-oiler procedure.
This guide is for mine, quarry, tunneling and construction teams operating hand-held or air-leg pneumatic rock drills, including Y19A-, YT24-, YT28- and YT29A-class machines. It covers routine lubrication and the specific decision of whether excess oil at the exhaust is normal carryover, a shared-system fault, contamination or a tool-specific condition. Exact oil grade, oiler setting and acceptance limit remain controlled by the supplied manuals, lubricant data sheet and site risk assessment.
1. Why Lubrication Is a System Requirement, Not an Optional Maintenance Detail
A pneumatic rock drill converts compressed-air energy into repeated piston impacts and rotation. Internal surfaces therefore operate under impact loading, sliding contact and high cycle frequency. The specified lubricant must reach the air motor and impact mechanism as designed so that it can maintain an oil film, limit friction and help protect components such as the piston, cylinder, chuck drive, rifle bar and ratchet system. The supplied operating manual and lubricant data sheet control the exact oil and delivery method.
The key operating point is that air supply and oil supply perform different jobs. Adequate pressure and airflow can make a drill run, but they do not replace lubrication. A drill that sounds energetic can still be under-lubricated. For maintenance planning, lubrication should therefore be treated as part of the compressed-air system, not as an occasional workshop task.
| System element | Its job | What operators should verify |
|---|---|---|
| Compressor and air line | Deliver pneumatic energy | Required pressure/flow at the drill, hose condition, contamination and water management |
| Integral oiler or line oiler | Meter lubricant into the air stream | Correct orientation, oil level, clean passages and model-appropriate adjustment |
| Rock drill oil | Maintain a protective film under impact and moisture | OEM-approved type/viscosity for the drill and temperature |
| Rock drill | Convert air energy into percussion and rotation | Heat, sound, rotation, exhaust condition and wear trends |
2. Integral Oiler vs Line Oiler: First Identify the Lubrication Architecture
Do not assume every pneumatic rock drill is lubricated the same way. Some models use an integral reservoir and metering system; others use a separate air-line lubricator between the compressor and the tool. The correct architecture, flow direction and capacity must be verified for the supplied drill rather than inferred from another model.
For an existing fleet, identify the lubrication architecture before changing anything:
- Record the exact drill model and suffix. Family names alone may cover different configurations.
- Check whether the tool has an integral oil reservoir. If it does, follow that tool’s fill and adjustment procedure.
- Inspect the compressed-air line for an external lubricator. Confirm flow direction and that the device is intended for the tool’s airflow demand.
- Check the manual before using two lubrication devices together. Some systems may permit or require additional line lubrication; others have their own defined arrangement.
- Do not bypass the oiler because the drill “still runs.” Running is not evidence of adequate oil delivery.
3. What Oil Should Be Used in a Pneumatic Rock Drill?
Use a lubricant specified for the exact pneumatic rock drill or explicitly approved by its manufacturer. Generic engine oil, hydraulic oil or whatever oil is available on site should not be treated as an automatic substitute.
Rock-drill oils are formulated for conditions that ordinary lubricants may not handle well: repeated impact, high load, compressed-air transport, moisture and one-pass lubrication. Selection should therefore be based on the drill maker’s approved type and viscosity range, the lubricant data sheet, ambient temperature and water exposure—not on a generic label such as “pneumatic oil.”
There is no single universal viscosity grade for every pneumatic rock drill. Commercial rock-drill oils are sold in multiple viscosity grades, and the correct choice depends on equipment design and operating temperature. Use the supplied manual or the lubricant requirement attached to the quotation. If the site moves between hot and very cold conditions, re-check the approved grade rather than assuming the same oil is appropriate year-round.
4. A Practical Pre-Shift Line-Oiler Check
The best lubrication program is one operators can verify before drilling starts. Use this sequence as a field control, while keeping the model-specific manual as the controlling document.
| Check | What to look for | Why it matters |
|---|---|---|
| Oil identity | Correct labeled rock-drill oil for the machine and temperature | Prevents wrong-fluid substitution |
| Oil level | Reservoir filled to the required level | A correct setting cannot feed oil from an empty reservoir |
| Oiler direction | Flow arrow/orientation matches compressor-to-tool airflow | Incorrect installation can prevent proper metering |
| Hose/fittings | No damaged hose, major leak, loose fitting or contamination | Protects both air delivery and oil transport |
| Adjustment | Set to the drill/oiler manufacturer’s procedure | Avoids arbitrary feed-rate changes |
| Consumption check | Oil is actually being consumed during operation as expected | Confirms the system is not merely full but inactive |
After starting the drill, do not rely on one visual cue alone. Oil consumption, drill temperature, operating sound, rotation behavior and maintenance history should be considered together. If the oil level never changes over a period when the lubricator should be feeding, stop and inspect the oiler rather than compensating by increasing air pressure.
5. Under-Lubrication: Symptoms That Should Trigger Inspection
Under-lubrication can show up as a maintenance pattern rather than one dramatic failure. Treat the following as reasons to inspect oil delivery, not as proof that lubrication is the only cause:
- the drill body becomes abnormally hot relative to normal operation;
- percussion or rotation becomes rough, erratic or progressively less free;
- internal wear accelerates between service intervals;
- the shank/chuck area appears unusually dry or shows abnormal wear;
- the drill begins sticking after otherwise normal air supply has been confirmed;
- parts show scoring, corrosion or seizure during teardown.
These symptoms can also be caused by dirty air, wrong pressure, worn components, misalignment or incorrect drill steel. The correct troubleshooting order is therefore: verify lubrication delivery, verify air supply and contamination, inspect the drill string and interfaces, then proceed to internal inspection if the problem remains.
6. Excess Oil at the Exhaust: Isolate the Source Before Adjusting
Increasing oil delivery beyond the equipment requirement is not a safety margin. Pneumatic drills use an open lubrication circuit, so some lubricant can leave with the exhaust. The decision is not “mist or no mist”; it is whether the observed pattern is repeatable, within the supplied procedure and free from liquid discharge, contamination or abnormal machine behavior.
If oil carryover looks excessive, first confirm the oil identity, reservoir fill, oiler type, flow direction and model-specific setting. Do not simply reduce the feed until the exhaust looks clean, because under-lubrication can damage the mechanism. Treat oil on floors or handles as a slip and control-surface hazard, contain the discharge, and follow the site SDS and exposure controls.
Use the pattern to choose the next check
| Observed pattern | Most useful interpretation | Next decision |
|---|---|---|
| Brief mist immediately after refill, priming or reconnection, then a stable trace | Possible startup carryover or residual oil in the hose | Monitor against the normal baseline; verify fill level and setting before release |
| Heavy mist or liquid from every drill supplied by the same oiler or branch | Shared oiler setting, orientation, oil viscosity, temperature or line condition is more likely than several simultaneous tool faults | Hold the branch, inspect the shared components and retest with the specified setup |
| Only one drill produces heavy carryover on the same verified branch | Retained oil, an internal passage condition or recent service state may follow the tool | Swap only the tool in a controlled comparison; remove it for service if the pattern follows |
| Oil is found at a hose joint, coupling or reservoir rather than the exhaust | Leakage, spill or installation error; not proof of internal lubrication | Isolate, repair and clean the connection before judging delivery |
| Milky, foamy or water-contaminated discharge | Possible water ingress or contaminated compressed air | Hold the drill and inspect water separation, hose routing and wet-drilling controls |
| Reservoir level falls but expected delivery is absent at the drill | Possible leak, wrong routing, blocked path or oil retained elsewhere in the line | Trace the complete path; do not compensate by opening the metering adjustment further |
Controlled one-variable oil-carryover test
- Isolate and depressurize. Lock out the air supply, bleed stored pressure and follow the site procedure before separating a hose, oiler or drill.
- Freeze the starting conditions. Record drill ID, oiler ID, oil name and batch, ambient condition, reservoir level, flow direction and current manufacturer-defined setting. Do not mix oils or change several variables at once.
- Remove old residue from the observation area. Clean the exhaust guard, nearby joints and collection surface so old oil is not mistaken for new discharge. Restore all guards before operation.
- Run a matched comparison. Use the same verified air branch and operating state, then change only one item: either the drill or the oiler/branch. Never perform a free-running test that the manual prohibits, and keep people clear of exhaust and moving parts.
- Record the pattern, not a guessed rate. Note when carryover begins, whether it is mist or liquid, whether the reservoir level changes, and whether temperature, sound, percussion or rotation differs from the known-good setup.
- Isolate again and inspect. Check the exhaust path, hose joints, reservoir and collected discharge for water, debris or mixed-fluid evidence before making a release decision.
This test deliberately avoids a universal run time, drop rate or visible-mist threshold. Those values depend on the exact drill, oiler, oil viscosity, air demand and temperature and must come from the supplied documentation.
Oil-carryover disposition gate
| Status | Release condition | Required action |
|---|---|---|
| READY | Specified oil and setup confirmed; stable expected trace; no pooling, contamination, leak or abnormal drill behavior | Release and retain the baseline record |
| ADJUST AND RETEST | Shared setup or manufacturer-defined setting is incorrect, but no contamination or damage symptom is present | Correct one item to the manual, repeat the matched test and record the result |
| HOLD FOR CONTAMINATION / WATER | Milky oil, water, debris, mixed fluid or an unexplained branch-wide pattern is found | Quarantine the affected oil and equipment; correct air/water management before retest |
| REMOVE FROM SERVICE | Heavy discharge follows one tool, or abnormal heat, sticking, sound, percussion or rotation remains | Isolate the drill for competent inspection; do not mask the condition by reducing or increasing oil feed |
Copy-ready oil-carryover test record
Site / heading / rig: Date, shift and operator: Drill model, serial or fleet ID: Oiler ID and type: Oil name, grade, batch and SDS: Ambient condition: Air branch and hose configuration: Reservoir level before / after: Manufacturer-controlled setting: Observed pattern and start point: Mist / droplets / liquid / contamination: Matched comparison item changed: Temperature, sound, percussion and rotation notes: Discharge containment / cleanup: Disposition: READY / ADJUST AND RETEST / HOLD / REMOVE FROM SERVICE Corrective action, approver and next review:
6A. Persistent Exhaust Mist: Maintenance Correction or Exposure Escalation?
A visible exhaust plume is a maintenance clue, not an exposure measurement. First verify the specified oil, oil grade, oiler identity, flow direction, reservoir level and manufacturer-controlled setting. Do not starve the drill merely to make the air look clear. If a persistent airborne haze remains after the lubrication setup is corrected, the decision moves beyond maintenance: the site must assess exhaust direction, ventilation, nearby workers, lubricant safety data and any required occupational-hygiene sampling.
NIOSH lists inhalation, skin contact and eye contact as exposure routes for mineral oil mist and identifies irritation of the eyes, skin and respiratory system as possible symptoms. Applicable exposure limits and monitoring methods vary by jurisdiction and by the actual lubricant, so the current site procedure, SDS and occupational-hygiene program control the response. A mechanic or operator should not declare an atmosphere acceptable from visibility, odor or a reservoir-consumption estimate.
| Observed condition after setup verification | Decision boundary | Required action |
|---|---|---|
| Brief localized trace during priming or restart; it clears, no liquid discharge remains and the drill matches its established baseline | Maintenance observation only, provided the manual and site procedure permit the condition | Record the baseline, keep exhaust directed away from people and continue normal monitoring |
| Heavy mist or droplets follow every drill on one oiler or branch | Shared lubrication or air-system fault is more likely than simultaneous tool faults | Hold the branch, isolate it, correct the verified oiler, oil, temperature or line condition, then repeat the controlled comparison |
| Heavy discharge follows one drill on a verified branch | Tool-specific retained oil, passage condition or internal fault remains likely | Remove that drill from service for competent inspection; do not mask the result by changing the shared setting |
| Persistent visible haze accumulates in the work area, the exhaust is directed into an occupied zone, or several drills create a combined plume | Mechanical diagnosis alone cannot release the workplace | Pause the affected work under the site procedure and escalate to ventilation and occupational-hygiene review; sampling may be required before release |
| Oil wets handles, hoses, floor, access way or operator clothing | There is a contact, grip or slip hazard even if the airborne condition is unknown | Isolate the source, contain and clean the residue, replace contaminated PPE or clothing as required and correct the discharge before restart |
| Worker reports eye, skin or respiratory irritation, dizziness, breathing difficulty or another acute symptom | It is a health response, not an oiler-adjustment trial | Stop exposure, move to fresh air where safe, follow the site first-aid/medical protocol and preserve the oil identity, SDS and operating record |
| Oil identity is unknown, mixed, decanted without a label, or no current SDS is available | The hazard and compatibility basis is uncontrolled | Quarantine the fluid and affected oiler; restore only a verified lubricant with traceable product information |
Four-step escalation workflow
- Correct the machine-side variables. Verify the exact drill and oiler, approved lubricant, installation direction, reservoir fill, manufacturer-controlled setting, hose arrangement and recent maintenance. Change one variable at a time.
- Map the plume and occupancy. Record where exhaust travels during collaring and drilling, whether it clears or accumulates, how many drills share the space and which workers may be downwind. Do not position a person in the plume to “check” it.
- Separate visibility from exposure evidence. A plume can indicate a control problem, but only the competent site program can decide whether air monitoring is required and which method and limit apply to the actual oil and jurisdiction.
- Assign one release status. READY only when the lubrication system matches the approved setup and the site has accepted the workplace controls; otherwise use ADJUST AND RETEST, HOLD FOR EXPOSURE REVIEW or REMOVE FROM SERVICE.
Copy-ready exhaust-mist escalation record
Site / heading / work area: Date, shift and observer: Drill model and asset ID: Oiler ID, type and flow direction: Lubricant name, grade, batch and SDS revision: Manufacturer-controlled setting confirmed: Air branch, hose arrangement and number of drills: Exhaust direction and occupied positions: Observed condition: trace / droplets / liquid / persistent haze: Condition timing: startup / collaring / drilling / continuous: Residue on handles, hoses, floor or clothing: Worker symptoms reported and response taken: Mechanical correction and matched retest: Ventilation / occupational-hygiene referral: Sampling method and result, if required by the site: Disposition: READY / ADJUST AND RETEST / HOLD FOR EXPOSURE REVIEW / REMOVE FROM SERVICE Approver, procedure reference and next review:
For general hazard identification, see the NIOSH Pocket Guide entry for mineral oil mist and the applicable OSHA annotated air-contaminant table. These references do not identify the exact lubricant in a specific rock drill; the product SDS and site assessment remain necessary.
7. Wet Drilling, Water in the Air System, and Lubrication
Rock drilling frequently combines compressed air with water flushing, and mine air systems may also carry moisture. Rock-drill oils are designed to maintain a lubricating film in these conditions, but the lubricant does not solve a water-system fault.
For the current PerfoMax Y19A configuration, the operating boundary specifies that wet-drilling water pressure should remain at least 1 bar below air pressure to reduce the risk of water entering the impact mechanism. That is a model-specific reference, not a universal setting for every pneumatic rock drill. YT24-, YT28- and YT29A-class drills should follow the water and lubrication instructions for the quoted manufacturer and configuration.
When repeated corrosion or milky contamination appears, investigate the air system, water separator, hose routing and wet-drilling setup as well as the lubricant. Changing to a heavier oil without correcting water ingress can hide the symptom without removing the cause.
8. Lubrication Checks for Y19A, YT28 and YT29A-Class Drills
| PerfoMax current product | Current operating reference | Lubrication implication |
|---|---|---|
| Y19A hand-held pneumatic rock drill | 4–5 bar reference working pressure; H22 × 108; dry or wet drilling | Continuous lubrication is required; wet-drilling water pressure has a defined relationship to air pressure |

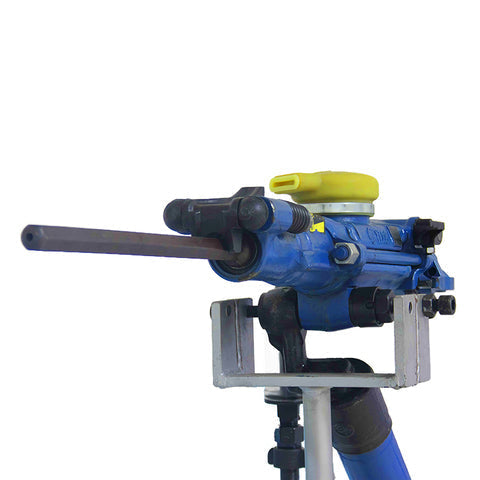

| YT28 air-leg pneumatic rock drill | Reference data published at 0.50 and 0.63 MPa; approved air-leg pairing required | Lubrication must be checked together with the correct air-leg, hose, oiler and water configuration |
| YT29A air-leg pneumatic rock drill | Reference data published at 0.50 and 0.63 MPa; H22 × 108 | Use the quoted supplier’s oil and oiler instructions rather than transferring a YT28 setting by assumption |
These product pages are screening references. The final supplier data sheet and operating manual attached to the quotation control the supplied machine and its lubrication requirement.
9. Common Pneumatic Rock Drill Lubrication Mistakes
- Using “any oil” because the tool is pneumatic. Rock-drill lubrication has specific load, adhesion and moisture requirements.
- Filling the oiler but never checking whether it meters oil. A full reservoir is not proof of delivery.
- Copying an oil grade or feed setting from another drill model. Similar-looking drills may have different lubrication requirements.
- Trying to solve low drilling performance by increasing air pressure before checking oil delivery. That can increase load on an already poorly lubricated mechanism.
- Ignoring temperature changes. Lubricant viscosity and flow behavior vary with temperature.
- Treating excess oil mist as normal. Re-check the setting and oiler rather than assuming more oil is always safer.
- Ignoring water-management problems. Lubricant cannot compensate for persistent water ingress or contaminated compressed air.
10. A 6-Step Lubrication Troubleshooting Sequence
- Confirm the exact drill and lubrication architecture. Integral oiler or line oiler?
- Confirm the lubricant. Match the oil type/grade to the supplied manual and site temperature.
- Confirm the oiler is installed and filled correctly. Check direction, fittings, reservoir and adjustment.
- Confirm oil delivery during operation. Look for expected consumption and compare with normal machine behavior.
- Check the rest of the air/water system. Pressure, airflow, leaks, contamination and wet-drilling controls can mimic lubrication faults.
- Inspect wear if symptoms remain. Stop the drill and inspect chuck, shank interface and internal components according to the service procedure.
If a drill has already run dry, do not assume that restoring oil flow reverses any damage. Abnormal noise, heat or sticking after lubrication is restored is a reason to inspect before returning the tool to full duty.
11. What to Include in an RFQ or Spare-Parts Request
- exact rock-drill model and suffix;
- manufacturer/nameplate photo;
- hand-held or air-leg configuration;
- integral oiler or external line-oiler arrangement;
- current lubricant name/grade if known;
- ambient temperature range and wet/dry drilling condition;
- compressor pressure/airflow and hose size/length;
- symptoms if the request follows a lubrication-related failure;
- required oilers, hoses, spare parts or maintenance kits;
- quantity and delivery destination.
PerfoMax’s current pneumatic rock-drill range includes Y19A-, YT24-, YT28- and YT29A-class products. If you are replacing an existing drill or setting up a matched air-leg system, send the model, compressor and application information for quotation review.
FAQ
Do pneumatic rock drills need oil in the air line?
Many do, but the exact arrangement depends on the model. Some drills use an integral oiler; others use a separate line lubricator. Follow the supplied operating manual for the exact drill.
What oil should I put in a pneumatic rock drill?
Use the rock-drill lubricant type and viscosity approved for that machine and operating temperature. Do not assume engine, hydraulic or general-purpose oil is an acceptable substitute.
How do I know whether a line oiler is working?
Verify that it is installed in the correct direction, filled with the specified oil, adjusted according to the manufacturer’s procedure, and actually consuming oil during operation. If consumption is absent or drill behavior changes, stop and inspect the lubrication path.
Can too much rock-drill oil cause problems?
Yes. Excess delivery can create persistent exhaust carryover, slippery residue and unnecessary airborne mist. Compare whether the pattern follows the shared oiler or one drill, then correct only to the manufacturer-defined setting. Do not reduce oil solely to make the exhaust look clean.
Does wet drilling change the lubrication requirement?
Wet drilling increases the importance of water management and maintaining an appropriate oil film. The required water-to-air pressure relationship and lubricant specification are model-specific, so use the operating manual for the quoted drill.
