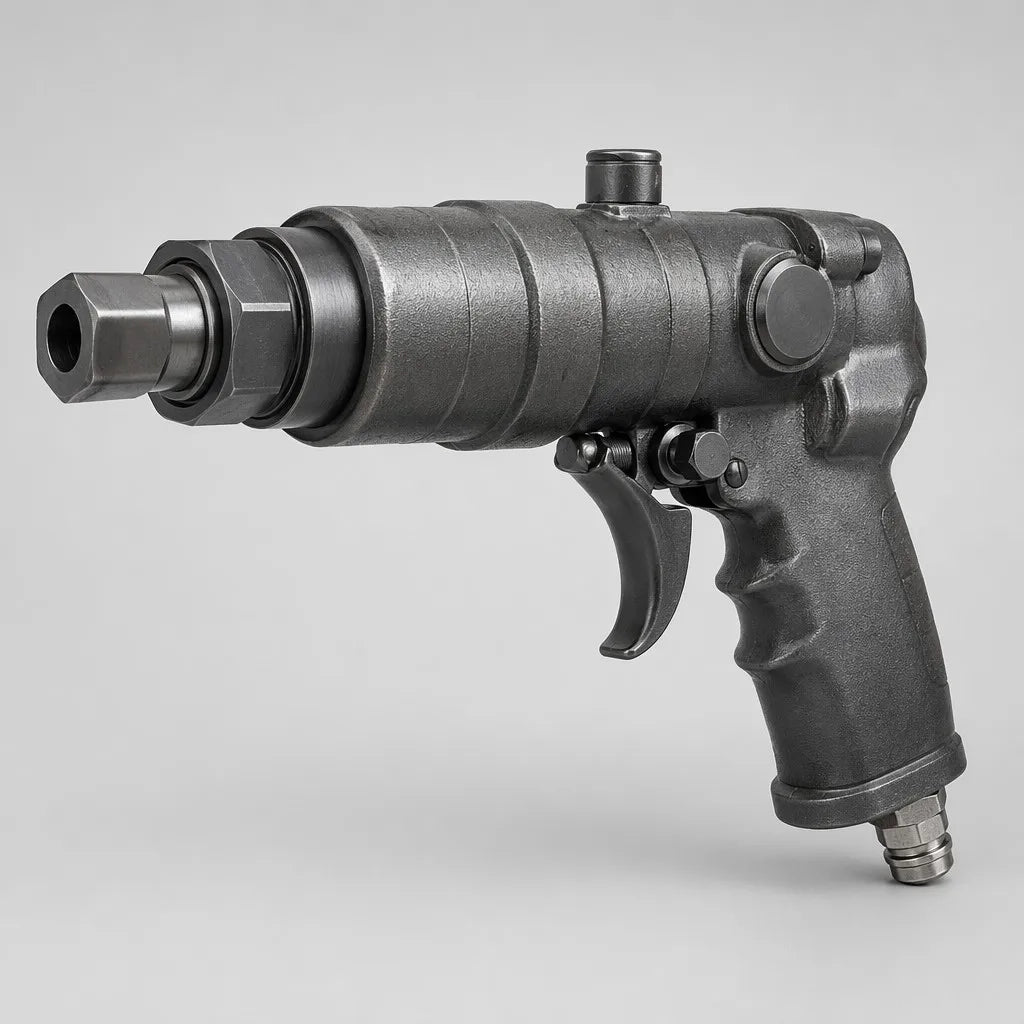

Hand-Held Pneumatic Rock Drill
Y19A Hand-Held Pneumatic Rock Drill, H22 × 108
Model:Y19A / H22 × 108
Selected configuration:Y19A H22 × 108
Selected reference:PFM-Y19A
19 kg hand-held pneumatic rock drill for 34–40 mm holes with H22 × 108 mm shank rods.
A compact air rock drill for short-hole work; match the shank, bit, air pressure, hose and lubrication before quotation.
- H22 × 108 mm shank interface
- 34–40 mm reference hole range
- 19 kg reference machine weight
Select
Request a Configuration-Based Quote
Compare all Hand-Held Rock Drills
Send the exact model or suffix, rock condition, hole diameter and depth, drilling direction, drill-steel interface, air pressure and flow, feed setup, quantity and delivery country.
At a Glance
19 kgMachine Weight
600 × 534 × 157 mmOverall Dimensions
65 mmCylinder Bore
Technical Specifications
| Machine Weight | 19 kg |
|---|---|
| Overall Dimensions | 600 × 534 × 157 mm |
| Cylinder Bore | 65 mm |
| Piston Stroke | 54 mm |
| Working Pressure | 4–5 bar |
| Impact Energy | ≥40 J at 5 bar |
| Blow Frequency | ≥35 Hz at 5 bar |
| Air Consumption | ≤43 L/s at 5 bar |
| Recommended Hole Diameter | 34–40 mm |
| Shank and Reference Depth | H22 × 108 mm; up to 5 m |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Drill bit
34–40 mm H22 tapered bit
Same taper as the selected rod and matched socket
Select face, buttons and flushing for the rock and hole requirement.
Compressor, hose and lubricator
4–5 bar tool-inlet system
19 mm air hose reference; continuous lubrication
Compressor outlet pressure alone is not sufficient; account for hose loss and simultaneous tools.
Pneumatic Drilling Performance
Compact Hand-Held Percussion System
Compressed air drives the piston for impact while the operator controls feed and rotation through the hand-held drilling system.
Buyer value
The 19 kg machine is suited to short-hole work where a matched rod, bit, air supply, flushing and lubrication system is available.
Selection condition
Performance figures are pressure-specific. Confirm tool-inlet pressure, hose size, lubrication, flushing, drilling direction and duty cycle.
Application Scenarios

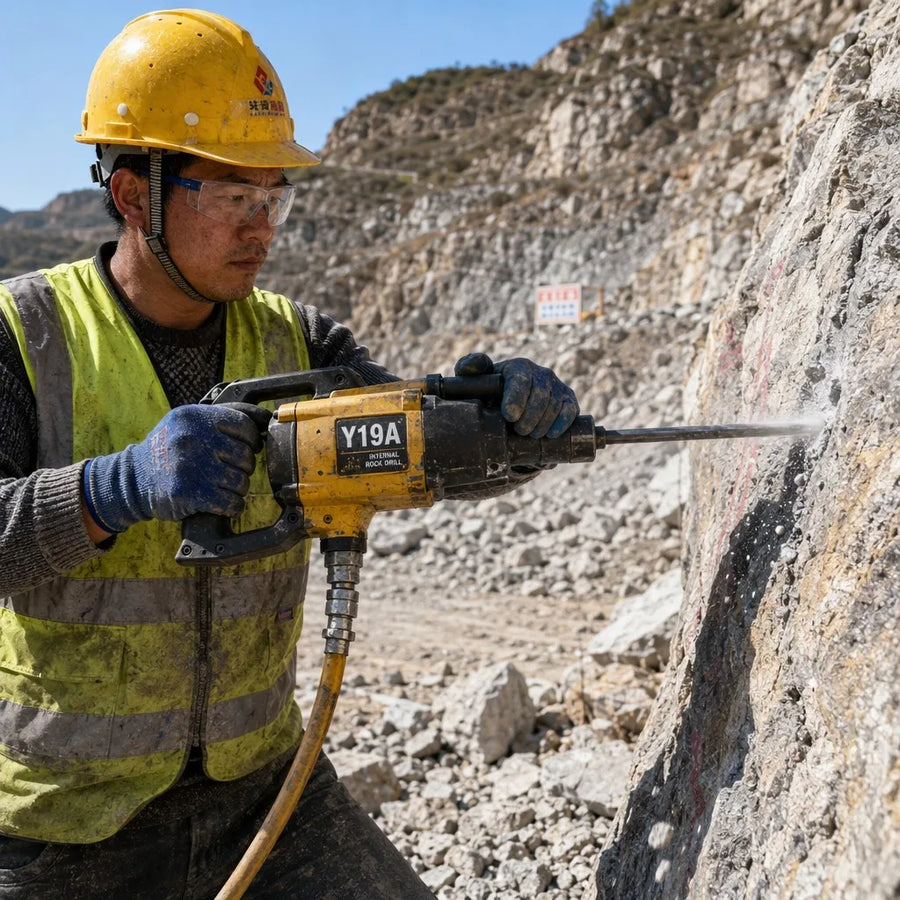

- Quarrying and secondary blasting
- Mine and tunnel development
- Road and foundation rock work
Quality and Pre-Shipment Checks
01
Configuration and Functional Check
Recorded before shipment when included in the quotation
Ordered machine configuration and agreed test conditions
Verify model and shank, inspect external condition and connections, and perform the agreed functional check under the quotation-defined conditions.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed in written quotation
Lead TimeConfirmed in written quotation
Available Supply Configurations
- Final packing list confirmed in the written quotation
Export Packing
Final packaging, corrosion protection, crate or pallet method and shipping marks are confirmed in the written quotation.
Warranty and After-Sales
Warranty, spare-parts scope and service terms are confirmed in the written quotation for the selected supplier configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list; any additional certificates are confirmed per order
Frequently Asked Questions
How should I size the air supply for a Y19A?
Use the stated 4–5 bar pressure and up to 43 L/s reference consumption at 5 bar as tool-inlet values. Add capacity for hose pressure loss, couplings, leakage, altitude and any simultaneous pneumatic tools.
Are the rods, bits, hose and lubricator included?
Not automatically. The quotation lists the rock-drill body, rods, bits, hose, lubricator, optional pusher leg, spare parts and packing separately unless a complete set is explicitly stated.
What job information is needed to confirm the Y19A?
Provide rock type, hole diameter and depth, drilling direction, available pressure at the tool, compressor capacity, current rod/bit interfaces, expected daily workload, quantity and delivery country.
Required Drill-Steel, Air and Feed Interfaces
The Y19A system combines the rock drill, H22 × 108 rods, 34–40 mm bits, 19 mm air hose, water line and lubricator. An FT100 pusher leg can be quoted on request.
Ready to Confirm the Configuration?
Request a Quote for Y19A / H22 × 108
We will confirm the drill body, shank and drill-steel interface, bit connection, dry or wet setup, air leg or feed, lubricator, hose and water setup, accessories, supply scope and export packing.
- Product-specific quotation
- Interface confirmation
- Export packing options

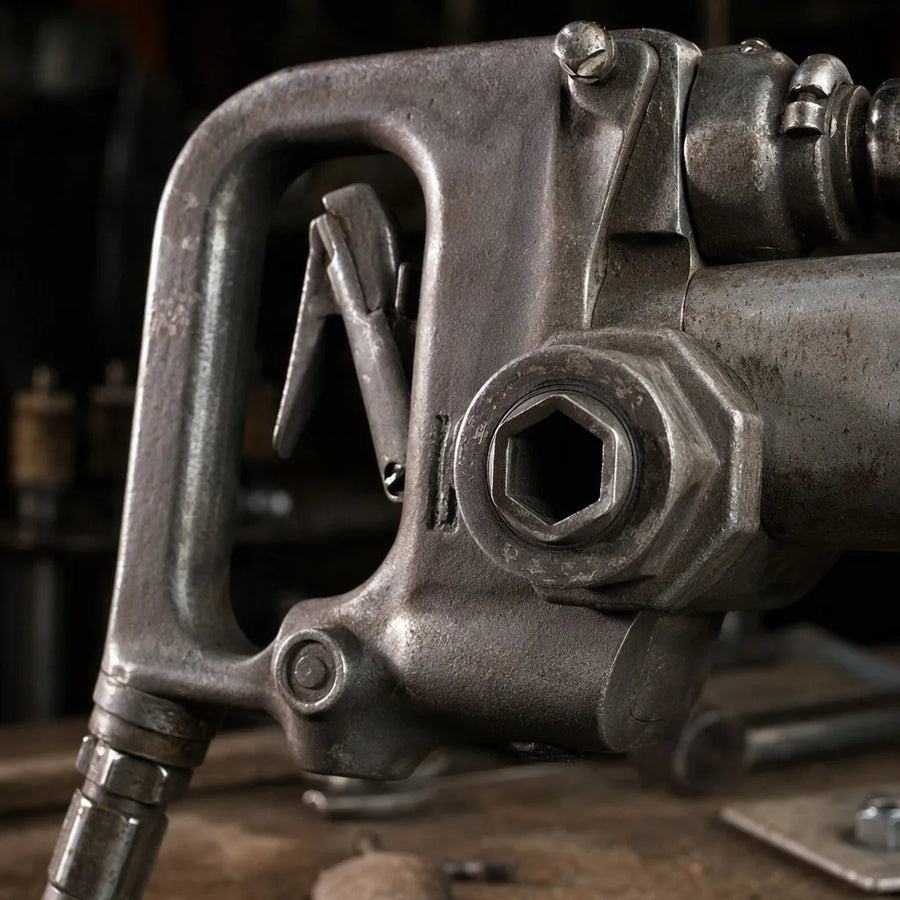

Product Evidence
Product, Component, Configuration and Packing Views
A compact air rock drill for short-hole work; match the shank, bit, air pressure, hose and lubrication before quotation.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
