Drill rod
H22 tapered drill rod
Same taper angle and matching socket depth
Do not mix 7°, 11° and 12° systems.
Taper Button Bit
H22 Taper Button Bits, 30–40 mm
Model:H22 / 30–40 mm
Selected configuration:32mm
Selected reference:PFM-TB32
H22 taper button bits in 30–40 mm sizes for matched 7°, 11° or 12° tapered rod systems.
Match diameter, taper, face, carbide buttons and flushing to the existing H22 rod before quotation.
- 30–40 mm size range
- 7°, 11° and 12° taper systems matched by reference
- Configuration confirmed before production
Select
Request a Configuration-Based Quote
Send the selected diameter plus the known taper, matching H22 rod evidence, socket, face, button and flushing details. Choose Not sure where identification is still required.
Technical Review Scope
Configuration and Quotation Guidance
H22 taper button bit configuration inquiry for 30, 32, 34, 36, 38 and 40 mm diameter references. Diameter alone does not define a complete bit configuration.
Configuration identity: PFM-TB30, PFM-TB32, PFM-TB34, PFM-TB36, PFM-TB38 and PFM-TB40 are diameter inquiry references only, not complete orderable SKUs. H22 identifies the 22 mm hex rod body; it does not define taper compatibility. Before a model-specific quotation can be technically approved, record the selected diameter, taper angle, matching rod model or rod-end drawing or measurements, bit socket or insertion depth, face type, button shape, count and layout, flushing arrangement and controlled drawing revision, and bind them to an approved configuration ID.
Current inquiry references
| PFM-TB30 | 30 mm diameter inquiry reference |
|---|---|
| PFM-TB32 | 32 mm diameter inquiry reference |
| PFM-TB34 | 34 mm diameter inquiry reference |
| PFM-TB36 | 36 mm diameter inquiry reference |
| PFM-TB38 | 38 mm diameter inquiry reference |
| PFM-TB40 | 40 mm diameter inquiry reference |
Configuration to confirm before technical approval
- Selected diameter and taper angle: 7°, 11°, 12°, other or not sure, with no default.
- Matching rod model, H22 confirmation and a rod-end drawing, measurement or old-part photo.
- Bit socket or insertion depth.
- Face type and button shape, count and layout.
- Central, side or other flushing arrangement.
If the configuration is not known
An identification inquiry may be submitted with “not sure,” the current rod marking, photos and measurements. It must not proceed as a model-specific technical quotation until the missing fields are resolved.
Engineering and quotation output
The technical review must return the selected configuration, controlled drawing revision and one approved configuration ID. A request for a technical proposal does not make any face, button or flushing arrangement a standard supplied option.
Supply and inspection boundary
This inquiry page does not define a standard diameter–taper–socket–face–button–flushing combination. Any inspection method, acceptance criteria, packing scope or record requirement must be expressly accepted in the written quotation or purchase order.
Selection & Technical Guides
Use these guides to prepare measurements and selection questions; the final configuration still requires a controlled quotation drawing.
At a Glance
30–40 mmBit Diameter
H22 hexDrill Steel
7°, 11° or 12°Taper Angle
Technical Specifications
| Bit Diameter | 30–40 mm |
|---|---|
| Drill Steel | H22 hex |
| Taper Angle | 7°, 11° or 12° |
| Face, Buttons and Flushing | Configuration-based |
Final interface dimensions, selected configuration and supply scope are stated in the formal quotation or approved drawing.
Compatibility and Required Interfaces
Rock drill and drill steel
H22 drilling system
Rock-drill chuck, H22 rod and bit must form one matched string
Confirm whether the current rod uses an H22 × 108 mm striking interface or another H22 configuration.
Cutting Face and Taper Interface

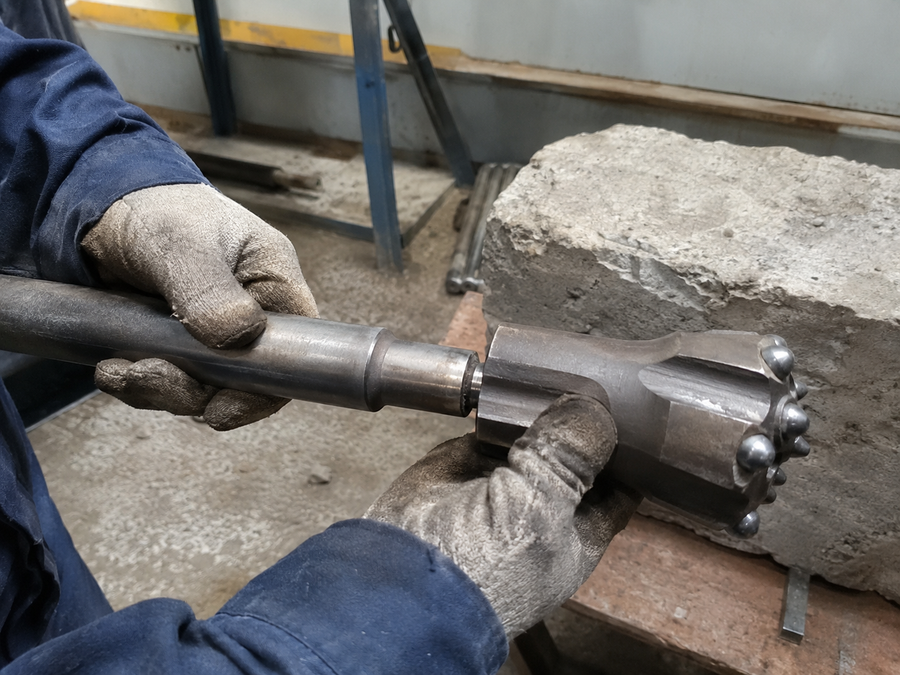

Matched Taper Seating
The bit socket seats on a drill rod with the same taper angle to transfer percussion and rotation.
Buyer value
Correct matching supports repeatable seating and reduces interface damage caused by mixed taper systems.
Selection condition
Confirm taper angle, socket dimensions and insertion depth by drawing, gauge, sample or clear photos.
Application Scenarios
- Handheld rock drilling
- Quarrying and secondary blasting
- Road, tunneling and foundation work
Quality and Pre-Shipment Checks
01
Configuration and Dimensional Check
Recorded before production release and shipment when included in the quotation
Approved diameter, taper/socket, face, buttons and flushing configuration
Compare production configuration with the approved quotation or drawing; record specified dimensions and visual condition.
Supply Scope, MOQ and Delivery
Minimum Order QuantityConfirmed in written quotation
Lead TimeConfirmed in written quotation
Available Supply Configurations
- Final packing list confirmed in the written quotation

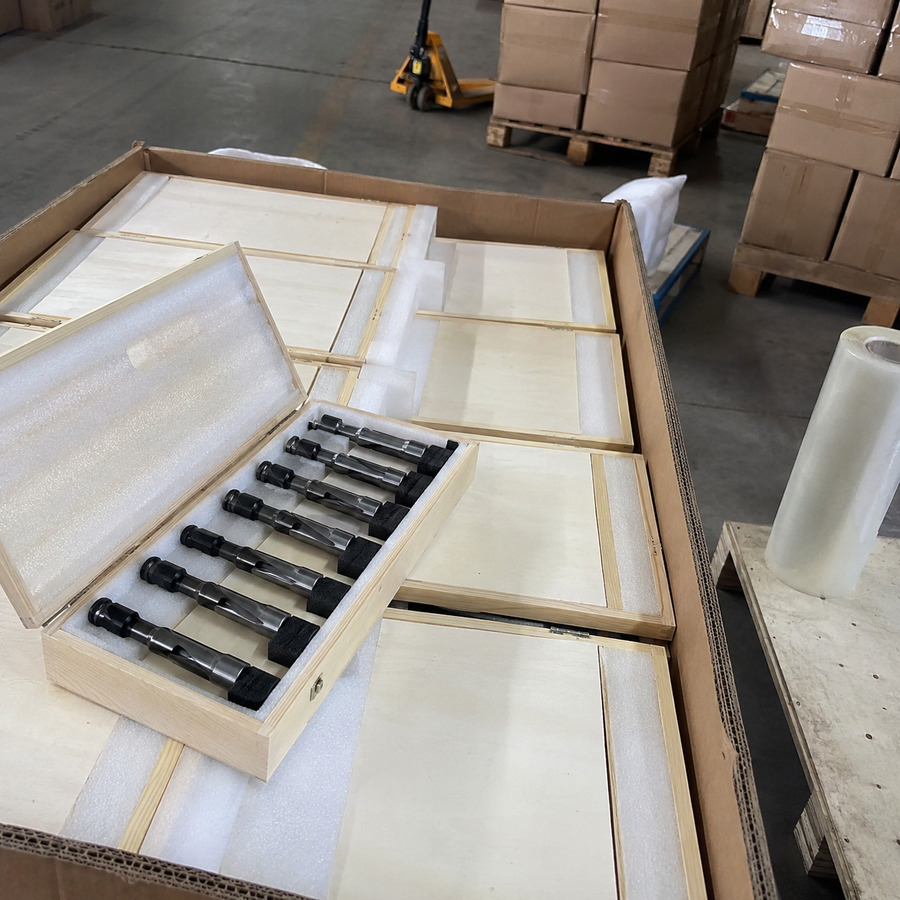

Export Packing
Final packaging, corrosion protection, crate or pallet method and shipping marks are confirmed in the written quotation.
Warranty and After-Sales
Warranty, spare-parts scope and service terms are confirmed in the written quotation for the selected supplier configuration.
Safety and Maintenance Notes
Order Documentation
Commercial invoice and packing list; any additional certificates are confirmed per order
Frequently Asked Questions
Can 7°, 11° and 12° taper bits be interchanged?
No. The drill rod and bit must use the same taper angle and compatible socket dimensions. Mixing systems can cause poor seating, energy loss and premature interface damage.
What information is needed for an H22 button-bit quotation?
Send diameter, taper angle, existing rod or bit photos, socket dimensions if available, rock type, preferred face/button design, flushing arrangement and quantity.
Matched Tapered Drilling System
A matched H22 tapered drilling system combines the rock drill, H22 rod, 30–40 mm bit, confirmed taper angle, flushing and lubrication.
Ready to Confirm the Configuration?
Request a Quote for H22 / 30–40 mm
The page variant is an inquiry reference only. Technical review must resolve every configuration field and return a controlled drawing revision and approved configuration ID before a configuration-level quotation.
- Product-specific quotation
- Interface confirmation
- Export packing options
Product Evidence

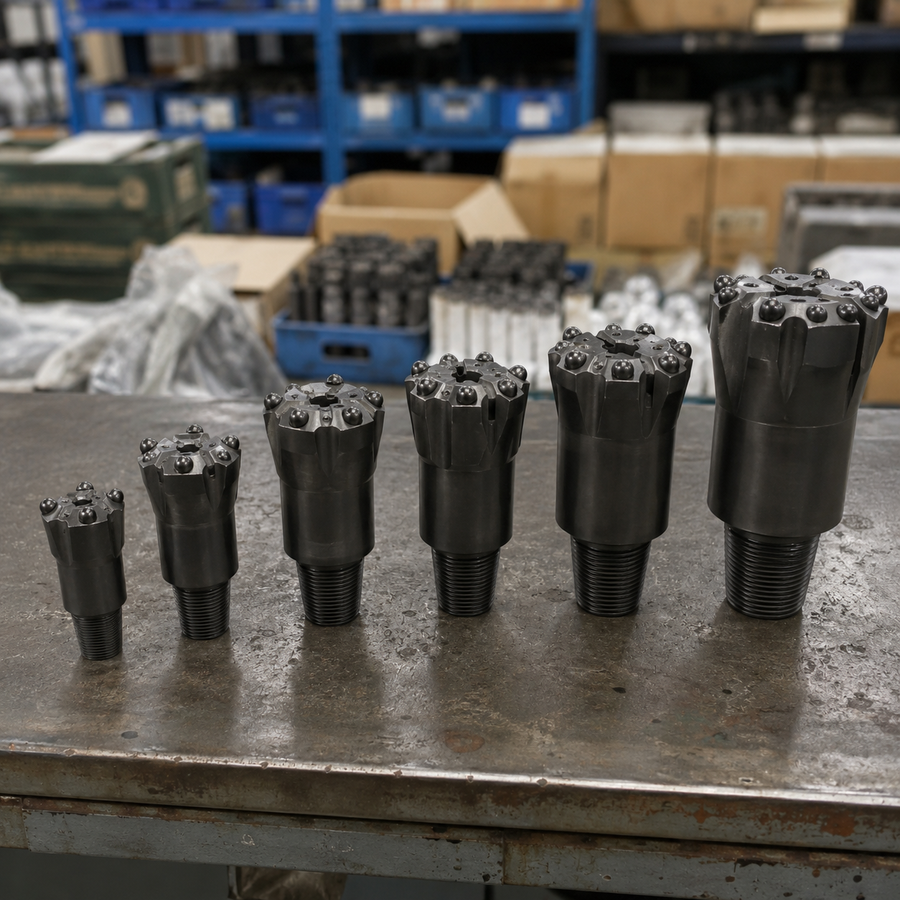

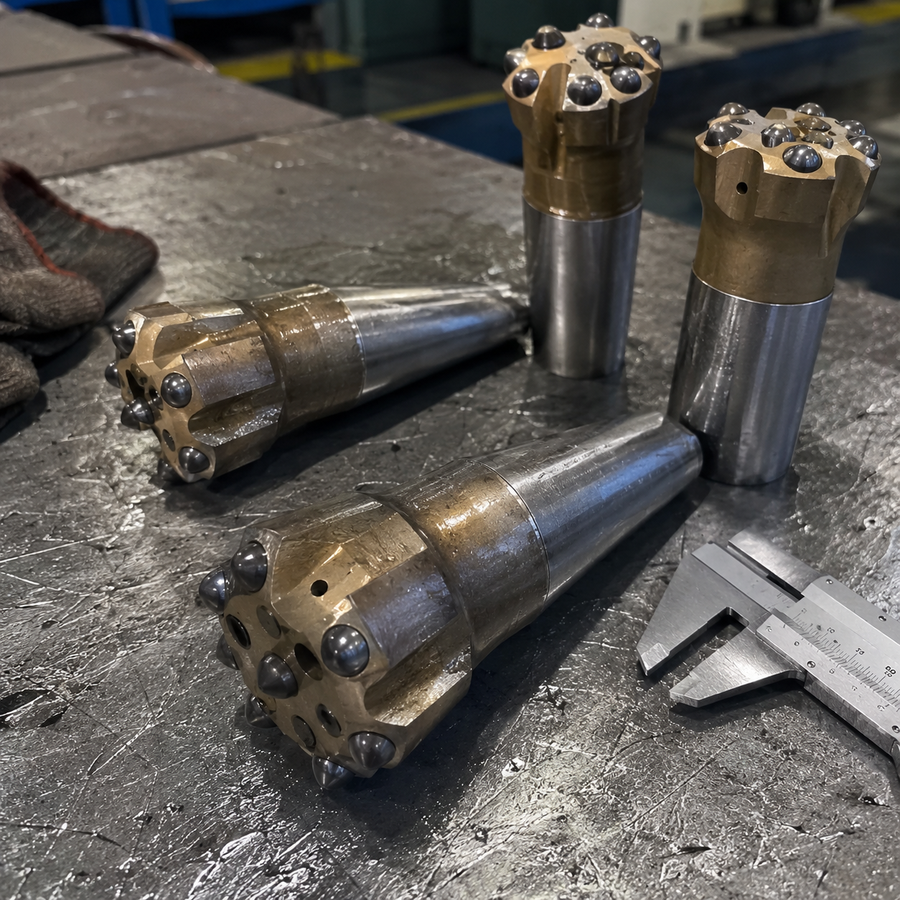

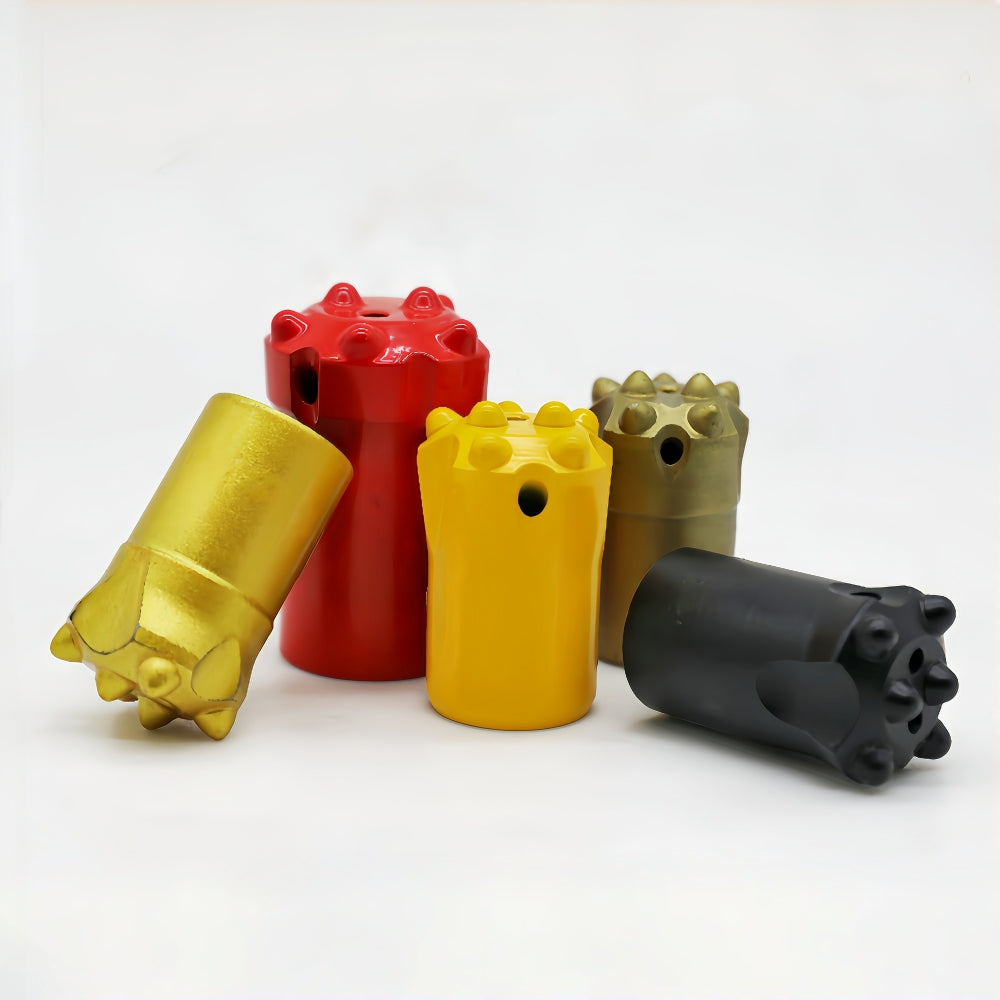

Product, Component, Configuration and Packing Views
Match diameter, taper, face, carbide buttons and flushing to the existing H22 rod before quotation.
Images support product identification and configuration discussion. Final supplied configuration, inspection scope and packing details are confirmed in the formal quotation.
