In short: Choose an air-leg rock drill as a complete drilling system, not as an isolated machine. Confirm the hole diameter and depth, rock and fracture conditions, air pressure and flow at the working face, drilling direction and available space, drill-steel and bit interface, flushing arrangement, and the site's maintenance and safety constraints before comparing models.

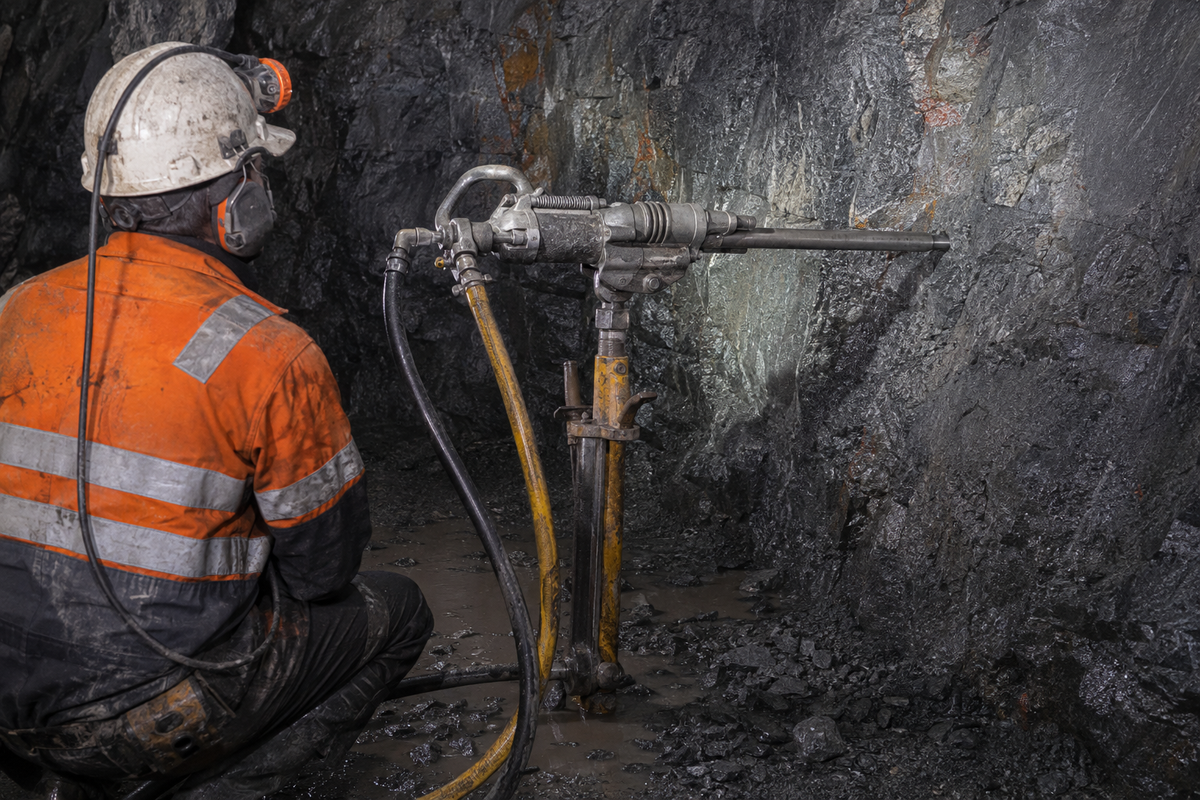

This guide is for procurement teams, importers, distributors, mining engineers, and site supervisors preparing to select or request a quotation for an air-leg—also called jackleg or pusher-leg—pneumatic rock drill. It focuses on underground horizontal and inclined drilling. It is not a substitute for a site-specific drilling plan, risk assessment, or the selected manufacturer's operating manual.
Why the Drill Model Should Not Be the First Decision
An air-leg drilling setup is a chain: compressed-air supply → hose and lubrication → rock drill → air leg → shank and drill steel → bit → flushing → rock. The system is limited by its weakest mismatch. A drill with more nominal impact power can still perform poorly if the face pressure falls under load, the hose restricts flow, the leg does not fit the drill or heading, or the steel and bit do not match the required hole.
This is also why a familiar model name is not enough. In one Atlas Copco underground-drill range, several drills share a 27–41 mm stated hole range while listed drill weight and air consumption vary materially. The same source separately maps particular pusher legs to particular drills. The practical lesson is simple: a nominal hole range does not prove that the drill, air supply, leg, and steel form a workable system.
Selection rule: Start with the hole and the working conditions. Use those inputs to define the required system. Compare model names only after that system is clear.
The Seven Inputs That Determine the Right Air-Leg Rock Drill
| Input to confirm | Why it changes the choice | Evidence to collect before RFQ |
|---|---|---|
| 1. Application and opening | Heading size, access, drilling direction, and whether mechanized equipment can enter determine whether an air-leg drill is appropriate at all. | Mine or tunnel application, heading width and height, drilling direction, working platform, and any restricted-access points. |
| 2. Hole diameter and depth | The blast or support design sets the required hole. Depth also affects steel changes, flushing, handling, and whether a handheld system remains practical. | Finished hole diameter, typical and maximum depth, hole count per round or shift, and tolerance requirements. |
| 3. Rock and ground condition | Hardness alone is incomplete. Abrasiveness, fracturing, weathering, joints, and water can change penetration, bit wear, hole control, and jamming risk. | Rock name if known, UCS or drillability data if available, site photos, current bit life, penetration observations, and whether the ground is massive or fractured. |
| 4. Air available at the face | Rated compressor output does not guarantee pressure and flow at the drill. Hose diameter, length, leaks, elevation, and simultaneous tools can reduce delivered air. | Measured working pressure at the tool while drilling, available flow, hose inside diameter and length, number of tools operating together, and compressor model. |
| 5. Drilling direction and air-leg geometry | The leg must support and feed the drill through the required angle and working height without exceeding the available space. | Horizontal/inclined/vertical direction, collaring height, available setup length, required feed travel, and preferred leg mounting. |
| 6. Drill steel, bit, shank, and flushing | Shank dimensions, steel section and length, taper or thread, bit diameter, and flushing path must match. Similar-looking parts are not proof of compatibility. | Existing drill and steel model, shank dimensions, steel length, taper angle or thread, bit type and diameter, and wet/dry flushing requirement. |
| 7. Maintainability, ergonomics, and supply | Configured weight, vibration, noise, service skill, spare-parts access, and rebuild intervals affect production continuity and total cost. | Shift pattern, operator and maintenance capability, current failure modes, required spare-parts kit, service expectations, and acceptance documentation. |
Step 1: Decide Whether an Air-Leg Drill Fits the Mining Method
Air-leg drills remain useful where access, orebody geometry, ground conditions, or mining method make larger mechanized equipment impractical. NIOSH describes jacklegs as common in underground work such as narrow-vein mining, blast-hole drilling, and installation of some ground-support holes. That is an application boundary, not a reason to use one everywhere.
Before choosing a model, compare the air-leg option with the realistic alternatives. If the opening permits mechanization and the production target, exposure controls, hole accuracy, or crew requirements favor a drill rig, a larger manual drill is not automatically the right answer. Record why the air-leg format is being selected: access, mobility, production pattern, capital constraint, or a specific support task.
Step 2: Define the Hole Before You Define the Drill
The hole comes from the blast, development, or support requirement. Buyers should state the finished diameter, typical and maximum depth, drilling angle, number of holes, and expected production window. Avoid asking a supplier for “a drill for hard rock” without those dimensions.
Hole diameter and depth also define the drill steel sequence and bit. A deeper hole may require steel changes and better cuttings removal; it may also increase handling time and deviation risk. If the requested hole sits outside the manufacturer's rated range, do not compensate by assuming a heavier drill will solve the mismatch. Recheck the drilling method.
Step 3: Describe the Rock as a Drilling Condition, Not a Label
“Hard rock” is not a complete purchasing specification. Two rocks with similar compressive strength can behave differently when one is abrasive and massive and the other is fractured, jointed, weathered, or water-bearing. These conditions affect bit choice, steel life, jamming, flushing, and the operator's ability to hold the hole.
Use site evidence wherever possible: the current drill and bit, penetration per minute or per steel, bit life, steel failures, hole deviation, and photographs of cuttings or the face. If UCS or other test data exist, include them, but do not invent a strength class from a rock name alone.
Step 4: Validate Pressure and Flow at the Tool
Air pressure and air consumption are model-specific and must be read together. An OEM rating stated at a particular pressure is not comparable with another rating taken under different conditions. More importantly, the compressor's nameplate is not the measurement the drill experiences.
American Pneumatic Tools, for example, recommends 90 psi (6.2 bar) for its own rock drills and warns that undersized or long hoses can cause pressure loss at the tool. Treat that as a manufacturer-specific example—not a universal setpoint. For the model being considered, obtain the required pressure, rated consumption, hose recommendation, and test basis from the supplier or manual. Then verify whether the system can supply all simultaneously operating drills with an appropriate margin.
A practical air-supply check
- List every pneumatic tool expected to run at the same time.
- Use each manufacturer's rated air consumption at its stated pressure.
- Record hose inside diameter, total length, connections, elevation, and known leaks.
- Measure dynamic pressure near the drill while the planned tools are operating—not only static pressure before startup.
- If pressure collapses under load, correct the air system before buying a nominally “more powerful” drill.
Step 5: Match the Drill, Leg, Steel, Bit, and Flushing as One System
The air leg is not a generic accessory. Its connection, retracted and extended length, feed travel, thrust behavior, weight, and foot must suit both the drill and the opening. OEM compatibility tables commonly identify which leg fits which drill; request the same confirmation from any supplier offering a complete system.
The front end needs equal attention. Confirm the shank—for example, dimensions such as H22 × 108 mm only where they actually apply—then the drill-steel length and section, taper or thread, bit diameter and face, and flushing passage. Do not rely on an old invoice or a visual match. Send measurements, model references, drawings, or clear photographs when replacing an installed system.
Step 6: Compare Total Working Risk, Not Only Purchase Price
A traditional jackleg can become substantially heavier after the drill steel and air and water hoses are fitted. NIOSH research also identifies ground-fall, pinch/strain, slip/fall, vibration, and other ergonomic hazards associated with jackleg work. These risks cannot be removed by a model comparison table.
For procurement, this means the commercial evaluation should include:
- configured handling weight and balance, not drill-body weight alone;
- manufacturer vibration and noise data, where available, with the stated test method;
- water flushing, dust-control, lubrication, and hose requirements;
- operator training and the mine's ground-control and safe-work procedures;
- wear and rebuild parts required for commissioning and routine service;
- local repair capability, parts identification, and lead time;
- inspection records and acceptance criteria agreed before shipment.
Safety boundary: model selection does not authorize operation. Installation, use, ground control, air and water connections, maintenance, and exposure controls must follow the mine's procedures, applicable regulations, and the selected manufacturer's manual.
Air-Leg Rock Drill RFQ Checklist
Send the following information before asking a supplier to recommend a model:
- Application: development heading, tunneling, production, secondary drilling, or ground support;
- Opening: width, height, access restriction, and working platform;
- Hole: diameter, typical/max depth, direction, holes per round or shift;
- Rock: type, UCS/drillability if known, abrasiveness, fractures, water, current penetration and bit life;
- Air system: compressor model, available flow, dynamic pressure at the face, hose diameter/length, simultaneous tools;
- Existing interface: drill model, shank, drill steel, taper/thread, bit, and flushing arrangement;
- Air leg: connection, feed length, retracted/extended length, drilling height and direction;
- Commercial scope: quantity, destination, trial plan, spare-parts package, packing, documents, and target delivery window.
You can use the PerfoMax RFQ form to submit the known fields and mark uncertain items for follow-up. For the current product range, see pneumatic rock drills and the underground mining drilling system overview. Return to the Rock Drilling Knowledge Center for additional selection and compatibility guides.
Common Buying Mistakes
- Choosing by model popularity: a common model may still be wrong for the air system, opening, steel, or production target.
- Using compressor output instead of face conditions: pressure and flow losses can make a correctly rated drill underperform.
- Using “hard rock” as the only geology input: abrasiveness, joints, water, and current tool life change the decision.
- Buying the drill before the leg and steel are confirmed: the result can be a mechanically incomplete or unworkable system.
- Comparing headline penetration figures: test rock, bit, pressure, operator, and measurement method may differ.
- Ignoring commissioning spares: a low equipment price can become expensive if routine wear parts are unidentified or unavailable.
Frequently Asked Questions
Is a heavier air-leg rock drill always better for hard rock?
No. A heavier or higher-consumption drill may deliver a different impact class, but the best choice still depends on the required hole, air available at the face, leg geometry, steel and bit, operator handling, and service capability. Increasing drill size without correcting a restricted air system can reduce rather than improve results.
Can I choose between YT24, YT27, YT28, and YT29A by hole diameter alone?
No. Their overlapping application language does not make them interchangeable. Confirm the exact manufacturer's configuration and compare air demand, drill weight, impact and rotation characteristics, leg match, shank, intended depth, and site conditions. The final recommendation should be tied to a documented RFQ, not only to the model number.
What air pressure should I specify?
Use the selected manufacturer's rated operating pressure and verify dynamic pressure at the tool while the intended number of drills is running. Do not copy a pressure figure from another brand or model. Also confirm the required air flow and hose arrangement.
When should I consider a mechanized drilling alternative?
Reassess the method when the opening permits mechanization and the required production rate, hole accuracy, exposure control, crew size, or manual-handling risk cannot be met reliably with an air-leg system. This is an engineering and mine-planning decision, not only a purchasing decision.
References
- NIOSH: Jackleg Drill Usage and Accidents
- Hand-Arm Vibration Controls for Jackleg Rock Drills
- Atlas Copco Handheld Tools Facts Book
- Atlas Copco Pneumatic Underground Rock Drills and Pusher Legs
- American Pneumatic Tools: Rock Drill Air and Hose Guidance
Last reviewed: August 11, 2026. Manufacturer specifications and available configurations can change; verify the current manual and quotation for the model being purchased.
