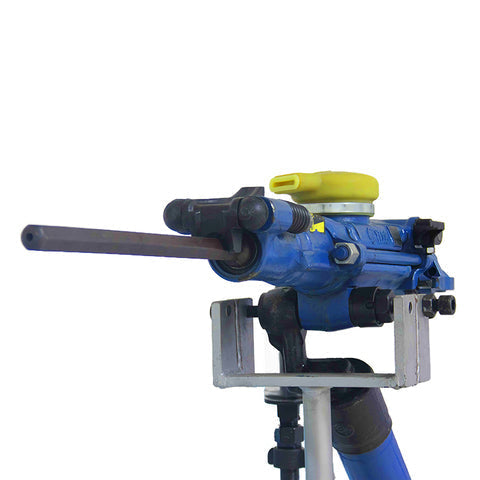

If a YT28 air-leg rock drill suddenly drills more slowly, feels weak, rotates poorly, or becomes difficult to start, do not assume the internal mechanism has failed. The highest-leverage checks are usually outside the drill first: air pressure and volume at the tool inlet, hose losses and leaks, lubrication, water ingress, air-leg feed, exhaust condition, and the drill steel/bit. Only after these checks pass should internal wear or damaged parts move to the top of the diagnosis list.
This guide is written for mines, tunnelling crews, contractors, maintenance teams, and distributors working with the current PerfoMax YT28 Air-Leg Pneumatic Rock Drill for 34–42 mm holes. The current PerfoMax page uses a reference configuration of 26 kg, an 80 × 60 mm cylinder/stroke, H22 × 108 shank, and 34–42 mm hole range. Performance values are reference values tied to stated test pressures; the final supplier data sheet and approved configuration should control operation, parts matching, and quotation.
Quick Diagnosis: Match the Symptom to the First Check
| Observed symptom | Check first | Likely problem area | Do not do first |
|---|---|---|---|
| Slow drilling and weak impact sound | Dynamic air pressure and available volume at the rock drill inlet while drilling | Pressure drop, undersized/restricted hose, leaks, or competing air demand | Increase compressor set pressure beyond the approved limit |
| Rotation becomes slow or irregular | Oiler condition, oil delivery, contamination, and shank lubrication | Insufficient or incorrect lubrication; rotation mechanism wear if lubrication is correct | Continue drilling dry until the shift ends |
| Drill body jumps back or feed feels unstable | Air-leg feed, mounting, alignment, and collaring technique | Insufficient or unstable thrust rather than a percussion fault | Compensate with uncontrolled extra thrust |
| Hard starting after a water-system problem | Water ingress and lubricant contamination | Water needle/tube or injection-system fault; contaminated lubrication | Add more oil without removing the underlying water problem |
| Performance worsens as the shift continues | Oiler level, hose condition, condensate, exhaust icing/restriction | Lubrication depletion, moisture, pressure loss, or freezing | Assume the piston is worn before checking the air system |
| Correct air and lubrication, but penetration still poor | Bit condition, H22 drill steel, flushing path, then internal wear | Dull/damaged bit, blocked drill steel, worn chuck/rotation/percussion parts | Replace the complete drill without isolating the failed subsystem |
1. Check Air Pressure and Volume at the Tool, Not Only at the Compressor
A compressor gauge can look normal while the YT28 still receives inadequate energy. The Ingersoll Rand YT28 product manual states that the relevant air requirement is the pressure at the rock drill inlet, not the pressure at the compressor. Every hose, coupling, valve, filter, long run, leak, and other pneumatic consumer between the compressor and the drill can reduce the pressure and volume actually available to do work.
For the current PerfoMax YT28 reference configuration, the published reference points are 0.50 MPa and 0.63 MPa. At those stated conditions, the reference impact frequency is at least 34 Hz and 36 Hz respectively, while reference air consumption is no more than 55 L/s and 81 L/s respectively. These are condition-dependent reference values, not a reason to exceed the approved operating pressure of the final quoted model.
Field checks for suspected low air supply
- Measure pressure as close to the tool inlet as practical while the drill is working under load, not only with the line idle.
- Inspect the main hose for kinks, internal damage, excessive length, undersized sections, damaged couplings, and loose fittings.
- Check filters, regulators, valves, and fittings for restrictions.
- Listen and test for leaks at hose joints and control fittings.
- Note whether other drills or pneumatic equipment are operating from the same supply when the problem appears.
- Drain condensate and keep the compressed-air path clean and dry according to the applicable manual.
The Ingersoll Rand manual lists a 25 mm air hose for its referenced YT28 configuration and notes that even a good, relatively short hose has some pressure drop. Treat that hose size as a manual-specific reference; confirm the hose, fittings, and air-leg combination on the actual supplier data sheet before procurement or substitution.
2. Verify Lubrication Before Disassembling the Drill
Lubrication is not merely a wear-prevention item on an air-leg rock drill. The YT28 manual specifically warns that improper lubrication can prevent proper rotation indexing and reduce rotation speed. That means a drill that “feels weak” or rotates poorly can sometimes have a lubrication problem even when the percussion mechanism is not yet mechanically damaged.
Check the line oiler before opening the machine. Confirm that it contains the specified rock-drill lubricant for the operating temperature, that the oil path is not blocked, and that the lubricator is actually delivering oil under working conditions. The Ingersoll Rand manual describes a light oil film at the drill-steel shank as the target and identifies blue exhaust smoke or oil running down the drill steel as signs of excessive lubrication.
The same manual gives a suitable lubricant-flow reference of 2.5–5 ml/min for its YT28 configuration. Do not convert this into a universal setting for every supplier variant. Oil grade, oiler design, temperature, hose arrangement, and final machine revision should be checked against the supplied manual.
Signs that lubrication deserves immediate attention
- Rotation speed falls or becomes inconsistent.
- The shank appears dry after the drill has been running.
- The drill becomes noisy or harsh after the oiler runs empty.
- Performance deteriorates after a lubricant change.
- The unit becomes difficult to start after excessive oil or contamination enters the mechanism.
Do not intentionally continue operating an under-lubricated drill “to see whether it clears.” The official YT28 manual warns that damage can occur quickly when lubrication is inadequate.
3. Check the Water Path and Possible Water Ingress
YT28 drills are commonly operated for wet drilling, but the flushing water must stay in the intended water path. A water-system fault can create two different problems at once: inadequate flushing at the bit and unwanted water inside the pneumatic/lubrication section.
Manufacturer troubleshooting guidance for YT-series air-leg drills lists water entering the lubrication section as a possible cause of reduced drilling performance and difficult starting. It also points to the water needle/tube and water-injection system as areas to inspect when water has entered the machine.
What to inspect
- Confirm that water reaches the drill steel and bit correctly and that the center flushing path is not blocked.
- Inspect the water needle/tube and relevant seals or interfaces specified by the actual manual.
- If lubricant has been contaminated by water, correct the water fault before refilling or readjusting lubrication.
- After use, follow the supplier procedure for removing condensation or moisture. The Ingersoll Rand manual, for example, instructs operators to remove the water tube and briefly blow condensed moisture from the tool after use.
Avoid using an arbitrary water-pressure value from another YT28 supplier as a universal target. Water-system details can differ by manufacturer and revision; the quoted machine data sheet and operating manual should control.
4. Check Air-Leg Feed, Collaring, and Operating Technique
A healthy percussion mechanism can still drill poorly if the drill is not held against the rock correctly. Manufacturer troubleshooting guidance for air-leg rock drills lists insufficient air-leg thrust and a body that jumps backward as causes of reduced drilling speed.
First confirm the air leg, mounting interface, and control functions are the approved combination for the drill. The current PerfoMax YT28 page deliberately requires the air-leg pairing to be confirmed on the quotation rather than assuming every YT28 uses an identical leg.
Then check operating technique. The Ingersoll Rand manual instructs operators to start the YT28 lightly and increase throttle progressively rather than applying full power abruptly. Stable collaring matters because excessive movement at the start of the hole wastes impact energy, accelerates drill-steel wear, and makes it harder to separate a machine fault from an alignment problem.
Feed-related symptoms
- The machine bounces or moves backward during impact.
- Drilling improves when an experienced operator changes feed technique.
- Penetration varies even though inlet air pressure remains stable.
- The rod binds or the bit does not remain steadily seated on the bottom of the hole.
Do not solve these symptoms by continuously increasing feed or line pressure. Too much thrust can introduce a different set of problems, including drill-steel loading and poor rotation. Use the approved air-leg settings and operating procedure for the exact configuration.
5. Inspect the Bit and H22 × 108 Drill Steel Before Blaming the Rock Drill
The current PerfoMax YT28 reference configuration uses an H22 × 108 shank and a 34–42 mm hole range. A worn, damaged, incorrectly matched, or partially blocked drill string can make the rock drill appear weak even when the machine itself is functioning correctly.
Inspect the shank end, rod straightness, flushing hole, taper connection, and bit condition. A blocked center hole restricts flushing. A damaged or poorly fitted shank changes how impact is transferred from the piston. A heavily worn bit increases the work required for each millimetre of penetration.
If replacement drill steel is required, verify the exact shank and taper rather than ordering only by rod length. PerfoMax currently lists an H22 × 108 mm 11° tapered drill rod; confirm that its taper angle, length, and bit connection match the installed tooling before substitution.
6. Inspect Exhaust Restriction, Condensate, Freezing, and Wear
Compressed air carries moisture, and expanding exhaust air can cool the tool significantly. The YT28 manual calls for clean, dry air and provides a specific procedure for exhaust freezing conditions. In cold or humid service, a drill that works normally at the beginning of a shift but progressively loses output can therefore require inspection of condensate, exhaust restriction, and icing before internal parts are condemned.
If the air supply, lubrication, water system, feed, and drill string all check out, internal wear becomes more likely. Manufacturer troubleshooting guidance identifies worn main parts as a possible cause of reduced drilling speed. At that stage, compare measured clearances and part condition with the correct supplier manual and parts list. Avoid mixing dimensions or replacement parts from a different YT28 maker simply because the model name is the same.
7-Step YT28 Field Troubleshooting Sequence
- Record the symptom precisely. Note whether the problem is slow penetration, weak impact, low rotation speed, hard starting, unstable feed, excessive air use, or a combination.
- Measure the working air condition at the tool. Check dynamic inlet pressure and confirm that the compressor can supply adequate volume while all simultaneous users are operating.
- Inspect the air path. Check hose size, length, couplings, filters, regulators, leaks, condensate, kinks, and restrictions.
- Verify lubrication. Confirm the correct lubricant, oil level, oil delivery, clean oil path, and visible evidence of neither starvation nor gross over-lubrication.
- Check water and exhaust. Confirm flushing flow, inspect for water ingress, and look for condensate, icing, or exhaust restriction.
- Check the mechanical system around the drill. Inspect the air leg, feed, H22 × 108 shank, drill steel, bit, flushing hole, and operating alignment.
- Only then inspect internal wear or damage. Use the manual and controlled parts information for the exact supplier/revision before disassembly or part substitution.
Common Troubleshooting Mistakes That Increase Downtime
| Mistake | Why it creates risk | Better approach |
|---|---|---|
| Judging air supply only from the compressor gauge | Pressure drop and inadequate volume can occur downstream | Check pressure and available air at the tool under load |
| Raising pressure to compensate for slow drilling | Can exceed the approved operating condition and mask leaks or restrictions | Find the pressure-loss or volume problem first |
| Running with an empty or blocked oiler | Can reduce rotation performance and accelerate internal damage | Verify lubrication before continued drilling |
| Adding excessive oil when the drill is hard to start | Excess oil can itself contribute to difficult starting, and it does not correct water ingress | Check contamination and the water system before readjusting oil |
| Ignoring the bit and drill steel | Tooling wear or blockage can imitate a machine-power problem | Inspect the complete energy and flushing path |
| Ordering internal parts by “YT28” name only | Different manufacturers and revisions may not use identical parts or dimensions | Confirm supplier, revision, drawing, and part reference |
What to Record Before Requesting Parts or a Quotation
A useful troubleshooting RFQ should allow a supplier to distinguish a machine fault from an air-system, air-leg, or drill-string mismatch. Send the following information:
- Exact rock drill model, manufacturer if known, nameplate photo, and data-sheet/manual revision.
- Measured inlet pressure at the drill while working, not only compressor discharge pressure.
- Compressor capacity, number of simultaneous pneumatic users, hose internal diameter, hose length, and coupling arrangement.
- Air-leg model/suffix and mounting interface.
- Oiler model, lubricant used, and whether the problem appeared after an oil change or oiler adjustment.
- Water connection arrangement and whether water ingress, poor flushing, or freezing has been observed.
- H22 × 108 shank confirmation, rod length, taper angle, bit type, and bit diameter.
- Clear description of the symptom: slow drilling, weak impact, low rotation, hard starting, unstable feed, or abnormal air consumption.
- Approximate operating hours since the last service and photos of worn or damaged parts if internal wear is suspected.
This information is also useful when comparing a replacement YT28 against an existing fleet because it prevents a nominal model-name match from hiding differences in the actual system configuration.
Frequently Asked Questions
Why is my YT28 drilling slowly even though the compressor gauge looks normal?
The compressor gauge does not show the complete condition at the drill. Hose losses, leaks, restrictions, long hose runs, filters, regulators, and other air consumers can reduce pressure or volume by the time the air reaches the tool. Measure the working condition at the YT28 inlet while drilling.
How can I tell whether low power is an air-supply problem or an internal drill problem?
Start with a controlled external check. If the tool-inlet air condition is below the approved operating requirement, correct the supply system first. Then verify lubrication, water/flushing, feed, drill steel, and bit condition. If these are all correct and performance remains poor, internal wear or damage becomes a stronger hypothesis.
Can too much oil make a YT28 difficult to start?
Yes. YT-series troubleshooting guidance lists overly thick or excessive lubricant among possible hard-start causes. The Ingersoll Rand YT28 manual also describes excessive lubrication by symptoms such as blue exhaust smoke or oil running down the drill steel. Use the lubricant and adjustment specified for the actual machine and operating temperature.
Can water cause a YT28 to lose drilling performance?
Water is required for wet drilling, but it must remain in the intended flushing circuit. Water entering the lubrication or pneumatic section can contaminate oil and contribute to poor operation or hard starting. Inspect the water needle/tube and injection system according to the exact manual before continuing operation.
When should the YT28 be opened for internal inspection?
After the external system has been checked: tool-inlet air, hose and fittings, lubrication, water path, exhaust/condensate, air-leg feed, drill steel, and bit. If these are correct and the drill still shows low impact, poor rotation, hard starting, or abnormal noise, use the supplier's controlled manual and parts information for internal inspection. Do not assume parts are interchangeable across all YT28 manufacturers.
Technical References
- Ingersoll Rand — Product Information Manual, Air Percussive Rock Drill, Model YT28, Edition 2. Used for air-supply, lubrication, operation, and reference specification checks.
- Shenglida — Troubleshooting and handling of air-leg rock drills. Used to cross-check common symptom/cause relationships such as low air pressure, feed problems, lubrication, water ingress, and hard starting.
- Shenglida — YT28 pneumatic rock drill product/operating information. Used as a secondary manufacturer reference for operating and pre-use checks.
