Quick answer: Percussive rock drilling is a coordinated process, not simply “hammering” the rock. Four functions work together: percussion delivers repeated impact energy to fracture the rock; rotation indexes the bit so the next impact meets a new part of the bottom hole; feed keeps the bit in controlled contact with the rock and advances the drill; and flushing removes broken rock from the hole. If one of these four functions is poorly matched to the others, penetration, hole quality, tool life, and energy use can all deteriorate.
This guide is for quarry, mining, tunneling, construction, and drilling buyers who need a clear technical vocabulary for discussing rock drills, rigs, drill strings, and operating conditions with operators or suppliers. It explains the common principles shared by top-hammer-style percussive systems and down-the-hole (DTH) drilling without turning the subject into a model-selection comparison.
1. What Are the Four Basic Functions in Percussive Rock Drilling?
A Sandvik rock-drilling control patent describes percussion rock drilling as four sub-processes: percussion, rotation, feed, and flushing. The same source explains the operating logic: the percussion device produces impact pulses, feed keeps the tool against the rock, rotation indexes the bit between impacts, and flushing carries detached rock away from the hole.
| Function | Primary job | Typical control variable | What happens if it is poorly matched |
|---|---|---|---|
| Percussion | Create repeated impact pulses that fracture rock | Impact energy, impact frequency, percussion power/pressure | Low breakage efficiency, unnecessary stress, or poor energy transfer depending on the system |
| Rotation | Index the bit between impacts | Rotation speed and torque | Poor bottom-hole coverage, irregular rotation, heat, or wear |
| Feed | Maintain contact and advance the tool | Feed force, feed pressure, feed rate | Bounce and poor energy transfer when too low; deviation or bending risk when excessive |
| Flushing | Remove cuttings from the bottom of the hole | Flushing flow and pressure; air or water depending on the system | Cuttings accumulate, the bit reworks broken material, and jamming or poor drilling performance can follow |
The important point is that these are different functions with different variables. For example, a modern hydraulic rock drill can have independent rotation and separate flushing rather than one control changing everything at once. Sandvik's HL710 is one current example of that architecture.
2. Percussion: Where the Rock-Breaking Energy Comes From
In percussive drilling, the primary rock-breaking action is a sequence of impacts. A piston or percussion mechanism produces repeated energy pulses. Those pulses reach the bit, the carbide buttons or cutting edges load the rock, and local stresses initiate crushing and cracking.
“More percussion” is not a complete operating rule. Useful impact energy depends on the rock, bit, drill string, machine, contact condition, and the other three drilling functions. If the bit is not held correctly against the rock, if it is not indexed between impacts, or if cuttings remain under the face, part of the available impact energy can be wasted.
Technical discussions often separate several percussion terms:
- Impact energy: energy delivered in an individual blow.
- Impact frequency or percussion rate: how often impacts occur.
- Percussion power: the power associated with repeated impacts over time.
- Percussion pressure: a hydraulic or pneumatic system variable used by some machines; it is not itself the same thing as energy delivered to the rock.
This distinction matters when comparing data sheets. Two machines can quote different combinations of pressure, frequency, and power, so one number should not be interpreted in isolation.
3. Rotation: Why the Bit Turns Between Impacts
Rotation in a percussive system is not merely for moving the bit around the hole. Its fundamental job is to index the cutting structure between impacts. The Sandvik control description notes that the bit should strike a new location with each impact. That allows the buttons or cutting edges to attack fresh rock rather than repeatedly loading exactly the same pattern.
The useful rotation setting depends on bit diameter and geometry, number and position of buttons, rock behavior, percussion characteristics, and the drill system. Too little or irregular rotation can reduce effective bottom-hole coverage. Excessive or poorly matched rotation can increase friction, heat, and thread or coupling loads in some systems.
That is why rotation speed and rotation torque are different purchasing and operating terms. Speed describes how fast the drill string turns; torque describes rotational turning force. A buyer comparing drilling systems should not treat a high rpm figure as an automatic indicator of higher penetration.
4. Feed: The Force That Keeps the Energy Path Closed
Feed is the axial force or motion that keeps the drilling tool working against the bottom of the hole and advances the drill as rock is removed. In a hand-held or air-leg system, this function may be produced by operator force and a pusher leg. In a mechanized rig, it is produced by the feed system on the boom or mast.
The basic objective is controlled contact. Too little feed can allow the drill or string to bounce, weakening consistent energy transfer. Excessive feed can force the bit and drill string into an unstable condition.
Collaring shows why the distinction matters. Epiroc's current FlexiROC T15 R operating information instructs the operator to begin with rotation and flushing, start feed, and use low percussion during collaring. It specifically warns that feed that is too high during collaring can make the bit veer, producing a deviated hole and a bent drill string.
So the practical concept is not “maximum feed.” It is enough feed to maintain stable contact without overpowering the bit, drill string, or ground condition. Direction also matters: Epiroc notes that upward and horizontal drilling can require more feed force than downward drilling because the feed must compensate for machine and cradle weight.
5. Flushing: Why Broken Rock Must Leave the Hole
Every impact creates fragments. If those fragments are not removed, the bit starts working through material it has already broken rather than consistently loading intact rock at the bottom of the hole.
Sandvik states that flushing is needed to remove cuttings generated by the drill bit, and that proper cutting removal is a key parameter for drilling performance, rock-drill reliability, and rock-tool life. Depending on the equipment and site, the flushing medium can be water or compressed air.
Flushing discussions should distinguish flow from pressure. Pressure helps drive the flushing medium through the system; flow determines how much medium is actually available to transport cuttings. A high pressure reading at one point does not prove that sufficient flow reaches the bit and returns cuttings out of the hole.
Site conditions also influence the medium. Sandvik notes that water is standard for many underground drilling applications, but certain ground conditions, water availability, environmental rules, or blasting requirements may favor dry-air systems. That means flushing is both a drilling function and a site-condition constraint.
6. How the Four Functions Interact
A common mistake is to treat low penetration as a single-variable problem and immediately increase percussion. In practice, the four functions form one drilling system. A change in one variable can alter the load on another.
| Observed condition | Fundamental question to ask first | Why it matters |
|---|---|---|
| Penetration slows although the drill is still impacting | Are rotation, feed, bit condition, and flushing still matched to the rock? | Impact alone cannot compensate for poor indexing, contact, or cutting removal. |
| Cuttings stop returning consistently | Is flushing flow reaching the bit and is the return path open? | Accumulated cuttings can reduce effective drilling and raise jamming risk. |
| Hole starts to wander during collaring | Is feed/percussion too aggressive before the bit is established? | Early deviation can be carried through the rest of the hole. |
| Drill string vibrates or feels unstable | Is contact/feed stable and are bit, rods, joints, and rotation behaving normally? | Poor contact changes how impact energy travels through the system. |
These are diagnostic concepts, not universal machine settings. Actual pressures, forces, speeds, and flows should come from the equipment manufacturer's instructions and should be adjusted for the specific drill, bit, rock, hole, and site.
7. How Top Hammer and DTH Use the Same Four Functions
Top hammer and DTH are different equipment architectures, but both depend on the same functional logic.
| Function | Top-hammer-style system | DTH system |
|---|---|---|
| Percussion | Impact is generated at the machine end and transmitted through the drill steel/string. | Impact is generated by the hammer down the hole, directly behind the bit. |
| Rotation | The drill string and bit are rotated to index the cutting structure. | The drill string rotates the hammer/bit assembly so the bit indexes at the bottom. |
| Feed | Feed keeps the drill and string loaded toward the face. | Feed/pull-down maintains the downhole assembly against the bottom and advances the string. |
| Flushing | Air, water, or a designed flushing system removes cuttings through the hole. | Compressed air that powers the hammer also plays a major role in carrying cuttings back up the annulus. |
The key terminology difference is therefore where percussion is generated and how energy reaches the bit, not whether rotation, feed, and flushing exist. For current PerfoMax product scope, see the Rock Drills and DTH Tools collections.
8. Technical Terms Buyers Should Not Mix Up
- Percussion power vs percussion pressure: pressure is a system condition; power describes energy transfer over time. They are related through the machine design but are not interchangeable specifications.
- Impact energy vs impact frequency: one describes energy per blow; the other describes how often blows occur.
- Rotation speed vs torque: rpm and turning force answer different questions.
- Feed force vs penetration rate: feed is an input/control; penetration rate is an outcome influenced by the entire drilling system and the rock.
- Flushing pressure vs flushing flow: adequate pressure does not by itself prove adequate cutting transport.
- Bit diameter vs hole diameter: the bit has a physical gauge diameter; the resulting hole can vary with wear, ground, deviation, and drilling condition.
Clear terminology prevents a common B2B purchasing problem: a buyer sends one isolated number, while the supplier assumes a different operating definition or test condition. For compatibility-sensitive items, always provide the machine, drill string, thread/shank system, and application context rather than relying on one nominal size.
9. What Information Should a Buyer Provide Before an RFQ?
For a useful technical discussion, send the operating context along with the requested product:
- Drilling method: pneumatic percussive, hydraulic top hammer, DTH, or another system.
- Machine or rock-drill model and existing drill-string configuration.
- Required hole diameter and typical hole depth.
- Rock description, including hardness, abrasiveness, fractures, and major changes by layer if known.
- Drilling direction: downward, horizontal, upward, or mixed.
- Available compressed-air or hydraulic system information and flushing medium.
- Current bit, rod/pipe, thread, shank, or taper details.
- The actual problem to solve: penetration, hole straightness, wear, cutting removal, downtime, or replacement compatibility.

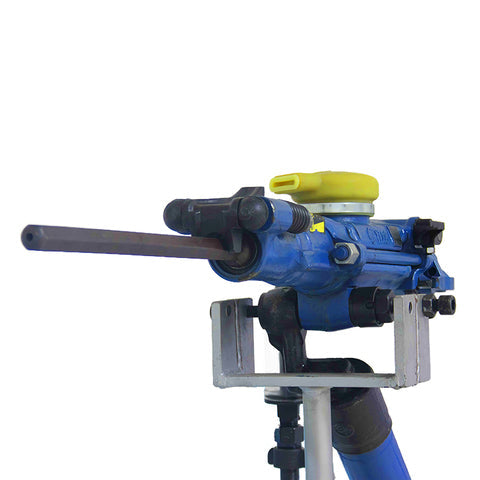

Those inputs allow the supplier to discuss the complete energy-and-cuttings path rather than choosing a tool from a diameter alone. PerfoMax's current YT28 air-leg rock drill, H22 × 108 tapered drill rod, and DTH drill-bit selection pages show examples of the different machine, steel, and bit information that must be matched in a working system.
10. Frequently Asked Questions
Is percussive drilling the same as rotary drilling?
No. Both use rotation, but the dominant rock-breaking mechanism differs. In percussive drilling, repeated impacts are a primary breakage mechanism and rotation indexes the bit between impacts. In rotary drilling, cutting/crushing from continuous rotary loading plays the dominant role. Some machines combine mechanisms, so always use the equipment manufacturer's terminology.
Why does a percussive drill need rotation if percussion breaks the rock?
Because rotation moves the cutting structure to a new position between impacts. Without effective indexing, impacts can repeatedly load the same local pattern rather than distributing cutting action around the bottom of the hole.
Does higher feed force always increase penetration?
No. Feed must maintain stable bit-to-rock contact, but excessive feed can cause poor drilling behavior. During collaring, Epiroc specifically warns that excessive feed can make the bit veer and can contribute to a bent drill string. The correct value depends on machine, direction, bit, drill string, and rock.
Can flushing be considered separately from drilling performance?
No. Flushing is one of the four core subprocesses. If cuttings are not removed effectively, the bit cannot consistently work on clean rock at the bottom of the hole, and reliability and tool life can also be affected.
Do DTH and top hammer have different drilling principles?
They differ mainly in where the impact mechanism is located and how impact energy reaches the bit. Both still require coordinated percussion, rotation, feed, and flushing. That shared framework is useful when discussing drilling parameters across equipment types.
Technical References
- Sandvik Tamrock — Method and arrangement for controlling percussion rock drilling (US7198117B2): definition of percussion, rotation, feed, and flushing as the four drilling subprocesses.
- Sandvik — HL710 rock drill: current example of a percussive rock drill with independent rotation and separate flushing.
- Epiroc Technical Information — FlexiROC T15 R operation: collaring sequence, feed adjustment, and deviation warning.
- Sandvik — Dry drilling for underground drills: flushing function and cutting-removal requirements.
