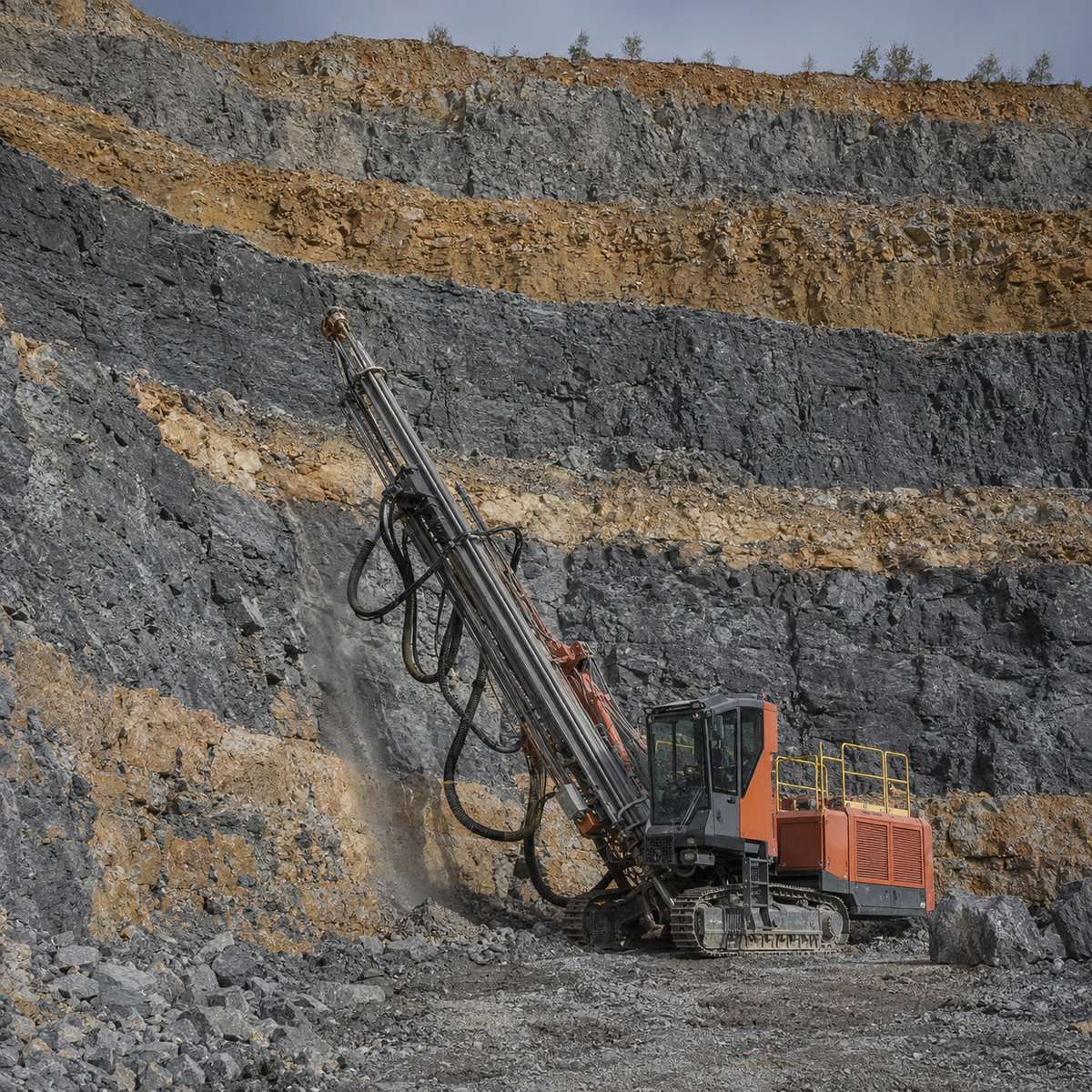

Quick answer: drilling through interbedded hard and soft rock is difficult because the bit does not meet uniform resistance. Penetration rate, cuttings size, flushing behavior, vibration, and lateral loading can change within a short interval—especially when the hole crosses a layer boundary at an oblique angle. The practical response is not to chase every change with a large control adjustment. Establish a stable baseline in uniform ground, approach transitions conservatively, keep the drill string aligned, watch cuttings and returns, and verify hole direction with survey or downstream quality data.
A bit can be drawn toward the easier-to-penetrate material when one side of the cutting face advances faster than the other. However, the direction and size of deviation are not universal. Layer dip, approach angle, bed thickness, fractures, weak infill, water, bit geometry, drill-string stiffness, collaring accuracy, and operating settings all interact. Treat the geology and the drilling response as one system.
Why hard-soft interfaces change drilling behavior
In uniform rock, the bit sees relatively consistent confinement and cutting resistance. At an interface, part of the bit may still be breaking hard, competent rock while another part is entering a weaker or weathered band. That asymmetric resistance can create an uneven reaction across the bit face. Research on interbedded formations identifies soft-hard boundaries as important locations for borehole deflection, while field guidance for blast drilling also notes that banded ground can pull a hole away from its planned path.
The same transition also changes the material that must be removed. A hard layer may produce coarse, angular chips and slower advance. A weak band may produce more fines, sloughing material, or a sudden increase in penetration. If the weak layer washes out or collapses, the annular space and return path can change. Flushing that was adequate a few metres earlier may no longer transport cuttings cleanly.
Field signals that deserve attention
No single signal proves that the bit has crossed a layer boundary. The strongest diagnosis comes from several observations changing at approximately the same depth.
| Observed signal | Possible meaning | What to verify before changing the setup |
|---|---|---|
| Penetration rate rises suddenly | The bit may have entered a weaker, more weathered, or less confined band | Cuttings texture, depth log, feed response, return flow, and whether the hole is washing out |
| Penetration rate falls sharply | A harder bed, abrasive inclusion, or poor cuttings removal may be increasing resistance | Cuttings shape, bit condition, flushing, rotation stability, and actual operating pressure or energy |
| Torque or rotation becomes unstable | The bit may be loading unevenly, regrinding cuttings, or interacting with fractures | Drill-string alignment, worn threads or guides, cuttings return, and whether the change repeats at the same geological horizon |
| Vibration or impact sound changes | Contact and confinement at the bit may have changed | Loose connections, excessive feed, bit wear, alignment, and the rig manufacturer's operating limits |
| Cuttings change from coarse chips to fine material | A weak band may be breaking down or previously cut material may be recirculating | Sample depth accuracy, return delay, flushing volume, moisture, and signs of wall collapse |
| Returns become intermittent or dirty | The return path may be restricted, enlarged, leaking into fractures, or carrying unstable material | Air or water supply, blockage, hole condition, fracture inflow, and safe withdrawal procedure |
| Hole survey shows a directional change | The interface, collaring, drill-string behavior, or a combination may be steering the hole | Survey quality, change depth, layer orientation, previous holes, and tooling condition |
Record depth with every observation. A note such as “rotation unstable” is less useful than “rotation fluctuation began at 12.4 m, cuttings became pale and fine at 12.8 m, normal returns resumed at 14.1 m.” Depth-correlated records let geologists, drillers, and suppliers distinguish a repeatable formation effect from an isolated equipment problem.
Layer geometry matters as much as rock strength
Unconfined compressive strength is useful, but it cannot describe the full drilling response. Two beds with similar strength may behave differently because of abrasiveness, grain size, weathering, jointing, water, or confinement. Our guide to UCS and drillability explains why MPa alone is not a complete tooling decision.
For interbedded ground, confirm these geometric conditions:
- Interface angle: a hole crossing a boundary close to perpendicular tends to engage the new material more evenly than a hole grazing it at a shallow angle. Oblique contact can keep opposite sides of the bit in different materials for longer.
- Bed thickness: a thin weak seam may create a short disturbance, while a thick weathered band can dominate flushing and wall-stability behavior.
- Continuity: a persistent bed can produce repeatable changes across a pattern. Irregular lenses or broken contacts produce less predictable responses.
- Fractures and infill: open joints, clay seams, or crushed material can redirect fluid, release the bit unevenly, or allow the wall to slough.
- Water: inflow changes fines transport and can weaken some weathered or clay-rich bands. It may also mask the true source depth in the returns.
How drilling method changes the response
Interbedded rock does not automatically make one drilling method correct. Hole diameter, depth, available rig, compressor capacity, bench access, required straightness, production rate, and existing tool system still govern the choice. The table below highlights what operators should watch rather than declaring a universal winner.
| System | Interface-related concern | Useful control focus |
|---|---|---|
| Top hammer | Surface impact energy travels through the drill string; alignment, string stiffness, coupling condition, and depth can influence directional behavior | Accurate collaring, sound guides and threads, controlled feed, suitable rod and bit condition, and timely hole checks |
| DTH | The hammer acts at the bit, but an angled interface, poor collar, unsuitable bit, unstable wall, or insufficient cleaning can still cause trouble | Stable air delivery, compatible hammer-bit-shank combination, controlled advance at transitions, and clean returns |
| Pneumatic or handheld rock drill | Operator control, support stability, working angle, short feed length, and visible ground changes have a strong influence | Secure setup, straight starting alignment, correct lubrication and air supply, short controlled advances, and frequent inspection |
For quarry blast holes in the common overlap between DTH and top hammer, use application conditions—not one headline advantage—to choose the method. See our published DTH vs top hammer guide for 76–115 mm quarry holes for the broader selection framework.
A seven-step workflow for crossing variable layers
1. Build a simple geological expectation
Before drilling, review face mapping, core or cuttings logs, nearby holes, and visible layer dip. Mark the approximate depths where the planned hole should cross major contacts. The prediction does not have to be perfect; it creates checkpoints for the operator and a basis for comparing actual behavior.
2. Stabilize and align the rig
Level or secure the carrier as required by the equipment, verify mast or feed alignment, inspect guides, and confirm that the starting direction matches the drilling plan. A formation change can amplify a small collaring or setup error. Check drill rods or pipes for visible bending and inspect connections before blaming the geology.
3. Establish a baseline in competent ground
Record normal penetration rate, rotation behavior, flushing return, vibration, and cuttings in a uniform interval. Use actual readings where the rig provides them. A baseline helps the crew identify a genuine transition and avoids arbitrary parameter changes based only on sound or feel.
4. Approach the predicted interface conservatively
Avoid forcing the bit through a transition with excessive feed. Maintain rotation and flushing within the drill and tooling manufacturer's allowed operating window, and make small, traceable changes. Large simultaneous changes to feed, rotation, percussion, and flushing destroy the diagnostic value of the response and may worsen deviation or jamming.
5. Watch cuttings and returns
Check color, grain size, chip shape, moisture, and return consistency. Because cuttings take time to travel to the collar, allow for transport delay when assigning a depth. If returns weaken, do not assume that more flushing is always the answer: first consider leakage into fractures, a washed interval, blockage, or wall instability, and follow the rig manufacturer's safe clearing procedure.
6. Log every change and its result
Record the depth, observation, adjustment, and outcome. If a small feed reduction restores stable rotation but cuttings remain fine, that is useful evidence. If the same disturbance appears in adjacent holes at the same elevation, it is likely formation-related. If it follows one drill string or one bit across locations, inspect the equipment.
7. Verify the hole—not just the penetration rate
Fast advance is not success if the hole misses its toe position, produces poor charging conditions, or requires redrilling. Use appropriate survey methods, pattern measurements, charging feedback, or downstream results. Our guide to reducing top-hammer hole deviation provides a more detailed diagnostic sequence for straightness problems.
Common mistakes in interbedded ground
- Using penetration rate as the only indicator. A rapid increase can mean soft rock, but it can also accompany washout, poor contact, or collapsing material.
- Changing several controls at once. The crew cannot tell which change helped, and the new combination may exceed the safe or efficient operating window.
- Assuming every hole will deviate in the same direction. Layer orientation, collar location, fractures, and tool condition can vary across a bench.
- Increasing feed to overcome a hard band. Excessive feed can bend the string, overload components, reduce effective rotation, and worsen directional error.
- Ignoring the return path. Fine material in a weak layer can pack, recirculate, or collapse around the string. A clean-looking collar does not guarantee a clean bottom.
- Buying on thread or diameter alone. The bit, hammer or shank, rods or pipes, rig, air supply, flushing medium, and planned hole geometry must function as a compatible system.
Information to include in an RFQ or technical review
For a useful recommendation, provide conditions rather than asking for a “hard-and-soft rock bit” without context:
- drilling method and rig make/model;
- current hammer, shank adapter, rod or pipe, thread, and bit identification;
- planned hole diameter, depth, inclination, and straightness requirement;
- hard- and soft-layer descriptions, approximate thicknesses, dip, UCS where available, abrasiveness indicators, fractures, clay or weathering, and water;
- compressor pressure and free-air delivery at site conditions, or water-flushing capacity where applicable;
- current penetration rate by interval, cuttings observations, wear pattern, failure mode, and hole survey results;
- photographs of cuttings, worn bit face, collar, bench or heading, and any visible bedding;
- production objective, acceptable downtime, and whether the priority is speed, straightness, life, or hole stability.
This package lets a supplier check compatibility and application risk without inventing a setting from rock names alone.
Frequently asked questions
Why does a drill hole bend at a hard-soft boundary?
One side of the bit can penetrate or release differently from the other while the face spans two materials. The resulting uneven reaction may steer the bit or bend the string. The actual path also depends on boundary angle, collaring, drill-string stiffness, feed, rotation, fractures, and bit condition.
Does the bit always move toward the softer layer?
No universal rule is safe for every formation and setup. Movement toward easier-to-penetrate material is a useful working hypothesis, but local fractures, angled contact, tool geometry, wall collapse, and pre-existing misalignment can change the result. Confirm with surveys and depth-correlated logs.
Should feed be reduced when entering a soft band?
Often a less aggressive, controlled advance helps prevent over-penetration and preserves directional control, but the correct action must stay within the rig and tooling manufacturer's instructions. Use the observed rotation, flushing, vibration, and hole quality—not softness alone—to guide a small adjustment.
Can more air or water prevent the hole from deviating?
Flushing removes cuttings and supports stable drilling, but it does not correct collaring, string bending, uneven bit loading, or incompatible tooling. Excessive flushing can also enlarge or erode some weak intervals. Match delivery to the system and actual return condition.
Is DTH always straighter than top hammer in interbedded rock?
DTH places the impact mechanism at the bit and can offer directional advantages in some deeper or larger-diameter applications, but it does not eliminate deviation. Hole geometry, interface angle, bit design, air supply, wall stability, and operator control still matter. Compare the complete job conditions before changing systems.
Discuss the formation and the complete drill string
If alternating layers are reducing hole quality or causing unstable drilling, send PerfoMax the rig, tooling, hole plan, geology, compressor or flushing data, cuttings photographs, and survey evidence. We can review the application against the drilling-tool scope shown on the current website and identify what must be confirmed before a quotation. Request a technical quotation.
Technical references
- Deflection Laws of Gas Drainage Boreholes in Interbedded Soft and Hard Seams — research on interface-related borehole deflection.
- Improvement of drilling quality using precision directional drilling technology — discussion of heterogeneous formations, alignment, and drill-string factors.
- How To Reduce Drill-Hole Deviation — industry guidance on geology, feed, setup, and tooling.
- Sandvik Guide Adapter — an OEM example of tooling developed for variable and difficult ground; applicability depends on the specific system.
