Direct answer: UCS, or uniaxial compressive strength, is the peak compressive stress an intact rock specimen can withstand when loaded along one axis without lateral confinement. It is usually reported in megapascals (MPa). In rock drilling, UCS is useful because stronger intact rock generally demands more energy to break and often reduces penetration rate under otherwise similar conditions. But UCS is not a complete drillability rating: fractures, abrasiveness, tensile strength, brittleness, mineralogy, hole size, bit condition, flushing and machine settings can materially change field performance.
For buyers, drillers and distributors, the practical rule is simple: use UCS as one verified input in a drilling decision—not as a single-number shortcut for bit selection, hammer sizing or expected metres per hour.
1. What Is UCS in Rock Drilling?
UCS stands for uniaxial compressive strength. ASTM D7012 covers laboratory methods for determining compressive strength and elastic properties of intact rock core specimens, while the International Society for Rock Mechanics and Rock Engineering (ISRM) publishes a suggested method for UCS and deformability testing.
The test loads a prepared intact rock specimen axially until failure. The maximum axial load divided by the specimen's original cross-sectional area gives the compressive strength. The usual engineering unit is MPa.
| Term | What it means | Why it matters in drilling |
|---|---|---|
| UCS | Peak unconfined compressive strength of an intact rock specimen | Provides a standardized indication of intact rock strength |
| MPa | Megapascal; 1 MPa = 1 N/mm² | Lets engineers compare reported rock-strength values on the same unit basis |
| Intact rock | The rock material tested as a specimen, excluding large-scale joints and discontinuities | Explains why laboratory UCS may not represent the behavior of the full rock mass |
| Drillability | How readily a rock can be drilled by a specific system under defined operating conditions | Depends on UCS plus several rock, tool and machine variables |
Important distinction: UCS is a material property measured under a defined test procedure. “Hard rock,” “abrasive rock,” “difficult drilling” and “slow penetration” are field descriptions that may correlate with UCS but are not interchangeable with it.
2. Why UCS Matters to Penetration Rate

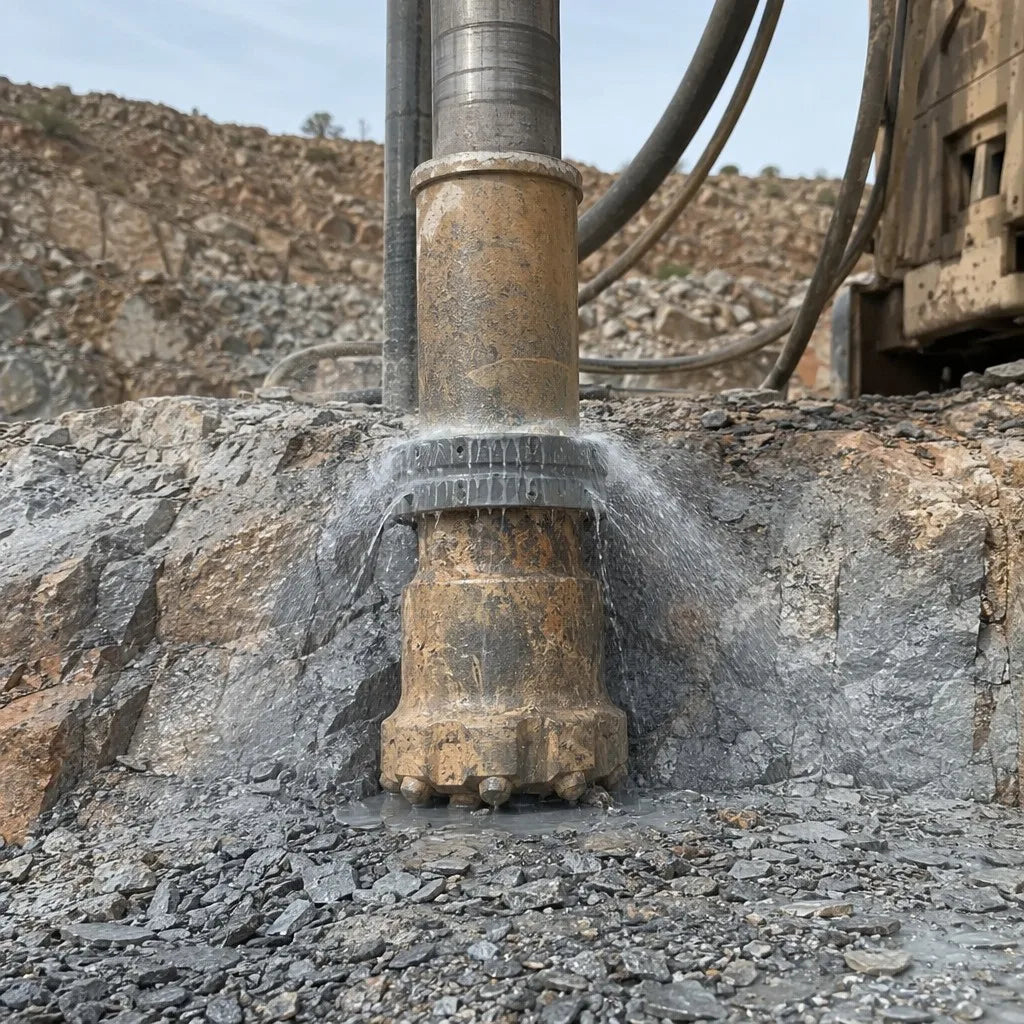

Percussive drilling breaks rock by repeatedly applying impact energy through the bit. As intact compressive strength increases, the rock generally resists crushing and crack initiation more strongly. Under comparable drilling conditions, that can mean more energy is required per unit volume removed and penetration can slow.
This relationship is real, but it is not one-to-one. A peer-reviewed study by Kahraman, Bilgin and Feridunoglu on percussive drilling found that several rock properties—not UCS alone—were important for predicting penetration rate. Later drillability research likewise treats UCS together with tensile strength, elastic properties, hardness and brittleness.
| If UCS increases | What may happen | What must still be checked |
|---|---|---|
| Resistance to intact-rock crushing | Impact energy demand may rise | Hammer/rock drill capability and energy transfer |
| Penetration under the same setup | ROP may fall | Bit diameter, rotation, feed, pressure and flushing |
| Tool loading | Contact stress can increase | Button condition, gauge wear, bit design and drill-string condition |
| Cost per metre | May increase if ROP drops | Tool life, air/fuel use, handling time and hole quality |
The right interpretation is therefore conditional: UCS helps explain one part of the rock-breaking demand, while drilling performance is the outcome of the full rock–tool–machine system.
3. UCS Is Not the Same as Hardness, Abrasiveness or Rock-Mass Strength
Three common purchasing errors come from treating different rock properties as if they were the same number.
UCS vs mineral hardness
UCS measures compressive strength of a rock specimen. Mineral hardness describes resistance to scratching or indentation at the mineral scale. A rock can contain hard minerals yet have a structure that fails differently under compression.
UCS vs abrasiveness
Abrasiveness describes the tendency of the rock to wear drilling tools. It is affected by mineral composition, grain characteristics and the rock–tool contact process. A high-UCS rock may be abrasive, but high compressive strength does not automatically tell you how quickly carbide buttons or gauge surfaces will wear.
UCS vs rock-mass behavior
Laboratory UCS is measured on intact specimens. A quarry bench or mine face may contain joints, bedding planes, weathered zones, voids or water-bearing fractures. Those discontinuities can control hole deviation, cuttings return, collapse or lost circulation even when the intact pieces have a high UCS.
4. Why Two Rocks With Similar UCS Can Drill Differently
Buyers often receive two laboratory reports with similar MPa values and expect similar drilling performance. That assumption can fail for several reasons:
- Different brittleness: two rocks with similar compressive strength may fracture differently under repeated impact.
- Different tensile strength: crack propagation is not governed by compressive strength alone.
- Different abrasiveness: one formation may consume gauge buttons or carbide much faster.
- Different structure: massive intact rock and closely jointed rock can behave very differently in the hole.
- Different moisture or alteration: water, clay seams and weathering can change cuttings transport and wall stability.
- Different drilling system: bit diameter, impact energy, feed, rotation, air or water flushing, and tool wear all affect ROP.
That is why a UCS value should always be read with the test report and field context rather than copied into a purchasing sheet as a stand-alone “rock hardness” number.
5. How to Read a UCS Test Result Before Using It for Drilling
Before using a reported MPa value for equipment or tool decisions, check the following in order:
- Confirm it is actually UCS. Do not mix UCS with point-load index, rebound hardness or another indirect index unless the report clearly states the conversion method.
- Check the test method. A result linked to ASTM D7012, an ISRM suggested method or another documented laboratory procedure is more useful than an unexplained number.
- Check specimen condition. Moisture condition, orientation, anisotropy and specimen preparation can influence results.
- Look at the range, not only the average. Multiple test results reveal variability that one number hides.
- Compare samples with the actual drilling interval. A strong surface sample may not represent weathered or fractured zones deeper in the hole.
- Add structure and abrasiveness information. Jointing, quartz-rich abrasive material, clay seams and water can change the practical setup.
- Match the value to the real drilling system. Hole diameter, drilling method, rig or compressor capability and existing tool interface still constrain the solution.
6. Can UCS Be Estimated in the Field?
Field teams sometimes use point-load testing, rebound hammers or geological descriptions when full laboratory UCS data are not available. These methods can be useful for screening or relative comparison, but an estimated UCS should be labeled as an estimate.
The safest procurement practice is to keep the original measurement and the conversion separate. For example, record the measured point-load index and the project-specific correlation used to estimate UCS. Generic conversion factors can produce misleading values when lithology, anisotropy or specimen condition differs from the dataset used to build the correlation.
If no strength test exists, send the supplier a representative rock description, photos, drilling history and current penetration/tool-life data rather than inventing a precise MPa value.
7. What Should a Buyer Send With UCS in an RFQ?
For a drilling-tool RFQ, UCS becomes much more useful when it is paired with application data. Send as many of the following as are available:
- Rock name and formation description
- UCS range in MPa, not just one average value
- Test method and whether the values are measured or estimated
- Moisture condition and sample orientation if relevant
- Fracture/jointing condition of the actual drilling zone
- Abrasiveness or mineralogical information if available
- Current drilling method: DTH, top hammer or pneumatic hand-held drilling
- Target hole diameter, depth and inclination
- Existing hammer, rock drill, rod/thread or bit interface
- Compressor or rig capacity and normal operating settings
- Current penetration rate, tool life and failure/wear pattern
PerfoMax currently lists a DTH drill bit selection page and H22 taper button bits. If you are comparing tools for a known rock formation, include the UCS and the application details above when you request a quote.
8. Common UCS Mistakes in Technical and Commercial Discussions
| Mistake | Why it creates risk | Better practice |
|---|---|---|
| Calling UCS “Mohs hardness” | They measure different properties | Keep compressive strength and mineral hardness separate |
| Using one MPa value for an entire site | Geology varies by layer and structure | Use a range and identify where samples came from |
| Assuming higher UCS always means faster tool wear | Abrasiveness is a separate wear driver | Add mineralogy/abrasivity and actual wear pattern |
| Predicting exact ROP from UCS alone | Machine and other rock variables affect drillability | Use site trials or calibrated performance data |
| Converting an index test to UCS without stating the correlation | The conversion may not transfer between rock types | Keep measured index and estimated UCS traceable |
FAQ
Is a higher UCS always harder to drill?
Usually, higher intact compressive strength increases the energy needed to break the rock, but actual drillability also depends on tensile strength, brittleness, abrasiveness, fractures, drilling parameters and the tool system. UCS alone cannot rank every formation reliably.
What does MPa mean in a UCS report?
MPa means megapascal, a stress unit. One MPa equals one newton per square millimetre. In a UCS test it expresses the peak axial compressive stress sustained by the intact specimen before failure.
Is UCS the same as rock hardness?
No. UCS is compressive strength. “Hardness” may refer to mineral scratching/indentation resistance or may be used informally in field descriptions. Always ask which property and test method a reported number represents.
Can I choose a DTH bit using only UCS?
No. UCS is useful, but you should also consider abrasiveness, fractures, hole diameter and depth, hammer/shank compatibility, flushing conditions and observed wear. A high-UCS but non-abrasive massive rock can require a different decision from a similarly strong but highly abrasive or fractured formation.
What if my site has no laboratory UCS data?
Do not invent a value. Provide a geological description, representative rock photos, any point-load or rebound data with the original test name, current drilling parameters, penetration rate and wear pattern. A laboratory test or locally calibrated estimate can be added when available.
Technical References
- ASTM D7012-23 — Compressive Strength and Elastic Moduli of Intact Rock Core Specimens.
- ISRM — Suggested Method on Uniaxial Compressive Strength and Deformability of Rock Materials (2018 revised version).
- Kahraman, Bilgin & Feridunoglu (2003) — Dominant rock properties affecting the penetration rate of percussive drills.
- Yenice (2019) — Determination of Drilling Rate Index Based on Rock Strength Using Regression Analysis.
