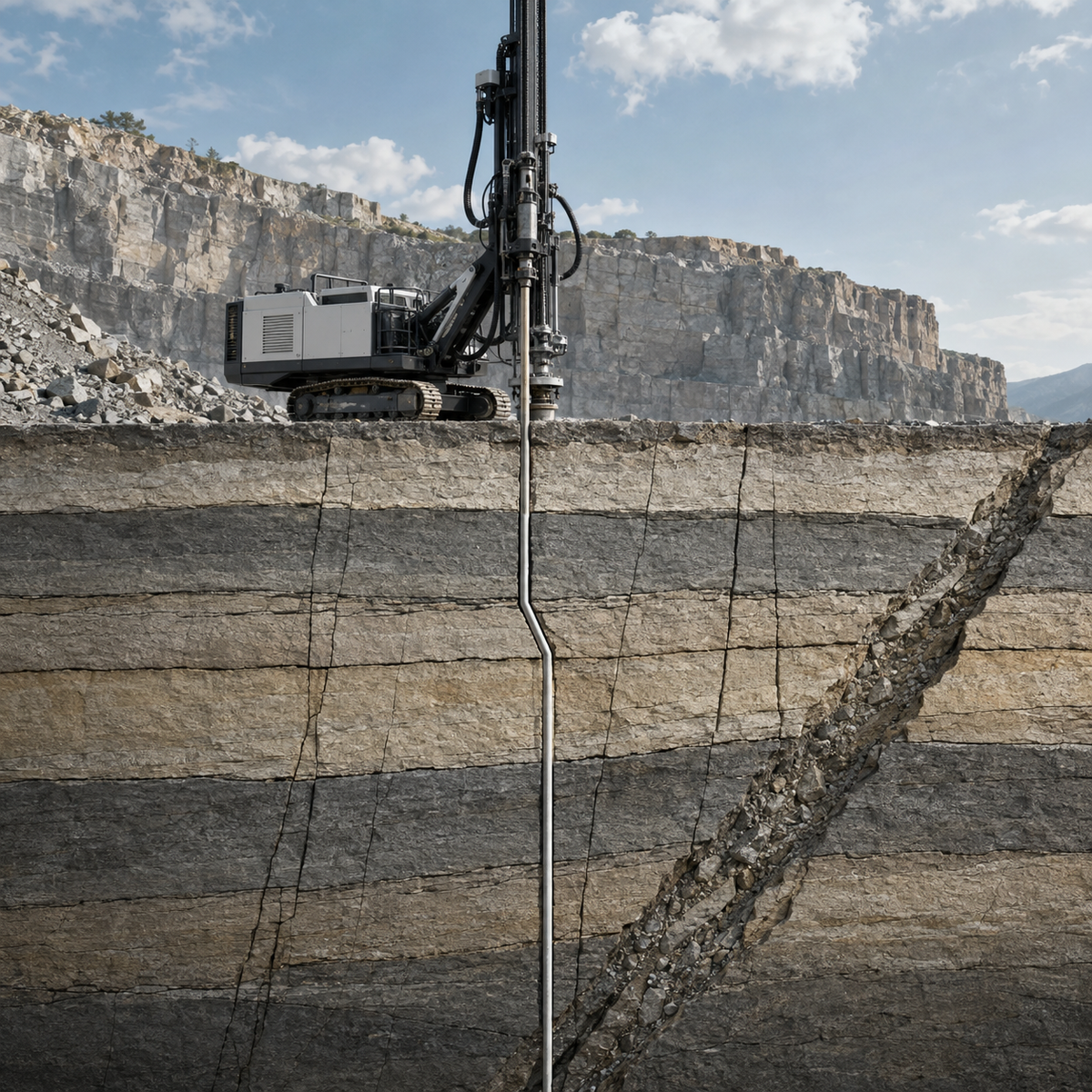

Joints vs Bedding Planes vs Faults in Rock Drilling: What Each Discontinuity Means

Short answer: a joint, a bedding plane, and a fault are all planar features that can interrupt otherwise intact rock, but they do not mean the same thing. A joint is a natural fracture with little or no observable shear displacement. A bedding plane is the surface between sedimentary layers and becomes operationally important when it is open, weak, weathered, or contrasts strongly with the adjacent beds. A fault is a fracture or zone along which displacement has occurred; it may contain crushed rock, clay-like gouge, water, or multiple broken surfaces.

For drilling, the name is only the beginning. Orientation, spacing, persistence, aperture, roughness, infill, weathering, and water determine whether a discontinuity causes a small penetration change or a serious problem with deviation, flushing, hole stability, or tool recovery. This guide gives mines, quarries, contractors, and buyers a practical vocabulary for discussing joints vs bedding planes vs faults in rock drilling.

1. “Fracture” and “Discontinuity” Are Umbrella Terms

Fracture is a broad geological term for a break in rock. Joints and faults are both types of fractures. Discontinuity is the engineering umbrella term for a surface or narrow zone that interrupts the mechanical continuity of a rock mass. Depending on the site, it may refer to joints, faults, bedding partings, foliation, cleavage, shear zones, or other weak planes.

The distinction matters because a visible plane is not automatically a weak, open break. Some bedding contacts are tightly cemented. Some joints are mineral-filled or partly healed. Conversely, a thin clay seam or weathered fault zone can be much weaker than the strong rock on either side. A useful borehole log therefore records both the feature name and its condition.

2. Joint, Bedding Plane, and Fault: The Practical Difference

Foliation and cleavage are other planar fabrics. They are especially relevant in metamorphic rock such as slate, schist, and gneiss. They can behave like directional weakness even when no open gap is visible. Do not force every planar feature into the words “joint” or “bedding.”

3. The Eight Discontinuity Descriptions That Matter for Drilling

A useful drilling discussion needs more than “fractured rock.” Record these eight attributes wherever the available investigation and exposure allow it:

1. Orientation: describe the plane with strike and dip, or dip direction and dip. Compare that orientation with the planned azimuth and inclination of the hole.
2. Spacing: closely spaced planes create smaller blocks and more frequent tool–interface interactions. Widely spaced planes may produce isolated changes.
3. Persistence: a short plane that terminates in intact rock is different from a feature that extends across the bench, tunnel, or drilling pattern.
4. Aperture: tight, partly open, and open features can affect fluid movement and cuttings return differently.
5. Roughness: rough, interlocking surfaces and smooth or polished surfaces do not have the same mechanical behavior.
6. Infill: clean, mineral-filled, clay-filled, crushed, or weathered planes can respond very differently to air, water, and percussion.
7. Weathering: alteration may weaken the plane walls as well as the material inside the discontinuity.
8. Water: dry, damp, dripping, or flowing conditions change hole cleaning, stability, back pressure, and site controls.

These descriptors are more useful for an RFQ than a single rock name. “Granite with two steep, open joint sets and water” is more actionable than “hard granite.” “Bedded limestone with thin clay partings dipping across the proposed holes” is more useful than “medium-hard limestone.”

4. Why Orientation Changes the Drilling Response

A hole may meet a discontinuity nearly perpendicular, at an oblique angle, or almost parallel. The same joint set can therefore behave differently when the drilling direction changes.

• Near-perpendicular intersection: the bit crosses the plane over a relatively short distance, but an open or weak interface can still interrupt contact and alter cuttings.
• Oblique intersection: one side of the bit may enter the weaker material before the other. Unequal support can encourage the bit to move along the plane or make the hole direction less stable.
• Near-parallel drilling: the hole can remain within a weak bed, foliation band, or fault damage zone for a longer interval. Repeating slabbing, unstable walls, or persistent flushing problems may result.

Orientation alone does not predict the outcome. Bit diameter and face, drill-string stiffness, feed, rotation, hole length, drilling method, rock contrast, and the condition of the plane all contribute. Treat orientation as a decision input, not a universal rule.

5. How Discontinuities Show Up at the Rig

The drill cannot name a geological feature by itself, but it can reveal changes that should be logged against depth:

• a sudden increase or decrease in penetration rate;
• repeating penetration changes at regular layer spacing;
• blocky, platy, clay-rich, weathered, or mixed cuttings;
• temporary or sustained changes in rotation torque;
• loss of flushing air or water, or a new return path;
• water inflow, increased back pressure, or wet heavy returns;
• unusual vibration, string movement, or poor collar stability; and
• difficulty withdrawing the tool after crossing a broken zone.

These observations are not a substitute for geological logging. A worn bit, changing compressor delivery, blocked flushing passage, operator change, or mechanical problem can produce similar symptoms. The strongest evidence combines the drilling record with core, cuttings, borehole imaging, nearby exposures, geophysics, or qualified geological observations.

6. From Terminology to a Better Drilling Decision

Use a simple sequence when discontinuities are expected:

1. Define the finished-hole requirement. A blast hole, anchor, drainage hole, water well, and investigation hole have different tolerances for deviation, collapse, and sample disturbance.
2. Map the main plane sets. Record their orientation and persistence relative to the proposed hole direction.
3. Identify the weakest condition. Open joints, clay seams, fault gouge, weathered walls, or flowing water may govern the setup even if most of the rock is strong.
4. Select the method as a system. Rig, hammer, bit, drill string, flushing medium, compressor or pump, and casing plan must work together.
5. Establish a baseline. Track penetration, cuttings, return, torque, and water from competent ground before interpreting a change.
6. Define stop-and-review triggers. Lost return, excessive deviation, unstable collar, repeated collapse, or difficult recovery should lead to a controlled reassessment.

For DTH work, the published DTH drilling in fractured rock guide covers the application response in more depth. For intact-rock strength terminology, see UCS in rock drilling.

7. Common Misunderstandings

• “Every visible bedding plane is an open joint.” A bedding contact may be tightly bonded, partly cemented, weathered, or fully separated. Describe its condition.
• “A fault is one clean crack.” Many faults are zones containing multiple surfaces, crushed rock, alteration, or gouge, with damaged rock on either side.
• “Hard rock means a stable hole.” Strong intact blocks can form an unstable rock mass when discontinuities are closely spaced, persistent, open, or unfavorably oriented.
• “High ROP always means easier rock.” A sudden jump can mean the bit entered a void, weak seam, broken zone, or poorly supported interface.
• “Fractured rock automatically requires a different bit.” Bit choice matters, but hole direction, drill string, flushing, casing, and operating limits may be equally important.
• “RQD or UCS tells the whole story.” Each metric describes only part of the ground. Plane orientation, infill, water, and finished-hole purpose remain essential.

8. What to Include in an RFQ or Technical Review

• application and finished-hole purpose;
• hole diameter, depth, inclination, azimuth, and straightness requirement;
• rock type and available intact-strength information;
• joint, bedding, fault, foliation, or shear-zone descriptions;
• orientation, spacing, persistence, aperture, infill, weathering, and water;
• previous penetration, deviation, flushing, collapse, or stuck-tool history;
• rig, hammer or rock-drill model, drill-string connections, and current bit;
• available air or water delivery under working conditions; and
• photos, core logs, borehole images, geotechnical reports, and connection drawings.

If the geology is described only as “hard” or “fractured,” the supplier must guess at the actual drilling problem. PerfoMax’s request-a-quote page can be used to submit the equipment interfaces and ground information for a controlled commercial review. Ground-stability and structural decisions must remain with the project’s qualified engineering team.

FAQ

Is a joint the same as a fracture?

A joint is a type of natural fracture. The term is generally used where there is little or no observable shear displacement along the plane. “Fracture” is broader and can include joints and faults.

Is every bedding plane weak?

No. A bedding contact may be well cemented and mechanically strong, or it may be open, weathered, clay-rich, or poorly bonded. Its condition and orientation—not the name alone—determine its drilling relevance.

What is the main difference between a joint and a fault?

The defining distinction is displacement. A fault records movement along the fracture or zone; a joint has little or no observable shear displacement. Fault zones can also be wider and may contain crushed or altered material.

Can joints cause drill-hole deviation?

They can contribute, especially where the bit meets a strong contrast obliquely or where the plane is open, smooth, or weakly filled. The result also depends on drill-string stiffness, bit geometry, feed, rotation, hole length, and drilling method.

Which discontinuity details should a buyer send to a drilling-tool supplier?

Send orientation, spacing, persistence, aperture, roughness, infill, weathering, water, the planned hole direction, and any depth-based drilling observations. Also identify the rig, hammer or rock drill, bit connection, and available flushing capacity.

Technical Sources

• White Rose Research Online: Tensile Strength of Geological Discontinuities Including Bedding, Joints, and Veins
• Rocscience RS3 Documentation: Joint Properties and Discontinuity Interfaces
• Missouri University of Science and Technology: Drilling Direction in Discontinuous Rock
• Pit & Quarry University: Bedding Planes, Joints, Faults, and Drilling/Blasting

Next step: Before selecting a rock-drilling setup, replace the phrase “fractured rock” with an actual discontinuity description. The more clearly the plane geometry and condition are defined, the less the buyer and supplier have to infer.
