DTH Drilling in Fractured Rock: Setup, Hole Cleaning, and Deviation Control

Quick answer: fractured rock changes DTH drilling because the bit is no longer working against a uniform, continuously supported rock face. Open joints, broken zones, voids, weak seams, and changing block size can disturb bit contact, redirect the hole, reduce cuttings return, and increase the chance of material falling back around the hammer or drill string. The correct response is usually not to maximize feed, rotation, or air pressure. Establish a stable collar, monitor the drilling response as the formation changes, keep feed and rotation smooth, protect hole cleaning, and treat a sudden change in returns or torque as a ground-condition signal until proven otherwise.

This guide is for quarry, mining, construction, and drilling contractors using pneumatic down-the-hole systems in fractured or heterogeneous rock. It focuses on how the ground condition changes the operating envelope. Exact pressure, airflow, feed-force, and RPM limits must still come from the hammer, rig, compressor, and bit manufacturers for the specific system in use.

1. What Fractured Rock Changes in a DTH Hole

In competent rock, the DTH bit repeatedly impacts a comparatively continuous bottom surface while the drill string rotates and exhaust air carries broken material up the annulus. Fractured rock introduces discontinuities into that process. Some fractures are tight and have little operational effect; others are open, weathered, water-bearing, clay-filled, or connected to voids. The drilling response therefore depends on more than compressive strength alone.

Field implication: a sudden performance change is not automatically a hammer fault. First ask whether the hole has entered a different geological zone.

2. Watch the Transition Into the Fractured Zone

The most useful warning is often a change from the established baseline. Before the formation changes, note how the drill is behaving in stable rock: penetration trend, rotation smoothness, return-air strength, cuttings character, vibration, hammer sound, and any available feed/rotation pressure or torque indication. Then watch for a step change.

Typical transition signals include:

• a sudden increase or decrease in penetration without a corresponding control change;
• rotation becoming jerky instead of even;
• cuttings changing from consistent chips to a mixed stream of fines and larger loose fragments;
• air and cuttings return weakening unexpectedly;
• the drill string beginning to wander, vibrate, or load the rotary head differently;
• repeated short interruptions in hammer rhythm as the bit moves across broken material.

These observations are diagnostic clues, not universal pass/fail limits. Mincon’s current blast-hole guidance emphasizes that airflow, rotation, feed force, and flushing must be balanced to the ground rather than driven at maximum settings. Sandvik’s automated DTH systems follow the same principle: their iTorque logic adjusts feed to match rock conditions rather than using one fixed force for every formation.

3. Feed Force in Fractured Rock: Maintain Contact Without Forcing the Bit

Feed has a specific job in DTH drilling: maintain effective bit contact and keep the hammer working in a stable mechanical relationship with the bottom of the hole. In fractured rock, that requirement does not disappear, but the useful feed window can become narrower.

Too much feed can make an already unstable drilling response worse. If the bit is crossing a void, loose block, or weak seam, aggressive feed can increase side loading, make rotation jerky, and add bending stress to the drill string. Too little feed can allow the bit to bounce or lose consistent contact, which also reduces energy transfer and increases vibration.

A practical field rule is therefore to look for smooth rotation, stable hammering, and steady advance, not the highest possible feed indication. If the string starts jamming or the hole begins to wander, reduce the aggressiveness of the drilling cycle within the rig and hammer manufacturer’s instructions and re-establish stable contact before continuing.

Do not convert this into a fixed kN recommendation unless the exact hammer and rig manual provides one. Feed requirements change with hammer size, bit diameter, pressure, drilling angle, drill-string weight, and ground condition.

4. Rotation: Index the Bit, Do Not Grind Through the Fracture

Rotation indexes the carbide buttons onto fresh rock between impacts. The correct speed is tied to penetration rate, bit diameter, hammer design, and formation. In fractured rock, an operator may be tempted to increase RPM when drilling feels irregular, but more rotation is not automatically better.

Mincon’s current bit-life guidance notes that excessive rotation relative to penetration accelerates carbide and bit-face wear. In a broken zone, the priority is to keep rotation even and avoid a condition where the bit is dragging, jamming, or continuously grinding loose material rather than allowing the hammer to break supported rock.

Watch the relationship between rotation and penetration. If penetration changes sharply when a fracture is entered, the previous rotation setting may no longer represent the same cutting condition. Adjust only within the equipment manufacturer’s operating range and use the drilling response—rather than a single generic RPM number—as the field check.

5. Hole Cleaning Is the Critical Constraint When Air Escapes Into Fractures

In pneumatic DTH drilling, compressed air does two jobs: it powers the hammer and then exhausts through the bit to carry cuttings upward through the annular space between the drill string and the borehole wall. If the hole intersects an open or permeable fracture network, part of that air can escape into the formation instead of returning to the collar.

That creates a different problem from simply having a small compressor. The compressor may still be delivering normally while the effective return flow in the borehole has changed because the ground is taking air.

Signs that hole cleaning is deteriorating can include:

• weaker return air at the collar;
• fewer cuttings reaching the surface even though the hammer is still operating;
• cuttings arriving intermittently in surges;
• penetration falling while torque or vibration rises;
• material falling back when feed stops or the string is lifted;
• increasing difficulty rotating or pulling the string.

When returns deteriorate, do not simply continue feeding at the previous rate. The hole must be given enough cleaning capacity for the amount and size of material being generated. Depending on the rig and site procedure, that can mean reducing the rate of advance, allowing a dedicated flushing/cleaning cycle, or carefully lifting the string while maintaining the manufacturer-approved flushing condition. The exact procedure must follow the rig and hammer instructions because uncontrolled pullback, rotation, or air use can create additional hazards.

Epiroc also identifies ground conditions as a direct cause of downhole jamming, while Sandvik notes that fractured or heterogeneous ground combined with poor flushing can lead to stuck drill strings. The shared lesson is simple: poor returns in fractured ground are an operating boundary, not a cosmetic symptom.

6. Fractures Can Increase Hole-Deviation Risk

DTH systems are widely used where hole straightness matters, but no drilling method is immune to geological steering. If one side of the bit encounters a weak seam, open joint, or broken zone while the other side remains well supported, the bit can experience an asymmetric reaction and begin to follow the easier path.

Deviation risk is highest when several factors stack together:

• the collar was not established accurately;
• the rig or feed is not well aligned and stabilized;
• the formation alternates between competent and weak material;
• feed is excessive for the transition zone;
• the bit or gauge is worn and no longer guiding consistently;
• the drill string has excessive play, bending, or damaged connections.

Mincon specifically identifies stable collar formation as important for straight holes and effective flushing. Sandvik’s automated DTH rigs likewise use controlled collaring and adjust feed according to rock conditions. For manual operations, the practical translation is to spend the time required to establish the collar, maintain alignment, and avoid trying to recover lost productivity by forcing the bit through a broken transition.

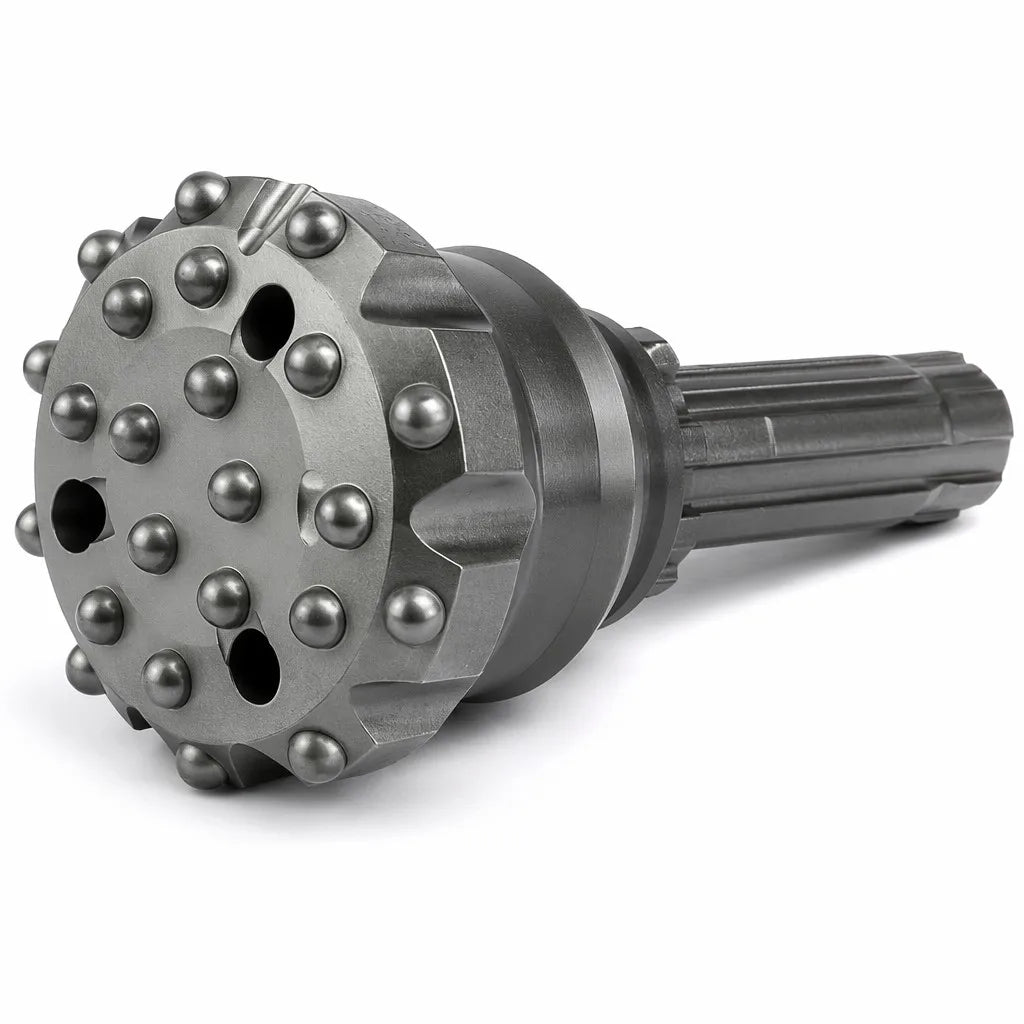

7. Bit and Drill-String Selection Must Include the Fracture Condition

“Fractured rock” does not point to one universal DTH bit face or button shape. Hardness, abrasiveness, fracture spacing, block size, water, required hole diameter, and the exact hammer shank all influence the final configuration. A bit that performs well in hard, competent abrasive rock may not be the best configuration for a heavily broken formation, and the reverse can also be true.

For that reason, the current PerfoMax DTH Drill Bit Selection page does not define compatibility by diameter alone. It requires the hammer brand/model and shank drawing, target hole diameter, rock hardness/abrasivity/fracture condition, and the intended face, button, and flushing configuration to be confirmed together before the final SKU is approved.

The same system logic applies to the pipe. A 76 mm DTH drill pipe, for example, cannot be approved from OD alone; the rotary-head connection, hammer top-sub, bore/airflow requirement, operating torque, depth, and ground condition still need to match.

8. Practical Workflow for a Fractured-Rock Interval

1. Establish a baseline in stable ground. Record normal penetration, rotation behavior, returns, vibration, and relevant rig indications.
2. Recognize the transition. Treat a sudden change in penetration, torque, vibration, or cuttings return as a possible formation change.
3. Protect the collar and alignment. If the fractured zone is near the top of the hole, do not rush the collaring stage.
4. Keep feed and rotation smooth. Avoid using maximum controls as a default response to irregular drilling.
5. Confirm cuttings are still being removed. Weak or intermittent returns can indicate air loss, packing, or unstable material.
6. Reduce advance if cleaning cannot keep up. Use the rig/hammer-approved cleaning procedure before cuttings accumulate around the hammer or pipe.
7. Watch for escalation. Increasing torque, poor pullback, falling returns, and unstable rotation together are reasons to stop forcing the hole and reassess.
8. Document the interval. Record depth, rock description, return behavior, bit condition, and operating response so the next bit/tooling decision is based on evidence rather than memory.

9. Common Mistakes in Fractured-Rock DTH Drilling

10. What to Send Before an RFQ for Fractured-Rock Drilling

For a useful technical quotation, send enough information to describe both the DTH system and the formation:

• rig make/model and rotary-head or saver-sub connection;
• DTH hammer make/model and exact bit-shank drawing or controlled reference;
• target hole diameter, depth, inclination, and straightness requirement;
• rock type and UCS/hardness if known;
• abrasiveness and whether the rock is competent, jointed, heavily fractured, weathered, or blocky;
• whether fractures are dry, wet, clay-filled, or associated with voids if known;
• compressor pressure and free-air delivery at the intended operating point;
• current drill-pipe OD, thread, bore/wall details, and length;
• current bit face/button/flushing configuration and a clear photo of used-bit wear;
• field symptoms: air loss, cuttings return, deviation, jamming, abnormal wear, or unstable penetration;
• quantity, inspection requirements, destination, and required spare-tool package.

This information lets the supplier distinguish a tooling problem from a ground-condition or air-system problem before recommending a substitution.

Frequently Asked Questions

Is DTH drilling suitable for fractured rock?

It can be. DTH is widely used in variable hard-rock applications, but suitability depends on hole stability, fracture condition, required diameter/depth, available air, and the ability to maintain cuttings removal. Highly unstable or collapsing ground may require a casing or other ground-support drilling method rather than an open-hole DTH setup.

Why does air return drop when a DTH hole enters fractured rock?

Open or connected fractures can provide an alternative flow path, allowing some compressed air to escape into the formation instead of returning up the annulus. A return-air drop can therefore occur even when the compressor itself has not changed. Confirm both the surface air system and the downhole ground condition.

Should feed pressure be increased when penetration becomes unstable?

Not automatically. Irregular penetration in fractured rock can indicate changing support beneath the bit, poor cleaning, or a weak zone. Excessive feed may increase jamming, bending, and wear. Re-establish smooth hammering and rotation within the manufacturer’s operating guidance before increasing feed.

Does fractured rock always require slower rotation?

No single RPM rule applies to every fractured formation. Rotation should match hammer size, bit diameter, penetration rate, and rock response. If the transition causes jerky rotation, grinding, or abnormal wear, the previous setting should be reassessed within the OEM range rather than blindly maintained or increased.

What is the most important field sign to monitor?

No single sign is enough, but the combination of cuttings return, rotation behavior, penetration trend, and pullback response is especially useful. A sudden deterioration across several of these signals indicates that the operator should reassess the hole before continuing to advance.

PerfoMax DTH Tools for Ground-Condition Matching

For a fractured-rock project, start by confirming the whole interface rather than requesting a generic bit by inch size. Review the PerfoMax DTH Drill Bit Selection page, browse the DTH Tools collection, and use the current 76 mm DTH Drill Pipe page when that pipe size and connection are relevant to your existing system.

Need a configuration review? Send PerfoMax your hammer model, shank reference, hole size, rock/fracture condition, air supply, and current tooling for a technical quotation.
