Quick answer: the point-load strength index is a rapid rock-material index obtained by breaking a core, block, or irregular lump between two conical platens. The size-corrected result, written Is(50) and reported in MPa, can help classify intact rock and compare samples. It is not the same measurement as uniaxial compressive strength (UCS), and converting it to UCS with one universal multiplier can create a misleading specification.
For drilling-tool selection, use Is(50) as one part of a condition profile. Confirm the specimen type, loading direction, moisture state, lithology, sample depth, number of valid tests, and whether the reported UCS is measured or estimated. Then combine strength with abrasivity, structure, fractures, weathering, water, hole geometry, and actual drilling response.
What does a point-load test measure?

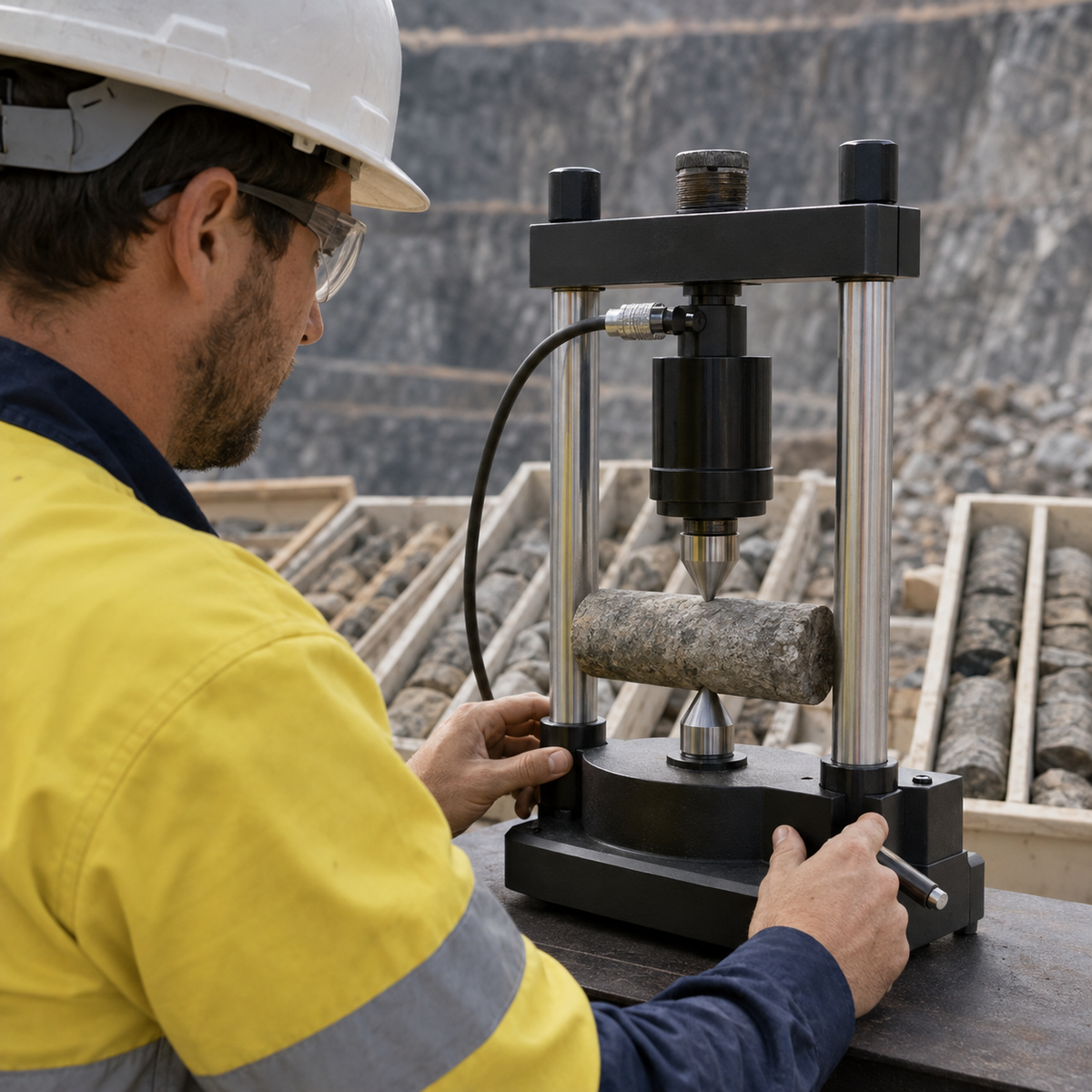

A point-load test applies concentrated force through a pair of truncated conical platens until the rock specimen fails. The peak failure load is divided by a representative specimen area to obtain an uncorrected point-load strength index. Because specimen size affects the result, the index is normally corrected to the equivalent response of a 50 mm specimen and reported as Is(50).
The test is attractive for site investigations because the apparatus is portable and requires much less specimen preparation than a UCS test. Core can be loaded across its diameter or along its axis, and properly selected blocks or irregular lumps can also be tested under the applicable procedure. This makes the method useful for rapid classification, screening, and selecting samples for more detailed laboratory work.
It is still an index test. The failure is created by concentrated points rather than by uniform axial compression between flat platens. Point-load failure commonly contains strong tensile splitting and local crushing components, whereas a UCS specimen develops a different stress field and failure mechanism. The two results can correlate for a defined rock population, but they are not interchangeable measurements.
Point-load index vs UCS: the essential differences
| Question | Point-load strength index | Uniaxial compressive strength |
|---|---|---|
| What is reported? | Usually size-corrected Is(50) in MPa | Peak axial compressive stress at failure in MPa |
| How is the specimen loaded? | Between two conical points | Axially between prepared, nominally parallel end faces |
| Typical specimen options | Core, block, or irregular lump within the chosen method's dimensional rules | Prepared cylindrical specimen meeting dimensional and end-condition requirements |
| Preparation and speed | Relatively limited preparation; suitable for rapid field or laboratory screening | More preparation, equipment, and controlled laboratory work |
| Best use | Index classification, variability screening, anisotropy checks, and preliminary correlation | Direct intact-rock compressive-strength measurement for the defined test condition |
| Main interpretation risk | Treating an empirical UCS estimate as a measured value | Treating intact specimen strength as a complete description of the in-situ rock mass |
If an RFQ says only “rock strength 120 MPa,” ask how that number was obtained. A laboratory UCS result, a point-load estimate, a hammer rebound estimate, and a value copied from a generic lithology table do not carry the same confidence.
How Is(50) is derived
The basic uncorrected index is commonly expressed as:
Is = P / De2
where P is the failure load and De is the equivalent specimen diameter defined for the specimen configuration. When force is expressed in newtons and dimensions in millimetres, the resulting N/mm² is numerically equal to MPa. The specimen geometry and the method used to calculate De must be reported; a diametral core test is not processed identically to every irregular-lump test.
A size correction converts the uncorrected result to Is(50). The ISRM suggested method includes a correction based on equivalent diameter; a commonly cited expression is:
Is(50) = (De / 50)0.45 × Is
This equation is useful for understanding the notation, but it is not a substitute for the full test method, its dimensional validity checks, rejection rules, specimen count, and reporting requirements. Laboratories should follow the agreed current procedure and identify the method and edition used.
Why one UCS conversion factor is unsafe
Estimated UCS is often written as:
UCS ≈ K × Is(50)
A multiplier around 20–25 appears frequently in general guidance. That range is a heuristic, not a physical constant. A peer-reviewed review of published correlations found much wider coefficients and different equation forms across rock types and datasets. Mineralogy, porosity, grain bonding, weathering, water content, anisotropy, specimen shape, and strength range all influence the relationship.
Consider two simplified examples using the same Is(50) of 4 MPa. A multiplier of 20 produces an estimated UCS of 80 MPa; a multiplier of 25 produces 100 MPa. That 20 MPa difference can move a buyer's internal rock classification and change expectations for penetration or tool life—even before other rock properties are considered. Neither estimate becomes a measured UCS simply because the arithmetic is precise.
The defensible approach is to develop a site- and lithology-specific correlation from paired point-load and UCS tests representing the same rock population and moisture condition. The correlation should show sample count, range, scatter, equation, and goodness of fit. If no local correlation exists, label the converted value as preliminary and retain the original Is(50) data.
Five factors that can change the result
1. Loading direction and anisotropy
Slate, schist, gneiss, laminated sedimentary rock, and other anisotropic materials can produce different results when loaded parallel or perpendicular to bedding, foliation, or weakness planes. Report orientation rather than averaging unlike directions into one unexplained number. Where relevant, separate results can support a point-load strength anisotropy index.
2. Moisture condition
Water can reduce the measured strength of some rocks, especially weathered, porous, clay-bearing, or weakly cemented materials. Record whether samples were tested dry, at natural moisture, or saturated. Do not combine those states without justification.
3. Sample disturbance and representativeness
Blasting, handling, drying, and storage may damage weak or fractured material before testing. Conversely, selecting only intact, attractive core pieces can omit the weak bands that dominate actual drilling. Sample by depth and lithology, and document how material was recovered.
4. Geometry and invalid failure
Specimen dimensions must fall within the chosen method's limits. A failure that runs only through a pre-existing crack, breaks at a platen contact in an invalid way, or does not pass through the intended section may need rejection. Do not keep every number merely to enlarge the dataset.
5. Geological variability
A single average hides alternating hard and soft beds, veins, inclusions, weathering fronts, and contact zones. Report the distribution and depth intervals—not just the highest value or a grand mean.
What Is(50) can—and cannot—tell a drilling buyer
| Reasonable use | Unsafe conclusion without more evidence |
|---|---|
| Compare relative intact strength across mapped intervals tested consistently | Predict exact penetration rate from Is(50) alone |
| Identify strength variability that may require more than one setup or trial | Predict button or rod life without abrasivity, structure, operating, and wear data |
| Support preliminary rock classification and sample selection | Replace a required UCS test or geotechnical design value |
| Flag anisotropy when orientation-specific tests differ | Describe the complete rock mass without joint spacing, RQD, faults, water, or weathering |
| Create a site-specific UCS correlation when paired tests are available | Apply a multiplier from another mine or lithology as universally valid |
For a deeper explanation of what measured UCS does and does not represent, read UCS in rock drilling: what MPa means.
A practical interpretation workflow
- Identify the source. Obtain the laboratory or field report, not only a number transferred into an RFQ.
- Confirm the reported property. Separate raw Is, size-corrected Is(50), measured UCS, and estimated UCS.
- Check method details. Record specimen type, dimensions, loading orientation, moisture, sample depth, lithology, failure load, and validity decision.
- Review the dataset. Look at valid-test count, range, central value, outliers, and whether strong and weak zones were separated.
- Audit the conversion. If UCS was estimated, record the equation, coefficient source, applicable range, and whether paired local tests support it.
- Add missing drilling variables. Include abrasivity or mineralogy, fractures and bedding, weathering, water, hole diameter and depth, required straightness, and available drilling system.
- Compare with field behavior. Use penetration by interval, cuttings, vibration, flushing response, wear pattern, and hole quality to test the geological interpretation.
- Run a controlled trial where uncertainty matters. Keep the tool system and operating conditions traceable so results can be attributed to the rock interval rather than uncontrolled changes.
Point-load data to include in a drilling-tool RFQ
- the original Is(50) results in MPa, including range and valid-test count;
- sample depth or location and lithology for each group;
- diametral, axial, block, or irregular-lump configuration;
- orientation relative to bedding, foliation, or visible weakness;
- sample moisture and weathering condition;
- test method and edition used;
- measured UCS results, if available, paired by lithology;
- any conversion equation and evidence supporting its coefficient;
- abrasivity, mineralogy or quartz information, fractures, RQD, water, and cuttings observations;
- rig, drill or hammer, rod or pipe, thread or shank, bit diameter, hole depth and angle, air or flushing supply, and current wear or failure pattern.
Keep “measured UCS” and “estimated UCS” in separate fields. That small data-hygiene rule prevents a preliminary index conversion from becoming a false precision claim as information moves between consultant, contractor, distributor, and supplier.
Common mistakes
- Reporting Is as Is(50). The size correction and specimen geometry are part of the meaning.
- Using one specimen. Rock variability and invalid failures make a single result weak evidence.
- Mixing lithologies or moisture states. An average may describe none of the actual drilling intervals.
- Ignoring anisotropy. Orientation can materially change the result in bedded or foliated rock.
- Calling converted UCS “tested UCS.” Always state that it is estimated and identify the correlation.
- Selecting tooling from strength alone. Strength, abrasivity, structure, flushing, compatibility, and operating conditions affect different parts of performance.
- Citing a standard without checking status. ASTM's catalogue marks D5731-16 as withdrawn in 2025; confirm the current contractual method instead of assuming an old designation remains active.
Frequently asked questions
What does Is(50) mean?
It is the point-load strength index corrected to a reference equivalent diameter of 50 mm. It allows results from suitable specimens of different sizes to be compared more consistently. It is reported in MPa.
Is point-load index the same as UCS?
No. The specimen preparation, loading geometry, stress field, and failure mechanism differ. A correlation can estimate UCS for a defined rock population, but the result remains an estimate unless UCS was directly tested.
Can I multiply Is(50) by 24?
You can use a published multiplier only as a clearly labelled preliminary estimate within its stated scope. For specification or high-consequence decisions, develop or obtain a local correlation from paired point-load and UCS tests. Published research shows substantial variation between rocks and datasets.
How many point-load tests are needed?
The answer depends on the method, specimen type, data quality, lithological variability, and intended use. Follow the agreed procedure and test enough representative specimens to quantify scatter. If a supplier receives only one value, it should request the underlying report rather than assume it represents the formation.
Can point-load data predict drill-bit life?
Not by itself. It describes an aspect of intact-rock strength. Bit life also depends on abrasivity and mineralogy, fractures, bit design and compatibility, rotation and feed, flushing, hole geometry, operator control, and wear limits.
Turn rock-test data into a usable drilling review
When requesting a drilling-tool recommendation, send PerfoMax the original point-load report, any measured UCS data, formation logs, hole plan, current rig and complete tool string, air or flushing conditions, and photographs of cuttings and worn tools. PerfoMax can use that application package to identify compatibility questions and the information still needed before quotation. Request a technical quotation.
Technical references
- International Society for Rock Mechanics, The Blue Book — includes the ISRM Suggested Method for Determining Point Load Strength.
- ISRM Commission, Suggested Method for Determining Point Load Strength — original 1985 method reference.
- West Virginia Department of Transportation, Point Load Testing Guidance — agency example of a locally defined UCS correlation and reporting procedure.
- Summary of the Transformational Relationship between Point Load Strength Index and UCS — peer-reviewed review showing the variability of published correlations.
- ASTM geotechnical engineering standards catalogue — current status listing for D5731-16.
