Quick answer: there is no universal winner between DTH and top-hammer drilling in the 76–115 mm quarry blast-hole range. Current OEM surface-rig ranges show top hammer firmly established from 76 mm upward, while mainstream quarry DTH rigs commonly enter the same decision space from about 90 mm. That makes roughly 90–115 mm a genuine overlap zone. The right method depends on hole depth, straightness tolerance, rock structure, available air/compressor capacity, existing rig fleet, drill-string compatibility and the cost of producing an acceptable blast hole—not hole diameter alone.
For a quarry buyer, the practical question is therefore not “Which method is better?” but “Which method gives the required hole geometry and productivity with the equipment, geology and operating infrastructure at this site?”
Why 76–115 mm Is an Overlap Zone
Published OEM rig envelopes illustrate why a single diameter cutoff is unreliable. Sandvik lists the Ranger DX700 top-hammer rig for 76–115 mm holes, while its Leopard DI560 DTH rig is listed for 90–165 mm holes. Epiroc similarly lists top-hammer machines in the 76–115 mm range and DTH machines beginning around 90 mm. These are equipment-specific examples, not universal method limits, but they show that buyers working around 90–115 mm can often choose between both architectures.
| Current OEM Example | Method | Published Hole Range | Published Depth / Air Reference | What It Shows |
|---|---|---|---|---|
| Sandvik Ranger DX700 | Top hammer | 76–115 mm | 8.1 m³/min flushing air, up to 10 bar | Top hammer directly covers the full 76–115 mm quarry decision range |
| Sandvik Leopard DI560 | DTH | 90–165 mm | 24.4 m³/min at 24 bar or 21.6 m³/min at 30 bar | DTH enters the overlap from 90 mm with a very different compressed-air architecture |
| Epiroc FlexiROC T40 R | Top hammer | 76–115 mm | Maximum hole depth 28 m | Another current top-hammer example in the exact overlap band |
| Epiroc FlexiROC D50 | DTH | 90–130 mm | Maximum hole depth 45 m; 295 L/s FAD | A current DTH quarry example beginning at 90 mm |
Important: do not read these figures as a universal rule that “DTH starts at 90 mm” or that one method always reaches a specific depth. Smaller DTH systems and larger top-hammer systems exist. Use the actual rig, hammer/rock-drill and tool manufacturer's operating envelope for the equipment being quoted.
1. The Mechanical Difference Changes the Selection Logic

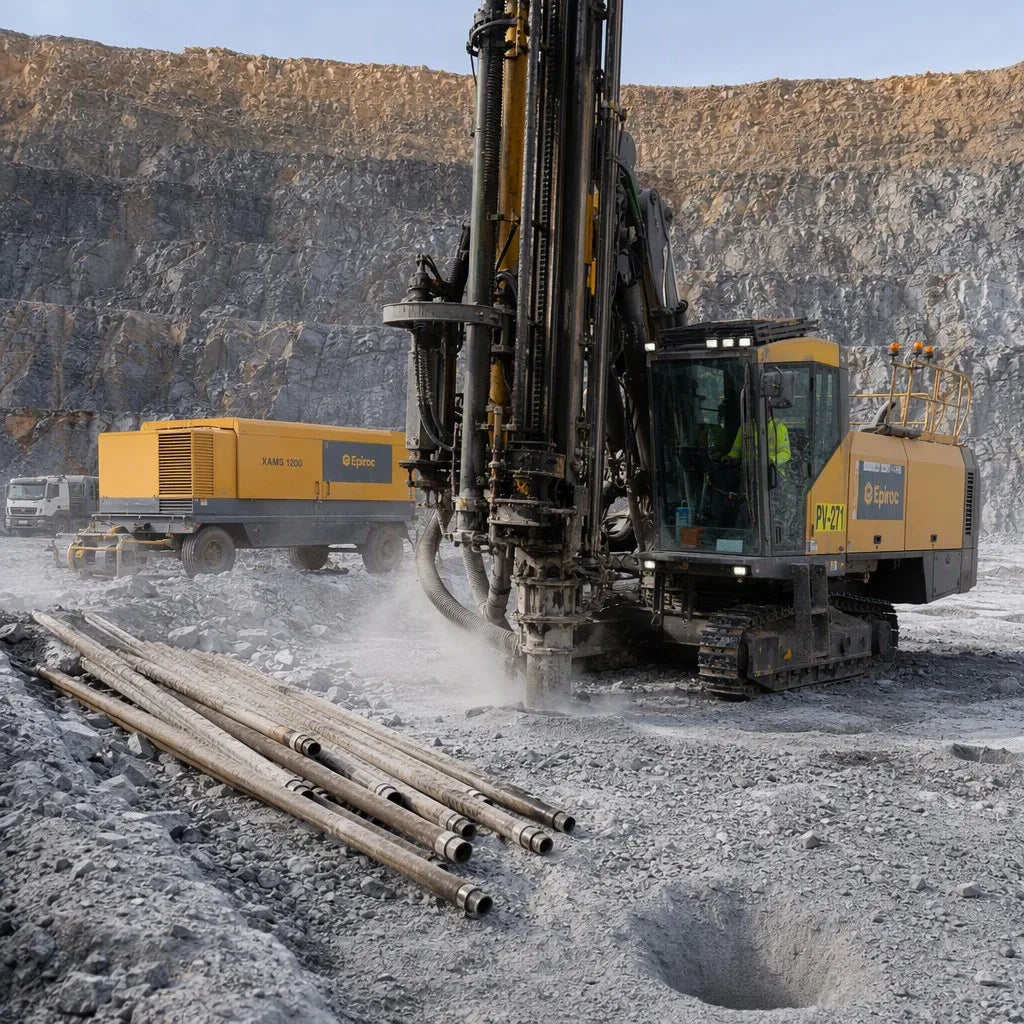

Top hammer: impact starts at the rig and travels through the drill string
In top-hammer drilling, the rock drill is mounted on the feed at the surface. Percussive energy passes through the shank adapter, rods and threaded joints to the bit. Rotation and feed are controlled by the rig, while compressed air is normally used primarily to flush cuttings from the hole on modern hydraulic quarry rigs.
This architecture is compact and productive for many quarry bench applications, but the drill string is part of the energy-transfer path. As the hole becomes longer and more joints are added, rod condition, thread condition, coupling quality, alignment and operating parameters matter increasingly to efficient energy transmission.
DTH: the hammer strikes directly behind the bit
In DTH drilling, the pneumatic hammer sits immediately behind the bit at the bottom of the hole. Compressed air powers the hammer and then exits through the bit to help carry cuttings upward. Locating percussion at the bit removes the need to transmit impact energy through the full length of the drill string, which is one reason DTH becomes attractive when hole depth and consistency become more demanding.
The trade-off is that compressor pressure and delivered airflow become central parts of the drilling system. A DTH hammer, bit, drill pipe, compressor and rig must be matched as one system rather than purchased as independent components.
2. Start with Hole Diameter—but Do Not Stop There
A useful first-pass screen for a 76–115 mm quarry project is:
| Hole Diameter | Initial Method Screen | What to Verify Next |
|---|---|---|
| 76–89 mm | Top hammer is commonly the more obvious starting point in current quarry rig ranges | Bench height, target depth, thread/rod family, required straightness, existing fleet |
| 90–102 mm | True overlap: compare both top hammer and DTH | Depth, deviation tolerance, rock structure, compressor system, cost per acceptable hole |
| 102–115 mm | Both methods remain viable in current OEM quarry equipment | Required depth/straightness, production pattern, rig availability, fuel/air economics, tooling life |
This is a screening framework, not a specification. If a buyer already owns a compatible rig with a proven drilling system, the economics of staying within that platform can outweigh a theoretical method advantage.
3. Hole Depth and Straightness Can Change the Answer
Quarry drilling is not judged only by metres per hour. A hole that is fast to drill but deviates enough to damage burden, spacing or toe position can create a more expensive blast. Epiroc's quarrying guidance explicitly notes that drilling pattern and hole position are fundamental to the blasting result.
As holes get deeper, DTH deserves closer evaluation because the hammer remains at the bit instead of transmitting percussion through an increasingly long string of rods and joints. That does not mean DTH automatically produces straight holes. Collar accuracy, feed alignment, bit condition, formation changes, rod/pipe straightness, operator settings and rig stability still matter.
Use these questions:
- What is the actual bench height and planned subdrill?
- What is the maximum acceptable toe deviation?
- Are holes vertical, inclined or mixed?
- How many rod joints are required with the proposed top-hammer setup?
- Does the blast design depend on tight burden and spacing control?
- Is the current deviation problem caused by the method, or by collaring, worn tooling, alignment or operating practice?
4. Rock Structure Matters More Than a Simple “Hard vs Soft” Label
Both DTH and top hammer can drill hard rock. A useful selection discussion therefore needs more than a rock name or an assumed hardness class. The quarry should describe:
- compressive strength or UCS if available;
- abrasiveness and expected carbide wear;
- fracturing, joints, bedding and voids;
- changes in formation within one bench;
- water inflow or wet zones;
- current penetration rate, deviation and consumable failure pattern.
Competent hard rock with longer holes may strengthen the case for DTH, especially when straightness is commercially important. Shorter production holes with frequent setup changes and a mature top-hammer fleet may favor top hammer. In highly fractured or variable formations, however, the safest decision is often a controlled field comparison because bit design, collaring and operating parameters can dominate the result.
5. Compressor and Air Infrastructure Can Be the Deciding Constraint
The Sandvik examples above show why DTH and top hammer must not be compared by “air consumption” without context. The Ranger DX700 uses a hydraulic top-hammer rock drill and lists flushing air at up to 10 bar. The Leopard DI560 uses compressed air to power the DTH hammer itself and lists 24 or 30 bar operating references. These are different system architectures.
For a quarry considering a change from top hammer to DTH, verify:
- compressor free-air delivery at the required working pressure;
- pressure available at the hammer under load, not only compressor nameplate pressure;
- hose/pipe losses and altitude effects;
- simultaneous air users on the site;
- fuel consumption at the intended pressure and airflow;
- whether the rig has the correct rotation head, feed force and pipe handling for the DTH system.
A method that looks attractive on tool cost can become uneconomic if it requires a major compressor or rig change. Conversely, a quarry already operating high-pressure DTH infrastructure may have little reason to force a top-hammer solution into the same hole range.
6. Practical DTH vs Top Hammer Selection Matrix
| Project Condition | Usually Lean Toward | Why | Do Not Decide Until You Verify |
|---|---|---|---|
| 76–89 mm production holes | Top hammer first | Strong current OEM coverage in this diameter band | Depth, straightness target and existing rig capability |
| 90–115 mm, moderate-depth quarry bench | Compare both | Clear overlap in current top-hammer and DTH equipment | Actual site productivity and total cost per acceptable hole |
| Deeper holes with tight toe-position tolerance | DTH deserves stronger consideration | Impact is generated at the bottom of the hole rather than transferred through the full rod string | Collaring, pipe straightness, bit selection and rig alignment |
| Existing top-hammer fleet with proven 76–115 mm performance | Top hammer may retain the economic advantage | No major rig/compressor change and known consumable system | Whether current deviation or depth requirements are still being met |
| Existing high-pressure DTH rig/compressor infrastructure | DTH may retain the economic advantage | System investment and operator experience already exist | Hammer, shank, bit diameter and pipe compatibility |
| Highly fractured or variable bench geology | Field trial | Formation behavior can overwhelm a generic method rule | Penetration, deviation, bit wear, flushing and blast result |
7. Compare Cost per Acceptable Hole, Not Only Penetration Rate
A procurement comparison should include more than metres drilled per hour. Build the commercial decision around the cost of producing a hole that meets the blast design:
- rig ownership, rental or depreciation;
- fuel and compressor energy;
- hammer/rock-drill service cost;
- bits, rods/pipes, couplings and shank adapters;
- thread or pipe damage and premature failures;
- operator and maintenance time;
- collaring and rod-change time;
- hole rework, abandoned holes or redrilling;
- deviation-related blast consequences;
- fragmentation, toe and downstream loading/crushing effects where measurable.
This is why a slightly slower drilling method can still be the better business choice if it creates fewer rejected or off-pattern holes. The reverse is also true: paying for DTH capability that the bench geometry does not need may increase cost without improving the blast.
8. Seven-Step Method Selection Workflow
- Define the hole: target diameter, bench height, subdrill, inclination and hole count per blast.
- Define acceptable geometry: collar tolerance, toe deviation and any blast-design constraints.
- Describe the formation: rock type, UCS if known, abrasiveness, fracturing, bedding and water.
- Map the existing fleet: rig make/model, top-hammer rock drill or DTH rotation head, rod/pipe handling and compressor capability.
- Shortlist compatible tool systems: top-hammer thread/rod/bit family or DTH hammer/shank/pipe/bit combination.
- Compare operating economics: delivered penetration, consumables, air/fuel, maintenance and rejected-hole cost.
- Run a controlled field trial if the choice remains close: hold hole diameter, depth, pattern and rock zone as constant as practical, then record penetration, deviation, bit wear, air/fuel and blast result.
Common Procurement Mistakes
| Mistake | Why It Creates Risk | Better RFQ Practice |
|---|---|---|
| Choosing from hole diameter alone | 90–115 mm is a genuine method overlap | Include depth, rock, deviation tolerance and current rig |
| Buying a “DTH bit” without the hammer/shank | Nominal diameter does not guarantee shank compatibility | Provide hammer make/model, shank family and bit diameter |
| Buying top-hammer rods from thread name alone | Thread family, rod length/body, shank adapter and bit system must work together | Provide rig/rock-drill model and current complete drill-string configuration |
| Comparing compressor kW instead of delivered air | DTH performance depends on pressure and airflow at operating conditions | State FAD/airflow at the required pressure and site altitude |
| Comparing only penetration rate | Deviation, wear and rework can dominate drilling economics | Compare cost per acceptable blast hole |
| Assuming a published rig range guarantees site performance | OEM envelopes do not replace geology and operating-condition checks | Use the manufacturer configuration sheet and, where needed, a site trial |
What to Send Before an RFQ
For a useful DTH-versus-top-hammer quotation, send:
- required hole diameter and typical/maximum depth;
- bench height, subdrill and hole inclination;
- rock type, UCS/hardness and abrasiveness if known;
- fractures, bedding, cavities or water conditions;
- rig make/model and current drilling method;
- for top hammer: rock-drill model, thread family such as T38/T45, rod length/body and current bit diameter;
- for DTH: hammer make/model, shank family, hammer size, drill-pipe OD/thread and compressor pressure/airflow;
- current penetration rate, bit life and any deviation problem;
- quantity, destination and required trade terms.
Frequently Asked Questions
Is DTH better than top hammer for a 102 mm quarry blast hole?
Not automatically. A 102 mm hole sits inside current OEM ranges for both methods. DTH becomes more attractive when depth, straightness consistency or existing high-pressure DTH infrastructure matters; top hammer can be the stronger economic choice for a quarry with a proven compatible rig and moderate bench depth. Compare the whole drilling-and-blasting result.
Can top hammer drill 115 mm quarry holes?
Yes. Current OEM examples include Sandvik Ranger DX700 and Epiroc FlexiROC T40 R configurations rated through 115 mm. The actual bit, thread/rod system, rock drill and formation still have to match.
Can DTH be used below 90 mm?
Smaller DTH systems exist, so 90 mm is not a universal minimum. The 90 mm boundary in this guide comes from the current mainstream quarry-rig examples used for comparison. If your rig uses a smaller DTH hammer, follow that manufacturer's hammer and bit envelope rather than this screening range.
Which method gives straighter holes?
DTH is often considered when longer-hole straightness is a priority because percussion occurs directly behind the bit, but method alone does not guarantee accuracy. Collaring, rig alignment, formation changes, feed/rotation settings, bit condition and rod/pipe straightness can all create deviation.
Which method needs the larger compressor?
DTH normally places much greater importance on high-pressure compressed air because air powers the down-hole hammer as well as flushing. Modern hydraulic top-hammer quarry rigs use the rock drill for percussion and compressed air mainly for flushing. Do not compare compressor size without matching the actual rig and working pressure.
PerfoMax Tooling for Quarry Method Selection
For DTH projects, review the PerfoMax DTH Tools collection and the current DTH Drill Bit Selection page. For top-hammer quarry applications, review the Drill Rods collection and current T45 Extension Drill Rods.
Need to decide between DTH and top hammer for a specific quarry bench? Send PerfoMax the hole diameter, depth, rock condition, rig model and current tooling for a technical quotation.
Technical References
- Sandvik — Ranger DX700 surface top-hammer drill rig. Used for the 76–115 mm quarry-range and flushing-air reference.
- Sandvik — Leopard DI560 DTH drill rig. Used for the 90–165 mm hole range, hammer size and 24/30 bar air-system reference.
- Epiroc — Surface drill rigs. Used to verify current top-hammer and DTH quarry rig ranges and example maximum-hole-depth figures.
- Epiroc — Quarrying process and equipment. Used to verify the importance of hole pattern, rock structure and drilling accuracy to the blast result.
