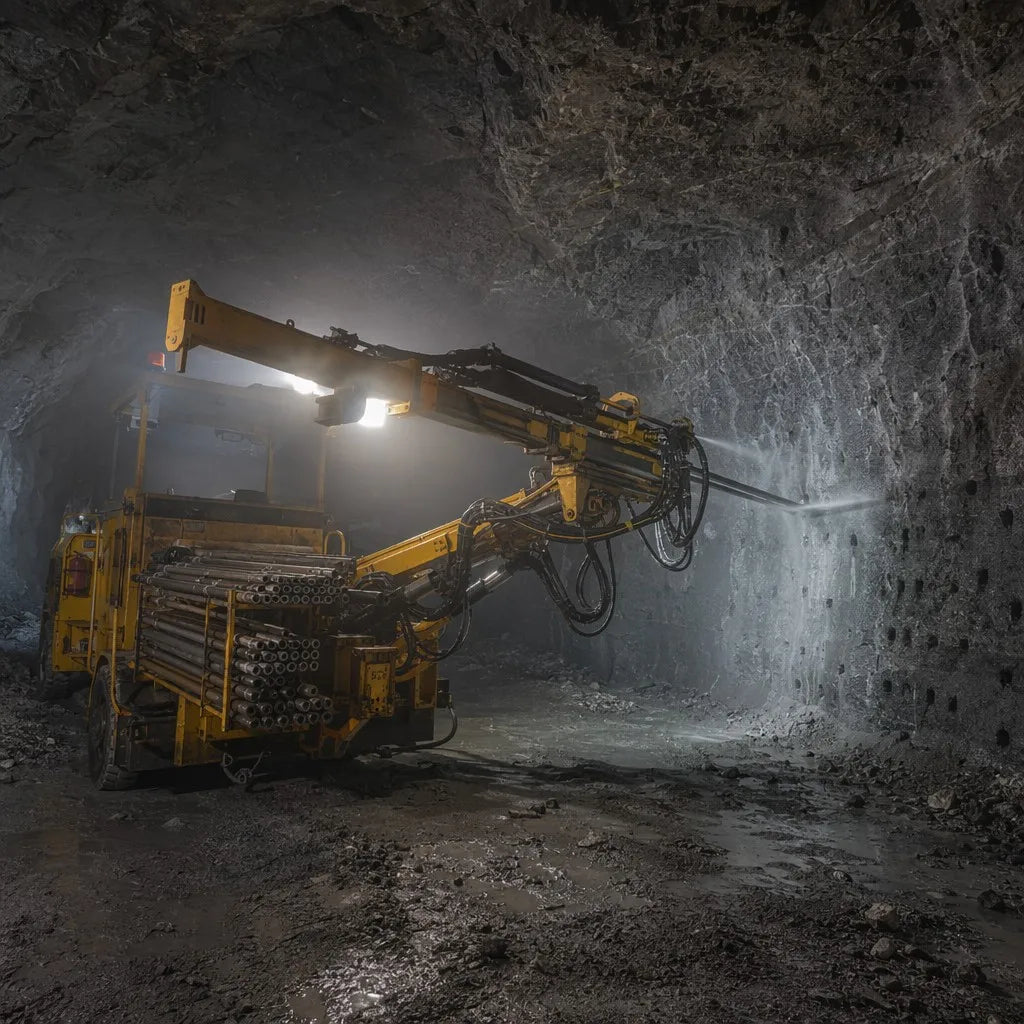

Quick answer: There is no universal maximum depth for top hammer drilling. As a hole gets longer, the decision becomes less about choosing a larger thread and more about controlling the complete drilling system: rock drill, shank adapter, rod architecture, number of joints, feed and rod handling, bit, flushing, geology, and the required hole straightness. Current purpose-built top-hammer systems show that long holes can extend well into tens of metres, but those published depths belong to specific rig-and-tool configurations and should never be copied directly to an unrelated drill string.
This guide is for mines, quarries, tunneling contractors, drilling-service companies, distributors, and procurement teams planning deeper top-hammer holes or extension drilling. It explains what changes as depth increases, how male-male extension rods differ from MF and tube-rod systems, why hole straightness becomes harder to control, and what information should be verified before ordering rods or changing the drilling setup.
1. What “Long-Hole” Means in Top Hammer Drilling
In top hammer drilling, impact energy is generated at the rock drill and transmitted through the shank adapter and drill string to the bit. A longer hole usually requires either a longer single-pass feed or a string built by adding rods as drilling progresses. Once additional rods and joints are introduced, the operation becomes extension drilling.
There is no single depth at which a top-hammer hole automatically becomes a “long hole.” The practical boundary depends on the machine and application. A surface bench rig, an underground production long-hole rig, and a tunneling jumbo equipped with an extension-rod handler can all use top hammer technology, but their feeds, rod systems, hole diameters, drilling directions, and approved depths are different.
That is why a buyer should not ask only, “Can T38 drill 20 m?” or “Is T45 suitable for 30 m?” A better question is: Is this exact rig, rock drill, feed, rod system, bit, flushing arrangement, and geology validated for the target hole depth and straightness?
2. Why Increasing Depth Changes the Drilling Setup
| Depth-related factor | What changes as the hole gets longer | What the buyer should verify |
|---|---|---|
| Drill-string joints | More rod additions can introduce more threaded interfaces and more make/break cycles. | Rod architecture, coupling type, thread condition, rod-handler capability, and maintenance practice. |
| Energy transmission | Percussive energy must travel through a longer string and multiple interfaces before reaching the bit. | Rock-drill output, approved rod family, connection condition, alignment, and OEM operating envelope. |
| Hole straightness | Small collaring, alignment, geology, or drill-string errors can accumulate over a longer hole. | Collaring procedure, feed alignment, guides/centralizers, rod rigidity, wear, geology, and deviation tolerance. |
| Flushing | Cuttings must travel a longer path from the bit back to the collar. | Available air/water delivery, flushing passage, bit flushing design, cuttings return, and signs of regrinding or blockage. |
| Rod handling | Adding and removing rods can become a major part of the drilling cycle. | Feed length, magazine capacity, rod length, manual or mechanized handling, and safe coupling/uncoupling workflow. |
| Wear and inspection | More joints and more cycles increase the need for systematic thread, coupling, rod, and bit inspection. | Wear limits and inspection rules from the applicable tool and rig documentation. |
3. Treat Depth Capability as a Complete System Approval
A published depth or hole-diameter capability belongs to a named rig, rock drill, feed, rod architecture, bit, flushing arrangement and operating envelope. It must not be transferred to another string merely because both systems use a T38, T45 or similar thread designation.
| Approval input | Evidence required | Hold condition |
|---|---|---|
| Machine and feed | Exact rig and rock-drill model, usable feed travel, rod support arrangement and handling method. | Rod length, outside profile or handling sequence is outside the documented machine configuration. |
| Complete string | Shank adapter, rod architecture, coupling method, bit connection and flushing path are identified as one configuration. | Only the thread family is known, or components are being combined from unrelated systems. |
| Hole requirement | Target diameter, depth, inclination, straightness tolerance, geology and cuttings-return condition are recorded. | The proposed string is being selected without a defined hole-quality requirement. |
| Controlled trial | The approved configuration passes staged collaring, extension, flushing, joint-behavior and post-test inspection checks. | Release relies on a catalogue depth, one successful short hole or an unrecorded field trial. |
This evidence gate lets a buyer compare systems without turning a supplier example into a universal depth rating. Missing configuration evidence means HOLD FOR SYSTEM CONFIRMATION, not “try the larger thread.”
4. Male-Male Extension Rods, MF Rods, and Tube Rods Are Different Architectures
A common purchasing error is to use “T38” or “T45” as if it fully describes the drill string. It does not. The same thread family can appear in different rod architectures.
- Male-male extension rod: both rod ends are male. Separate coupling sleeves are normally required between rods.
- MF (male-female) rod: one end has an integrated female connection, changing how rods connect and how the string is handled.
- Guide tube or tube rod: a larger and usually stiffer architecture used only in compatible purpose-built systems where guidance, hole straightness, support geometry and handling requirements justify it. It is not a simple substitute for a standard extension rod.
PerfoMax’s current T38 extension drill rods and T45 extension drill rods are defined as male-male extension rods in 3,050, 3,660, 4,270, and 4,880 mm lengths, used with separate matching couplings. An MF speed rod is a separate configuration and should be identified explicitly in an RFQ.
Therefore, do not read an OEM statement such as “T45 MF rods up to a specified depth” and transfer that depth directly to a male-male T45 string. The thread family may be the same while the rod architecture and complete drilling system are different.
Architecture decision gate: extension rod, MF rod, or guide/tube system
Use the table below before requesting a change in rod architecture. It is a screening asset, not a universal recommendation: the selected machine and tooling documentation still control the final configuration.
| Decision input | Male–male extension rod with coupling sleeves | MF rod | Guide tube / tube rod |
|---|---|---|---|
| Existing machine approval | Proceed only when the feed, shank, supports and coupling workflow approve this architecture. | Proceed only when the rock drill, handler and integrated female connection are approved together. | Proceed only for a purpose-built system with the correct supports, shank, handler and bit range. |
| Commercial trigger | Natural replacement path when the current string already uses separate couplings and matching male ends. | Evaluate when the approved machine uses an integrated male–female string and handling speed is a controlled requirement. | Evaluate when deviation control or long-hole stability requires a larger guided architecture and the machine supports it. |
| Main verification risk | Coupling wear, make/break cycles, joint count, thread identity and cumulative flushing restriction. | Female-end condition, seating, string architecture, handler sequence and compatibility with retained components. | Outside diameter, guide/support clearance, feed and magazine capacity, flushing path, bit match and recovery clearance. |
| Evidence before RFQ | Current rod and coupling markings, dimensions, shank, bit, hole plan and approved drawing. | Exact OEM configuration, male/female end references, rod-handler details and complete mating string. | Rig/tool approval, guide or tube drawing, support geometry, hole-quality target and controlled trial plan. |
| Stop condition | Do not convert from MF or tube architecture merely because the thread name overlaps. | Do not order an MF rod as a faster version of a male–male rod without machine approval. | Do not use a guide tube as a generic cure for deviation on a machine that was not designed for it. |
Commercial boundary: PerfoMax’s current active rod routes cover male–male T38 extension rods and T45 extension rods. If the controlled machine record requires an MF rod, guide tube or another architecture, state that requirement in the RFQ rather than substituting a PerfoMax male–male rod.
Copy-ready architecture decision record
- rig, rock-drill and feed/handler model;
- current shank adapter and first connection;
- current rod architecture, thread, body profile, length and coupling method;
- proposed architecture and the document that approves it;
- target hole diameter, depth, inclination and straightness tolerance;
- rod-support, guide, centralizer and recovery-clearance evidence;
- flushing medium, passage arrangement and observed cuttings return;
- current joint count, make/break cycle and handling constraint;
- controlled trial plan and acceptance owner;
- decision: RETAIN CURRENT STRING / QUOTE MALE–MALE EXTENSION / OEM-CONFIRM MF / OEM-CONFIRM GUIDE-TUBE / HOLD.
5. Hole Straightness Becomes a System Problem as the Hole Gets Longer
Long-hole quality is not controlled by rod diameter or thread size alone. A small directional error near the collar can become a significant positional error at depth, and fractured or variable rock can push the bit away from the intended path.
Key straightness variables include:
- accurate collaring and feed alignment;
- rig stability during drilling;
- rod straightness and joint condition;
- appropriate bit diameter and bit design;
- rod stiffness and system geometry;
- feed, rotation and percussion settings;
- guide tools or centralizing solutions where approved;
- rock structure, foliation, joints, voids and changing formation strength.
Current top-hammer tooling manuals treat straight-hole performance as a complete drill-string objective and reserve guide or tube solutions for compatible systems where deviation control is difficult. The practical buyer lesson is that straightness must be engineered and measured rather than assumed from the thread label.
6. Depth and Energy Transfer: Avoid Fixed “Loss per Joint” Rules
Top hammer drilling sends stress waves from the rock drill through the shank and drill string to the bit. As the string grows, connection quality, rod condition, alignment and system matching matter more. However, there is no defensible universal rule such as “each coupling loses X percent of impact energy” that can be applied across all rigs, threads, rod lengths and operating conditions.
For purchasing and troubleshooting, use observable system performance instead:
- penetration rate under comparable rock conditions;
- thread and coupling temperature or abnormal wear;
- frequency of loose or difficult-to-break joints;
- bit wear pattern;
- hole deviation;
- delivered flushing and cuttings return;
- rod and coupling service life.
If performance falls as more rods are added, diagnose the string and operating setup before assuming that the solution is simply a larger thread.
7. Flushing and Cuttings Return Still Have to Work at the Bottom of the Hole
Longer holes create a longer return path for cuttings. If flushing is insufficient for the actual hole diameter, drilling direction, rock fragmentation and water conditions, cuttings can recirculate around the bit and string. This can increase regrinding, wear, torque and the risk of sticking.
Before increasing depth, confirm:
- the rig can deliver the flushing medium required by the approved tool system;
- shank, rods, couplings and bit provide a continuous flushing path;
- bit flushing holes are open and correctly configured;
- cuttings return remains stable as depth increases;
- water inflow, fractured ground or collapsing formations are not changing the cleaning requirement.
Do not use a generic airflow or water-flow number from another rig as a purchasing specification. Use the actual rock drill, tool and rig documentation.
8. Rod Handling Can Become the Productivity Bottleneck
In short holes, rod handling may be a minor part of the cycle. In long extension drilling, every added rod introduces connection, alignment, make-up, uncoupling and storage steps. Rod length therefore affects more than the number of joints—it also affects what the feed and handler can physically manage.
Purpose-built long-hole systems use defined rod lengths, magazines, supports and automated or controlled make/break sequences. The key lesson is that long-hole productivity is partly a handling-system design problem; the rod cannot be selected separately from the feed and handler.
When comparing 3,050, 3,660, 4,270 and 4,880 mm rods, do not choose the longest rod simply to reduce joints. Check usable feed length, loading clearances, rod magazine or manual handling, extraction capacity, transport, and safe make/break procedures. For more detail, see the T38 Drill Rod Length Guide.
9. Rod Count and Magazine Capacity: A Planning Calculation
Calculate extension-rod demand from the usable advance of the approved setup, not by dividing hole depth by a catalogue rod length. Thread engagement, shank and bit geometry, feed reserve, collar stand-off and the machine’s first-rod sequence mean that nominal component lengths are not automatically equal to drilling advance. Obtain the usable values from the exact rig, feed and tool configuration before releasing an order.
Variables and calculation
- H = target hole length measured from the agreed collar reference.
- S = usable single-pass advance or starter reach in the approved machine setup.
- E = effective added advance from each extension rod in that setup.
- M = usable extension-rod positions in the installed magazine or handler.
Required extension rods: Next = max(0, ceil((H − S) ÷ E)).
Total rods in the planned string: Ntotal = 1 + Next, when the setup uses one starter or first rod plus extension rods.
Capacity gate: Next must be less than or equal to M. Confirm whether a published capacity counts only magazine positions, includes the rod already in the feed, or is stated as “positions plus one starter.” Those conventions are not interchangeable.
Worked example for method only
Assume a target hole length of 18.0 m, an approved usable starter reach of 4.2 m and an effective added advance of 3.6 m per extension rod:
- Next = ceil((18.0 − 4.2) ÷ 3.6).
- Next = ceil(3.833...) = 4 extension rods.
- Ntotal = 1 starter rod + 4 extension rods = 5 rods.
- Planned geometric reach = 4.2 + (4 × 3.6) = 18.6 m, leaving 0.6 m of calculation reserve.
This example explains the method; it is not a PerfoMax product rating or an approved setup. If the installed handler has only three usable extension positions, the result is HOLD AND REPLAN even though four rods provide enough geometric reach. The buyer must change the approved handling plan, target depth, feed/rod configuration or equipment—not assume that a nominal rod length removes the capacity limit.
Rod-count release gate
| Decision | Required evidence | Next action |
|---|---|---|
| RELEASE FOR RFQ | Exact setup is approved; H, S and E are documented; required extensions fit the installed handler; flushing and straightness checks cover the target depth. | Record the calculated quantities and quote the complete matching string. |
| CONTROLLED FIRST HOLE | Capacity is adequate, but the rod sequence, geology or target depth is new to the site. | Run a staged trial and record penetration, cuttings return, joint behavior, deviation and post-hole condition. |
| HOLD FOR DATA | Usable starter reach, effective added advance or the magazine counting convention is unclear. | Obtain the machine/tool drawing or a measured approved setup before calculating quantity. |
| RESELECT OR REPLAN | Required extensions exceed usable handler capacity, or target depth exceeds the documented system envelope. | Re-evaluate rod length, feed/handler configuration, hole plan or drilling method. |
Copy-ready rod-count record
- target hole length H and collar reference;
- approved usable starter reach S and its source document;
- effective extension advance E and its source document;
- calculated Next and Ntotal;
- installed magazine/handler capacity M and its counting convention;
- planned geometric reach and reserve;
- feed, support, extraction and manual-handling constraints;
- decision: RELEASE / CONTROLLED FIRST HOLE / HOLD FOR DATA / RESELECT.
Keep this calculation with the RFQ and machine configuration record. It prevents a nominal rod-length list from being mistaken for a validated depth plan.
10. When Should You Reconsider the Drill String—or the Drilling Method?
| Situation | Better next step | Why |
|---|---|---|
| Current approved top-hammer setup meets depth, straightness and productivity targets | Keep the validated system and control wear/operating parameters. | A deeper-looking or larger-thread system does not automatically create value. |
| Target depth requires more rod additions than the feed/handler can practically manage | Re-evaluate rod length, handler/feed configuration or purpose-built long-hole equipment. | Rod handling can limit cycle time and safe operation. |
| Deviation grows beyond the blast or production tolerance | Diagnose collaring, geology, alignment, worn tools and guidance options before changing thread family. | Thread size alone does not solve directional error. |
| Cuttings return becomes unstable with depth | Verify flushing delivery, passages, bit design and hole conditions. | Poor hole cleaning can imitate a power or tooling problem. |
| The target is outside the validated rig/tool envelope | Review a purpose-built long-hole top-hammer configuration or another drilling method such as DTH where appropriate. | The selection boundary is system- and application-specific. |
DTH can become attractive in applications where hole straightness, depth, diameter or energy delivery favor an in-hole hammer, but there is no universal depth at which every project should switch from top hammer to DTH. Compare the complete application and validated equipment options.
11. Eight-Step Top Hammer Long-Hole Planning Workflow
- Identify the rig and rock drill exactly. Record make, model, rock-drill model and current shank adapter.
- Define the hole plan. Record diameter, target depth, inclination, drilling direction and required collar/toe positional accuracy.
- Map the current drill string. Record thread family, rod architecture, rod length, coupling type and bit connection.
- Check the approved configuration. Confirm that the rig, rock drill, feed and rod system support the target setup.
- Plan rod additions and handling. Calculate how many rods are required and confirm the feed, magazine or manual handling can manage them safely.
- Review geology and straightness risk. Include joints, fractures, voids, changing rock strength and prior deviation data.
- Verify flushing at target depth. Confirm cuttings return and the complete flushing path rather than assuming shallow-hole settings will scale.
- Approve the supply by drawing and controlled trial. Lock the connection, rod architecture and dimensions before fleet-wide conversion.
12. Common Long-Hole Top Hammer Selection Mistakes
- Using thread size as a depth rating.
- Copying an OEM’s published 38 m or 54 m figure to an unrelated rig and drill string.
- Mixing male-male and MF ordering language.
- Choosing a longer rod without checking feed travel or rod handling.
- Ignoring couplings, shank adapter and bit when changing rods.
- Assuming more percussion power will correct geological deviation.
- Using a universal “energy loss per joint” percentage.
- Waiting for a stuck string or poor fragmentation before measuring hole deviation and cuttings return.
13. What to Send in a Long-Hole Top Hammer RFQ
- rig make and model;
- rock drill model and variant;
- current shank adapter part number or clear photos;
- thread family: T38, T45 or other;
- rod architecture: male-male extension, MF or tube rod;
- current and requested rod length;
- coupling sleeve details where applicable;
- bit thread and bit diameter;
- target hole diameter, depth and inclination;
- rock type, fracture condition and water condition;
- feed length and rod-handler/magazine configuration;
- air or water flushing arrangement;
- required hole-straightness or blast-pattern tolerance;
- photos/drawings of current rod ends and connections;
- quantity, destination and required inspection/packing documents.
If the current configuration is unclear, use a full-system compatibility check before ordering. The Top Hammer Shank Adapter Compatibility Guide explains the machine-side checks that should be completed first.
FAQ
How deep can a top hammer drill?
There is no universal maximum depth. Purpose-built systems publish different limits for named rig, rock-drill, feed, rod and hole configurations. Treat those limits as configuration-specific evidence, not as a generic rating for a thread family.
Does T45 automatically make a top-hammer string suitable for deep holes?
No. T45 defines a thread family, not a complete depth capability. The rock drill, shank, rod architecture, feed, rod handling, bit, flushing and application all have to match.
Do fewer rod joints always improve long-hole performance?
Not automatically. Fewer additions can reduce handling cycles, but a longer rod must still fit the feed and rod-handling system and must be practical for the site. Choose rod length as a rig-and-workflow decision, not by joint count alone.
When should a buyer consider DTH instead of top hammer?
Consider DTH when the target depth, diameter, straightness, geology or drilling economics are better served by an in-hole hammer and the available rig/compressor package supports it. There is no single depth threshold that applies to every project.
Can PerfoMax T38 or T45 male-male extension rods be used for long-hole drilling?
They can be used only where the specific rig, shank, coupling, bit, feed and operating envelope support that male-male extension-rod configuration. Do not assume equivalence with an OEM MF-rod or tube-rod long-hole system because the thread designation overlaps.
Technical and Safety Boundaries
- UK HSE — Provision and Use of Work Equipment guidance
- OSHA 29 CFR 1910.147 — control of hazardous energy
Exact depth capability, rod architecture, feed and handler compatibility, flushing limits, operating settings and inspection limits must come from the current manuals and drawings for the selected rig and tool system. Supplier or competitor catalogues may be used privately to understand terminology, but they are not a substitute for configuration-specific approval.
Plan the Complete Drill String Before Ordering
PerfoMax’s active drill rod range currently includes T38 male-male extension rods and T45 male-male extension rods in multiple lengths. If you are planning a deeper top-hammer hole, replacing an existing string or changing rod length, send PerfoMax the rig, rock-drill, current tooling, target hole and rod-handling information so the RFQ can be reviewed against the actual system rather than thread name alone.
